DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

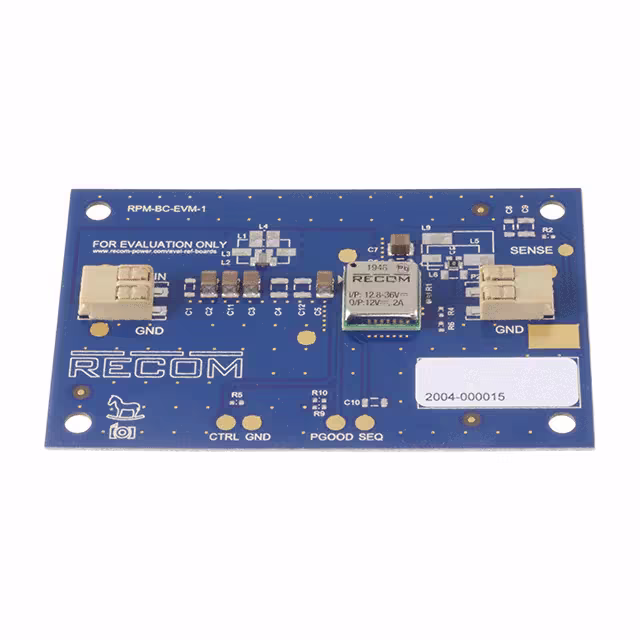

RPMB12-2.0-EVM-1RPMB12-2.0 EVALUATION MODULE |
1,143 | 53.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 2A | 12.8V ~ 36V | - | - | Board(s) | - |
|

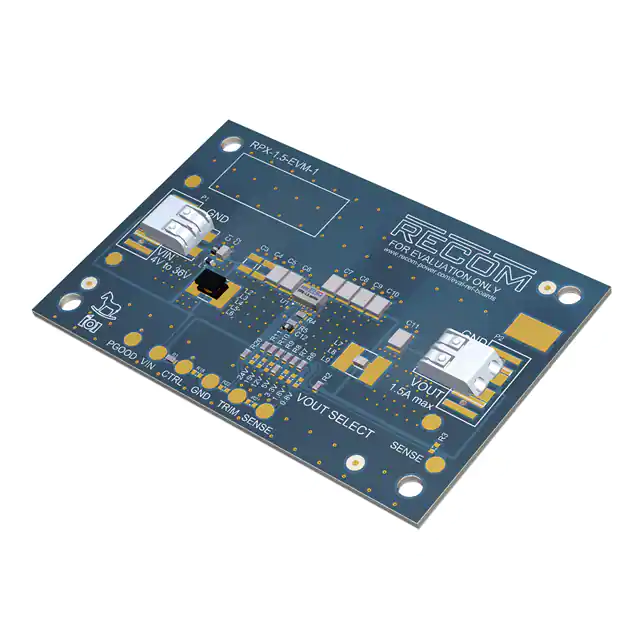

RPX-1.5-EVM-1EVAL BOARD FOR RPX1.5 |
2,260 | 53.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 7 Non-Isolated Outputs | - | 0.8V, 1.8V, 3.3V, 5V, 12V, 15V, 24V | 1.5A | 4V ~ 36V | Buck | - | Board(s) | RPX-1.5 |
|
RPX-1.0-EVM-1EVAL BOARD FOR RPX1.0 |
3,187 | 53.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 7 Non-Isolated Outputs | - | 0.8V, 1.8V, 3.3V, 5V, 12V, 15V, 24V | 1A | 4V ~ 36V | Buck | - | Board(s) | RPX-1.0 |
|

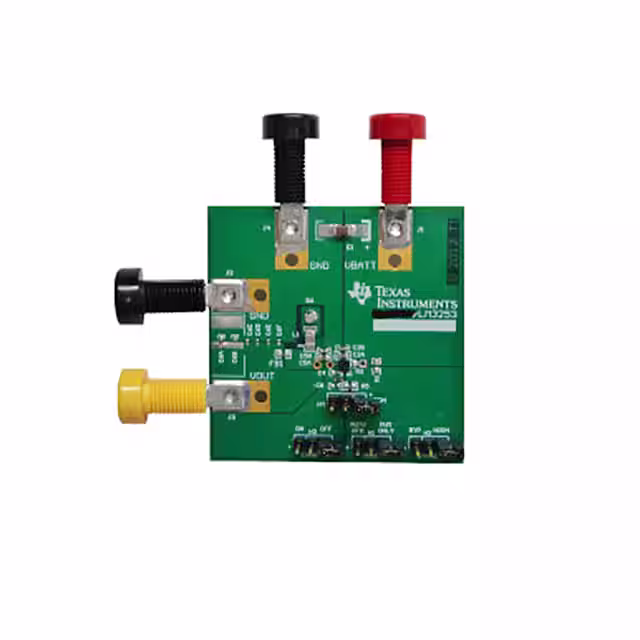

LM3253EVM/NOPBEVAL BOARD FOR LM3253 |
1,077 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 3.6V | 3A | 2.7V ~ 5.5V | Buck | 2.7MHz | Board(s) | LM3253 |
|

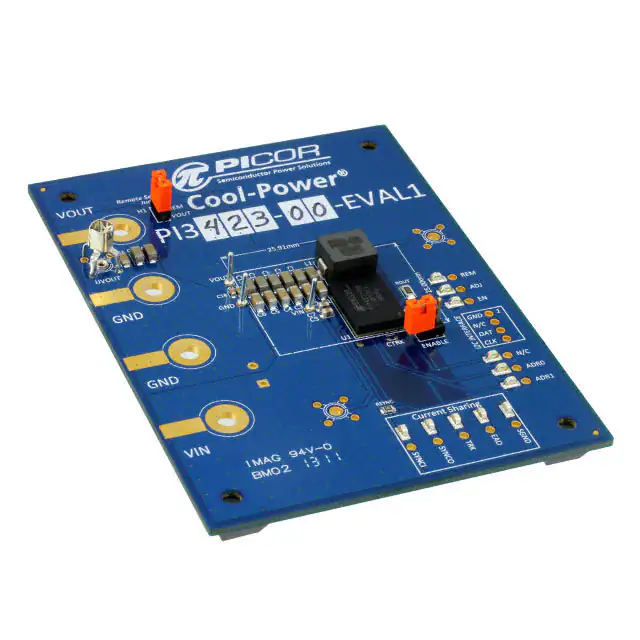

PI3423-00-EVAL1EVAL BOARD FOR PI342300 |
3,200 | 53.34 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 15A | 8V ~ 18V | Buck | 700kHz | Board(s) | PI3423-00 |
|

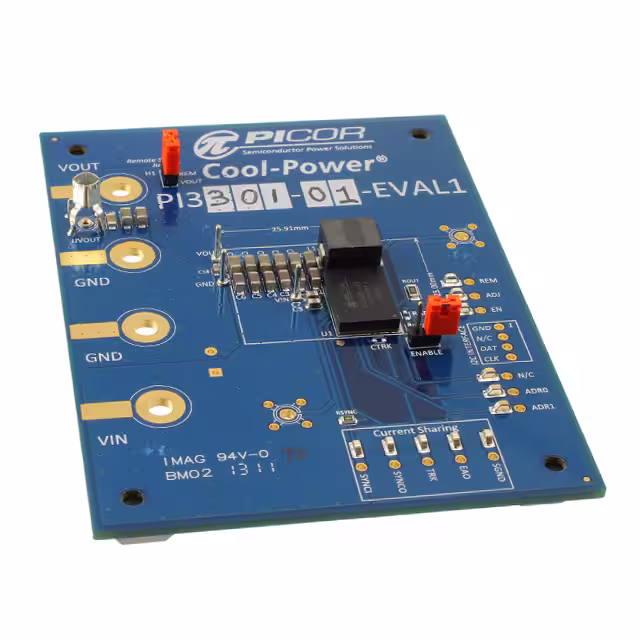

PI3301-01-EVAL1EVAL BOARD FOR PI330101 |
2,592 | 53.34 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 15A | 8V ~ 36V | Buck | 650kHz | Board(s) | PI3301-01 |
|

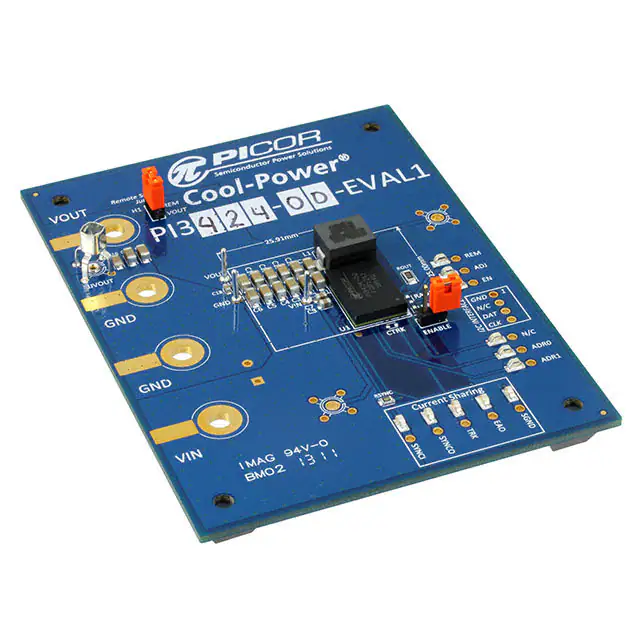

PI3424-00-EVAL1EVAL BOARD FOR PI342400 |
4,529 | 53.34 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 15A | 8V ~ 18V | Buck | 750kHz | Board(s) | PI3424-00 |
|

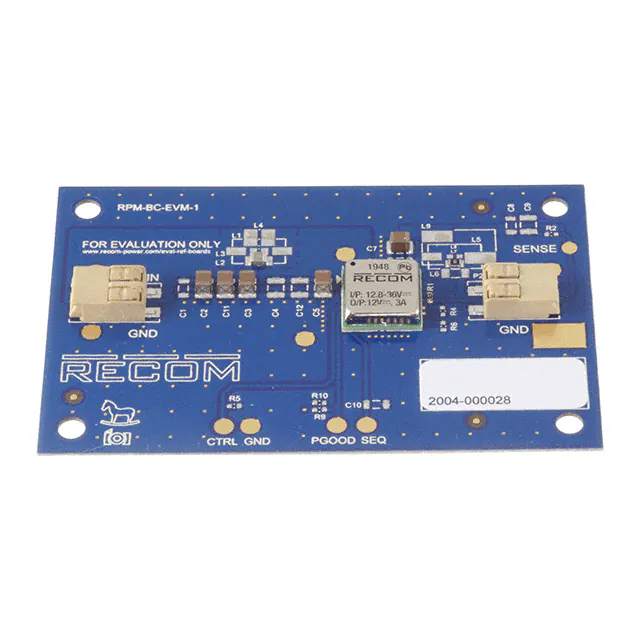

RPMB12-3.0-EVM-1EVAL BOARD FOR RPMB123.0EVM1 |
2,891 | 53.58 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 3A | 12.8V ~ 36V | Buck | 1.4MHz | Board(s) | RPMB12-3.0-EVM-1 |
|

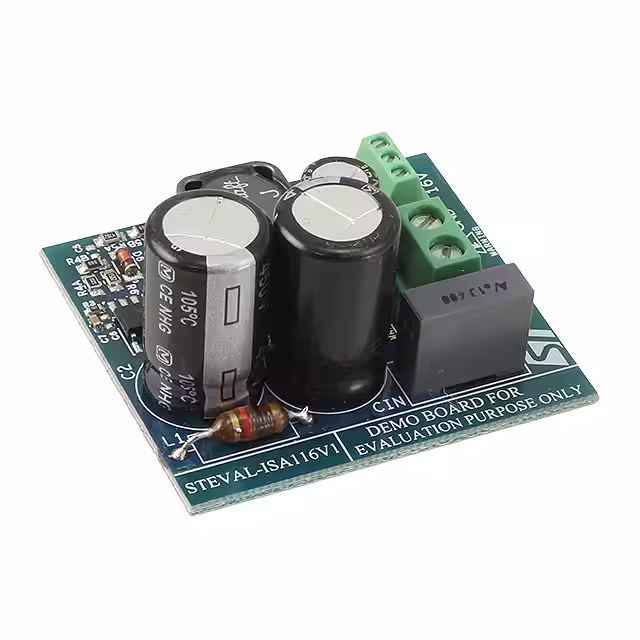

STEVAL-ISA116V1EVAL BOARD FOR VIPER26 |
4,601 | 52.50 |
|
Datasheet |
VIPer™ plus | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | 5 W | 5V, 16V | 300mA | 80 ~ 280 VAC | Buck | 60kHz | Board(s) | VIPer26 |
|

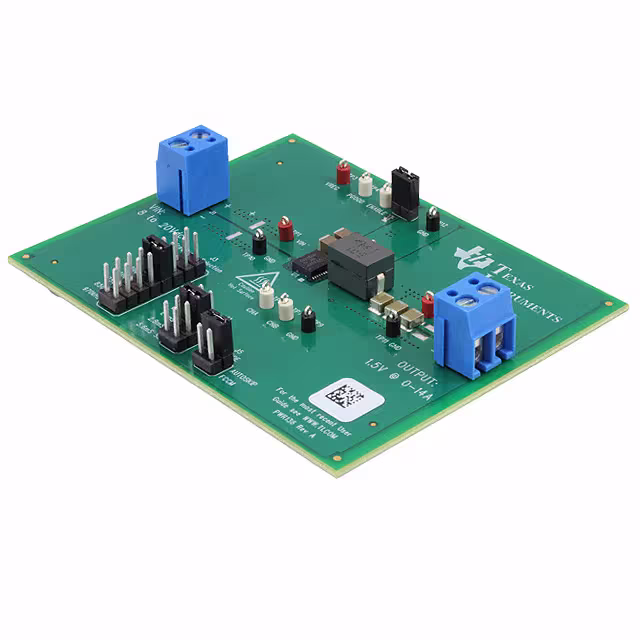

TPS53319EVM-136EVAL BOARD FOR TPS53319 |
2,008 | 58.80 |
|
Datasheet |
D-CAP™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 14A | 8V ~ 20V | Buck | 500kHz | Board(s) | TPS53319 |
|
TPSM84205EVM-888EVAL BOARD FOR TPSM84205 |
1,336 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 7V ~ 28V | Buck | 400kHz | Board(s) | TPSM84205 |
|

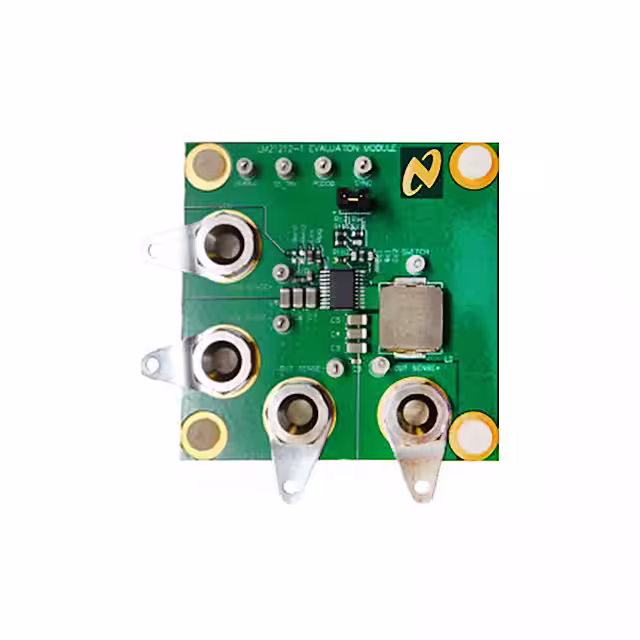

LM21212-1EVM/NOPBEVAL BOARD FOR LM212121 |
4,156 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 2.95V ~ 5.5V | Buck | 300kHz ~ 1.5MHz | Board(s) | LM21212-1 |
|

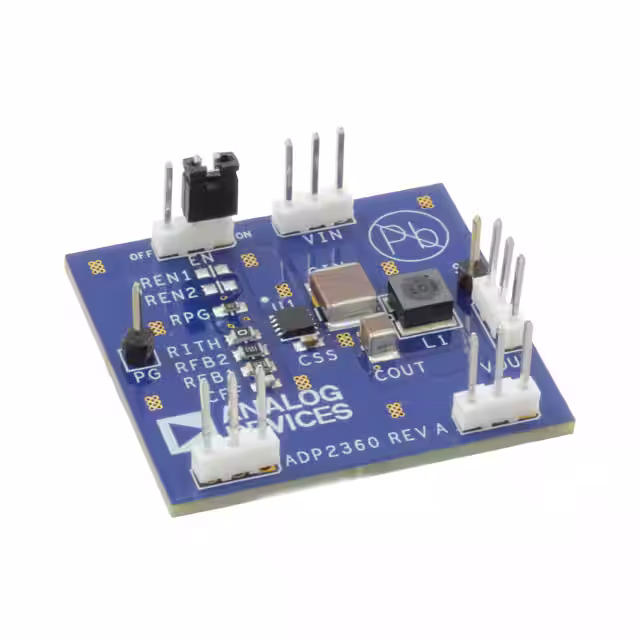

ADP2360CP-EVALZEVAL BOARD FOR ADP2360 |
4,412 | 54.08 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 50mA | 4.5V ~ 60V | Buck | - | Board(s) | ADP2360 |
|
RPMH15-1.5-EVM-1RPMH15-1.5 EVALUATION MODULE |
3,004 | 54.31 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 15V | 1.5A | 17V ~ 60V | - | - | Board(s) | - |
|
ADM00824EVAL BOARD FOR MIC2875 |
1,871 | 48.23 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5.5V | 4.8A | 2.5V ~ 5.5V | Boost | 45kHz | Board(s) | MIC2875 |
|
RPX-1.5Q-EVM-1EVAL BOARD FOR RPX1.5Q |
2,221 | 54.46 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.8V, 3.3V, 5V, 12V, 15V or 24V | 1.5A | 4V ~ 36V | Buck | - | Board(s) | RPX-1.5Q |
|
ADP5138W-1-EVALZEVAL BOARD FOR ADP5138 |
1,638 | 53.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 5 Non-Isolated Outputs | - | 1V, 1.25V, 1.35V, 1.8V, 3.3V | 1A, 1A, 1A, 1A, 250mA | 3V ~ 5.5V | Buck | - | Board(s) | ADP5138 |
|

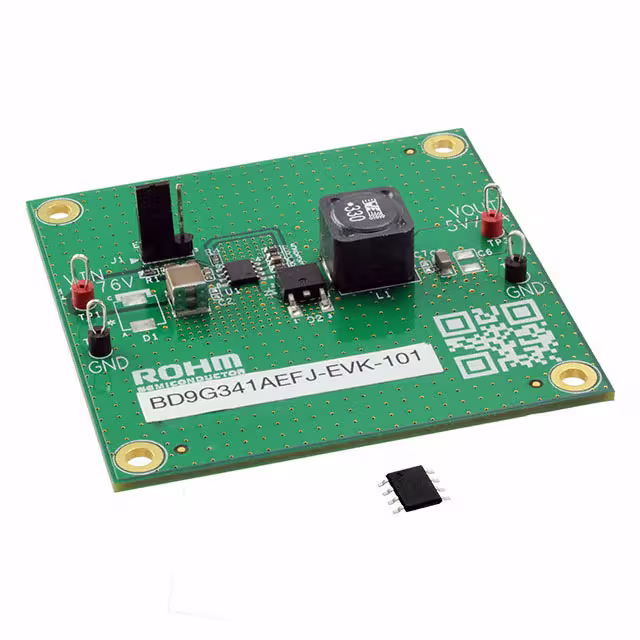

BD9G341AEFJ-EVK-101EVAL BOARD FOR BD9G341A |
2,789 | 41.66 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 12V ~ 76V | Buck | - | Board(s) | BD9G341A |
|

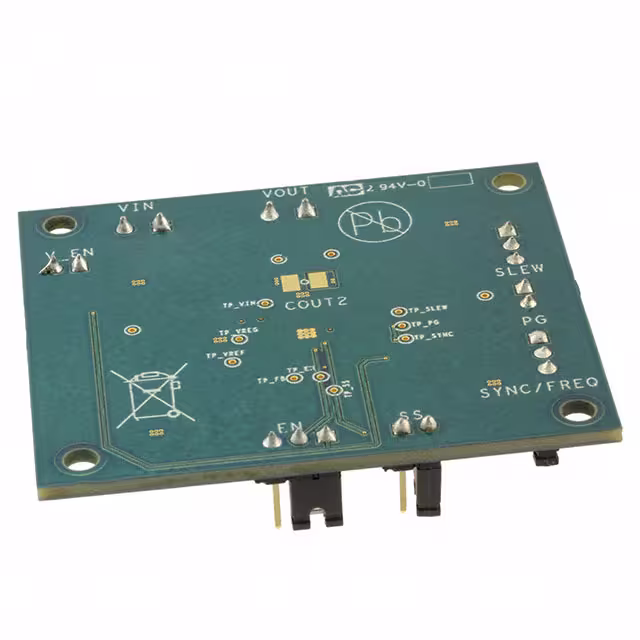

ADP5073CP-EVALZEVAL BOARD FOR ADP5073 |
4,528 | 54.08 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | - | 1.2A | 2.85V ~ 15V | Inverting | - | Board(s) | ADP5073 |
|
ADP5074CP-EVALZEVAL BOARD FOR ADP5074 |
4,430 | 54.08 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | - | 2.4A | 2.85V ~ 15V | Inverting | - | Board(s) | ADP5074 |
