DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2431AEVAL BOARD FOR LT8390 |
4,934 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 300 W | 12V | 25A | 9V ~ 36V | Buck-Boost | 150kHz | Board(s) | LT8390 |
|

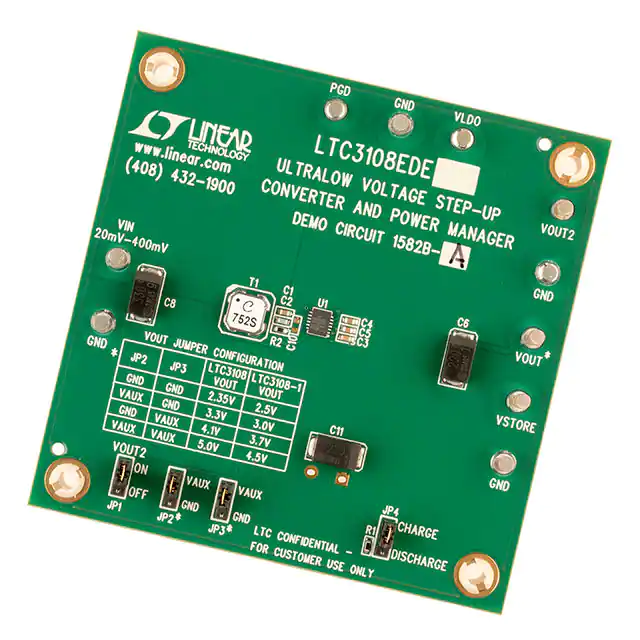

DC1582B-AEVAL BOARD FOR LTC3108 |
2,760 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up with LDO | 3 Non-Isolated Outputs | - | - | - | 0.05V ~ 0.4V | Boost | - | Board(s) | LTC3108 |
|

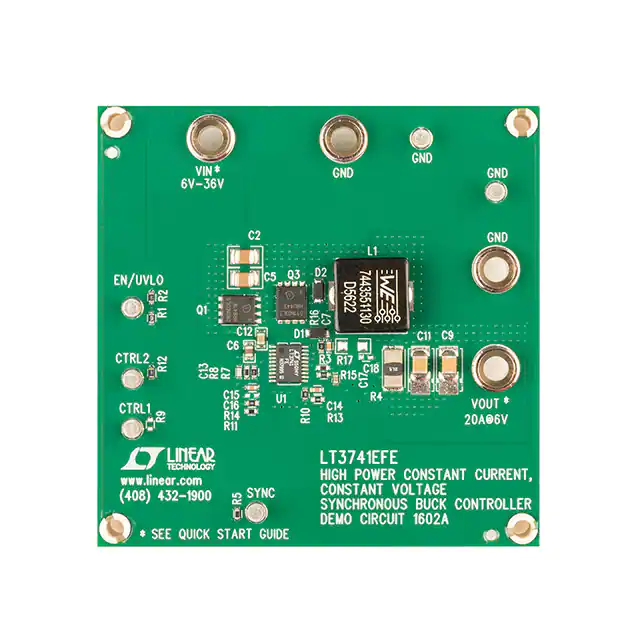

DC1602AEVAL BOARD FOR LT3741 |
3,637 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 6V | 20A | 12V ~ 24V | Buck | 420kHz | Board(s) | LT3741 |
|

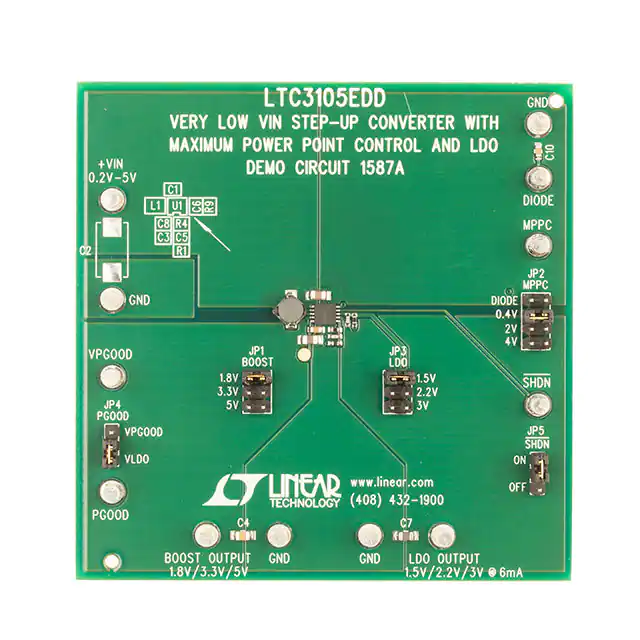

DC1587AEVAL BOARD FOR LTC3105 |
4,906 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up with LDO | 2 Non-Isolated Outputs | - | 3V, 5V | 125mA, 6mA | 0.2V ~ 5V | Boost | - | Board(s) | LTC3105 |
|

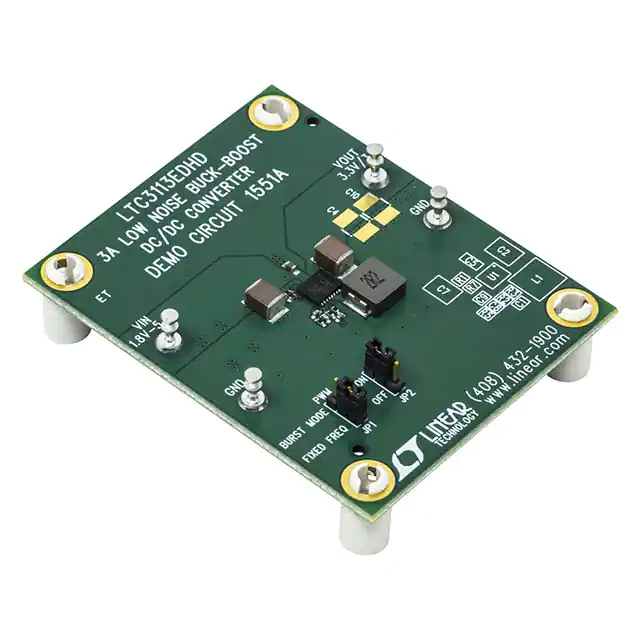

DC1551AEVAL BOARD FOR LTC3113 |
3,170 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 3A | 1.8V ~ 5.5V | Buck-Boost | 300kHz ~ 2MHz | Board(s) | LTC3113 |
|
TPS54KB20EVMEVAL BOARD FOR TPS54KB20 |
2,018 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 3.3V | 25A, 25A | 4.5V ~ 16V, 8V ~ 16V | Buck | - | Board(s) | TPS54KB20 |
|

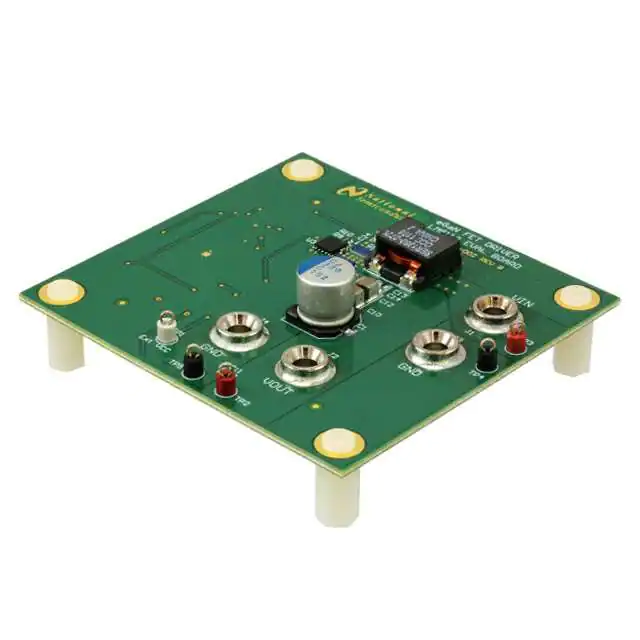

LM5113LLPEVB/NOPBEVAL BOARD FOR LM5113 |
1,554 | 178.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 10A | 15V ~ 60V | Buck | 800kHz | Board(s) | LM5113 |
|
UCC28180EVM-573EVAL BOARD FOR UCC28180 |
4,613 | 178.80 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 360 W | 390V | 923mA | 85 ~ 265 VAC | - | 120kHz | Board(s) | UCC28180 |
|
|
EVAL-LTC7890-AZEVAL BOARD FOR LTC7890 |
4,526 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 20A, 20A | 14V ~ 72V | Buck | 500kHz | Board(s) | LTC7890 |
|
|
EVAL-LT8306-AZEVAL BOARD FOR LT8306 |
4,124 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 2A | 6V ~ 36V | Flyback | 300kHz | Board(s) | LT8306 |
|
|
EVAL-LTC7878-AZEVAL BOARD FOR LTC7878 |
1,971 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 20A | 18V ~ 65V | Buck-Boost | 600kHz | Board(s) | LTC7878 |
|

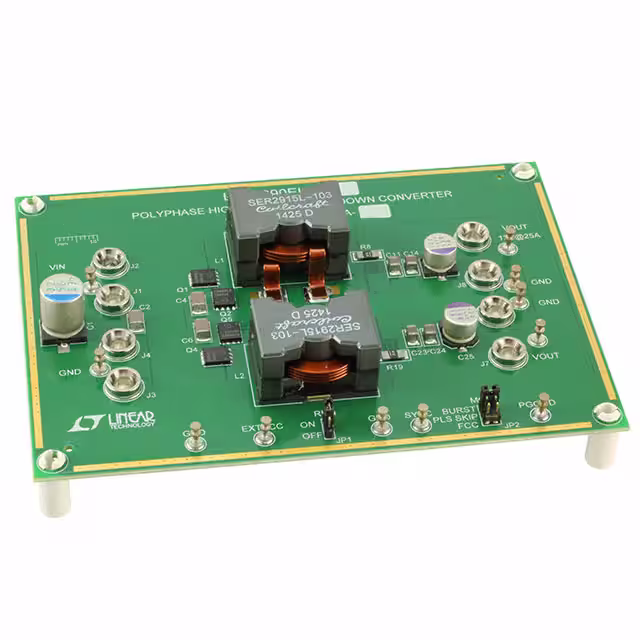

DC2236A-BEVAL BOARD FOR LTC3890 |
1,408 | 188.32 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 25A | 16V ~ 60V | Buck | 150kHz | Board(s) | LTC3890 |
|

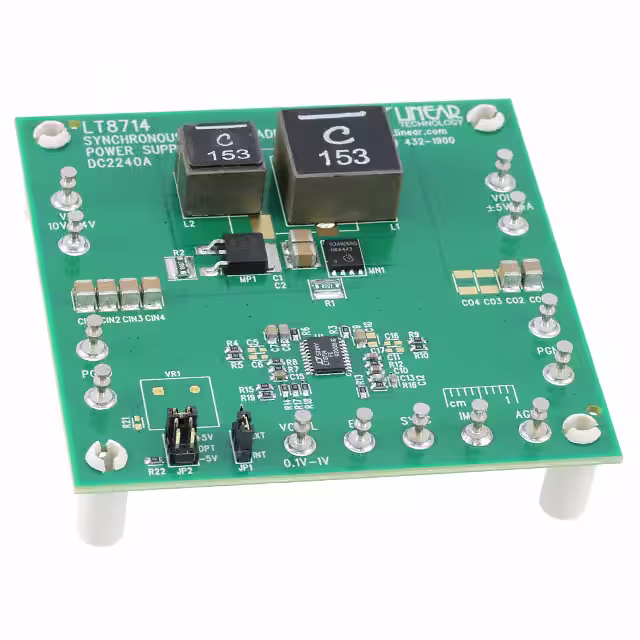

DC2240AEVAL BOARD FOR LT8714 |
4,729 | 188.32 |
|
Datasheet |
- | Box | Active | DC/DC, Positive and Negative | 1 Non-Isolated Output | - | 5V or -5V | 5A | 10V ~ 14V | - | 200kHz | Board(s) | LT8714 |
|

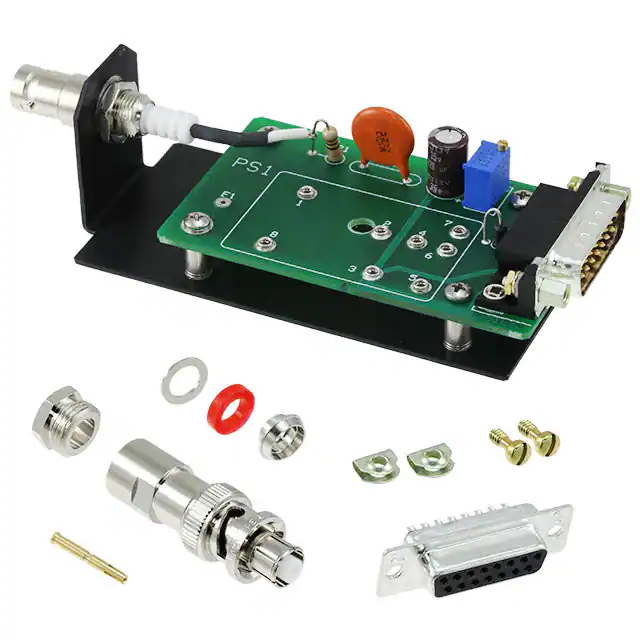

CM2EVAL BOARD FOR CA SERIES |
4,363 | 191.64 |
|
Datasheet |
CA | Box | Active | DC/DC Converter | - | - | - | - | - | - | - | Partially Populated Board(s) | CA Series |
|
|
EVAL-LT8390A-AZEVAL BOARD FOR LT8390A |
1,406 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 5A | 8V ~ 60V | Buck-Boost | 2MHz | Board(s) | LT8390A |
|

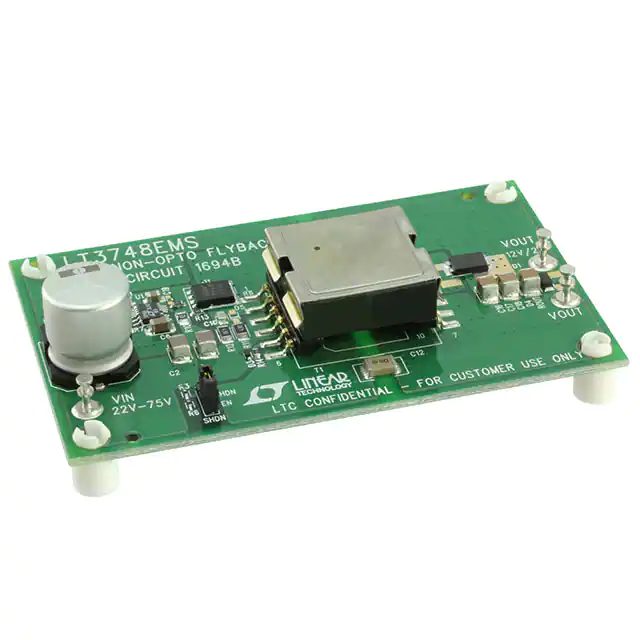

DC1694BEVAL BOARD FOR LT3748 |
2,013 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 2.5A | 22V ~ 75V | Flyback | 289kHz | Board(s) | LT3748 |
|

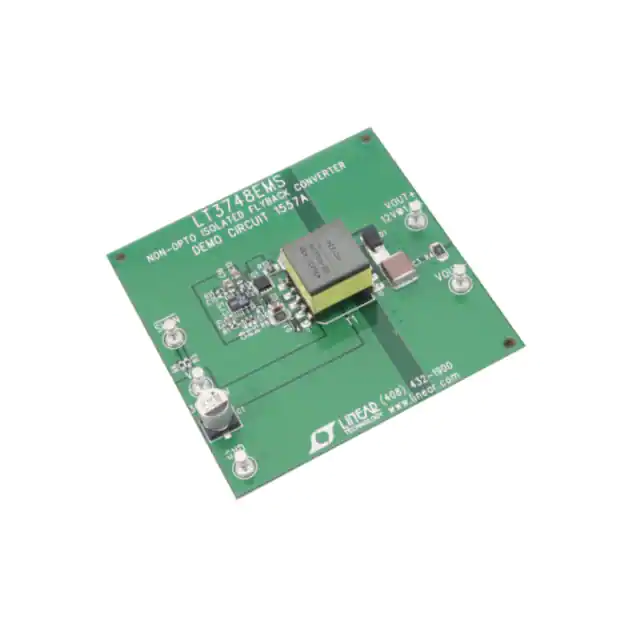

DC1557AEVAL BOARD FOR LT3748 |
3,118 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 1A | 30V ~ 75V | Flyback | - | Board(s) | LT3748 |
|

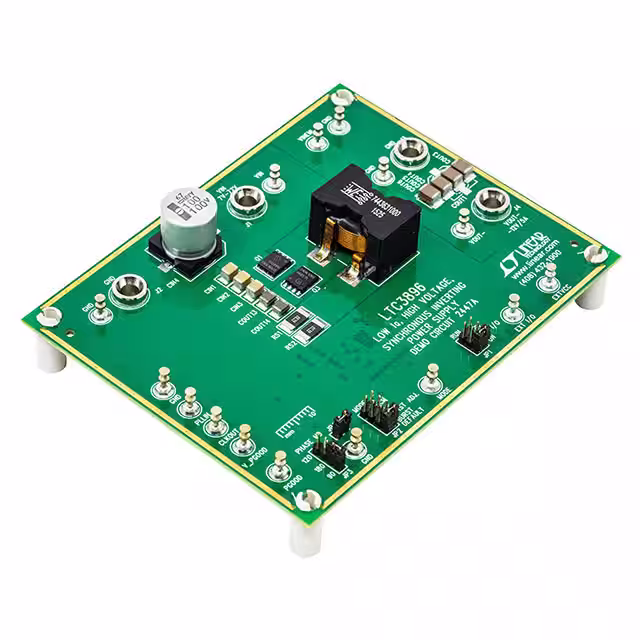

DC2447AEVAL BOARD FOR LTC3896 |
1,986 | 211.86 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 5A | 7V ~ 72V | Inverting | 300kHz | Board(s) | LTC3896 |
|

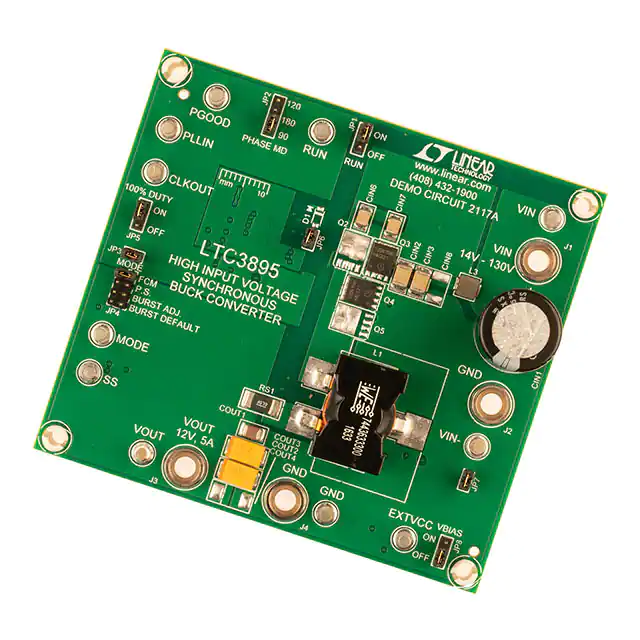

DC2117AEVAL BOARD FOR LTC3895 |
4,619 | 211.86 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 5A | 14V ~ 130V | Buck | 150kHz | Board(s) | LTC3895 |
|
DC2814A-CEVAL BOARD FOR LT8210 |
3,377 | 211.86 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 36V ~ 56V | 2A | 26V ~ 80V | Boost, Buck | 350kHz | Board(s) | LT8210 |
