DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

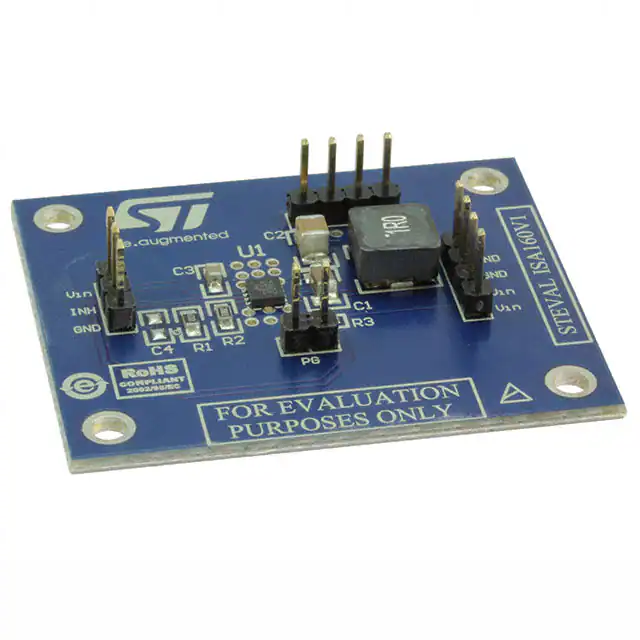

STEVAL-ISA160V1EVAL BOARD FOR AST1S31HF |
1,513 | 15.96 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 2.8V ~ 4V | Buck | 2.3MHz | Board(s) | AST1S31HF |
|
STEVAL-ISA166V1EVAL BOARD SRK2001 STP120N4F6 |
2,768 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 4.5V ~ 32V | Resonant | 500kHz | Board(s) | SRK2001, STP120N4F6 |
|

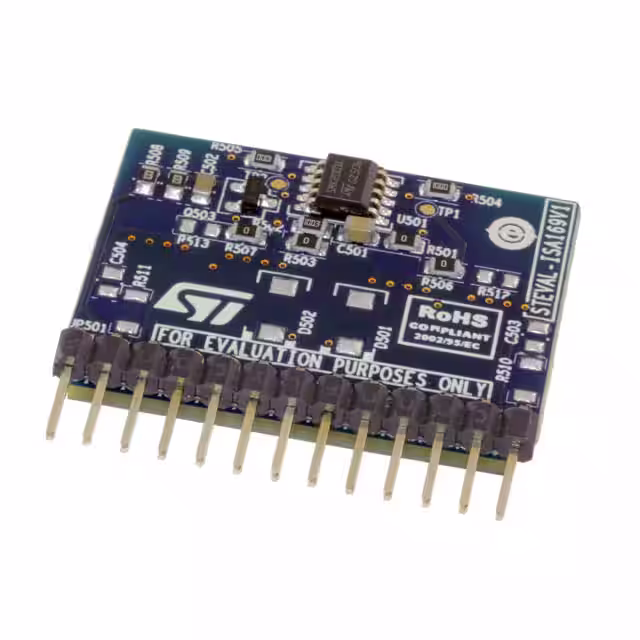

STEVAL-ISA169V1EVAL BOARD SRK2001L STL140N4LLF5 |
2,233 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Secondary Side | 1 Non-Isolated Output | - | - | - | 4.5V ~ 32V | Resonant | 500kHz | Board(s) | SRK2001L, STL140N4LLF5 |
|
DAK-14AEVAL BOARD FOR TNY264 |
1,858 | 0.00 |
|
Datasheet |
TinySwitch®-II | - | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 3 W | 9V | 330mA | 85 ~ 265 VAC | Flyback | 132kHz | Board(s) | TNY264 |
|
DAK-48AEVAL BOARD FOR LNK304 |
1,595 | 0.00 |
|
Datasheet |
LinkSwitch®-TN | - | Obsolete | AC/DC, Non-Isolated | 1 Non-Isolated Output | 1.44 W | 12V | 120mA | 85 ~ 265 VAC | Buck | 66kHz | Board(s) | LNK304 |
|
|
DAK-7KIT DESIGN ACCELERATOR APPLIANCE |
1,399 | 0.00 |
|
Datasheet |
- | - | Obsolete | - | - | - | - | - | - | - | - | Board(s) | - |
|
DAK-16AEVAL BOARD LNK500 LNK501 LNK520 |
1,212 | 0.00 |
|
Datasheet |
LinkSwitch® | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 2.75 W | 5.5V | 500mA | 85 ~ 265 VAC | Flyback | 42kHz | Unpopulated (Bare) Board(s) | LNK500, LNK501, LNK520 |
|
|
BD9B406NF-EVK-001EVAL BOARD FOR BD9B406 |
4,864 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 4V | 4A | 2.7V ~ 5.5V | Buck | 2.2MHz | Board(s) | BD9B406 |
|
LM5575BLDTEVAL BOARD FOR LM5575 |
3,683 | 0.00 |
|
Datasheet |
SIMPLE SWITCHER®, WEBENCH® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.23V ~ 70V | 1.5A | 6V ~ 75V | Buck | - | Partially Populated Board(s) - Main IC/Module/Part Not Included | LM5575 |
|

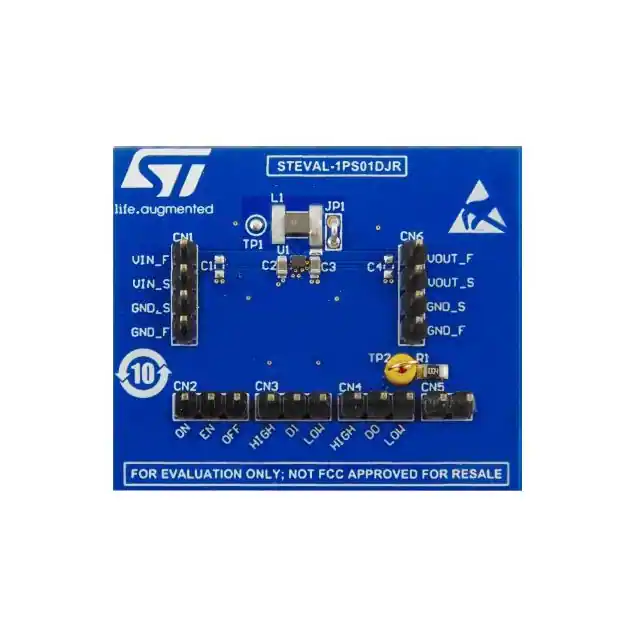

STEVAL-1PS01DJREVAL BOARD FOR ST1PS01 |
3,279 | 19.95 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V ~ 2.8V | 400mA | 1.8V ~ 5.5V | Buck | - | Board(s) | ST1PS01 |
|

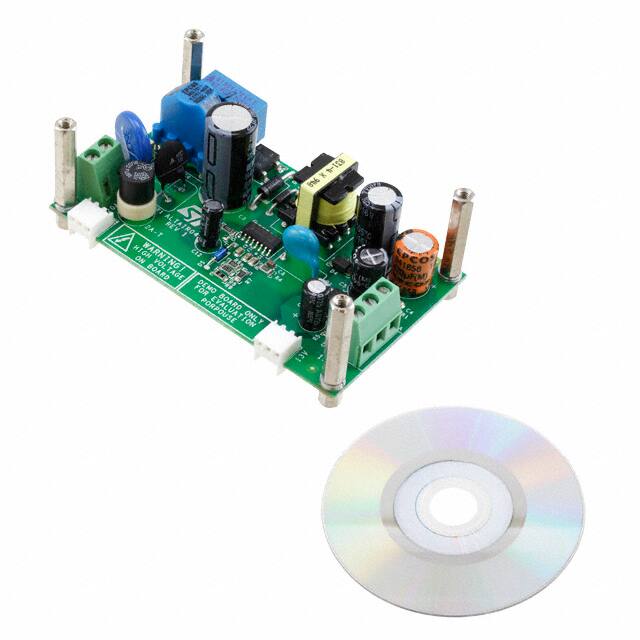

EVLALTAIR900-M1EVAL BOARD FOR ALTAIR04900 |
2,823 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 7.48 W | 3.3V, 13V | 550mA, 100mA | 85 ~ 265 VAC | Flyback | - | Board(s) | ALTAIR04-900 |
|

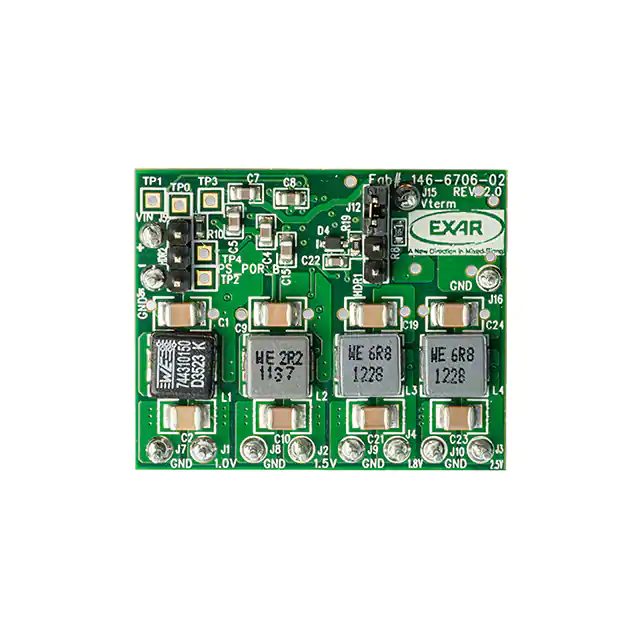

XRP7714EVB-ZYNQ-1EVAL BOARD FOR XRP7714 |
2,067 | 25.00 |
|
Datasheet |
- | Bulk | Last Time Buy | DC/DC, Step Down | - | - | - | - | - | Buck | - | Board(s) | XRP7714 |
|

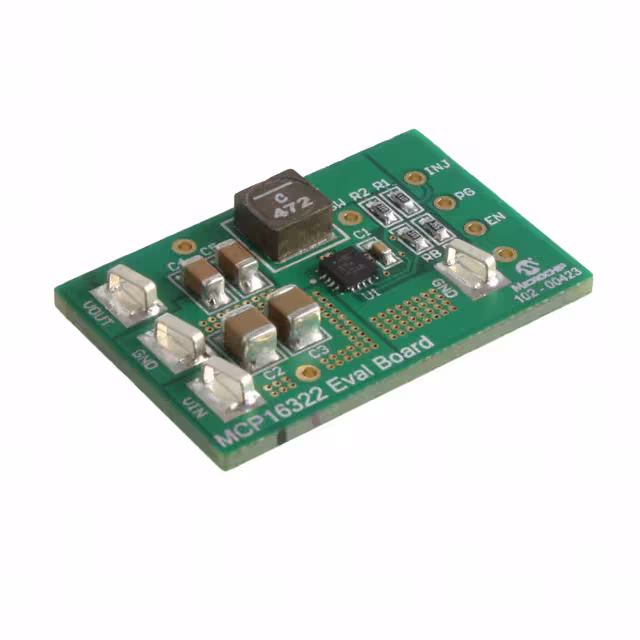

ADM00423EVAL BOARD FOR MCP16322 |
4,866 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3V | 2A | 6V ~ 24V | Buck | 1MHz | Board(s) | MCP16322 |
|

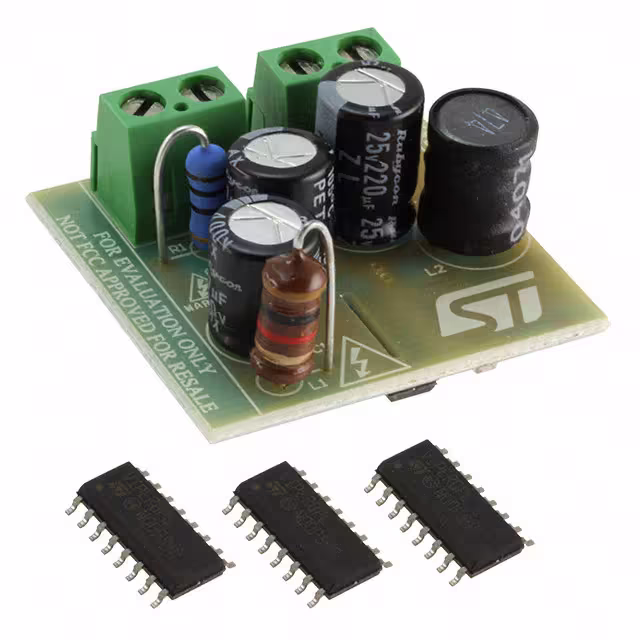

STEVAL-ISA179V1EVAL BOARD FOR VIPER0P |
4,446 | 21.28 |
|
Datasheet |
VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 2.25 W | 15V | 150mA | 85 ~ 265 VAC | Buck | - | Board(s) | VIPer0P |
|
STEVAL-ISA021V1EVAL BOARD FOR VIPER22A |
1,132 | 0.00 |
|
Datasheet |
VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 10 W | 12V | 840mA | 90 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPer22A |
|

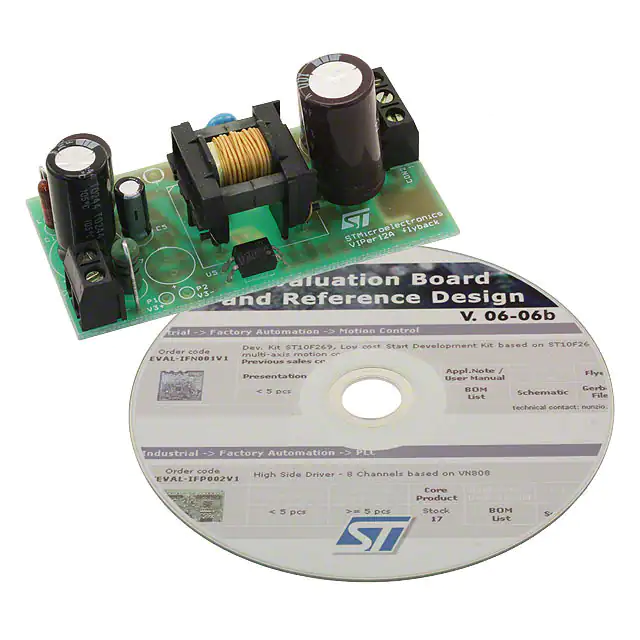

STEVAL-ISA022V1EVAL BOARD FOR VIPER12A |
2,061 | 0.00 |
|
Datasheet |
VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 5.5 W | 5V, 15V | 500mA, 200mA | 90 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPer12A |
|
|
ST1S06DEMOBO12EVAL BOARD FOR ST1S06PM12R |
1,912 | 0.00 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1.5A | 2.7V ~ 6V | Buck | 1.5MHz | Board(s) | ST1S06PM12R |
|
|
ST1S06DEMOBO33EVAL BOARD FOR ST1S06PM33R |
2,374 | 0.00 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 2.7V ~ 6V | Buck | 1.5MHz | Board(s) | ST1S06PM33R |
|
LM25574BLDTEVAL BOARD FOR LM25574 |
3,611 | 20.59 |
|
Datasheet |
SIMPLE SWITCHER®, WEBENCH® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.23V ~ 40V | 500mA | 6V ~ 42V | Buck | - | Partially Populated Board(s) - Main IC/Module/Part Not Included | LM25574 |
|

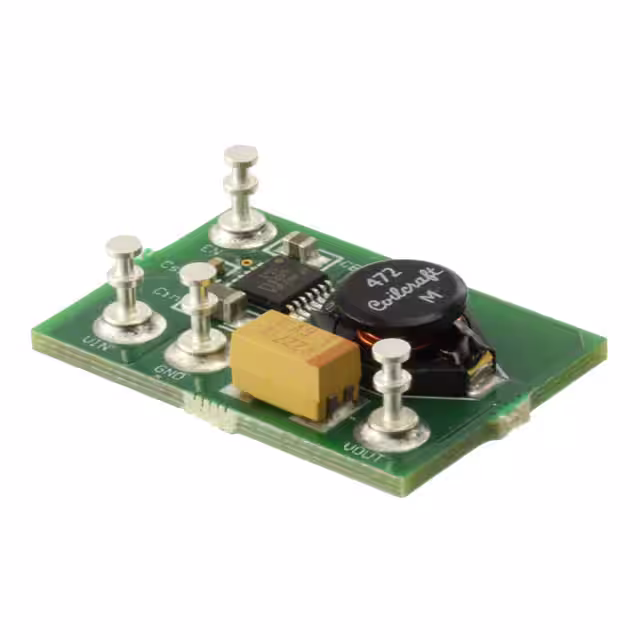

LM2853-3.3EVALEVAL BOARD FOR LM2853 |
1,137 | 0.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 3V ~ 5.5V | Buck | 550kHz | Board(s) | LM2853 |
