DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM5575BLDT/NOPBEVAL BOARD FOR LM5575 |
1,562 | 19.95 |
|
Datasheet |
SIMPLE SWITCHER®, WEBENCH® | Box | Obsolete | DC/DC, Step Down | - | - | - | - | - | Buck | 500kHz | Partially Populated Board(s) - Main IC/Module/Part Not Included | LM5575 |
|

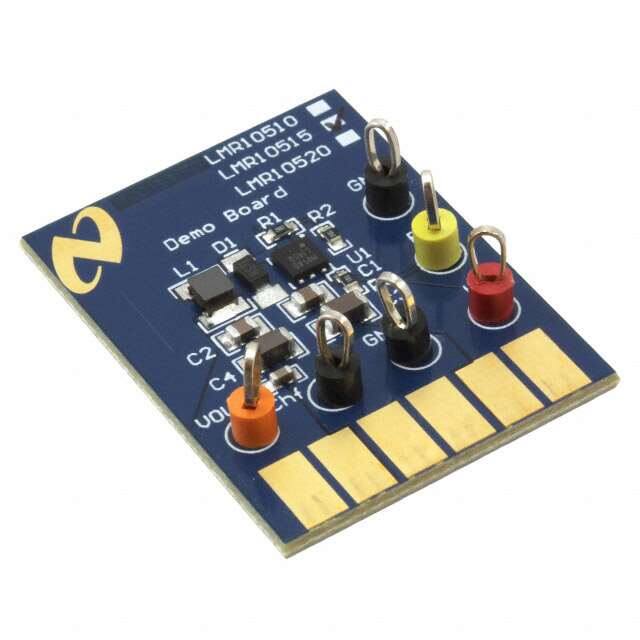

LMR10515YSDDEMO/NOPBEVAL BOARD FOR LMR10515 |
3,402 | 0.00 |
|
- |
SIMPLE SWITCHER® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 3V ~ 5.5V | Buck | 3MHz | Board(s) | LMR10515 |
|

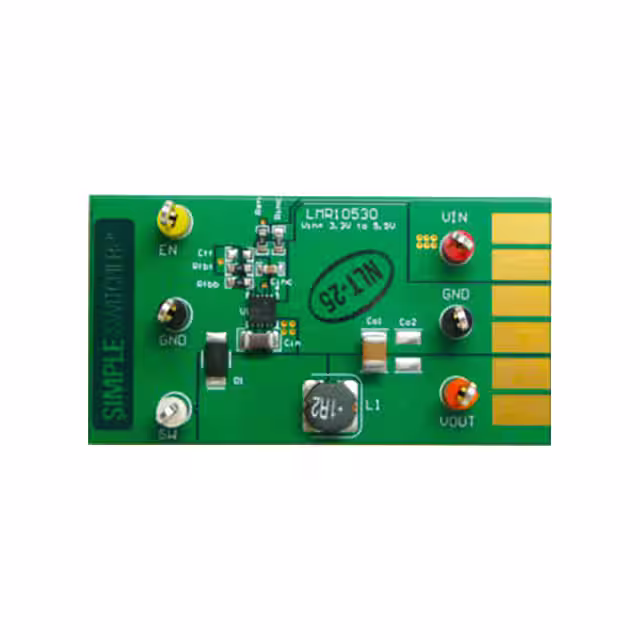

LMR10530YSDEVM/NOPBEVAL BOARD FOR LMR10530 |
3,322 | 0.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 3V ~ 5.5V | Buck | 3MHz | Board(s) | LMR10530 |
|

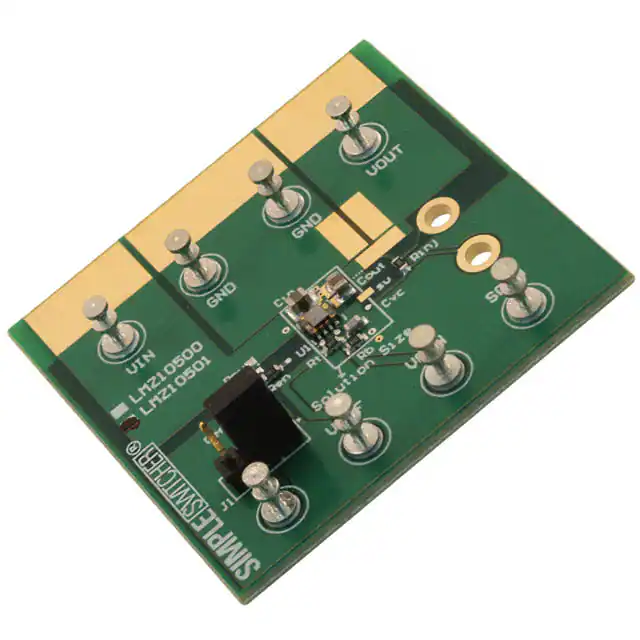

LMZ10501EVAL/NOPBEVAL BOARD FOR LMZ10501 |
1,404 | 0.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | LMZ10501 |
|
LMR22007YMINI-EVMEVAL BOARD FOR LMR22007 |
4,055 | 0.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 750mA | 4.5V ~ 20V | Buck | 2.1MHz | Board(s) | LMR22007 |
|

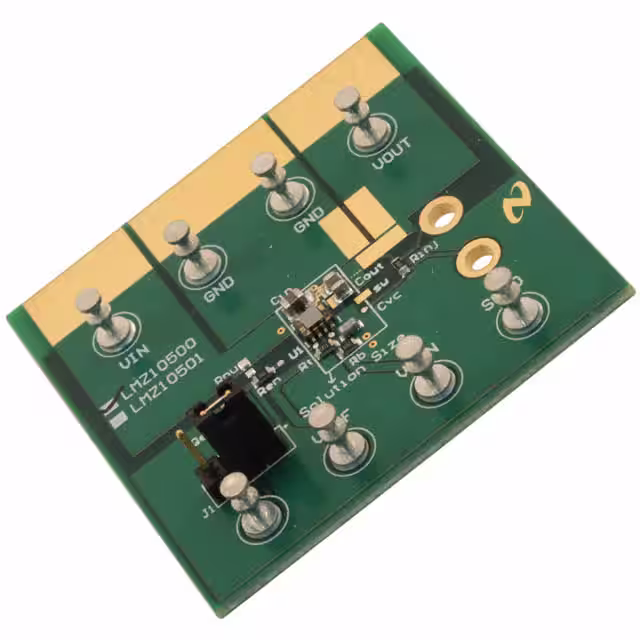

LMZ10500EVAL/NOPBEVAL BOARD FOR LMZ10500 |
3,719 | 24.42 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 650mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | LMZ10500 |
|

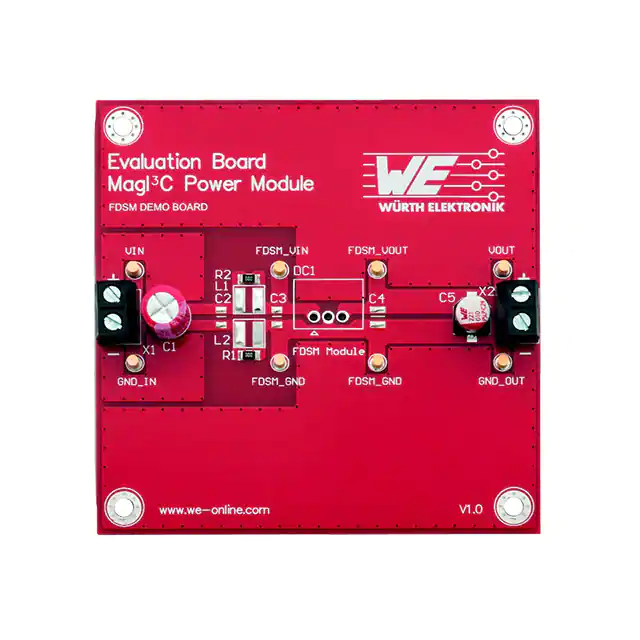

17800FDSMEVAL BOARD FOR FDSM |
3,065 | 22.96 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 7V ~ 42V | Buck | 350kHz | Partially Populated Board(s) | FDSM |
|

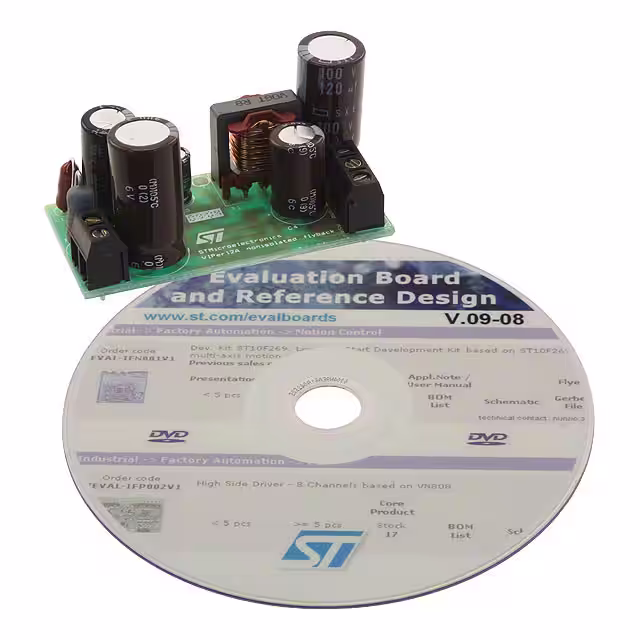

STEVAL-ISA006V1EVAL BOARD FOR VIPER12A |
2,158 | 0.00 |
|
Datasheet |
VIPER™ | Box | Obsolete | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | 5.5 W | 5V, 15V | 500mA, 200mA | 90 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPer12A |
|

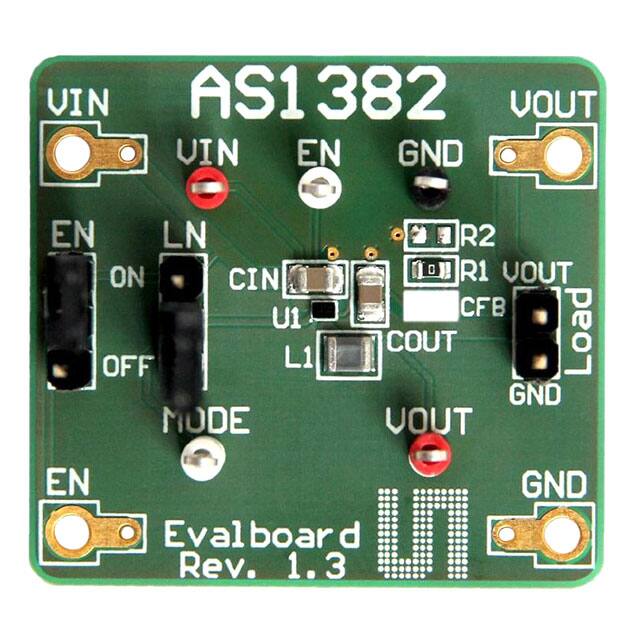

AS1382C-WL-18_EK_STEVAL BOARD FOR AS1382 |
4,595 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | AS1382 |
|
TPS82672EVM-646EVAL BOARD FOR TPS82672 |
2,130 | 24.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 600mA | 2.3V ~ 4.8V | Buck | 5.45MHz | Board(s) | TPS82672 |
|

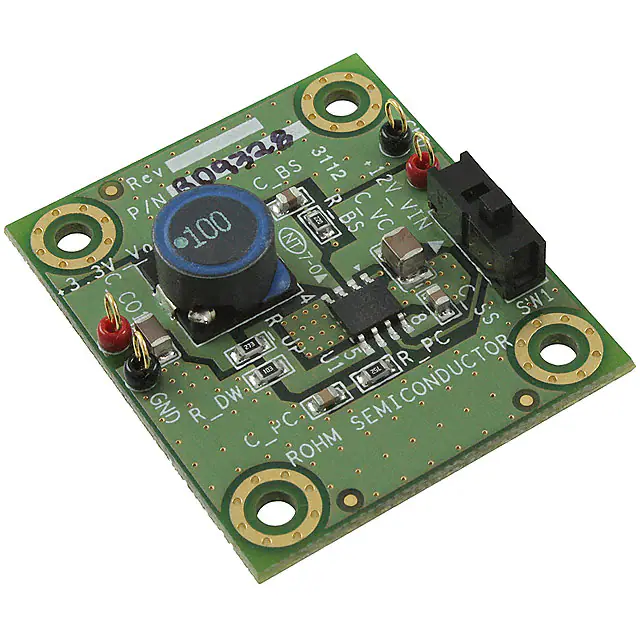

BD9328EFJ_EVKEVAL BOARD FOR BD9328 |
1,276 | 23.94 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.2V ~ 18V | Buck | 380kHz | Board(s) | BD9328 |
|

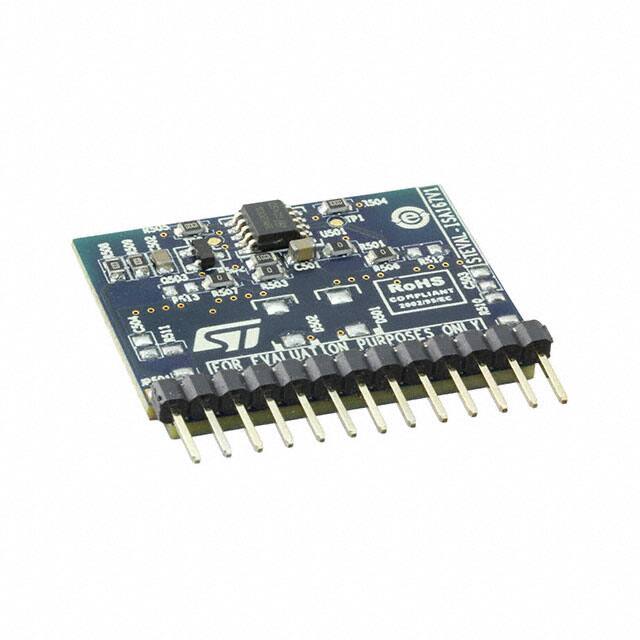

STEVAL-ISA167V1EVAL BOARD FOR SRK2001 STL85N6F3 |
3,502 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Secondary Side | 1 Non-Isolated Output | - | - | - | 4.5V ~ 32V | Resonant | 500kHz | Board(s) | SRK2001, STL85N6F3 |
|
ISL80015ADEMO1ZEVAL BOARD FOR ISL80015A |
2,724 | 24.47 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL80015A |
|
|
ISL80020ADEMO1ZEVAL BOARD FOR ISL80020A |
2,117 | 24.47 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL80020A |
|

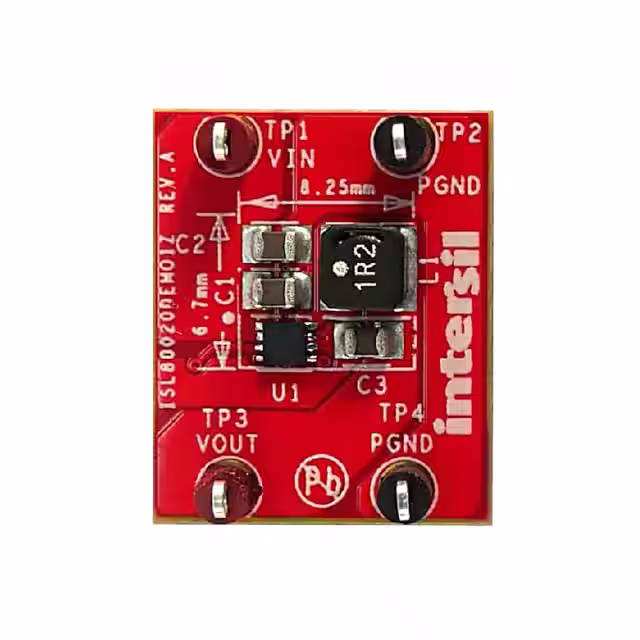

ISL80020DEMO1ZEVAL BOARD FOR ISL80020 |
1,413 | 24.47 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL80020 |
|

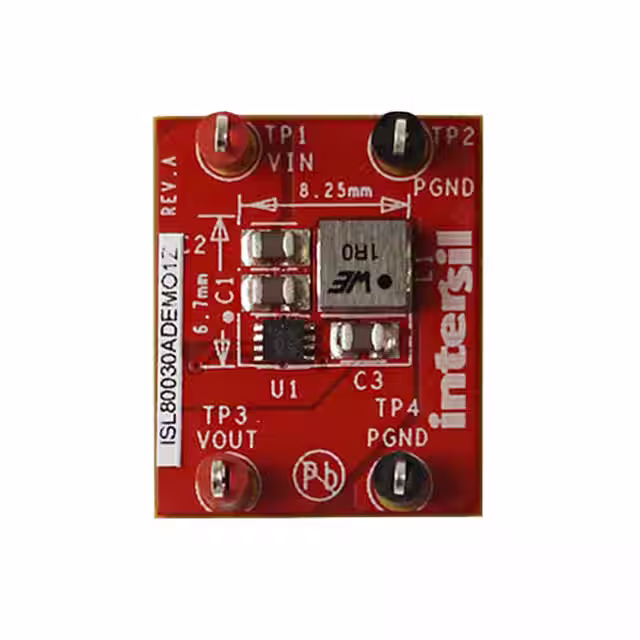

ISL80030ADEMO1ZEVAL BOARD FOR ISL80030A |
3,715 | 24.47 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL80030A |
|
|
R1240N001B033-EVEVAL BOARD FOR R1240X |
1,336 | 25.39 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 15V | 1.2A | 4.5V ~ 30V | Buck | 1.25MHz | Board(s) | R1240x |
|

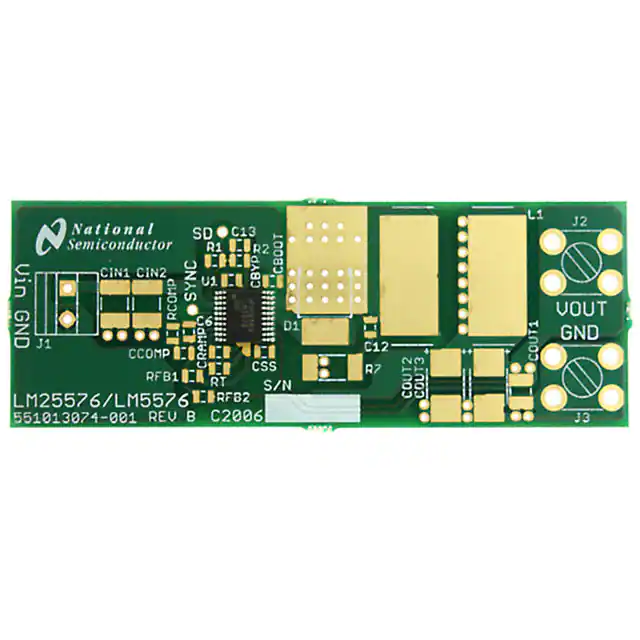

LM5576BLDT/NOPBEVAL BOARD FOR LM5576 |
3,201 | 24.00 |
|
Datasheet |
SIMPLE SWITCHER®, WEBENCH® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.23V ~ 70V | 3A | 6V ~ 75V | Buck | - | Partially Populated Board(s) - Main IC/Module/Part Not Included | LM5576 |
|
|
MCP1602EVEVAL BOARD FOR MCP1602 |
1,603 | 25.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.2V, 1.8V, 2.5V, or 3.3V | 500mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | MCP1602 |
|
MCP1630DM-DDBK1EVAL BOARD FOR MCP1630 |
3,291 | 25.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 7.2V ~ 11.8V | Buck | - | Board(s) | MCP1630 |
