DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM1572EVALEVAL BOARD FOR LM1572 |
1,014 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 7.5 W | 5V | 1.5A | - | Buck | 500kHz | Board(s) | LM1572 |
|
LM2731XEVALEVAL BOARD FOR LM2731 |
2,257 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 1.8A | 2.7V ~ 14V | Boost | 1.6MHz | Board(s) | LM2731 |
|
LM2731YEVALEVAL BOARD FOR LM2731 |
3,241 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 1.8A | 2.7V ~ 14V | Boost | 600kHz | Board(s) | LM2731 |
|
|
LM2733XEVALEVAL BOARD FOR LM2733 |
4,436 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 1A | 2.7V ~ 14V | Boost | 1.6MHz | Board(s) | LM2733 |
|
LM2733YEVALEVAL BOARD FOR LM2733 |
3,455 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 1A | 2.7V ~ 14V | Boost | 600kHz | Board(s) | LM2733 |
|
|
ISL85415DEMO2ZEVAL BOARD FOR ISL85415 |
2,969 | 33.06 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 3V ~ 36V | Buck | 500kHz | Board(s) | ISL85415 |
|
MIC33050-CYHL-EVEVAL BOARD FOR MIC33050 |
1,257 | 31.99 |
|
Datasheet |
HyperLight Load® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 600mA | 2.7V ~ 5.5V | Buck | 4MHz | Board(s) | MIC33050 |
|

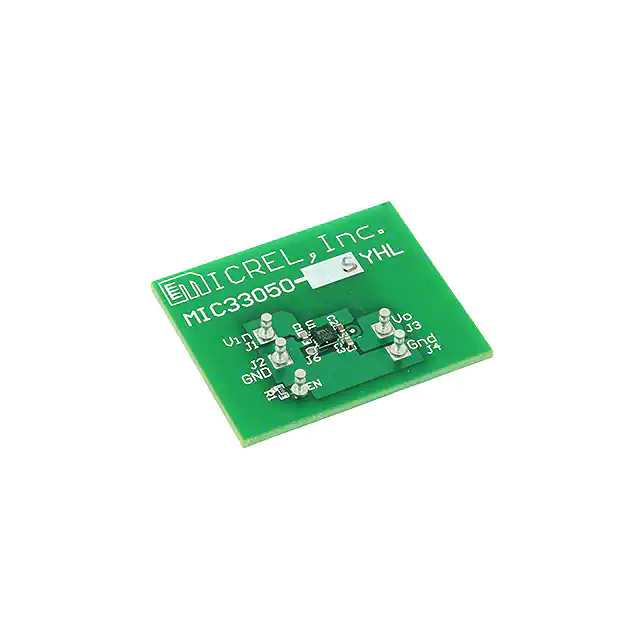

MIC33050-SYHL-EVEVAL BOARD FOR MIC33050 |
1,047 | 31.99 |
|
Datasheet |
HyperLight Load® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 2.7V ~ 5.5V | Buck | 4MHz | Board(s) | MIC33050 |
|

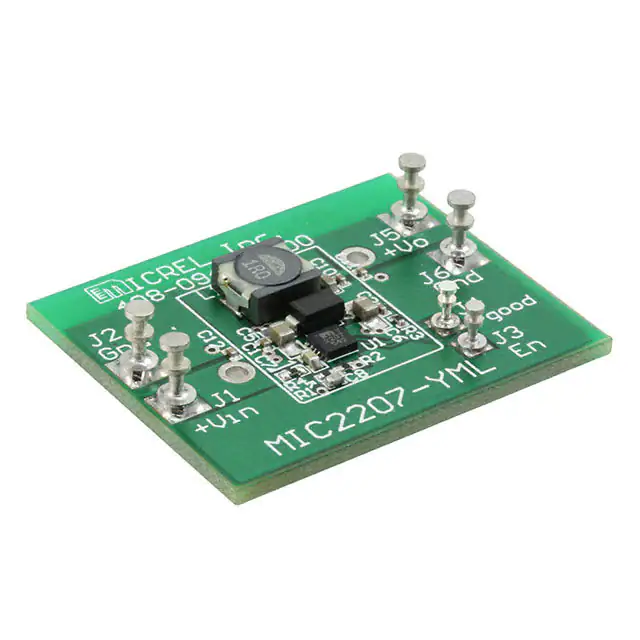

MIC2207YML-EVEVAL BOARD FOR MIC2207 |
3,427 | 31.99 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | MIC2207 |
|
|
MAX756EVKIT-SOEVAL BOARD FOR MAX756 |
3,482 | 37.00 |
|
- |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | - | 0.7V ~ 7V | Boost | 500kHz | Board(s) | MAX756 |
|

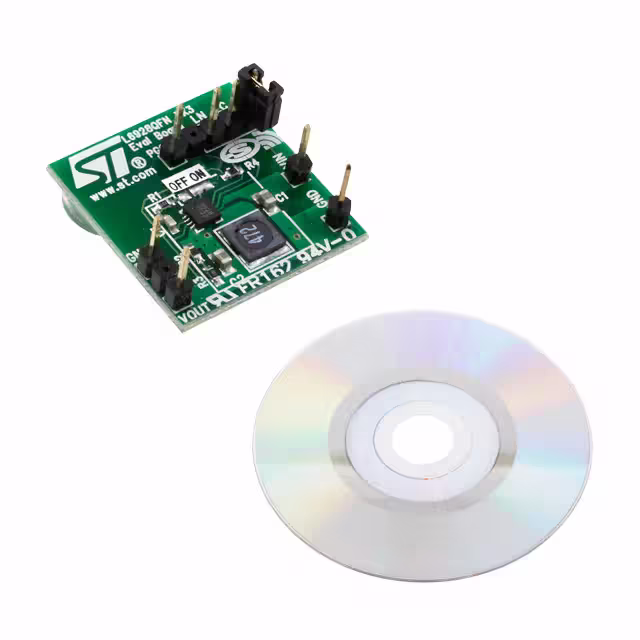

STEVAL-ISA079V2EVAL BOARD FOR L6928 |
4,853 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 800mA | 2V ~ 5.5V | Buck | 1.4MHz | Board(s) | L6928 |
|

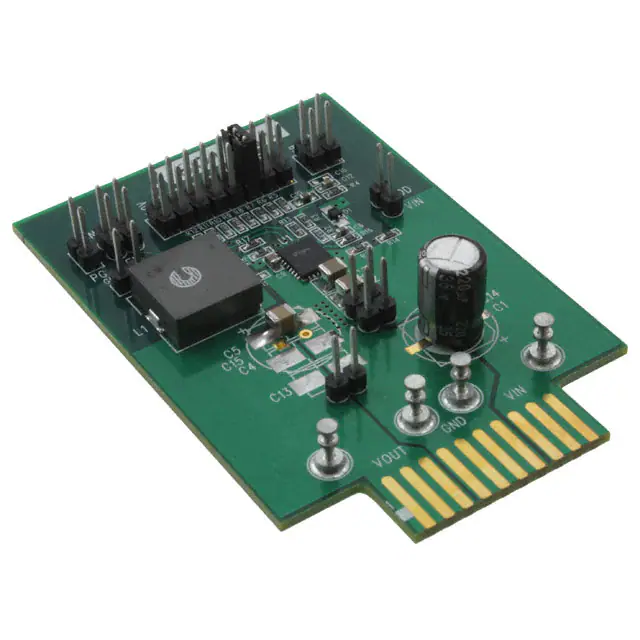

MIC26601YJL-EVEVAL BOARD FOR MIC26601 |
4,984 | 32.50 |
|
Datasheet |
Hyper Speed Control®, SuperSwitcher II™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 5.5V ~ 28V | Buck | 600kHz | Board(s) | MIC26601 |
|

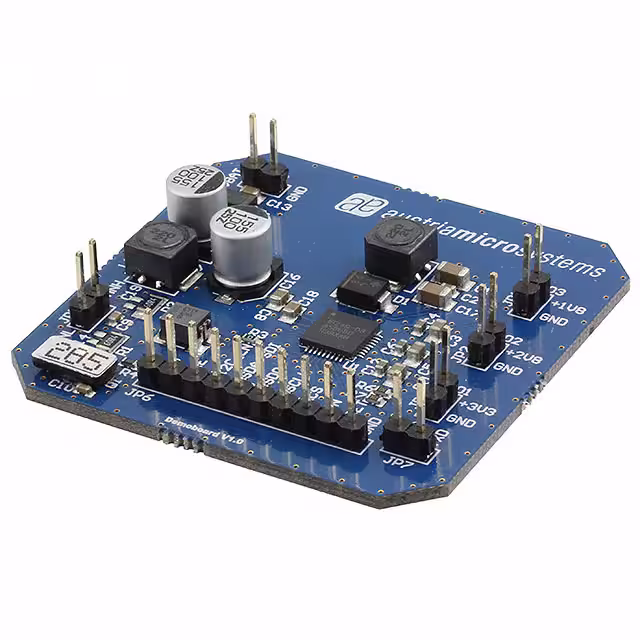

AS8650 DB V10EVAL BOARD FOR AS8650 |
1,362 | 32.50 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.8V, 2.8V, 3.3V, 5V | 500mA, 120mA, 100mA, 100mA | 6V ~ 18V | Buck | - | Board(s) | AS8650 |
|

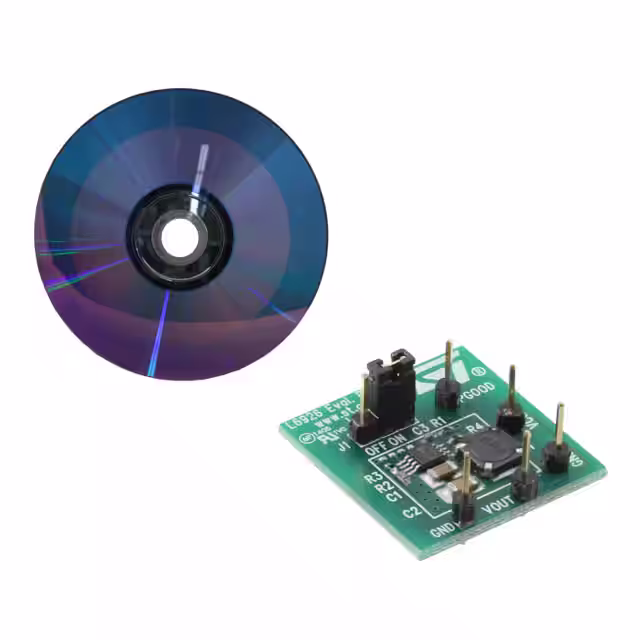

STEVAL-ISA078V1EVAL BOARD FOR L6926 |
4,474 | 32.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 800mA | 2V ~ 5.5V | Buck | 600kHz | Board(s) | L6926 |
|

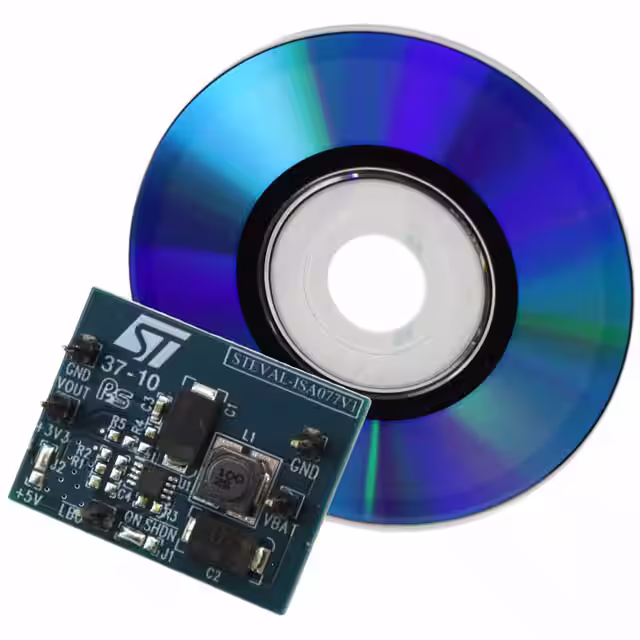

STEVAL-ISA077V1EVAL BOARD FOR L6920 |
3,502 | 32.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V, 3.3V, 5V | - | 0.8V ~ 5.5V | Boost | - | Board(s) | L6920 |
|
STEVAL-ISA097V1EVAL BOARD FOR L7985 |
2,064 | 32.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 38V | 2A | 4.5V ~ 38V | Buck | - | Board(s) | L7985 |
|

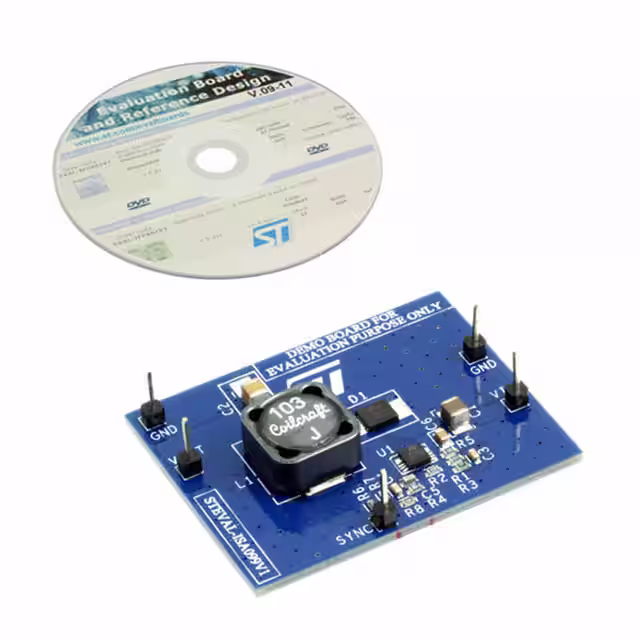

STEVAL-ISA099V1EVAL BOARD FOR L7986 |
2,815 | 32.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 38V | 3A | 4.5V ~ 38V | Buck | - | Board(s) | L7986 |
|

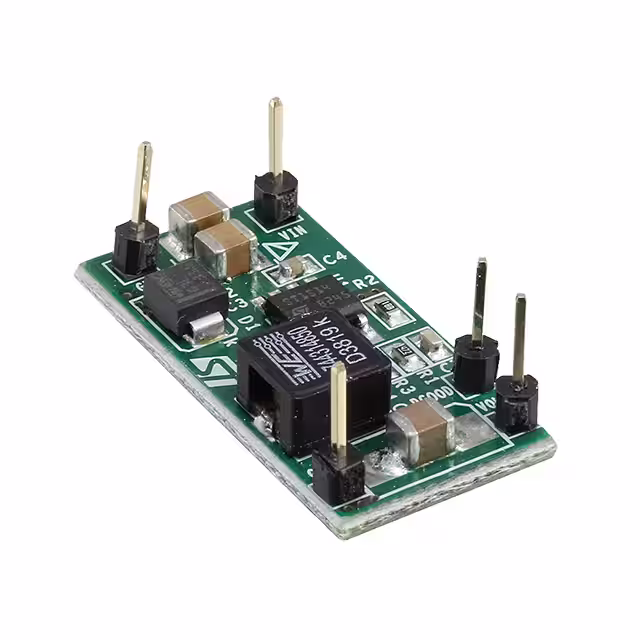

STEVAL-ISA104V1EVAL BOARD FOR ST1S14 |
2,883 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.22V | 3A | 5.5V ~ 48V | Buck | 850kHz | Board(s) | ST1S14 |
|

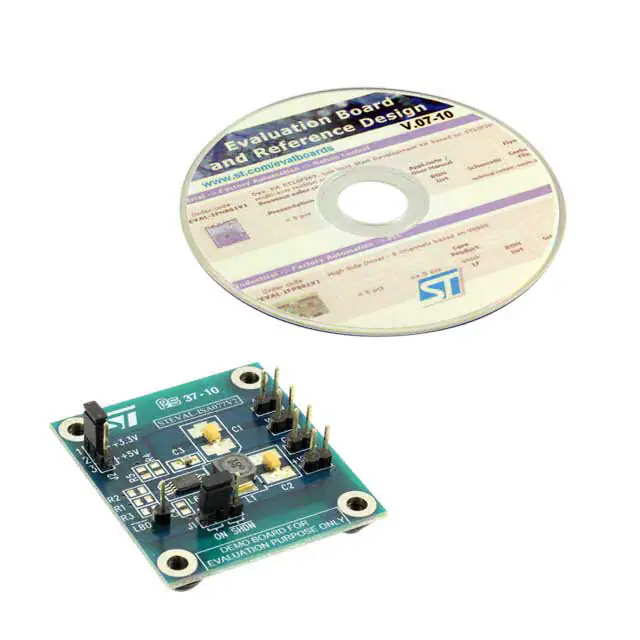

STEVAL-ISA077V2EVAL BOARD FOR L6920 |
4,969 | 32.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 2V ~ 5.2V | - | 0.6V ~ 5.5V | Boost | - | Board(s) | L6920 |
|

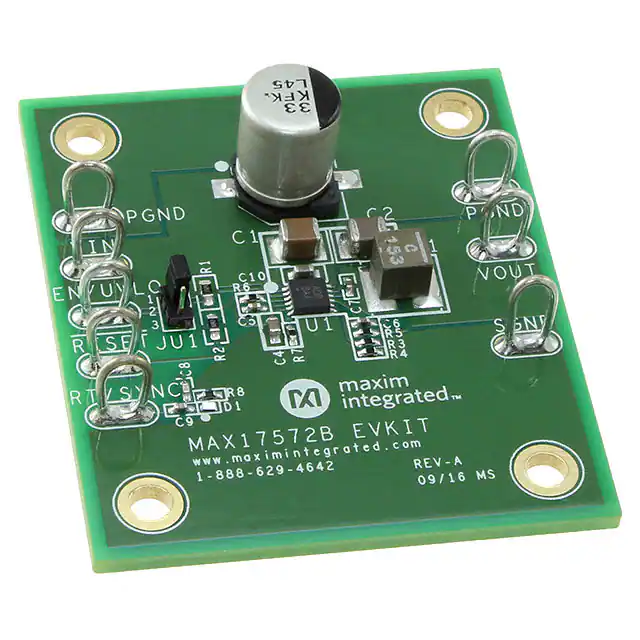

MAX17572EVKITB#EVAL BOARD FOR MAX17572 |
1,947 | 32.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6V ~ 60V | Buck | 500kHz | Board(s) | MAX17572 |
