DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVM4710-PA-00BEVAL BOARD FOR MPM4710 |
2,339 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1A | 1.5V ~ 5.5V | Buck-Boost | 2MHz | Board(s) | MPM4710 |
|
|
EVM4730-PQ-00AEVAL BOARD FOR MPM4730 |
2,682 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 15V | 1A | 2.8V ~ 22V | Buck-Boost | 500kHz | Board(s) | MPM4730 |
|
|
R1242S001F050-EVEVAL BOARD FOR R1242S |
1,394 | 35.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 15V | 3A | 5V ~ 30V | Buck | 500kHz | Board(s) | R1242S |
|
BD9F500QUZ-EVK-001EVAL BOARD FOR BD9F500 |
1,053 | 35.75 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 5A | 4.5V ~ 36V | Buck | 1MHz | Board(s) | BD9F500 |
|

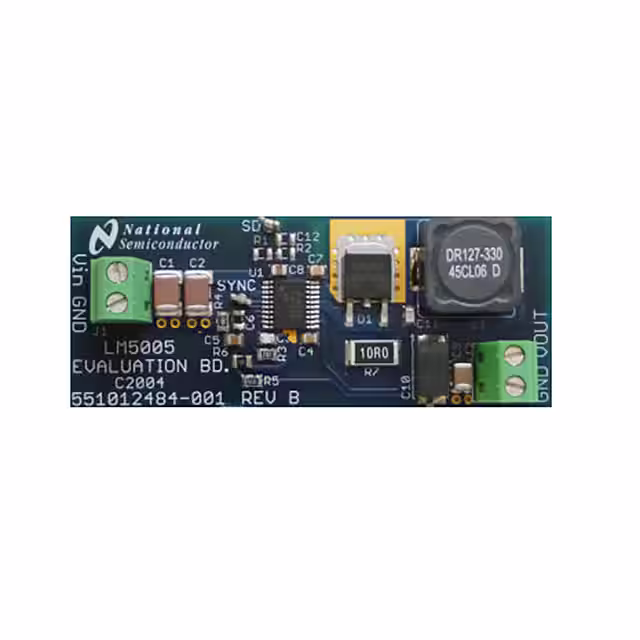

LM5005EVALEVAL BOARD FOR LM5005 |
1,927 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 7V ~ 75V | Buck | 300kHz | Board(s) | LM5005 |
|
|
XR79120EVBEVAL BOARD FOR XR79120 |
1,584 | 45.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 20A | 4.5V ~ 22V | Buck | - | Board(s) | XR79120 |
|
MIC2876-AYMT-EVEVAL BOARD FOR MIC2876 |
4,450 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 4.5A | 2.5V ~ 5.5V | Boost | 2MHz | Board(s) | MIC2876 |
|
|
ISL8088EVAL2ZEVAL BOARD FOR ISL8088 |
3,471 | 37.38 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 800mA, 800mA | 2.7V ~ 5.5V | Buck | 2.25MHz | Board(s) | ISL8088 |
|

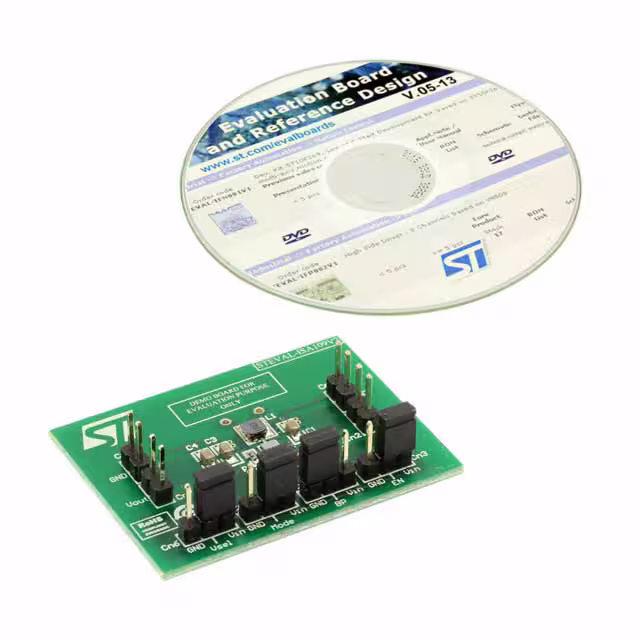

STEVAL-ISA109V2EVAL BOARD FOR STBB2 |
1,498 | 36.25 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 2.3V ~ 5.5V | Buck-Boost | 3MHz | Board(s) | STBB2 |
|
STEVAL-ISA109V1EVAL BOARD FOR STBB2 |
1,740 | 36.25 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 2.3V ~ 5.5V | Buck-Boost | 3MHz | Board(s) | STBB2 |
|
STEVAL-ISA178V1EVAL BOARD FOR VIPER01 |
3,207 | 36.25 |
|
Datasheet |
VIPer™ plus | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | - | 5V | 200mA | 85 ~ 265 VAC | Buck | 60kHz | Board(s) | VIPer01 |
|

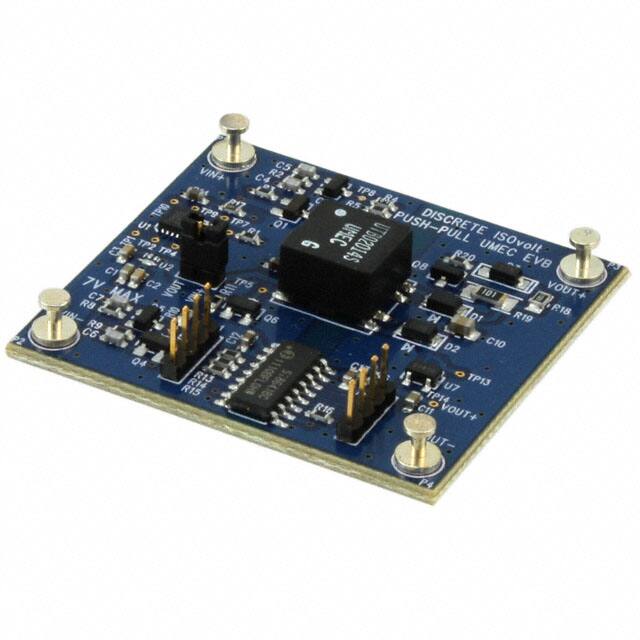

ISOVOLT35-KITEVAL BOARD FOR SI8641 SI86XX |
3,004 | 0.00 |
|
- |
- | Box | Active | DC/DC Isolated Power Supply | 1 Isolated Output | 3 W | 5V | - | 3.3V | - | - | Board(s) | SI8641, SI86xx |
|

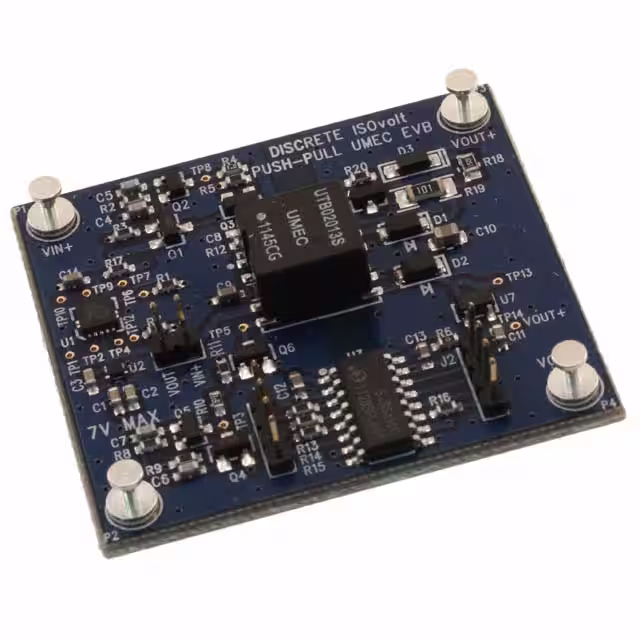

ISOVOLT55-KITEVAL BOARD FOR SI8641 SI86XX |
3,606 | 0.00 |
|
- |
- | Box | Active | DC/DC Isolated Power Supply | 1 Isolated Output | 3 W | 5V | - | 4.5V ~ 5.5V | - | - | Board(s) | SI8641, SI86xx |
|
STEVAL-ISA106V1EVAL BOARD FOR L5973A |
4,022 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4V ~ 36V | Buck | 500kHz | Board(s) | L5973A |
|
LM3489EVALEVAL BOARD FOR LM3489 |
4,290 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 7V ~ 28V | Buck | - | Board(s) | LM3489 |
|
MAX17626EVKIT#EVAL BOARD FOR MAX17626 |
1,211 | 34.36 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 3.3V | 700mA | 3.6V ~ 5.5V | - | 4MHz | Board(s) | MAX17626 |
|

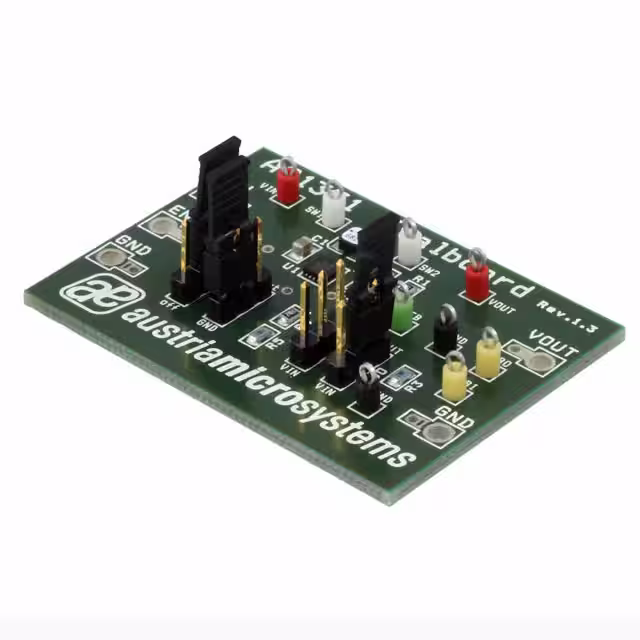

AS1331-TD-AD_EK_STEVAL BOARD FOR AS1331 |
4,478 | 45.57 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.5V ~ 3.3V | 300mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | AS1331 |
|
|
MAX17625EVKIT#EVAL BOARD FOR MAX17625 |
1,813 | 34.36 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 1.2V | 700mA | 2.7V ~ 5.5V | - | 2MHz | Board(s) | MAX17625 |
|
MAXM15067EVKIT#EVAL BOARD FOR MAXM15067 |
4,384 | 34.76 |
|
Datasheet |
Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 6.3V | 300mA | 10V ~ 60V | Buck | 550kHz | Board(s) | MAXM15067 |
|
|
MAXM17906EVKIT#EVAL BOARD FOR MAXM17906 |
4,051 | 34.76 |
|
Datasheet |
Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 300mA | 4.5V ~ 21.5V | Buck | 550kHz | Board(s) | MAXM17906 |
