DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP6134EBEVAL BOARD FOR SP6134 |
4,137 | 42.50 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 12V | Buck | 600kHz | Board(s) | SP6134 |
|
LM2661/3/4EVALEVAL BOARD LM2661 LM2663 LM2664 |
3,835 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Negative Inverter or Voltage Doubler | 3 Non-Isolated Outputs | - | - | - | 1.5V ~ 5.5V | Boost, Inverting | - | Board(s) | LM2661, LM2663, LM2664 |
|
|
MAX8546EVKITEVAL BOARD FOR MAX8546 |
1,763 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 6A | 10V ~ 24V | Buck | 300kHz | Board(s) | MAX8546 |
|

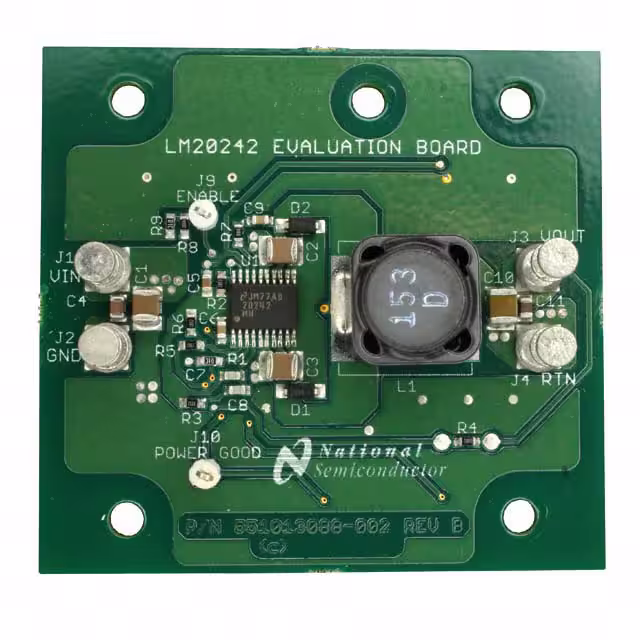

LM20242EVALEVAL BOARD FOR LM20242 |
4,312 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 8V ~ 36V | Buck | 300kHz | Board(s) | LM20242 |
|
STEVAL-ISA180V1EVAL BOARD FOR VIPER0P |
3,413 | 42.50 |
|
Datasheet |
VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 7.2 W | 12V | 600mA | 85 ~ 265 VAC | Flyback | - | Board(s) | VIPer0P |
|
LM5009EVALEVAL BOARD FOR LM5009 |
3,270 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 150mA | 12V ~ 95V | Buck | 240kHz | Board(s) | LM5009 |
|
|
ISL9107EVAL1ZEVAL BOARD FOR ISL9107 |
2,413 | 44.40 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.6V | 1.5A | 2.7V ~ 5.5V | Buck | 1.6MHz | Board(s) | ISL9107 |
|

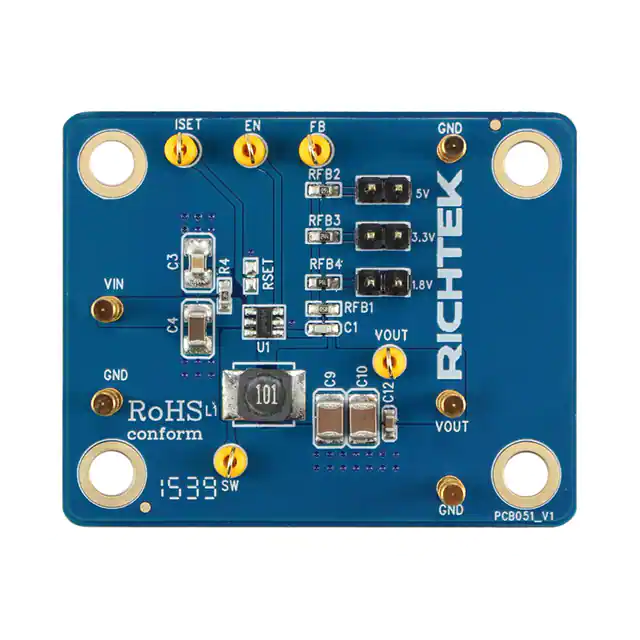

EVB_RT6208GEEVAL BOARD FOR RT6208 |
1,258 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 100mA | 4.5V ~ 36V | Buck | - | Board(s) | RT6208 |
|
|
RP509Z121B-EVEVAL BOARD FOR RP509Z |
2,051 | 0.00 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1A, 500mA | 2.3V ~ 5.5V | Buck | 6MHz | Board(s) | RP509Z |
|
|
RP517K081D-EVEVAL BOARD FOR RP517K |
1,482 | 0.00 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.3V ~ 1.2V | 300mA | 1.8V ~ 5.5V | Buck | 1MHz | Board(s) | RP517K |
|
|
XR79110EVBEVAL BOARD FOR XR79110 |
4,257 | 43.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 10A | 4.5V ~ 22V | Buck | 800kHz | Board(s) | XR79110 |
|
|
XR79115EVBEVAL BOARD FOR XR79115 |
3,841 | 43.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 15A | 5V ~ 22V | Buck | 600kHz | Board(s) | XR79115 |
|
|
ISL97656IRTZEVALZEVAL BOARD FOR ISL97656 |
1,432 | 44.85 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 2A | 2.3V ~ 5.5V | Boost | 620kHz or 1.2MHz | Board(s) | ISL97656 |
|
|
MAX1522EVKITEVAL BOARD FOR MAX1522 |
2,641 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 5V, 12V | 1A, 200mA | 1.5V ~ 5.5V | Boost | 1MHz | Board(s) | MAX1522 |
|
|
EVB_RT7251BZQWEVAL BOARD FOR RT7251B |
3,851 | 43.75 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4V ~ 17V | Buck | 800kHz | Board(s) | RT7251B |
|
|
EVB_RT8008GBEVAL BOARD FOR RT8008 |
3,118 | 43.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | RT8008 |
|

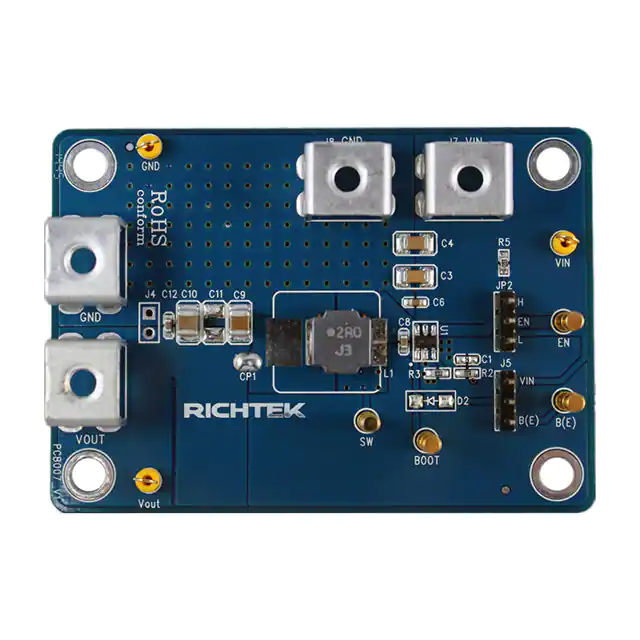

EVB_RT7294CGJ6FEVAL BOARD FOR RT7294C |
3,039 | 43.75 |
|
Datasheet |
ACOT® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 2.5A | 4.3V ~ 18V | Buck | 500kHz | Board(s) | RT7294C |
|
|
EVB_RT5797AHGQWAEVAL BOARD FOR RT5797A |
4,840 | 43.75 |
|
Datasheet |
CMCOT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.4V | 3A | 2.7V ~ 6V | Buck | 1MHz | Board(s) | RT5797A |
|
|
EVB_RTQ2103AGSP-QAEVAL BOARD FOR RTQ2103A |
2,084 | 0.00 |
|
Datasheet |
ACOT® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3V ~ 6V | Buck | 2.7MHz | Board(s) | RTQ2103A |
|
|
EVB_RT7235GQWEVAL BOARD FOR RT7235 |
4,514 | 43.75 |
|
Datasheet |
ACOT® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 5A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | RT7235 |
