DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

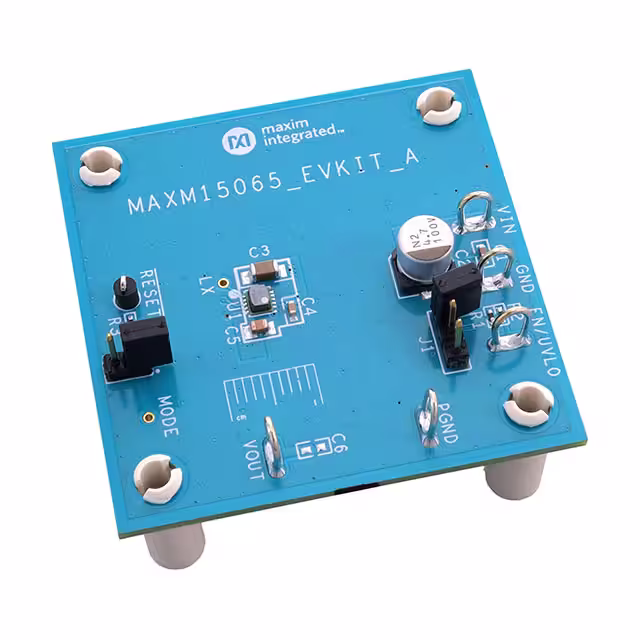

MAXM15065EVKIT#EVAL BOARD FOR MAXM15065 |
2,104 | 34.76 |
|
Datasheet |
Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5.5V ~ 48V | Buck | 550kHz | Board(s) | MAXM15065 |
|
XR75100EVBEVAL BOARD FOR XR75100 |
1,369 | 37.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 30V | 20A | 5.5V ~ 40V | Buck | 800kHz | Board(s) | XR75100 |
|
|
XRP7725EVB-DEMO-2EVAL BOARD FOR XRP7725 |
3,533 | 37.50 |
|
Datasheet |
- | Bulk | Not For New Designs | DC/DC, Step Up or Down with LDO | 4 Non-Isolated Outputs | - | 1V, 1.5V, 2.5V, 3.3V | 10A, 5A, 3A, 3A | 5.5 ~ 25V | Buck | 1.23MHz | Board(s) | XRP7725 |
|

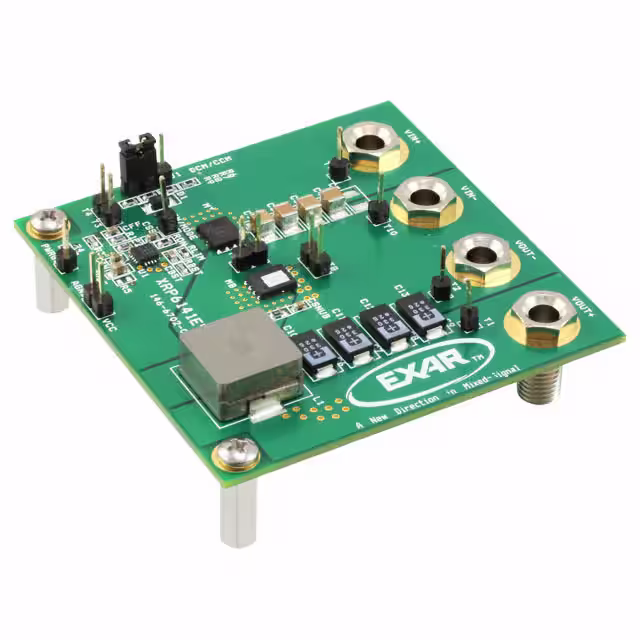

XRP6141EVBEVAL BOARD FOR XRP6141 |
1,756 | 37.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 10.8V ~ 13.2V | Buck | - | Board(s) | XRP6141 |
|

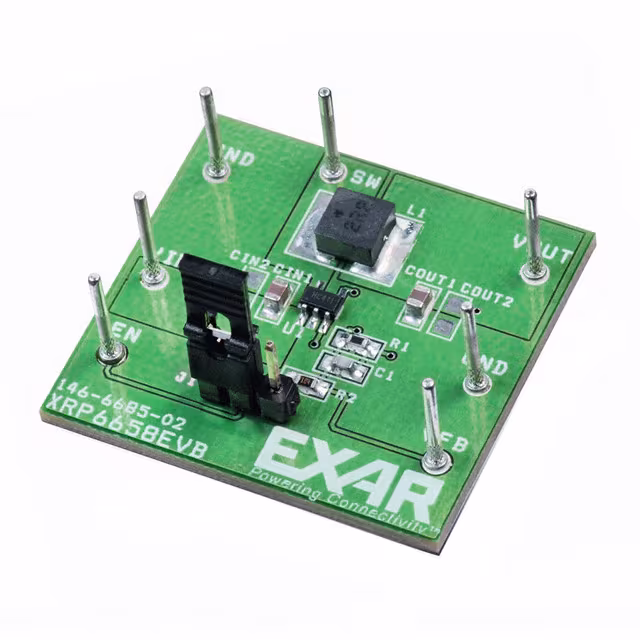

XRP6658EVBEVAL BOARD FOR XRP6658 |
2,447 | 37.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 1A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | XRP6658 |
|
XR76117EVBEVAL BOARD FOR XR76117 |
1,795 | 37.50 |
|
Datasheet |
PowerBlox™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 15A | 5V ~ 22V | Buck | - | Board(s) | XR76117 |
|
STEVAL-ISA071V2EVAL BOARD FOR VIPER16 |
3,237 | 37.50 |
|
Datasheet |
VIPer™ plus | Box | Active | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | 4 W | -5V, 7V or 5V, 12V | 400mA, 160mA | 85 ~ 264 VAC | - | - | Board(s) | VIPer16 |
|

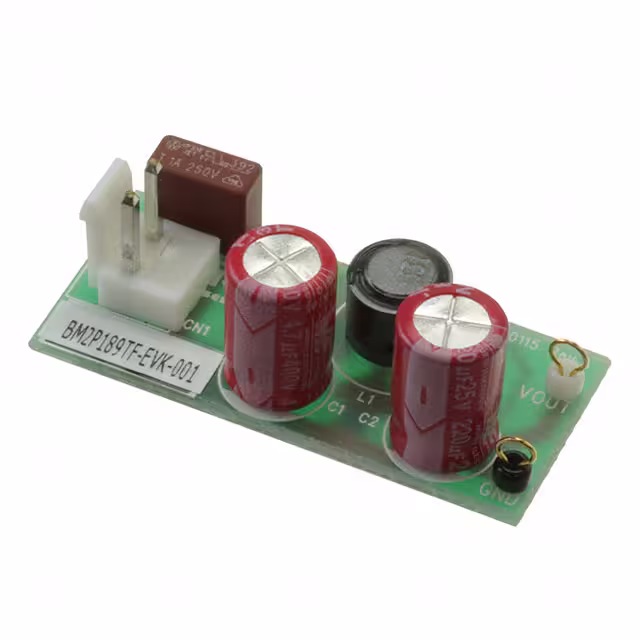

BM2P189TF-EVK-001EVAL BOARD FOR BM2P189T |
4,635 | 37.50 |
|
Datasheet |
- | Box | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 3 W | 18V | 167mA | 90 ~ 264 VAC | Buck | 100kHz | Board(s) | BM2P189T |
|

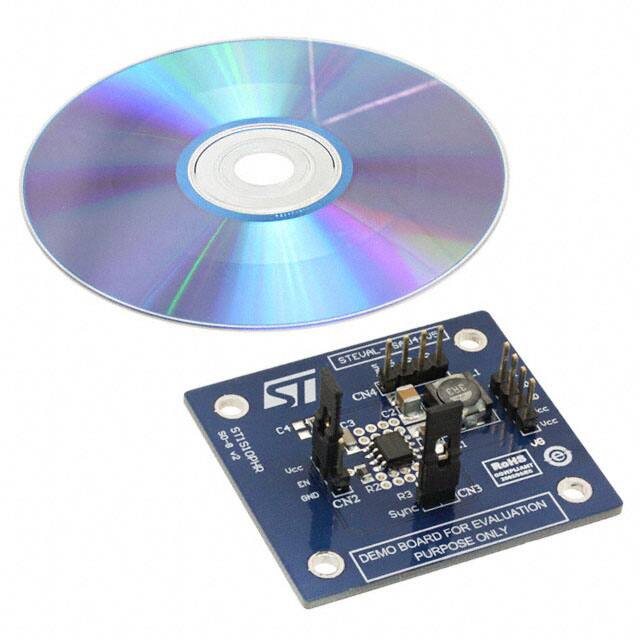

STEVAL-ISA044V5EVAL BOARD FOR ST1S10 |
4,632 | 37.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 2.5V ~ 18V | Buck | 900kHz | Board(s) | ST1S10 |
|

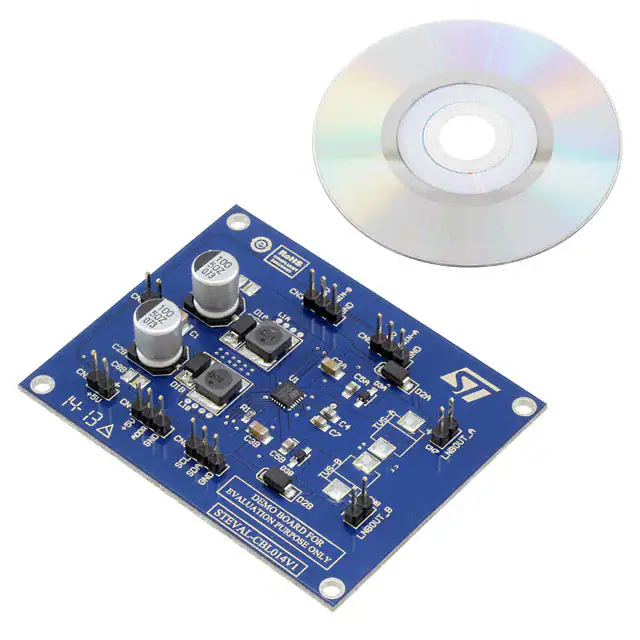

STEVAL-CBL014V1EVAL BOARD FOR LNBH26L |
4,556 | 37.50 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, LNB | 2 Non-Isolated Outputs | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH26L |
|

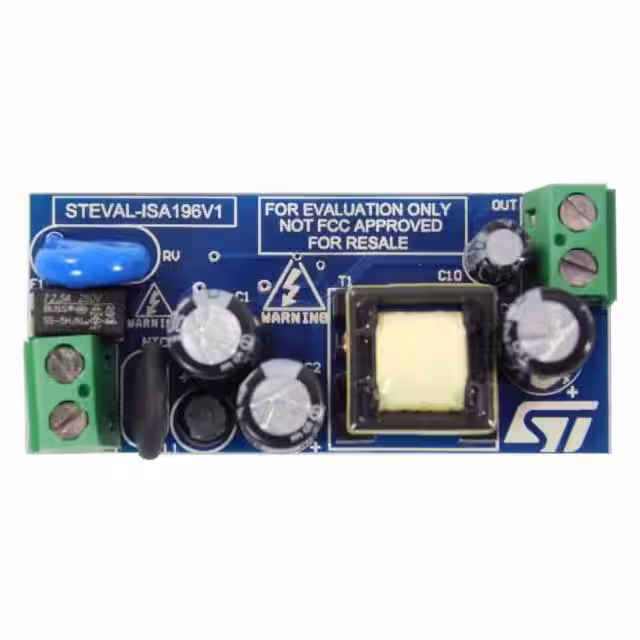

STEVAL-ISA196V1EVAL BOARD FOR VIPER114LS |
3,183 | 37.50 |
|
Datasheet |
VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 6 W | 5V | 1.2A | 85 ~ 265 VAC | Flyback | - | Board(s) | VIPer114LS |
|

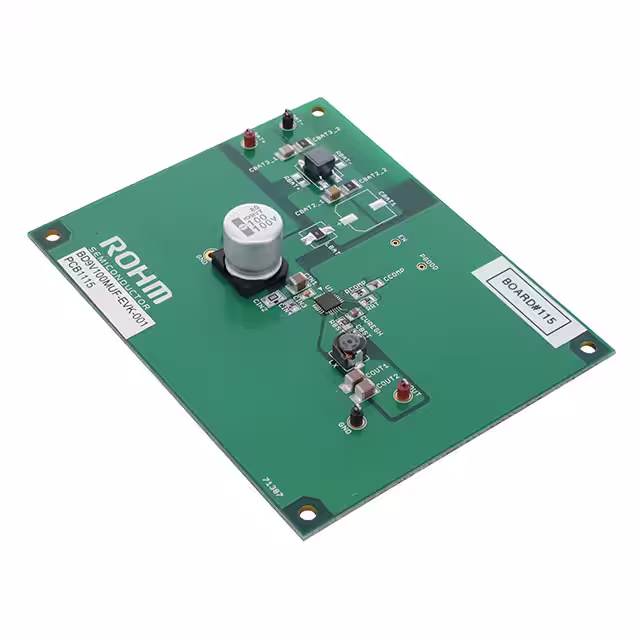

BD9V100MUF-EVK-001EVAL BOARD FOR BD9V100MUF |
1,249 | 37.50 |
|
- |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 16V ~ 60V | Buck | 2.1MHz | Board(s) | BD9V100MUF |
|

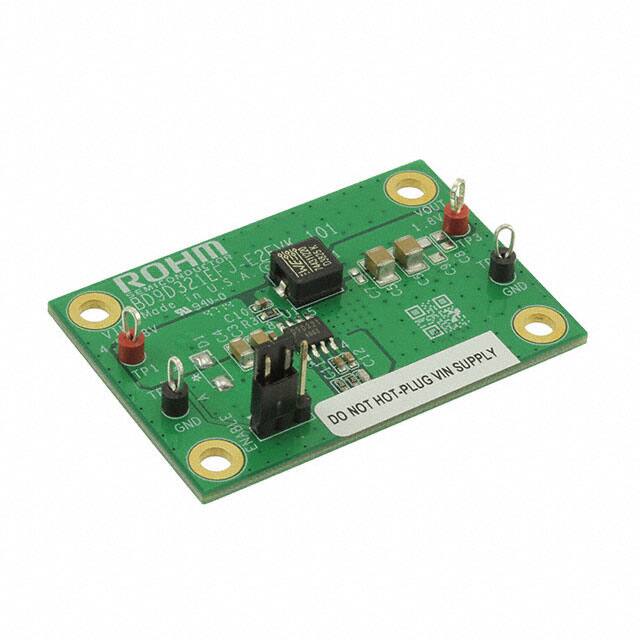

BD9D321EFJ-EVK-101EVAL BOARD FOR BD9D321 |
3,693 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | BD9D321 |
|
|
MAX15062C2.5EVKIT#EVAL BOARD FOR MAX15062 |
1,722 | 0.00 |
|
- |
Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 300mA | 4.5V ~ 60V | Buck | 500kHz | Board(s) | MAX15062 |
|
MAX17541GTBEVKIT#EVAL BOARD FOR MAX17541 |
4,528 | 38.24 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 5V ~ 42V | Buck | 600kHz | Board(s) | MAX17541 |
|
TC1303BDM-DDBK1EVAL BOARD FOR TC1303B |
4,477 | 34.77 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 1.8V, 2.7V | 500mA, 300mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | TC1303B |
|

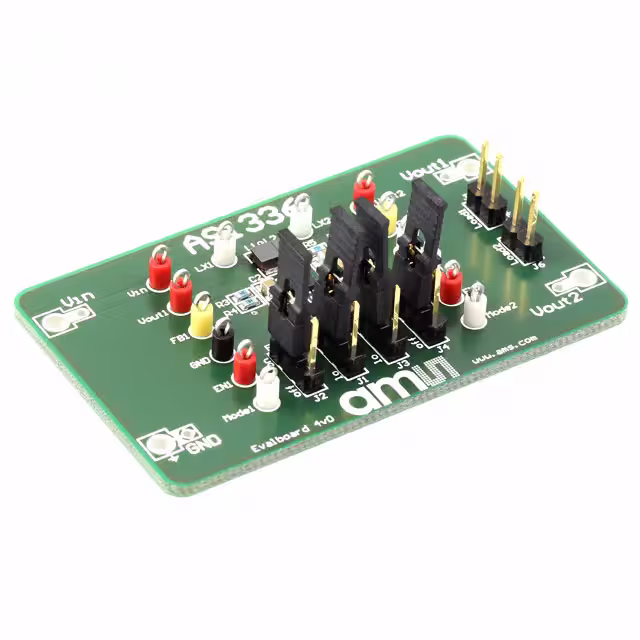

AS1336A/B EBEVAL BOARD FOR AS1336 |
2,181 | 38.75 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 75mA, 75mA | 0.8V ~ 3.6V | Boost | 1.2MHz | Board(s) | AS1336 |
|

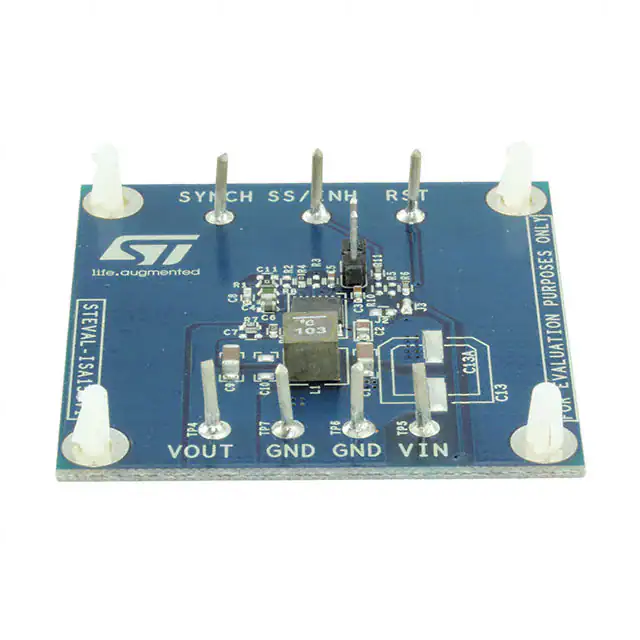

STEVAL-ISA158V1EVAL BOARD FOR A6986 |
3,004 | 38.75 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4V ~ 38V | Buck | - | Board(s) | A6986 |
|
|
FEBFSEZ1317WA_CH310V3EVAL BOARD FOR FSEZ1317WA |
3,803 | 0.00 |
|
- |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 3.5 W | 5V | 700mA | 90 ~ 264 VAC | Flyback | - | Board(s) | FSEZ1317WA |
|

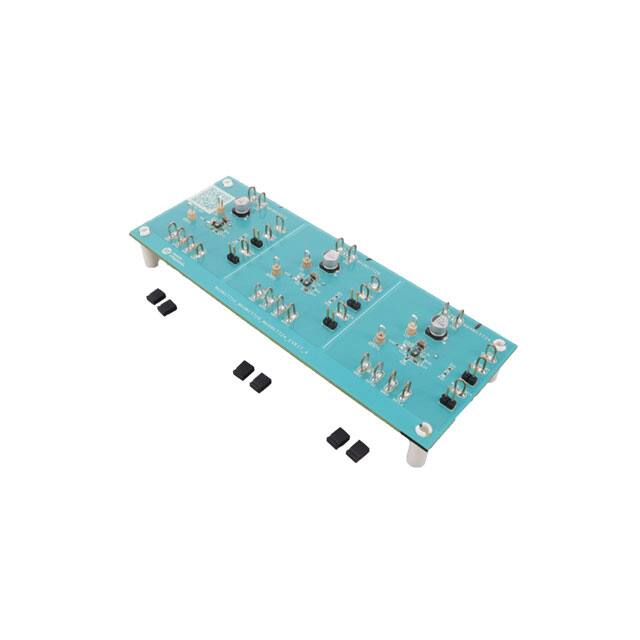

MAXM17720EVKIT#EVAL BOARD FOR MAXM17720 |
3,712 | 36.42 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | MAXM17720 |
