DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

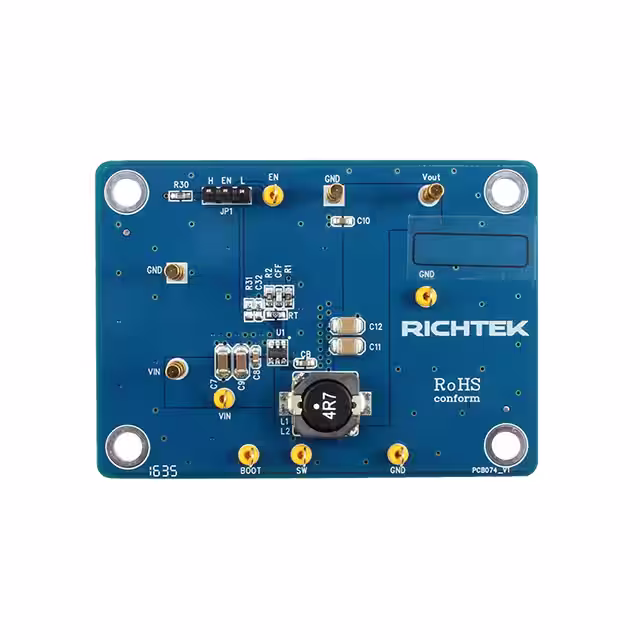

EVB_RT6254AHGJ6FEVAL BOARD FOR RT6254A |
4,495 | 0.00 |
|
Datasheet |
ACOT® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | RT6254A |
|
EVB_RT6257AHGJ6FEVAL BOARD FOR RT6257A |
4,818 | 0.00 |
|
Datasheet |
ACOT® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | RT6257A |
|
EVB_RT4805AWSCEVAL BOARD FOR RT4805A |
1,605 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2A | 1.8V ~ 5V | Boost | - | Board(s) | RT4805A |
|

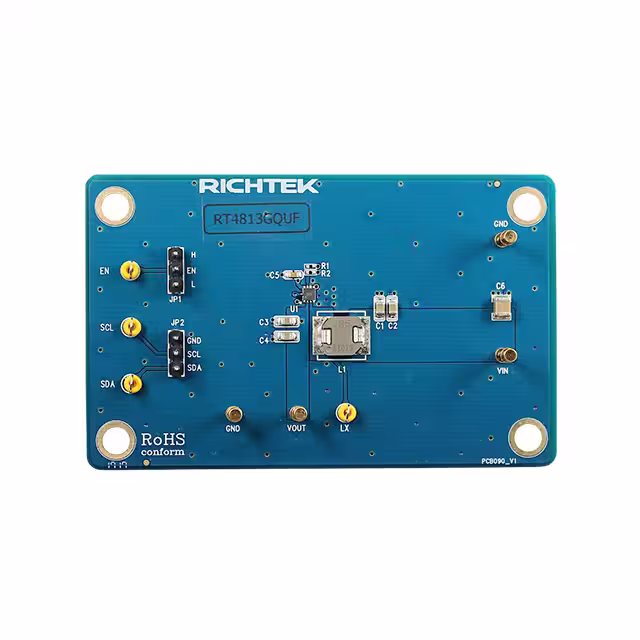

EVB_RT4813GQUFEVAL BOARD FOR RT4813 |
4,574 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V ~ 5.5V | 3.1A | 1.8V ~ 5.5V | Boost | - | Board(s) | RT4813 |
|

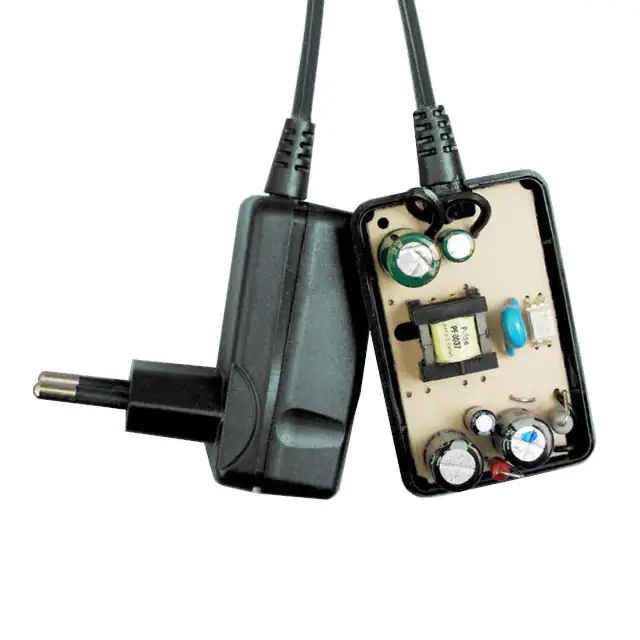

STEVAL-ISA014V1EVAL BOARD FOR VIPER12A |
2,105 | 0.00 |
|
Datasheet |
VIPER™ | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 3.6 W | 6V | 600mA | 85 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPer12A |
|
|
EVAL6565NEVAL BOARD FOR L6565 |
3,071 | 0.00 |
|
- |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 30 W | 15V | 2A | 88 ~ 264 VAC | Flyback | 60kHz | Board(s) | L6565 |
|

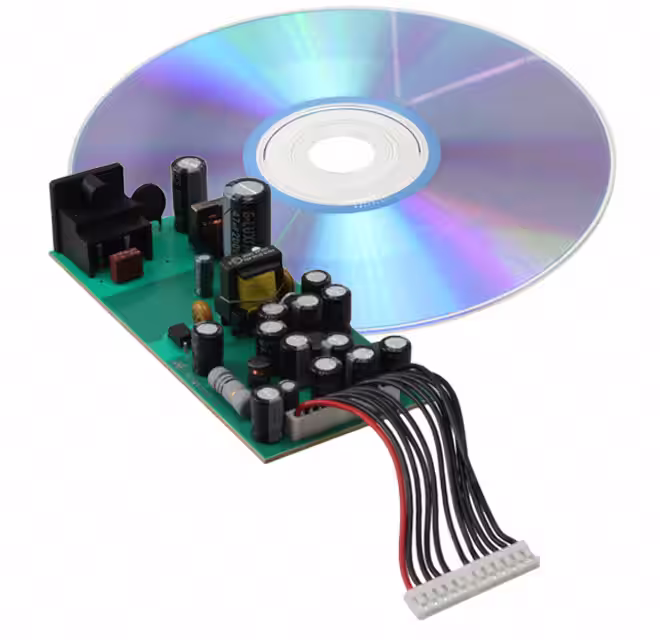

STEVAL-ISA017V1EVAL BOARD FOR L6565 |
4,041 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 6 Non-Isolated Outputs | 17 W | 1.23V, 2.5V, 3.3V, 5V, 8V, 12V | 1.7A, 1A, 700mA, 500mA, 450mA, 40mA | 88 ~ 135 VAC | Flyback | - | Board(s) | L6565 |
|

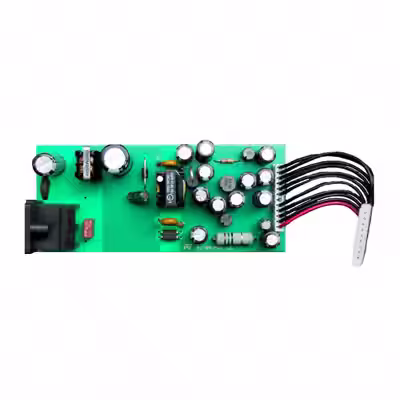

STEVAL-ISA016V1EVAL BOARD FOR L6565 |
1,993 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 6 Non-Isolated Outputs | 17 W | 1.23V, 2.5V, 3.3V, 5V, 8V, 12V | 1.7A, 1A, 700mA, 500mA, 450mA, 40mA | 185 ~ 265 VAC | Flyback | - | Board(s) | L6565 |
|

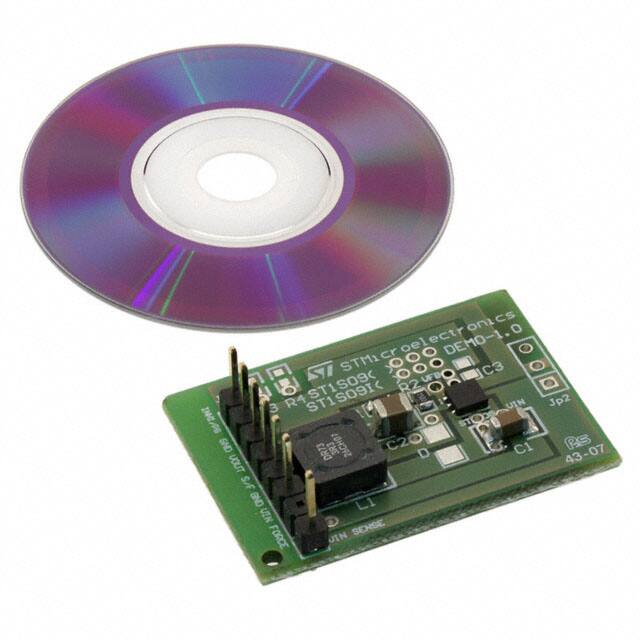

STEVAL-ISA046V2EVAL BOARD FOR ST1S09I |
4,840 | 43.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | ST1S09I |
|
|
STEVAL-ISA048V1EVAL BOARD FOR ST8R00 |
1,223 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up | - | - | 6V ~ 12V | 1A | 4V ~ 6V | Boost | - | Board(s) | ST8R00 |
|

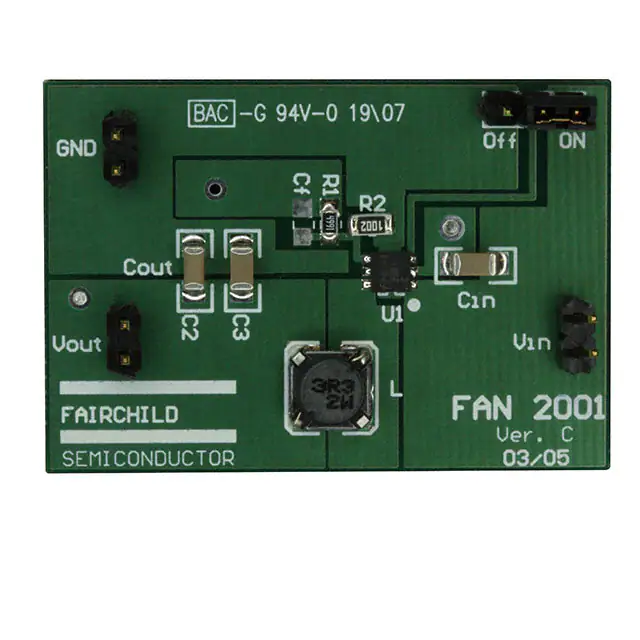

FEB137EVAL BOARD FOR FAN2001 |
2,595 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 2.5V ~ 5.5V | Buck | 1.3MHz | Board(s) | FAN2001 |
|

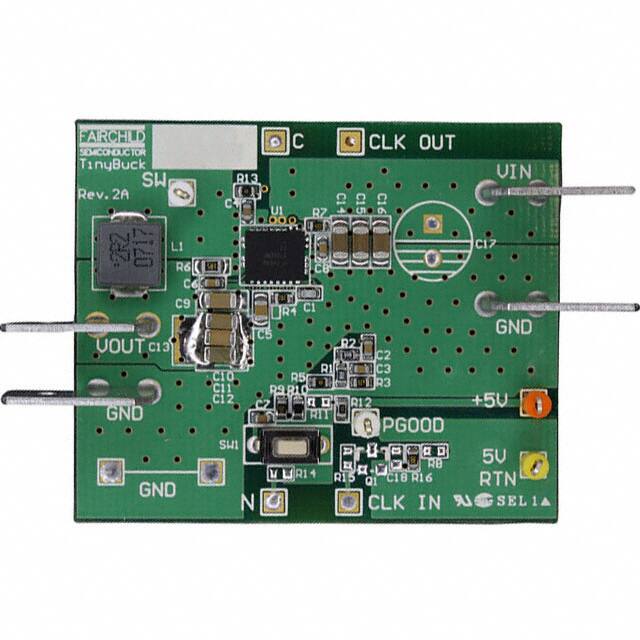

FEB167EVAL BOARD FOR FAN2106 |
4,308 | 0.00 |
|
Datasheet |
TinyBuck® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 8V ~ 20V | Buck | 500kHz | Board(s) | FAN2106 |
|

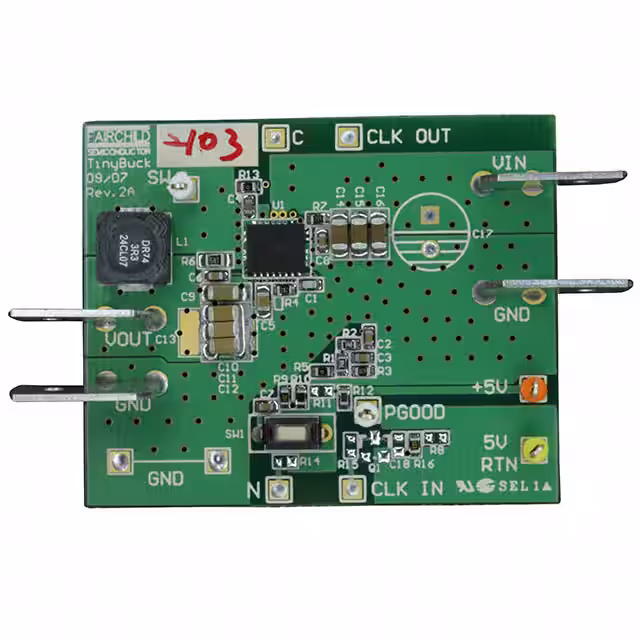

FEB207EVAL BOARD FOR FAN2103 |
4,753 | 0.00 |
|
Datasheet |
TinyBuck® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 5.4 W | 1.8V | 3A | 8V ~ 20V | Buck | 500kHz | Board(s) | FAN2103 |
|

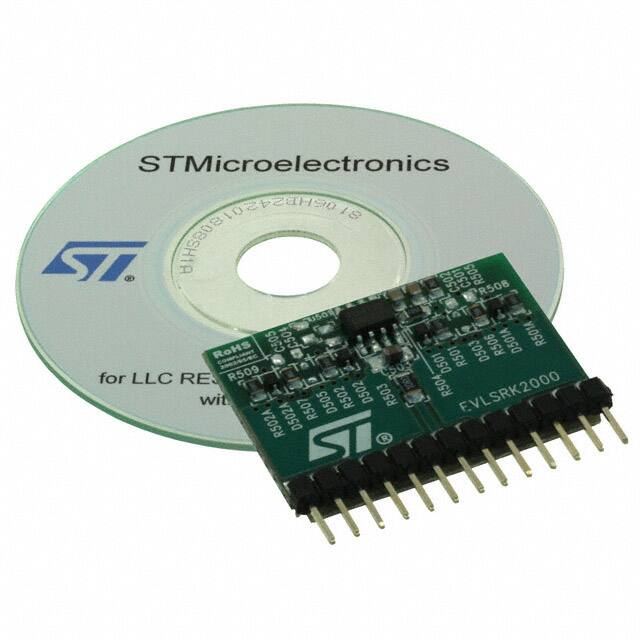

EVLSRK2000-S-40EVAL BOARD FOR SRK2000S40 |
1,841 | 0.00 |
|
- |
- | Bulk | Obsolete | AC/DC, Secondary Side | - | - | - | - | - | Resonant | - | Board(s) | SRK2000-S-40 |
|

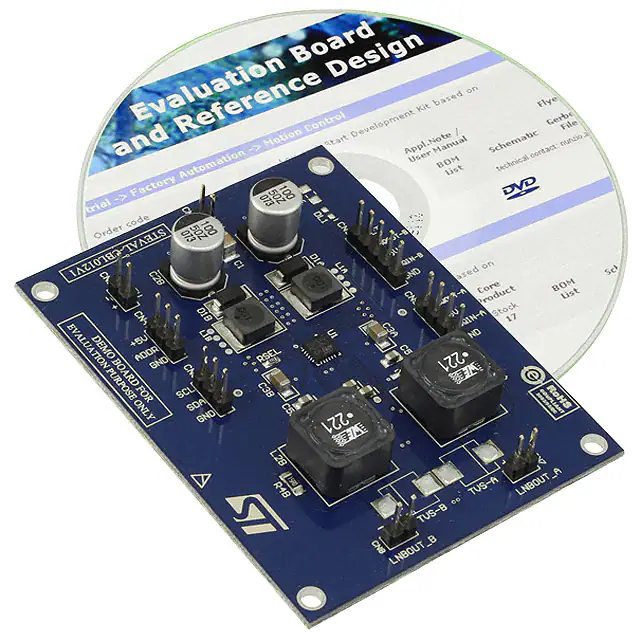

STEVAL-CBL012V1EVAL BOARD FOR LNBH26 |
1,946 | 43.75 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, LNB | 2 Non-Isolated Outputs | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH26 |
|
BD9109FVM-EVK-101EVAL BOARD FOR BD9109 |
3,208 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 4.5V ~ 5.5V | Buck | 1MHz | Board(s) | BD9109 |
|

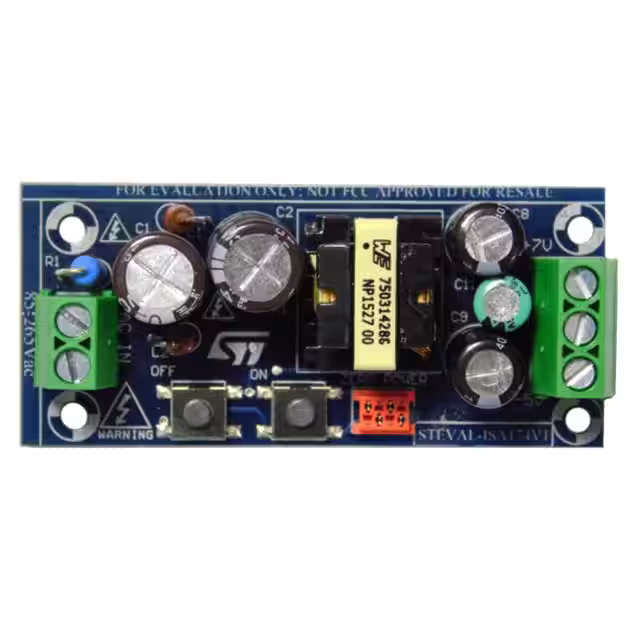

STEVAL-ISA174V1EVAL BOARD FOR VIPER0P |
1,205 | 43.75 |
|
Datasheet |
VIPer™ plus | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | 7 W | 7V, -5V | 840mA, 400mA | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer0P |
|
EVB_RT8130BGQWEVAL BOARD FOR RT8130B |
3,400 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 7A | 19V | Buck | 300kHz | Board(s) | RT8130B |
|
|
MAXM17900EVKIT#EVAL BOARD FOR MAXM17900 |
4,386 | 34.76 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 100mA | 10V ~ 21V | Buck | 600kHz | Board(s) | MAXM17900 |
|

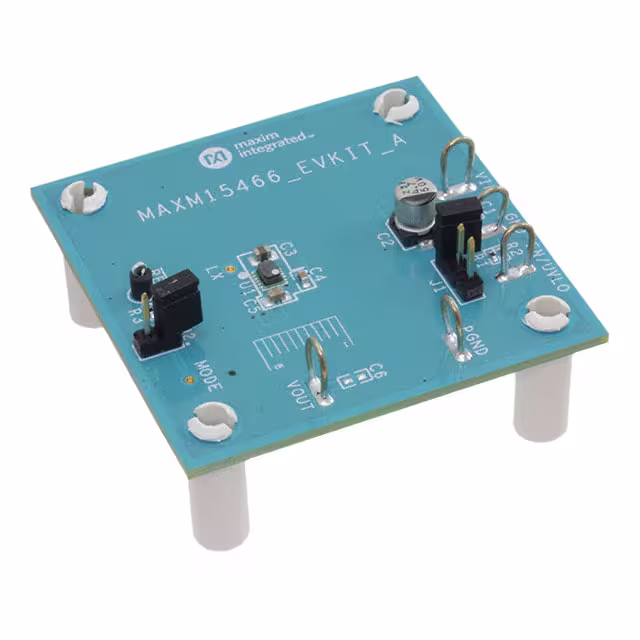

MAXM15466EVKIT#EVAL BOARD FOR MAXM15466 |
2,729 | 34.76 |
|
Datasheet |
Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 8.5V ~ 42V | Buck | 550kHz | Board(s) | MAXM15466 |
