DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

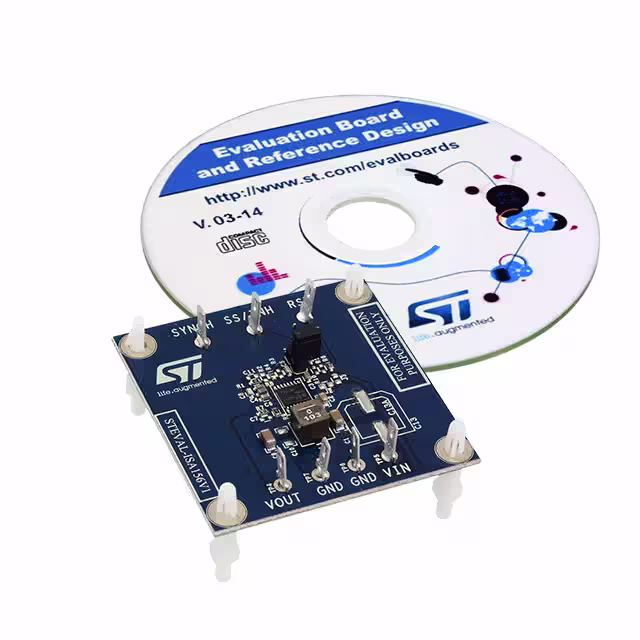

STEVAL-ISA156V1BOARD EVAL FOR L69 |
2,252 | 46.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4V ~ 38V | Buck | - | Board(s) | - |
|

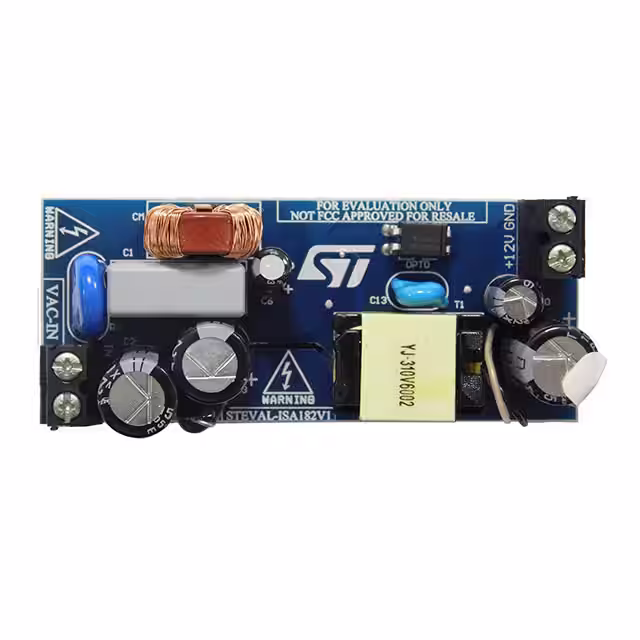

STEVAL-ISA182V1EVAL BOARD FOR VIPER38 |
4,523 | 46.25 |
|
Datasheet |
VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 8.4 W | 12V | 700mA | 85 ~ 132 VAC | Flyback | 115kHz | Board(s) | VIPer38 |
|
ISL91106IIA-EVZEVAL BOARD FOR ISL91106 |
4,388 | 47.44 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | - | 2A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91106 |
|
|
AS1310-20 EBEVAL BOARD FOR AS1310 |
1,558 | 0.00 |
|
- |
- | Box | Discontinued at Digi-Key | DC/DC, Step Up | 1 Non-Isolated Output | - | 2V | 60mA | 0.7V ~ 3.6V | Boost | - | Board(s) | AS1310 |
|
|
AS1310-27 EBEVAL BOARD FOR AS1310 |
1,629 | 0.00 |
|
- |
- | Box | Discontinued at Digi-Key | DC/DC, Step Up | 1 Non-Isolated Output | - | 2.7V | 60mA | 0.7V ~ 3.6V | Boost | - | Board(s) | AS1310 |
|

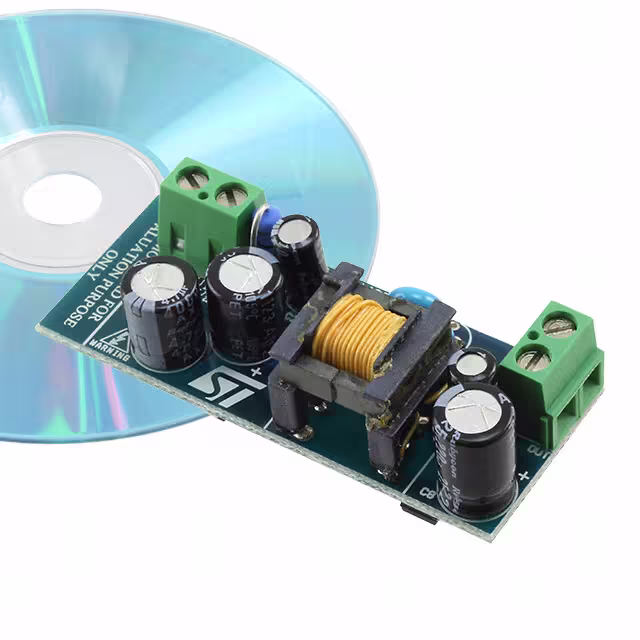

STEVAL-ISA135V1EVAL BOARD FOR VIPER06 |
1,834 | 47.50 |
|
Datasheet |
VIPER™ | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 4 W | 12V | 333mA | 85 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer06 |
|

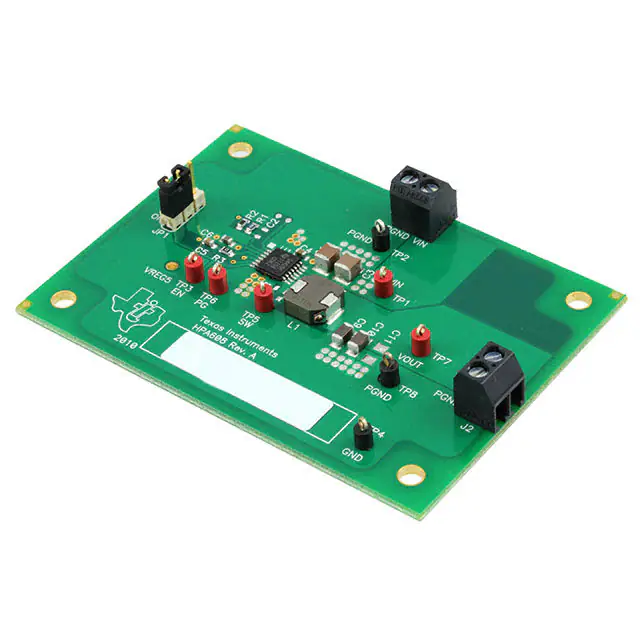

TPS54429EEVM-608EVAL BOARD FOR TPS54429E |
2,245 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4.5A | 7V ~ 18V | Buck | 700kHz | Board(s) | TPS54429E |
|

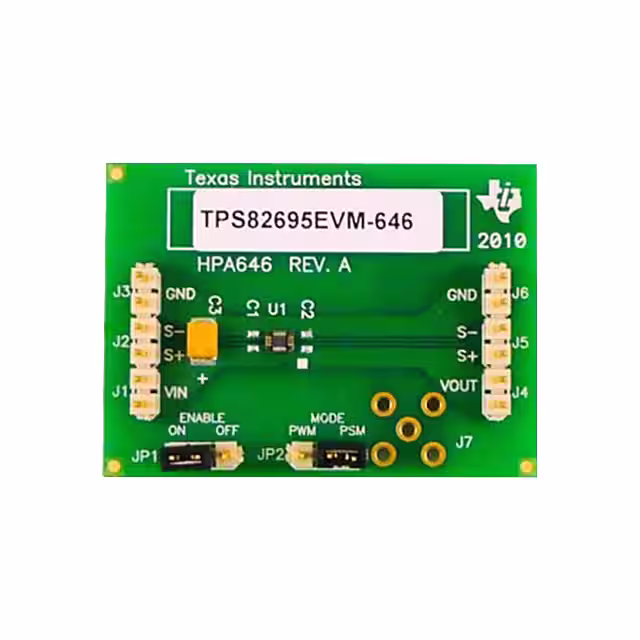

TPS82695EVM-646EVAL BOARD FOR TPS82695 |
2,012 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 500mA | 2.3V ~ 4.8V | Buck | 4MHz | Board(s) | TPS82695 |
|

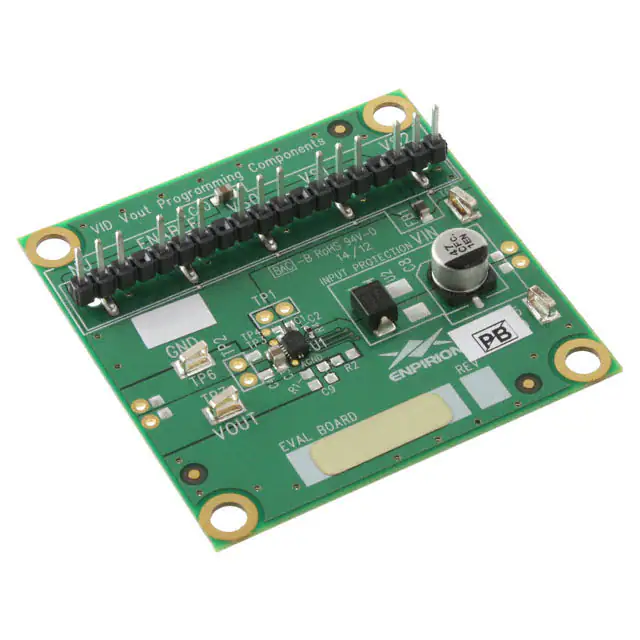

EVB-EP5358LUIEVAL BOARD FOR EP5358LUI |
1,096 | 49.00 |
|
Datasheet |
Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.05V, 1.1V, 1.15V, 1.2V, 1.45 or 1.5V | 600mA | 2.4V ~ 5.5V | Buck | 5MHz | Board(s) | EP5358LUI |
|

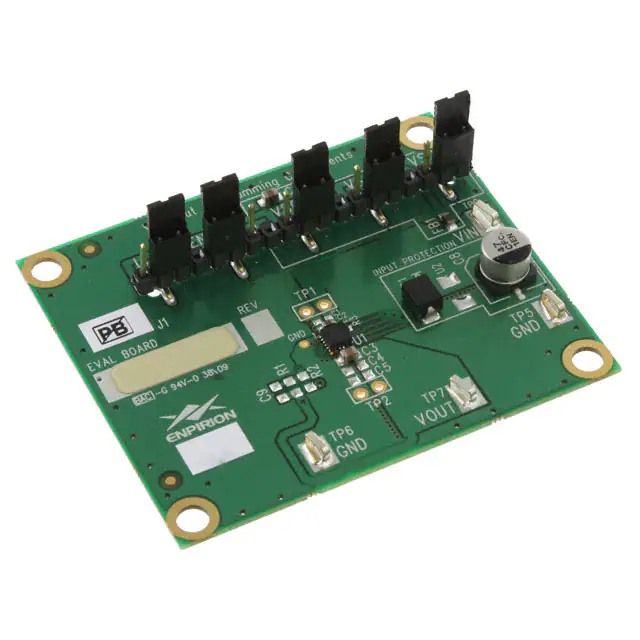

EVB-EP53A7LQIEVAL BOARD FOR EP53A7LQI |
2,448 | 49.00 |
|
Datasheet |
Enpirion® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.05V, 1.1V, 1.15V, 1.2V, 1.45 or 1.5V | 1A | 2.4V ~ 5.5V | Buck | 5MHz | Board(s) | EP53A7LQI |
|

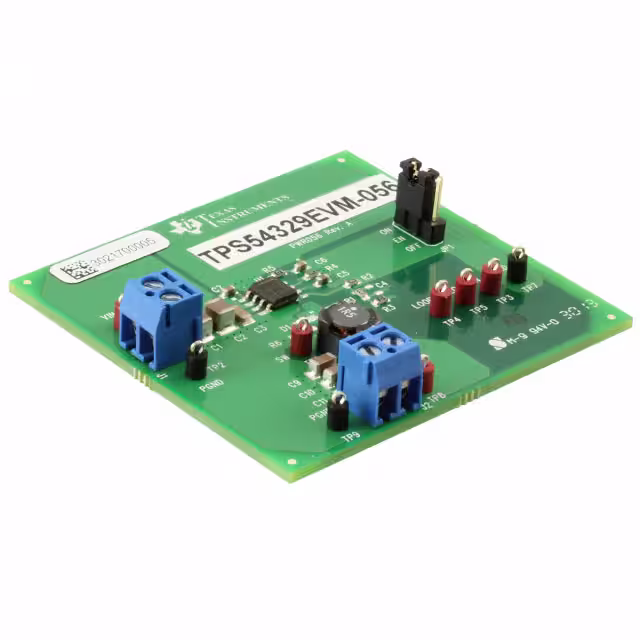

TPS54329EVM-056EVAL BOARD FOR TPS54329 |
2,860 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54329 |
|

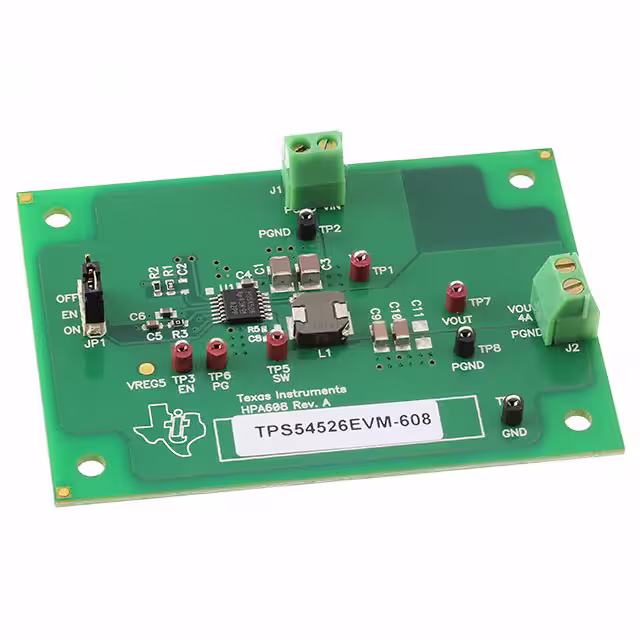

TPS54526EVM-608EVAL BOARD FOR TPS54526 |
3,731 | 30.00 |
|
Datasheet |
D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 5.5A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54526 |
|

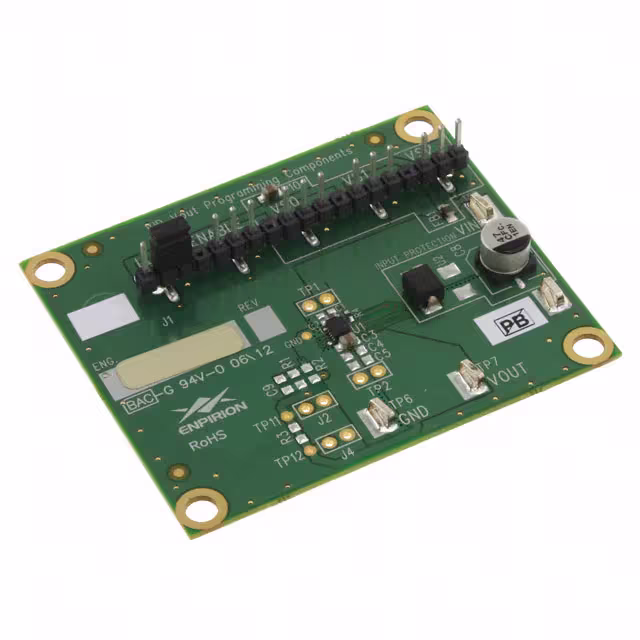

EVB-EP5357LUIEVAL BOARD FOR EP5357LUI |
1,074 | 49.00 |
|
Datasheet |
Enpirion® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.05V, 1.1V, 1.15V, 1.2V, 1.45 or 1.5V | 600mA | 2.4V ~ 5.5V | Buck | 5MHz | Board(s) | EP5357LUI |
|

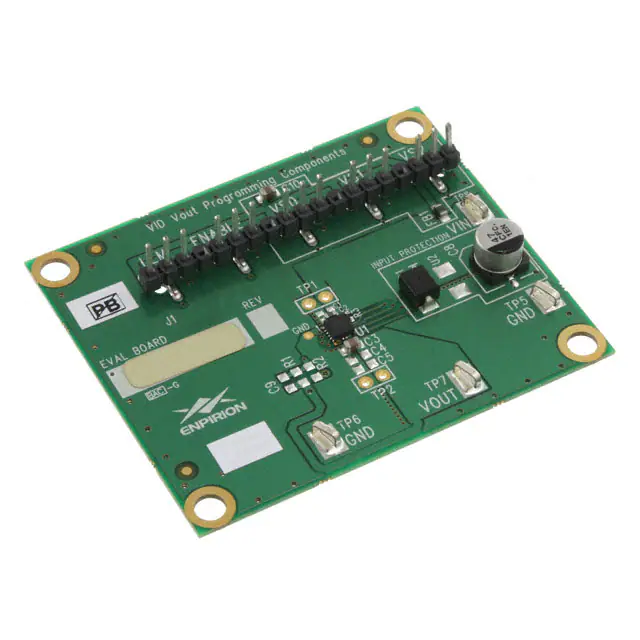

EVB-EP53A7HQIEVAL BOARD FOR EP53A7HQI |
1,177 | 49.00 |
|
Datasheet |
Enpirion® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.1V, 2.2V, 2.5V, 2.6V, 2.9V, 3V or 3.3V | 1A | 2.4V ~ 5.5V | Buck | 5MHz | Board(s) | EP53A7HQI |
|
EP5362QI-EEVAL BOARD FOR EP5362QI |
1,664 | 48.75 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 2.7V, 2.8V, 3V or 3.3V | 600mA | 2.4V ~ 5.5V | Buck | 4MHz | Board(s) | EP5362QI |
|
|
MAX764EVKIT-SO+EVAL BOARD FOR MAX764 |
2,472 | 53.13 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | -5V | 250mA | 3V ~ 16V | Buck | 300kHz | Board(s) | MAX764 |
|

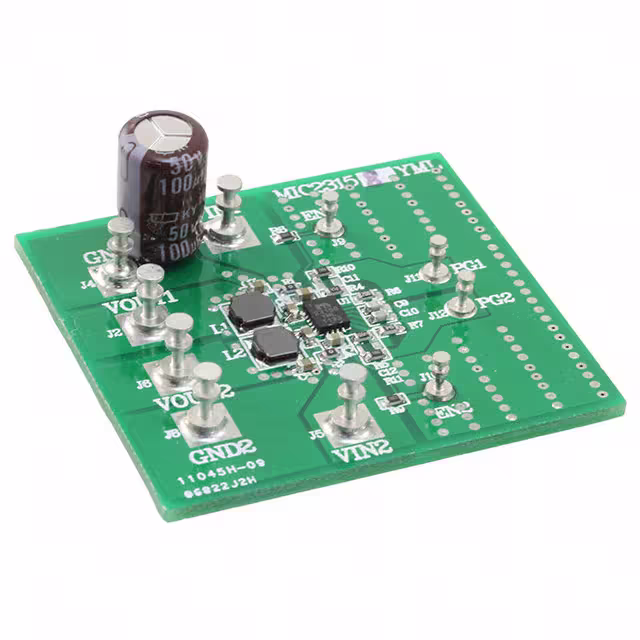

MIC23158YML-EVEVAL BOARD FOR MIC23158 |
2,471 | 0.00 |
|
Datasheet |
HyperLight Load® | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 1.8V | 2A, 2A | 2.7V ~ 5.5V | Buck | 3MHz | Board(s) | MIC23158 |
|

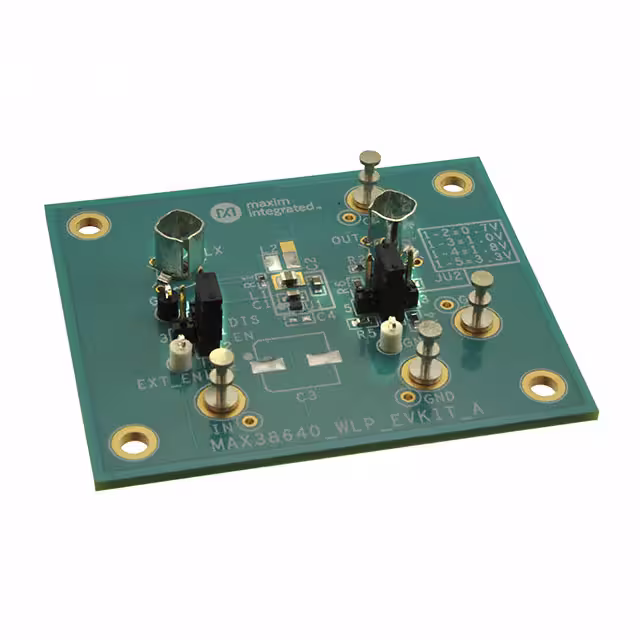

MAX38640EVKIT#WLPEVAL BOARD FOR MAX38640A |
3,941 | 0.00 |
|
Datasheet |
nanoPower | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 175mA | 1.8V ~ 5.5V | Buck | - | Board(s) | MAX38640A |
|
|
DAK-21AEVAL BOARD FOR DPA423 DPA424 |
3,294 | 49.95 |
|
Datasheet |
DPA-Switch® | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 6A | 36V ~ 72V | Buck | 400kHz | Board(s) | DPA423, DPA424, DPA425, DPA426 |
|
|
MAX17632BEVKIT#EVAL BOARD FOR MAX17632 |
3,648 | 38.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6.5V ~ 36V | Buck | 400kHz | Board(s) | MAX17632 |
