DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVPS001EVAL BOARD DSS260AT2 IXTY1R4N60P |
1,122 | 0.00 |
|
- |
PolarHV™ | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | - | - | - | Flyback | - | Board(s) | DSS2-60AT2, IXTY1R4N60P |
|

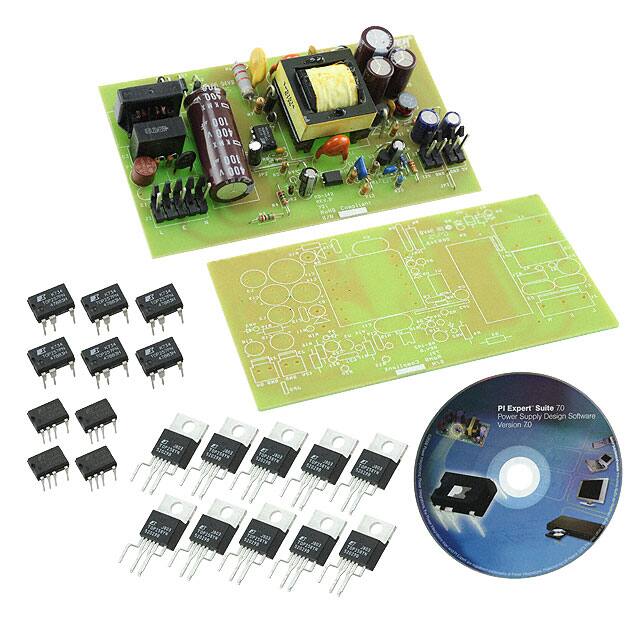

RDK-142EVAL BOARD FOR TOP258 |
1,211 | 0.00 |
|
Datasheet |
TOPSwitch®-HX | Bulk | Obsolete | AC/DC, Primary Side | 2 Non-Isolated Outputs | 35 W | 5V, 12V | 2.2A, 2A | 90 ~ 265 VAC | Flyback | 30kHz | Board(s) | TOP258 |
|

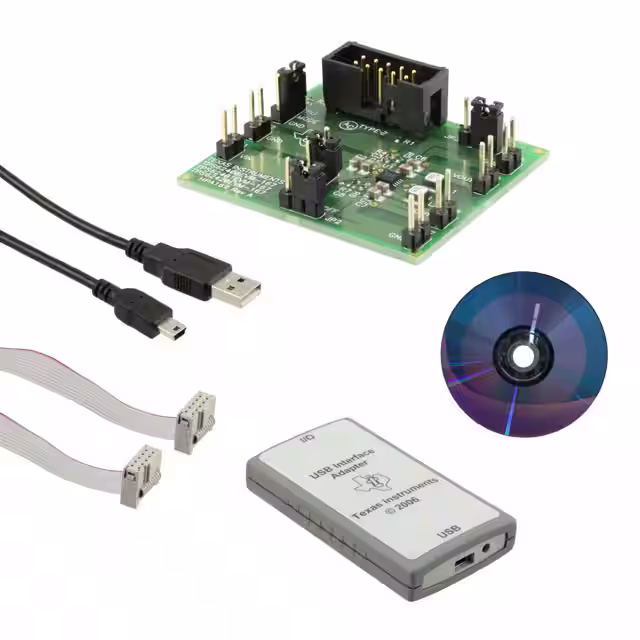

TPS62420EVM-167EVAL BOARD FOR TPS62420 |
1,692 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 6V | 1A, 600mA | 2.5V ~ 6V | Buck | 2.25MHz | Board(s), Cable(s) | TPS62420 |
|
|
MAX662EVKIT-SOEVAL BOARD FOR MAX662 |
3,825 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 30mA | 4.5V ~ 5.5V | Boost | 500kHz | Board(s) | MAX662 |
|

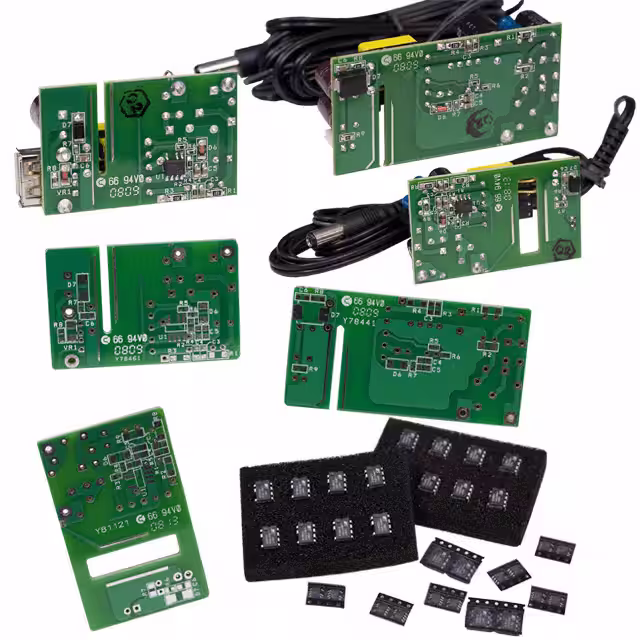

RDK-160EVAL BOARD FOR LNK603 LNK604 |
1,050 | 0.00 |
|
Datasheet |
LinkSwitch®-II | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | - | - | 85 ~ 265 VAC | Flyback | - | Board(s) | LNK603, LNK604, LNK605, LNK606, LNK613, LNK614, LNK615, LNK616 |
|
|
ISL8107EVAL1ZEVAL BOARD FOR ISL8107 |
4,778 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 9V ~ 75V | Buck | 200kHz | Board(s) | ISL8107 |
|
|
ISL62392HIEVAL1ZEVAL BOARD FOR ISL62392 |
3,739 | 0.00 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Bulk | Obsolete | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.05V, 1.5V, 3.3V | 15A, 15A, 100mA | 5.5V ~ 25V | Buck | - | Board(s) | ISL62392 |
|
|
ISL8510EVAL1ZEVAL BOARD FOR ISL8510 |
3,360 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 1A, 500mA, 500mA | 4.5V ~ 25V | Buck | 500kHz | Board(s) | ISL8510 |
|
|
ISL8560EVAL2ZEVAL BOARD FOR ISL8560 |
4,584 | 113.75 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 9V ~ 60V | Buck | 500kHz | Board(s) | ISL8560 |
|
|
ISL6844EVAL1ZEVAL BOARD FOR ISL6844 |
3,842 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 11 W | 3.3V | 3.35A | 36V ~ 57V | Flyback | - | Board(s) | ISL6844 |
|
|
ISL6752EVAL1ZEVAL BOARD FOR ISL6752 |
4,457 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 720 W | 12V | 60A | 325V ~ 425V | Buck | - | Board(s) | ISL6752 |
|
|
ISL6268EVAL1ZEVAL BOARD FOR ISL6268 |
1,761 | 0.00 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 5A | 7V ~ 25V | Buck | 300kHz | Board(s) | ISL6268 |
|
|
ISL6269EVAL2ZEVAL BOARD FOR ISL6269 |
2,432 | 0.00 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V or 1.2V | 20A | 7V ~ 25V | Buck | 300kHz or 600kHz | Board(s) | ISL6269 |
|
|
ISL6548A-6506EVAL1ZEVAL BOARD FOR ISL6506 ISL6548A |
1,877 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Special Purpose DC/DC, DDR Memory Supply | 7 Non-Isolated Outputs | 178 W | 0.9V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V | 15A, 14A, 14A, 10A, 5A, 5A, 2A | 3.3V, 5V, 12V | Buck | - | Board(s) | ISL6506, ISL6548A |
|
|
ISL6537A-6506EVAL1ZEVAL BOARD FOR ISL6506 ISL6537A |
1,093 | 215.62 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, DDR Memory Supply | 7 Non-Isolated Outputs | 178 W | 0.9V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V | 15A, 14A, 14A, 10A, 5A, 5A, 2A | 3.3V, 5V, 12V | Buck | - | Board(s) | ISL6506, ISL6537A |
|
MCP1603RD-TNYEVAL BOARD FOR MCP1603 |
2,831 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.2V, 1.8V, 2.5V, or 3.3V | 500mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | MCP1603 |
|

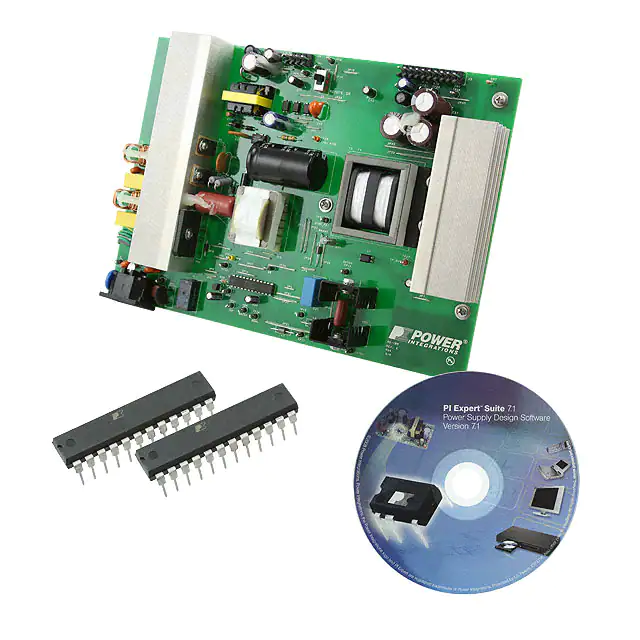

RDK-189EVAL BOARD FOR PLC810 |
1,878 | 0.00 |
|
Datasheet |
HiperPLC™ | Box | Obsolete | AC/DC, Primary Side | 4 Isolated Outputs | 225 W | 5V, 5V, 12V, 24V | 7A, 4A, 1.9A, 100mA | 90 ~ 265 VAC | Flyback | - | Board(s) | PLC810 |
|
|
ISL8009EVAL1ZEVAL BOARD FOR ISL8009 |
3,897 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 2.7V ~ 5.5V | Buck | 1.6MHz | Board(s) | ISL8009 |
|

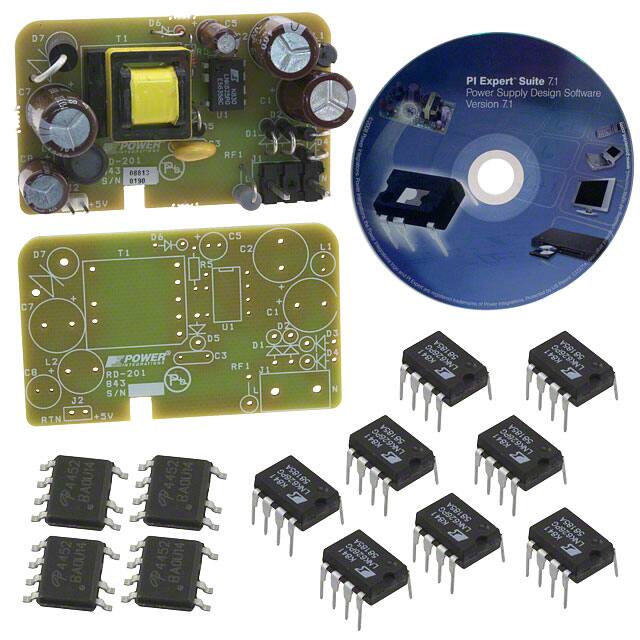

RDK-201EVAL BOARD FOR LNK625 |
4,852 | 0.00 |
|
Datasheet |
LinkSwitch®-CV | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 6 W | 5V | 1.2A | 90 ~ 265 VAC | Flyback | - | Board(s) | LNK625 |
|

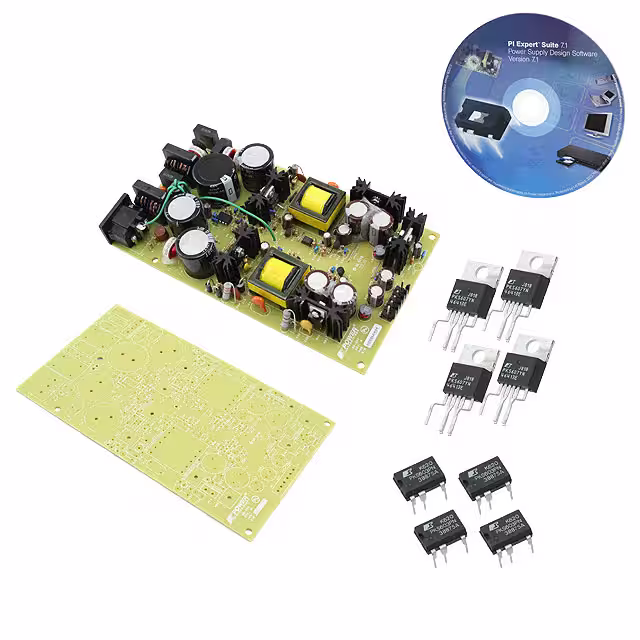

RDK-203EVAL BOARD FOR PKS607 |
3,567 | 0.00 |
|
Datasheet |
PeakSwitch® | Bulk | Obsolete | AC/DC, Primary Side | 3 Isolated Outputs | 54 W | 28V, -28V, 12V | 893mA, 893mA, 333mA | 90 ~ 265 VAC | Flyback | - | Board(s) | PKS607 |
