DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL6263AEVAL1ZEVAL BOARD FOR ISL6263A |
3,041 | 0.00 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.412V ~ 1.2875V | 12A | 5V ~ 25V | Buck | 300kHz | Board(s) | ISL6263A |
|
|
ISL8200MEVAL2PHZEVAL BOARD FOR ISL8200M |
3,295 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 3V ~ 20V | Buck | 700kHz ~ 1.5MHz | Board(s) | ISL8200M |
|

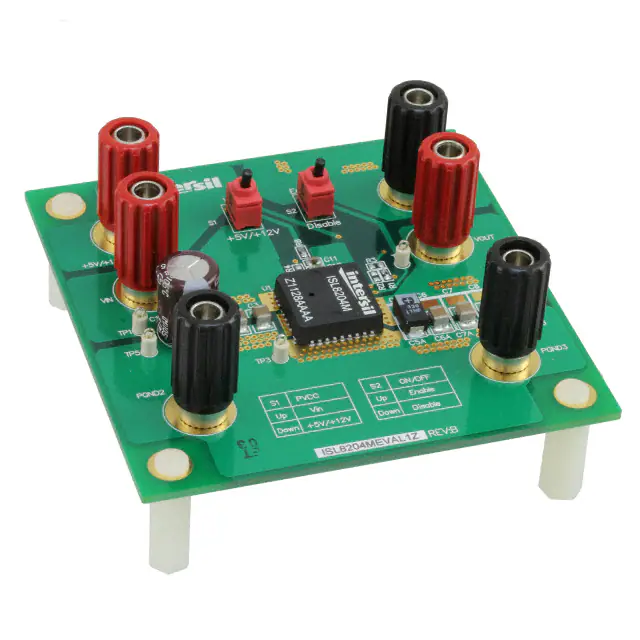

ISL8204MEVAL1ZEVAL BOARD FOR ISL8204M |
2,350 | 62.50 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 4A | 1V ~ 20V | Buck | 600kHz | Board(s) | ISL8204M |
|

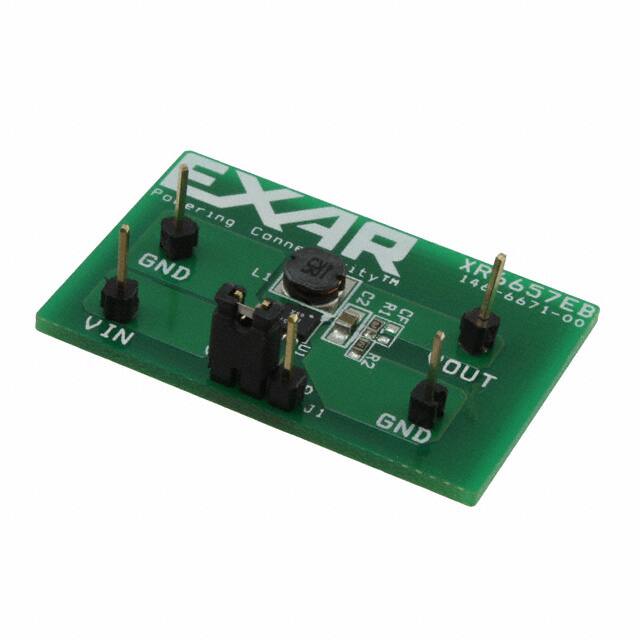

XRP6657EVBEVAL BOARD FOR XRP6657 |
4,866 | 31.25 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 2.5V ~ 5.5V | Buck | 1.3MHz | Board(s) | XRP6657 |
|
NCP1597BGEVBEVAL BOARD FOR NCP1597B |
4,280 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4V ~ 5.5V | Buck | 1MHz | Board(s) | NCP1597B |
|

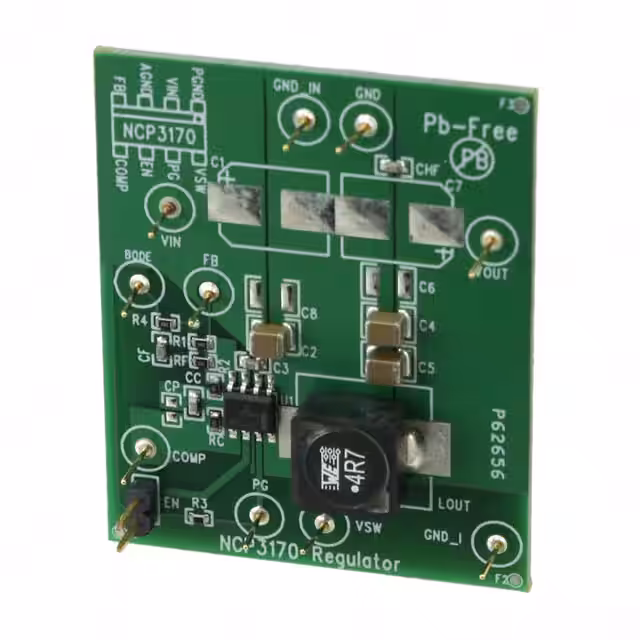

NCP3170AGEVBEVAL BOARD FOR NCP3170 |
1,804 | 75.00 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | NCP3170 |
|
|
ISL6754DBEVAL1ZEVAL BOARD FOR ISL6754 |
3,182 | 50.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC Isolated Power Supply | 1 Isolated Output | - | 12V | - | - | Resonant | - | Board(s) | ISL6754 |
|
|
ISL9103IRUWEVAL1ZEVAL BOARD FOR ISL9103 |
1,497 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 500mA | 2.7V ~ 6V | Buck | 2.4MHz | Board(s) | ISL9103 |
|

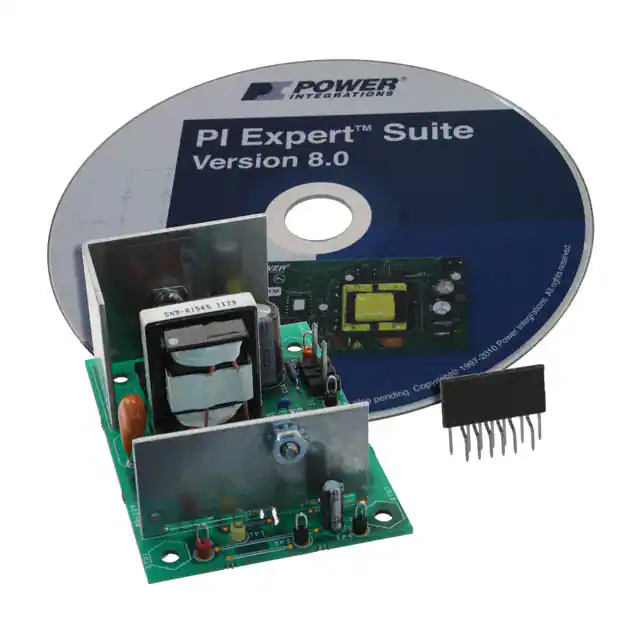

RDK-239EVAL BOARD FOR LCS702HG |
4,939 | 0.00 |
|
Datasheet |
HiperLCS™ | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 150 W | 24V | 6.25A | 300V ~ 420V | Resonant | - | Board(s) | LCS702HG |
|

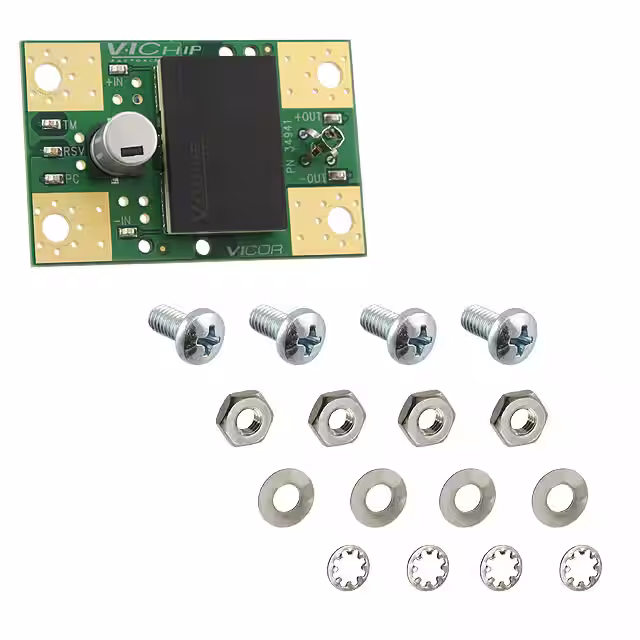

BCD384F480T325A00EVAL BOARD FOR BCM384F480T325 |
3,203 | 0.00 |
|
Datasheet |
VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 325 W | 48V | 7A | 360V ~ 400V | Buck | 1.75MHz | Board(s) | BCM384F480T325 |
|

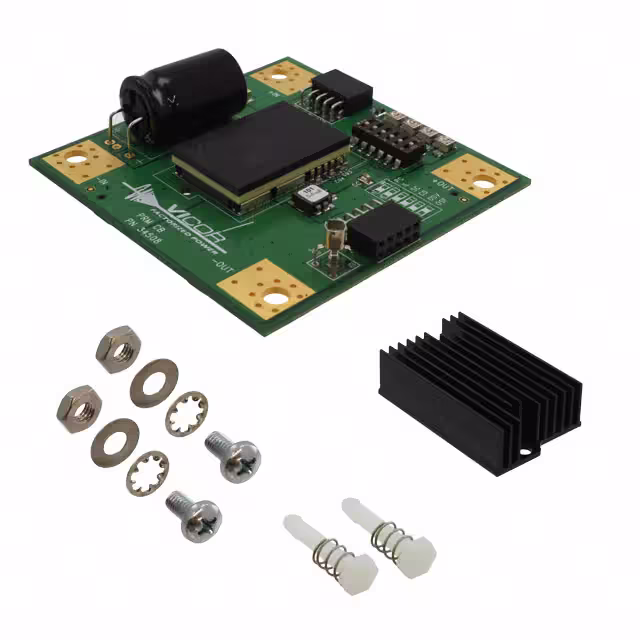

MP028F036M12AL-CBEVAL BOARD FOR MP028F036M12 |
4,201 | 0.00 |
|
- |
VI Chip® PRM® | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | 120 W | 36V | 3.3A | 16V ~ 50V | Buck-Boost | 1MHz | Board(s) | MP028F036M12 |
|

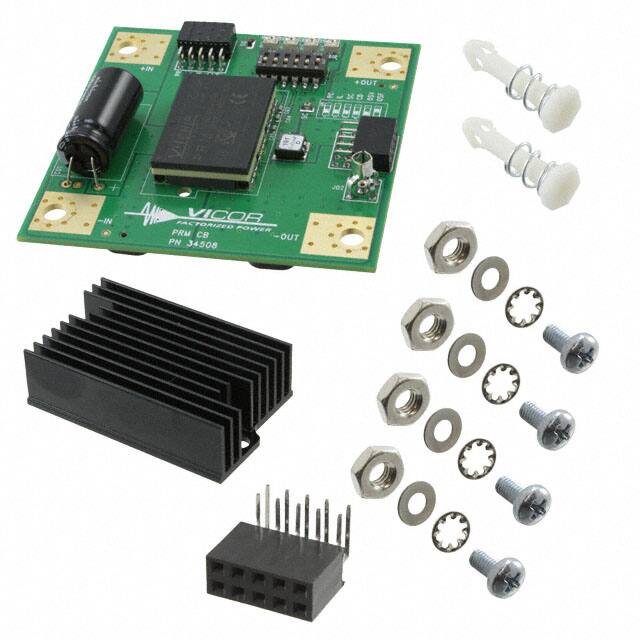

P048F048T24AL-CBEVAL BOARD FOR P048F048T24AL |
2,396 | 0.00 |
|
Datasheet |
VI Chip® PRM® | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | 240 W | 48V | 5A | 36V ~ 75V | Buck-Boost | 1.55MHz | Board(s) | P048F048T24AL |
|

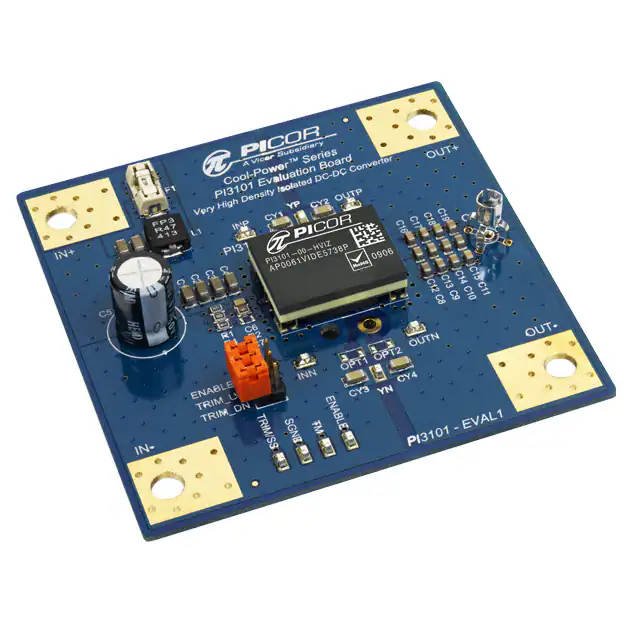

PI3101-00-EVAL1EVAL BOARD FOR PI310100 |
2,376 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 60 W | 3.3V | 18A | 36V ~ 75V | Buck | 900kHz | Board(s) | PI3101-00 |
|

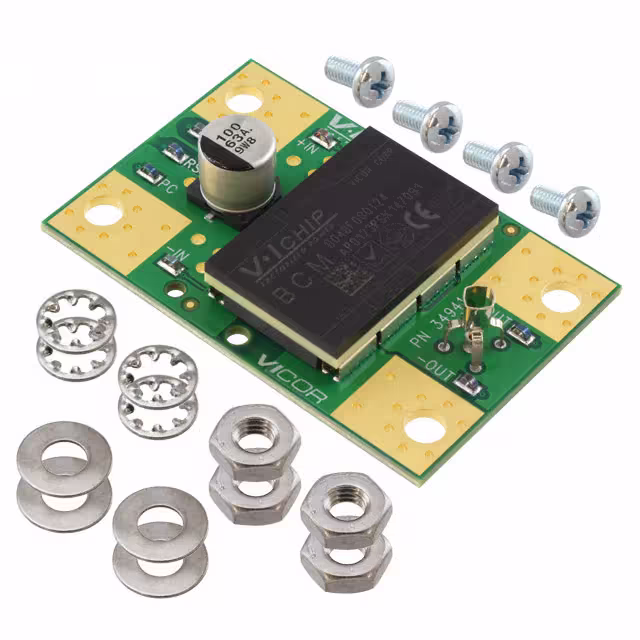

B048F080T24-EBEVAL BOARD FOR B048F080T24 |
3,692 | 0.00 |
|
Datasheet |
VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 240 W | 8V | 30A | 38V ~ 55V | Buck | 3.2MHz | Board(s) | B048F080T24 |
|
B048F160T24-EBEVAL BOARD FOR B048F160T24 |
2,335 | 0.00 |
|
Datasheet |
VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 240 W | 16V | 15A | 38V ~ 55V | Buck | 3.6MHz | Board(s) | B048F160T24 |
|

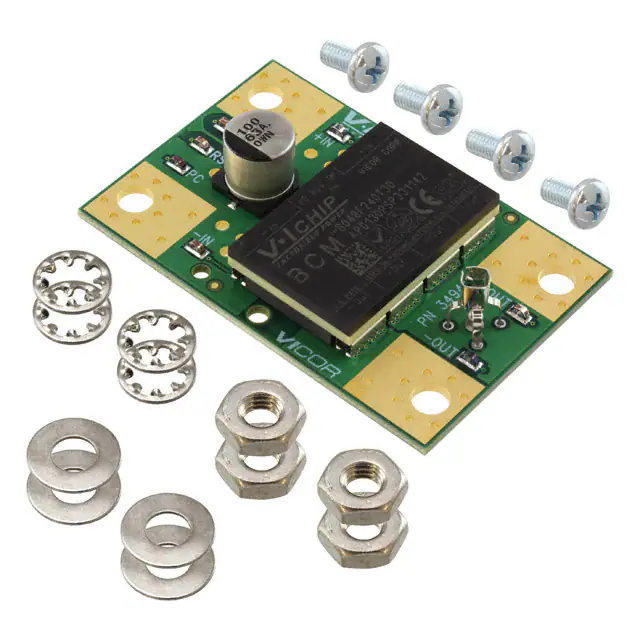

B048F240T30-EBEVAL BOARD FOR B048F240T30 |
3,597 | 0.00 |
|
Datasheet |
VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 300 W | 24V | 12.5A | 38V ~ 53V | Buck | 3.4MHz | Board(s) | B048F240T30 |
|

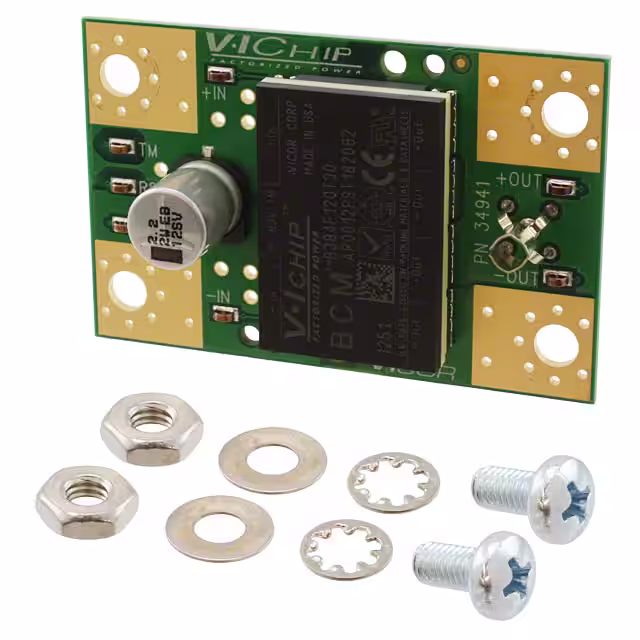

B384F120T30-EBEVAL BOARD FOR B384F120T30 |
1,982 | 0.00 |
|
Datasheet |
VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 300 W | 12V | 25A | 360V ~ 400V | Buck | 3.4MHz | Board(s) | B384F120T30 |
|
BCD48BH120T120A00EVAL BOARD FOR BCM48BH120T120A |
2,118 | 0.00 |
|
Datasheet |
VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 120 W | 12V | 11.3A | 38V ~ 55V | Buck | 1.75MHz | Board(s) | BCM48BH120T120A |
|
|
MV036F011M100-CBEVAL BOARD FOR MV036F011M100 |
3,645 | 0.00 |
|
Datasheet |
VI Chip® VTM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 120 W | 1.13V | 100A | 26V ~ 50V | Buck | 3MHz | Board(s) | MV036F011M100 |
|

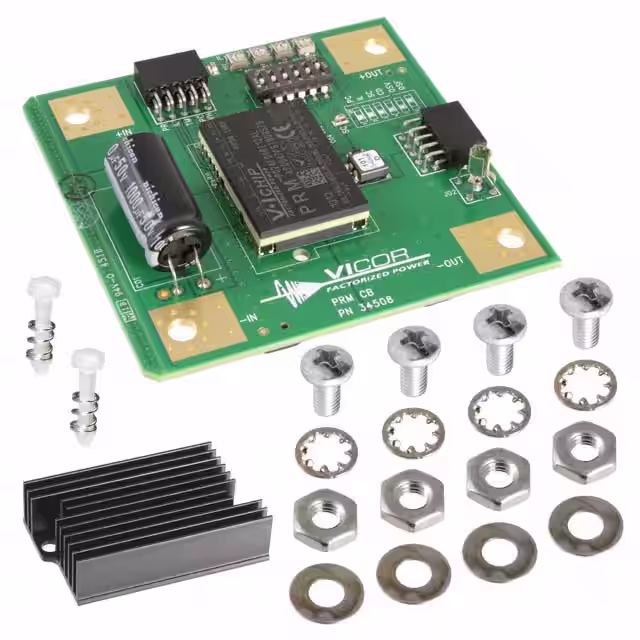

P024F048T12AL-CBEVAL BOARD FOR P024F048T12AL |
2,872 | 0.00 |
|
Datasheet |
VI Chip® PRM® | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | 120 W | 48V | 2.5A | 18V ~ 36V | Boost | 1.33MHz | Board(s) | P024F048T12AL |
