DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

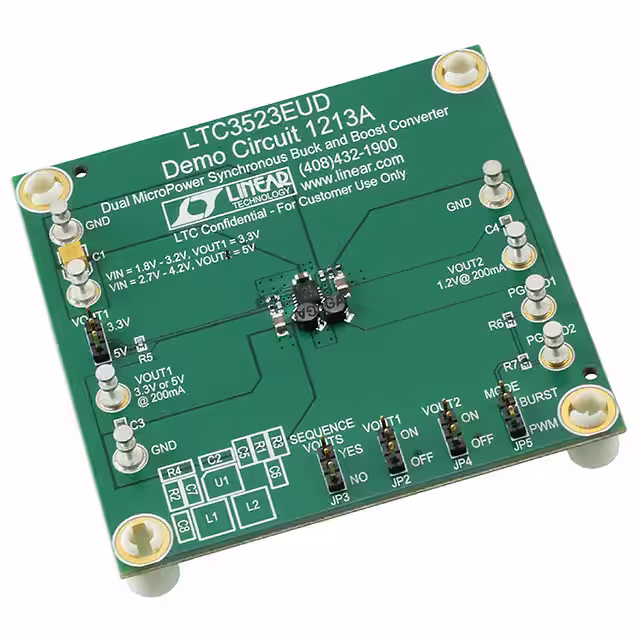

DC1213AEVAL BOARD FOR LTC3523 |
3,823 | 183.91 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 200mA, 200mA | 1.8V ~ 4.2V | Boost, Buck | 1.2MHz | Board(s) | LTC3523 |
|
DC1324AEVAL BOARD FOR LTC3672B2 |
4,880 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.8V | 400mA, 150mA, 150mA | 2.9V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3672B-2 |
|
DC195AEVAL BOARD FOR LTC1627 |
3,929 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V, 2.9V or 3.3V | 500mA | 2.65V ~ 8.5V | Buck | 350kHz | Board(s) | LTC1627 |
|
DC293A-AEVAL BOARD FOR LTC1771 |
4,007 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V or 3.3V | 2A | 2.8V ~ 12V | Buck | - | Board(s) | LTC1771 |
|

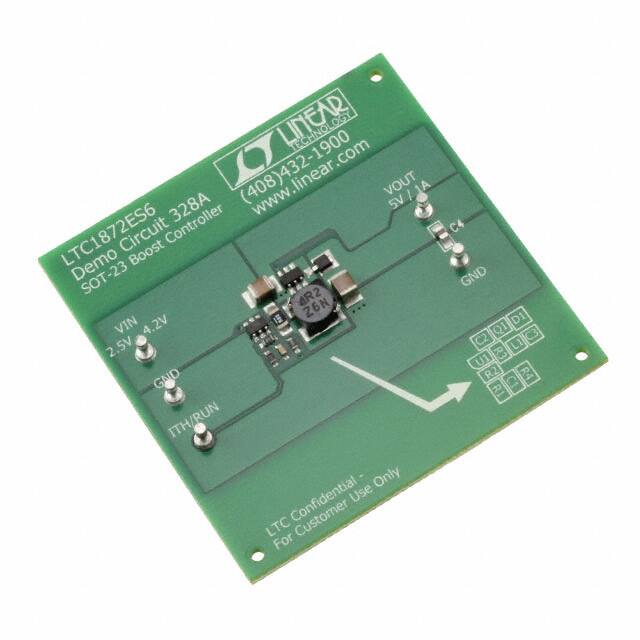

DC328AEVAL BOARD FOR LTC1872 |
3,248 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 2.5V ~ 4.2V | Boost | 550kHz | Board(s) | LTC1872 |
|
DC620AEVAL BOARD FOR LT1943 |
3,222 | 0.00 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 3.3V, 13V, 30V, -10V | 2A, 500mA, 50mA, 30mA | 8V ~ 20V | Boost, Buck, Inverting | 1.2MHz | Board(s) | LT1943 |
|

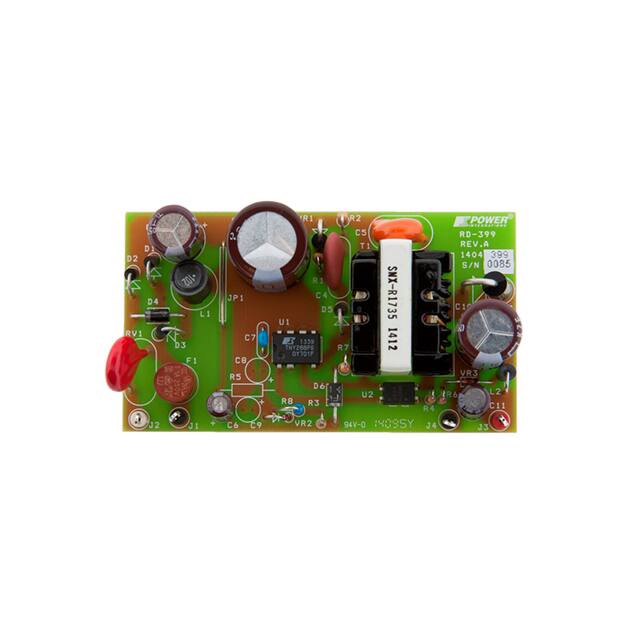

RDK-399EVAL BOARD FOR TNY288 |
1,363 | 0.00 |
|
Datasheet |
TinySwitch®-4 | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s) | TNY288 |
|
|
ISL6446ADEMO1ZEVAL BOARD FOR ISL6446A |
4,153 | 107.50 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 20A, 20A | 10.8V ~ 13.2V | - | 280kHz | Board(s) | ISL6446A |
|
|
ISL8271MEVAL1ZEVAL BOARD FOR ISL8271M |
3,675 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5V | 33A | 4.5V ~ 14V | Buck | - | Board(s), Cable(s) | ISL8271M |
|

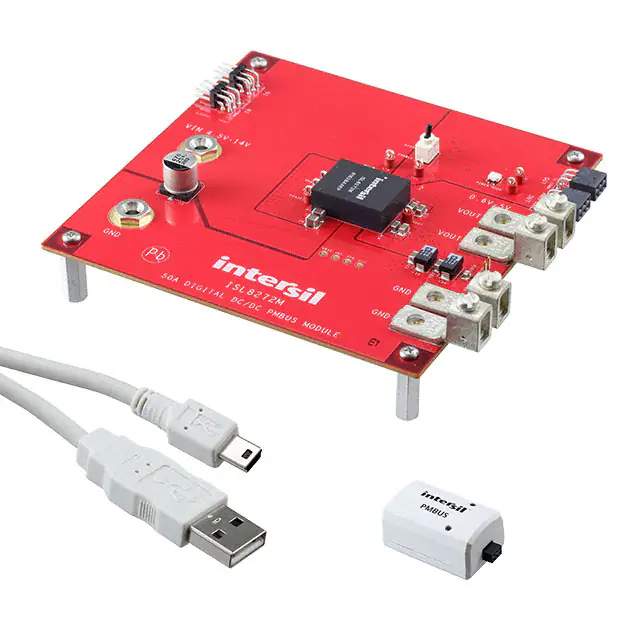

ISL8272MEVAL1ZEVAL BOARD FOR ISL8272M |
4,914 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 50A | 5V ~ 12V | Buck | 421kHz | Board(s) | ISL8272M |
|
|
ZL8801-2PH-DEMO1ZEVAL BOARD FOR ZL8801 |
4,549 | 153.81 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 80A | 4.5V ~ 14V | Buck | 500kHz | Board(s), Cable(s) | ZL8801 |
|
|
ZL8801-4PH-DEMO1ZEVAL BOARD FOR ZL8801 |
3,002 | 230.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 160A | 6.5V ~ 14V | Buck | 515kHz | Board(s) | ZL8801 |
|
PI3108-00-EVAL1EVAL BOARD FOR PI310800 |
4,366 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 50 W | 3.3V | 10A | 16V ~ 50V | Buck | 900kHz | Board(s) | PI3108-00 |
|
PI3749-00-EVAL1EVAL BOARD FOR PI374900 |
3,822 | 53.36 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | 180 W | 12V ~ 34V | 7.5A | 16V ~ 34V | Buck-Boost | 800kHz | Board(s) | PI3749-00 |
|
EVB-ER3125QIEVAL BOARD FOR ER3125QI |
1,011 | 0.00 |
|
Datasheet |
Enpirion® | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.5V ~ 36V | 2.5A | 3V ~ 36V | Buck-Boost | - | Board(s) | ER3125QI |
|
DCD24AP050T180A50EVAL BOARD FOR DCM24AP050X180A50 |
4,592 | 0.00 |
|
Datasheet |
VI Chip® DCM® | Box | Active | DC/DC, Step Down | 1 Isolated Output | 180 W | 5V | 36A | 18V ~ 36V | Buck | - | Board(s) | DCM24AP050x180A50 |
|
|
MDCD270P480M500A40EVAL BOARD MDCM270P480M500A40 |
2,927 | 0.00 |
|
Datasheet |
VI Chip® DCM® | Box | Active | DC/DC, Step Down | 1 Isolated Output | 500 W | 48V | - | 160V ~ 420V | Buck | - | Board(s) | MDCM270P480M500A40 |
|
|
DCD48AP280T320A50EVAL BOARD FOR DCM48AP280X320A50 |
3,861 | 0.00 |
|
Datasheet |
VI Chip® DCM® | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 320 W | 28V | 11.43A | 36V ~ 75V | Buck | - | Board(s) | DCM48AP280x320A50 |
|
|
DC1811B-AEVAL BOARD FOR LTM4676 |
1,525 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.8V | 13A, 13A | 4.5V ~ 26.5V | Buck | 500kHz | Board(s) | LTM4676 |
|
|
DC1878AEVAL BOARD FOR LTC3789 |
3,042 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 8V ~ 75V | Buck-Boost | 200kHz | Board(s) | LTC3789 |
