DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC477AEVAL BOARD FOR LT1683 |
1,637 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 2A | 36V ~ 72V | Buck | - | Board(s) | LT1683 |
|
|
DM330017-1EVAL BOARD FOR DSPIC33F |
2,057 | 0.00 |
|
Datasheet |
MPLAB® | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | - | - | - | Boost, Buck | - | Board(s), Cable(s), Power Supply | dsPIC33F |
|
|
MVTD36BF045M027A00EVAL BOARD MVTM36BX045M027A00 |
4,375 | 0.00 |
|
- |
VI Chip® VTM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 4.5V | 27A | 26V ~ 50V | Buck | 1.21MHz | Board(s) | MVTM36Bx045M027A00 |
|
|
MVTD36BF120M010A00EVAL BOARD MVTM36BX120M010A00 |
2,704 | 0.00 |
|
- |
VI Chip® VTM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 12V | 10A | 26V ~ 50V | Buck | 1.65MHz | Board(s) | MVTM36Bx120M010A00 |
|
|
P048F048M24AL-CBEVAL BOARD FOR P048F048M24AL |
3,395 | 0.00 |
|
Datasheet |
VI Chip® PRM® | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | 240 W | 48V | 5A | 36V ~ 75V | Buck-Boost | 1.45MHz | Board(s) | P048F048M24AL |
|
|
VTD48EF020T080B00EVAL BOARD FOR VTM48EX020Y080B00 |
3,862 | 0.00 |
|
Datasheet |
VI Chip® VTM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 160 W | 2V | 80A | 26V ~ 55V | Buck | 1.6MHz | Board(s) | VTM48Ex020y080B00 |
|

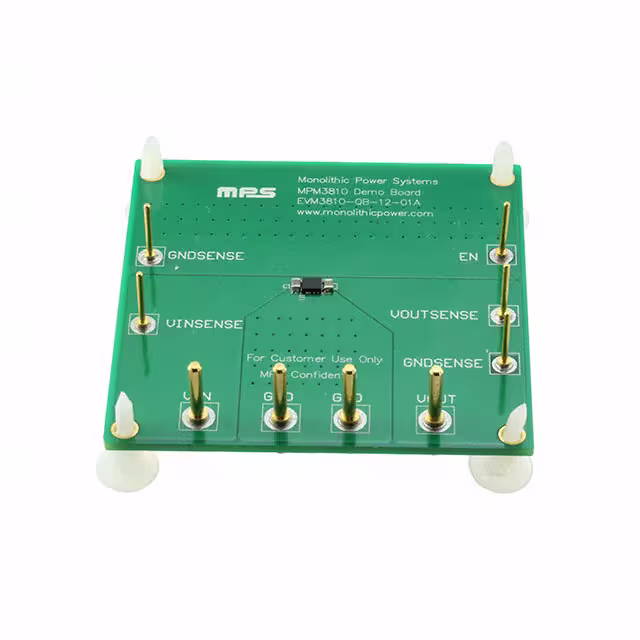

EVM3810-QB-12-01AEVAL BOARD FOR MPM381012 |
4,128 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1.2A | 2.5V ~ 6V | Buck | 3.5MHz | Board(s) | MPM3810-12 |
|

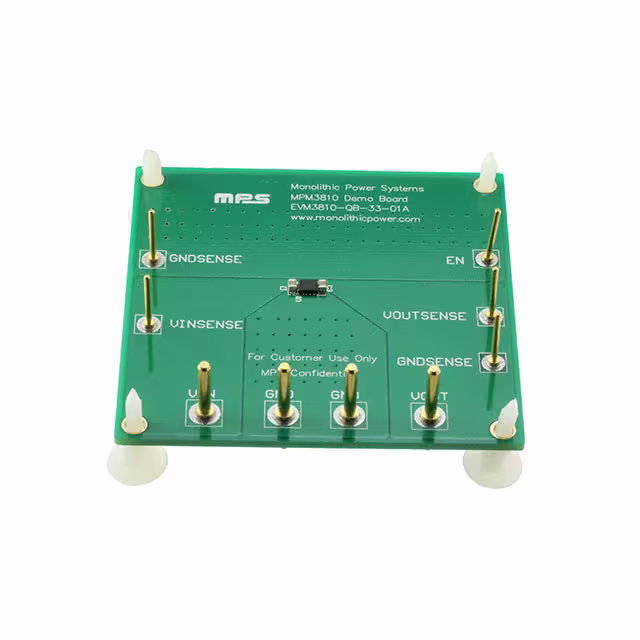

EVM3810-QB-33-01AEVAL BOARD FOR MPM381033 |
4,053 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 2.5V ~ 6V | Buck | 3.5MHz | Board(s) | MPM3810-33 |
|
|
MIC2131-EVEVAL BOARD FOR MIC2131 |
2,880 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 9A | 8V ~ 40V | Buck | 150kHz | Board(s) | MIC2131 |
|
|
MIC28511-2YFL-EVEVAL BOARD FOR MIC285112 |
1,244 | 0.00 |
|
Datasheet |
Hyper Speed Control® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 4.6V ~ 60V | Buck | 300kHz | Board(s) | MIC28511-2 |
|
|
MIC28512-1YFL-EVEVAL BOARD FOR MIC285121 |
4,582 | 0.00 |
|
Datasheet |
HyperLight Load® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4.6V ~ 70V | Buck | 300kHz | Board(s) | MIC28512-1 |
|
|
MIC28512-2YFL-EVEVAL BOARD FOR MIC285122 |
2,176 | 0.00 |
|
Datasheet |
Hyper Speed Control® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4.6V ~ 70V | Buck | 300kHz | Board(s) | MIC28512-2 |
|
DC2249AEVAL BOARD FOR LTM4622 |
4,137 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 2.5A, 2.5A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTM4622 |
|
RDK-420EVAL BOARD FOR INN2023K |
1,156 | 0.00 |
|
Datasheet |
InnoSwitch™-CH | Box | Obsolete | AC/DC, Primary and Secondary Side | 1 Isolated Output | 10 W | 5V | 2A | 85 ~ 264 VAC | Flyback | - | Board(s) | INN2023K |
|
FEBFAN7688-I00250A-GEVBEVAL BOARD FOR FAN3225C FAN7688 |
4,368 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 250 W | 12.5V | 20A | 300V ~ 450V | Resonant | - | Board(s) | FAN3225C, FAN7688 |
|

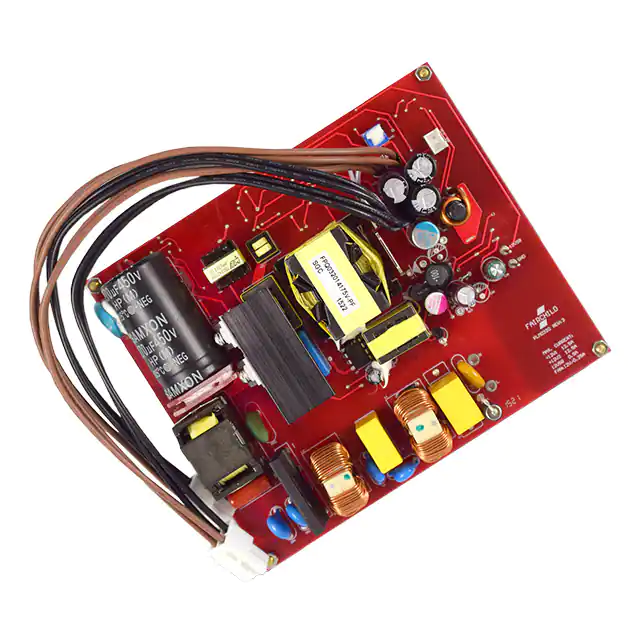

FEBFAN7688SJXA-CP14U306-GEVBEVAL BOARD FOR FAN7688 |
1,373 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Secondary Side | 2 Isolated Outputs | 306 W | 12V, 12V | - | 90 ~ 264 VAC | - | - | Board(s) | FAN7688 |
|

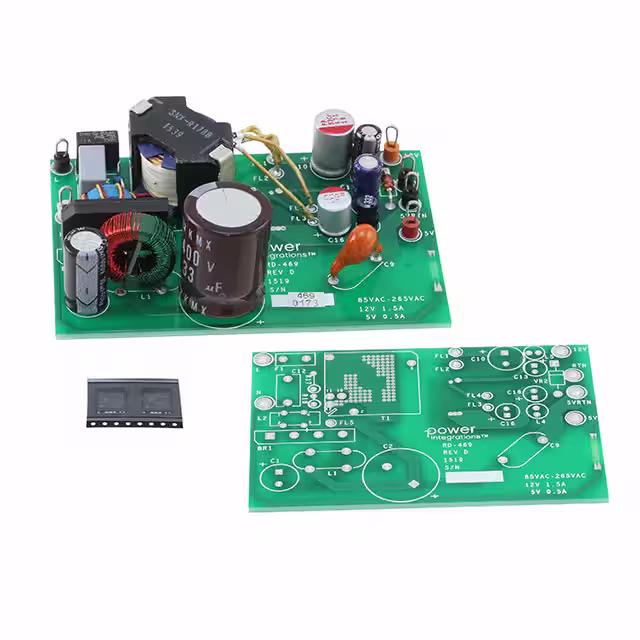

RDK-469EVAL BOARD FOR INN2605K |
4,764 | 0.00 |
|
Datasheet |
InnoSwitch™-EP | Box | Obsolete | AC/DC, Primary and Secondary Side | 2 Isolated Outputs | 20 W | 5V, 12V | 1.5A, 500mA | 85 ~ 264 VAC | Flyback | - | Board(s) | INN2605K |
|
|
EVB_RT5047GSPEVAL BOARD FOR RT5047 |
2,698 | 0.00 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | 13.3V or 18.3V | 500mA | 8V ~ 16V | Boost | 700kHz | Board(s) | RT5047 |
|

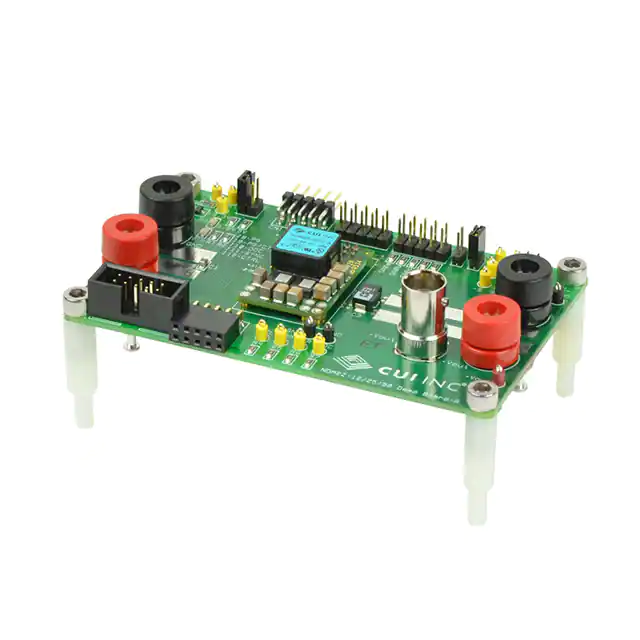

NDM2Z-25HT-DEMOEVAL BOARD FOR NDM2Z25 |
2,201 | 363.15 |
|
Datasheet |
Novum® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 82.5 W | 1.2V | 25A | 4.5V ~ 14V | Buck | 320kHz | Board(s) | NDM2Z-25 |
|

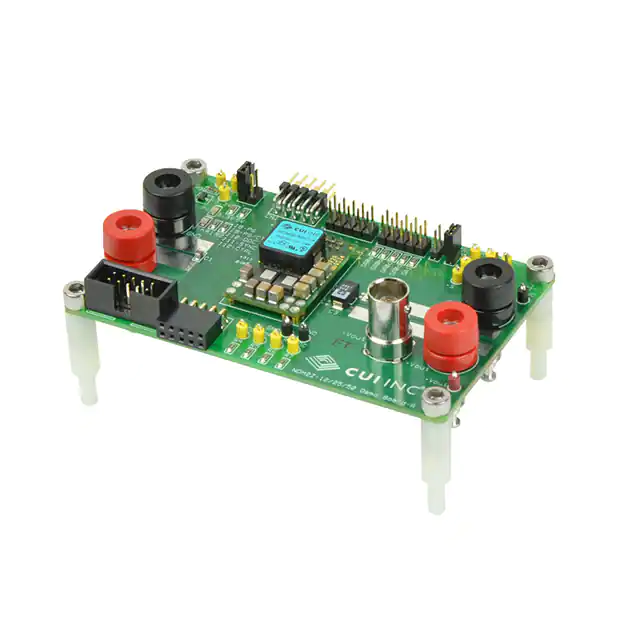

NDM2Z-50HT-DEMOEVAL BOARD FOR NDM2Z50 |
1,909 | 375.68 |
|
Datasheet |
Novum® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 165 W | 1.2V | 50A | 4.5V ~ 14V | Buck | 320kHz | Board(s) | NDM2Z-50 |
