DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

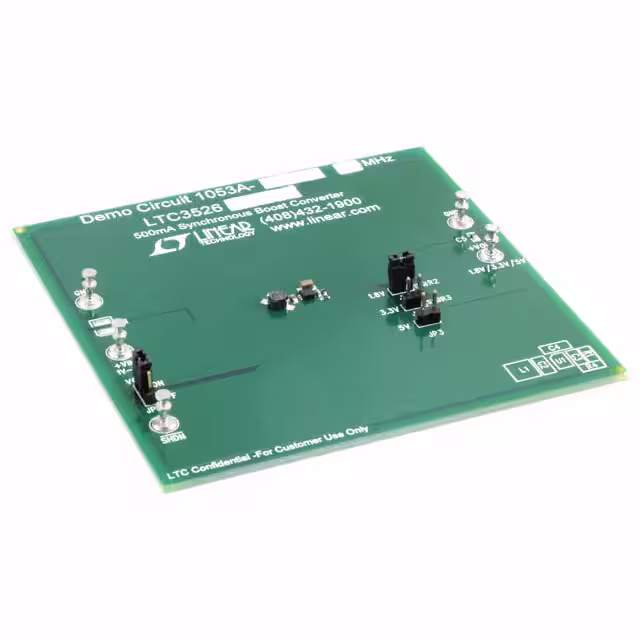

DC1053A-HEVAL BOARD FOR LTC3526LB2 |
2,226 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 100mA | 0.8V ~ 5.5V | Boost | 2MHz | Board(s) | LTC3526LB-2 |
|

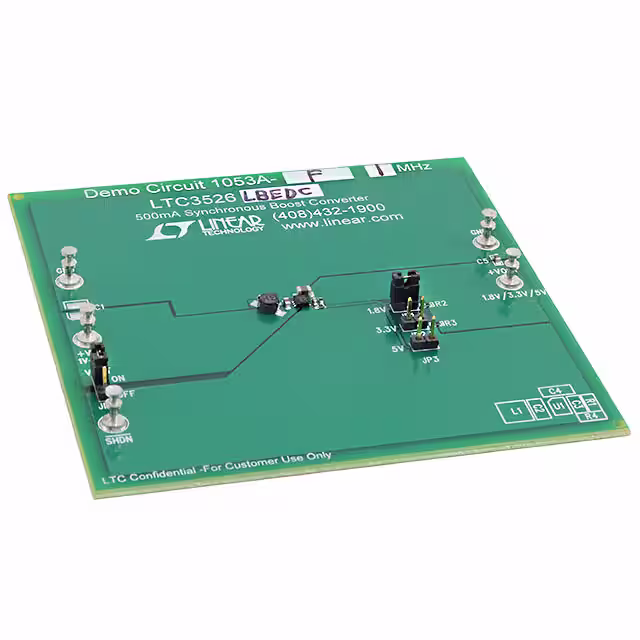

DC1053A-FEVAL BOARD FOR LTC3526LB |
3,415 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 100mA | 0.8V ~ 5.5V | Boost | 1MHz | Board(s) | LTC3526LB |
|

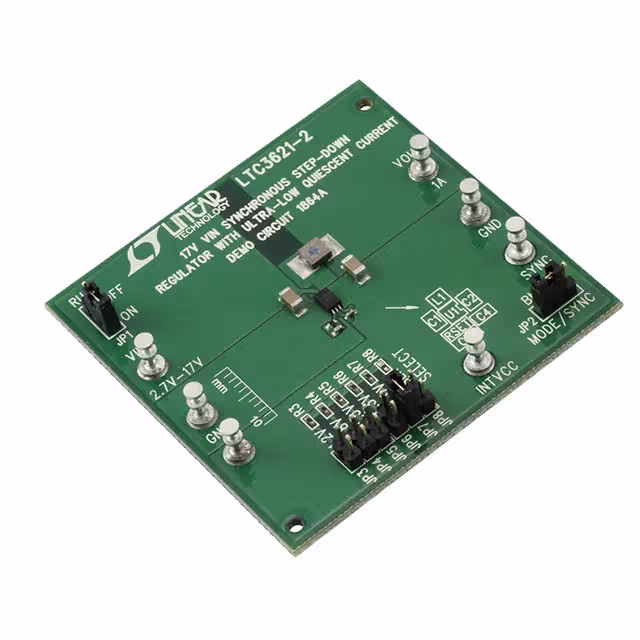

DC1864AEVAL BOARD FOR LTC36212 |
1,397 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1A | 2.7V ~ 17V | Buck | 2.25MHz | Board(s) | LTC3621-2 |
|

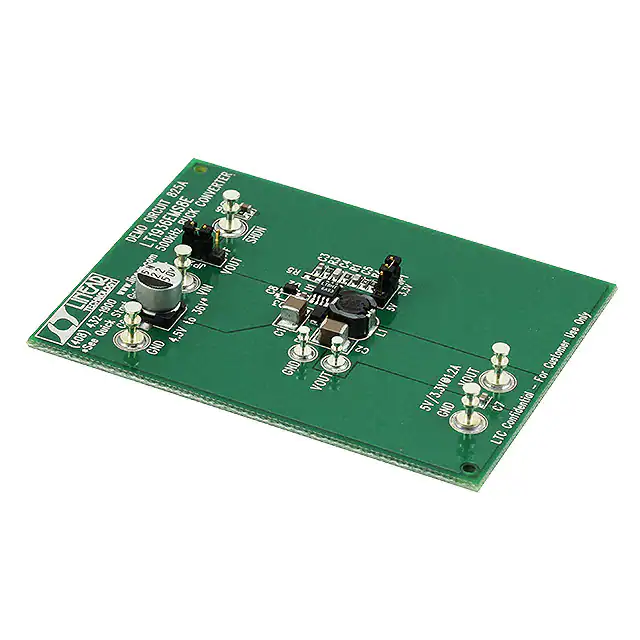

DC825AEVAL BOARD FOR LT1936 |
3,740 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.2A | 4.5V ~ 36V | Buck | 500kHz | Board(s) | LT1936 |
|

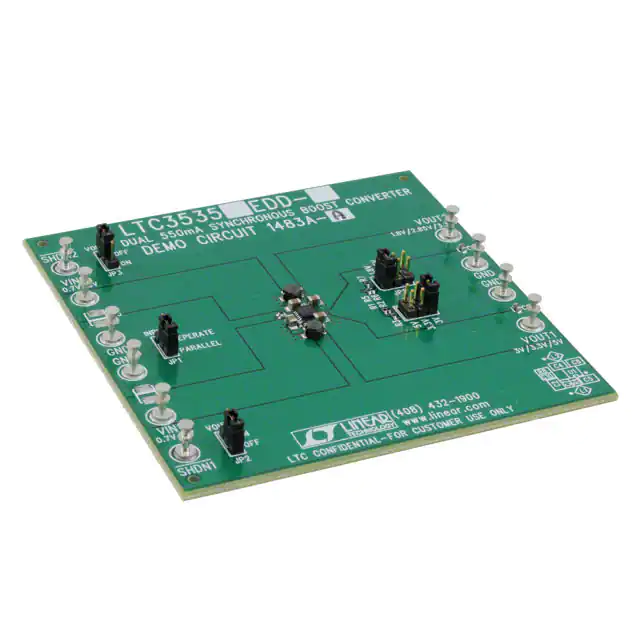

DC1483AEVAL BOARD FOR LTC3535 |
4,247 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 1.8V ~ 5V | 100mA, 100mA | 0.8V ~ 5V | Boost | 1MHz | Board(s) | LTC3535 |
|

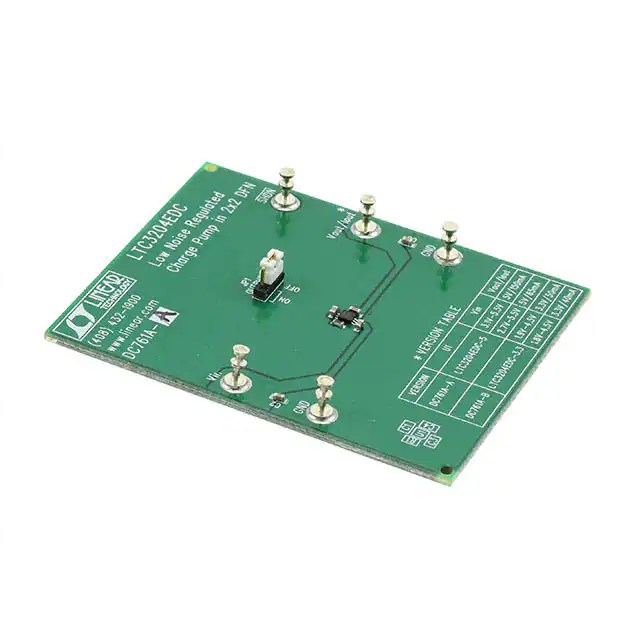

DC761A-AEVAL BOARD FOR LTC32045 |
4,133 | 80.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 150mA | 2.7V ~ 5.5V | Boost | 1.2MHz | Board(s) | LTC3204-5 |
|
DC1100AEVAL BOARD FOR LTC3803 |
2,925 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 3A | 18V ~ 72V | Flyback | 300kHz | Board(s) | LTC3803 |
|
DC1211A-BEVAL BOARD FOR LTC3528B |
1,228 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | - | 0.7V ~ 5.5V | Boost | 1MHz | Board(s) | LTC3528B |
|
DC482AEVAL BOARD FOR LT19835 |
4,363 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 100mA | 3V ~ 6V | Inverting | - | Board(s) | LT1983-5 |
|
DC877AEVAL BOARD FOR LTC35313.3 |
1,132 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 200mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | LTC3531-3.3 |
|

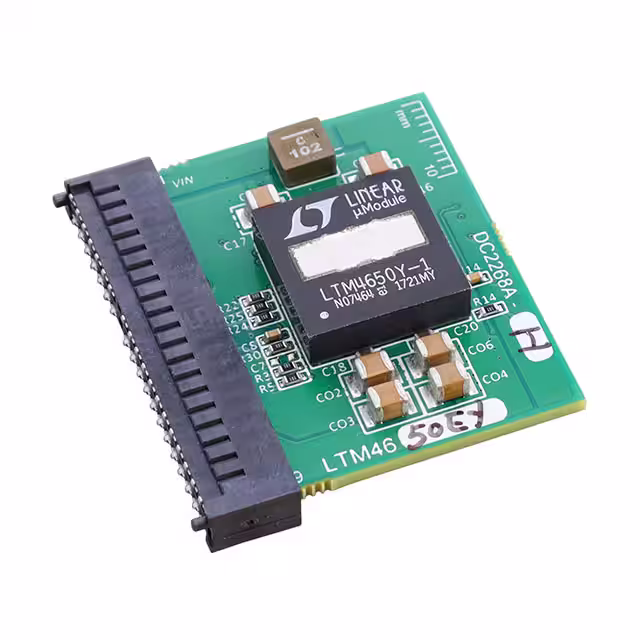

DC2268A-HEVAL BOARD FOR LTM46501 |
1,877 | 91.80 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 25A, 25A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650-1 |
.jpg)
|

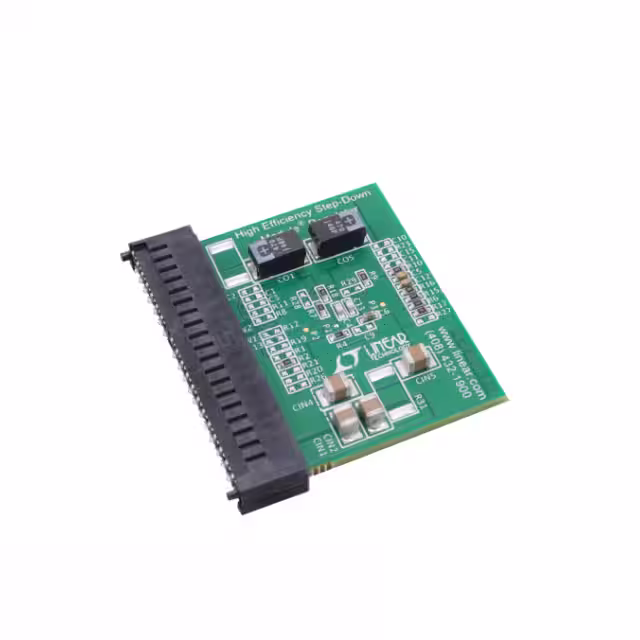

DC2268A-IEVAL BOARD FOR LTM4650A1 |
3,570 | 91.80 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 25A, 25A | 4.5V ~ 16V | Buck | 600kHz | Board(s) | LTM4650A-1 |
|
MAX1724EVKIT+EVAL BOARD FOR MAX1722 MAX1723 |
1,730 | 83.48 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V, 3.6V | 100mA | 0.91V ~ 3.3V | Boost | - | Board(s) | MAX1722, MAX1723, MAX1724 |
|
LM3262EVM/NOPBEVAL BOARD FOR LM3262 |
3,310 | 90.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 3.6V | 800mA | 2.5V ~ 5.5V | Buck | 6MHz | Board(s) | LM3262 |
|
LM5015ISOEVAL/NOPBEVAL BOARD FOR LM5015 |
2,611 | 90.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 3A | 36V ~ 72V | Buck | 300kHz | Board(s) | LM5015 |
|
MAX17558EVKIT#EVAL BOARD FOR MAX17558 |
4,953 | 88.76 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 10A, 5A | 6V ~ 60V | Buck | 350kHz | Board(s) | MAX17558 |
|

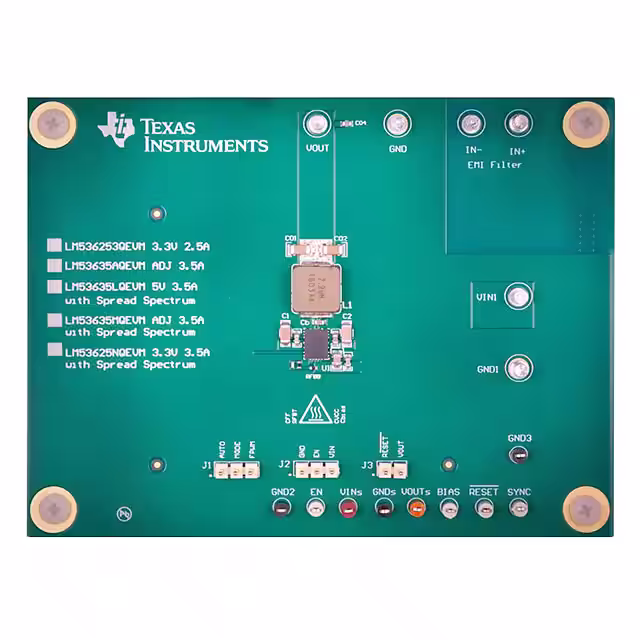

LM53635AQEVMEVAL BOARD FOR LM53635AQ1 |
1,443 | 83.10 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 3.8V ~ 36V | Buck | - | Board(s) | LM53635A-Q1 |
|

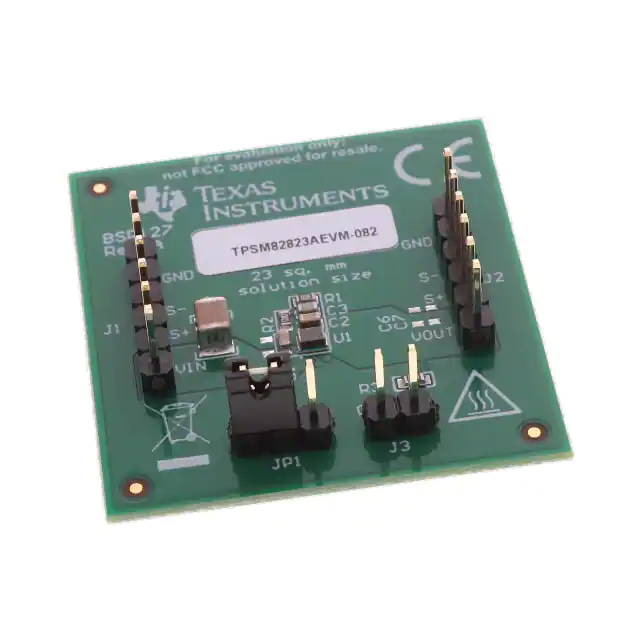

TPSM82823AEVM-127EVAL BOARD FOR TPSM82823A |
2,880 | 83.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.4V ~ 5.5V | Buck | 4MHz | Board(s) | TPSM82823A |
|
LM53635MQEVMEVAL BOARD FOR LM53635MQ1 |
3,200 | 83.10 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 3.8V ~ 36V | Buck | - | Board(s) | LM53635M-Q1 |
|
|
DC2867AEVAL BOARD FOR LT8604C |
2,019 | 90.95 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.85V ~ 5.15V | 120mA | 5.8V ~ 42V | Buck | 2MHz | Board(s) | LT8604C |
