DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

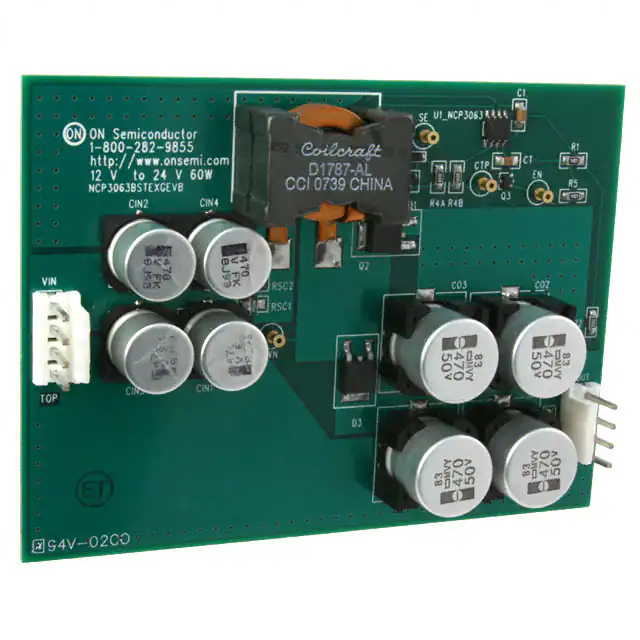

NCP3063BSTEXGEVBEVAL BOARD FOR NCP3063 |
2,656 | 100.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 25V | 3A | 12V | Boost | - | Board(s) | NCP3063 |
|

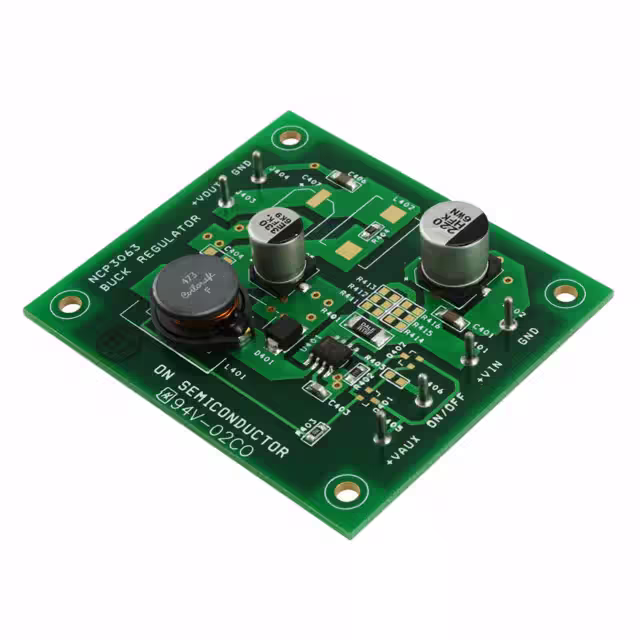

NCP3063SMDBCKEVBEVAL BOARD FOR NCP3063 |
3,755 | 100.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 7V ~ 15V | Buck | 250kHz | Board(s) | NCP3063 |
|

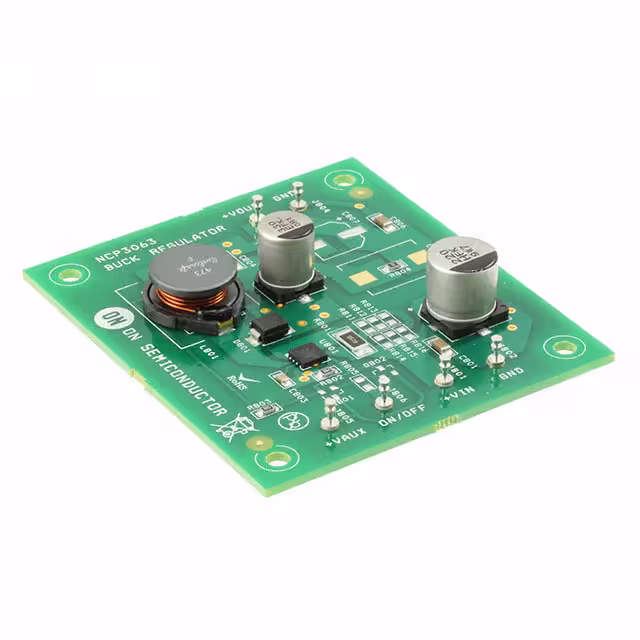

NCP3063DFBCKGEVBEVAL BOARD FOR NCP3063 |
2,623 | 100.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 12V | Buck | 150kHz | Board(s) | NCP3063 |
|
DC1897BEVAL BOARD FOR LTC3605A |
3,575 | 100.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 5A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTC3605A |
|
DC2139AEVAL BOARD FOR LT8610A |
4,504 | 100.05 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8610A |
|

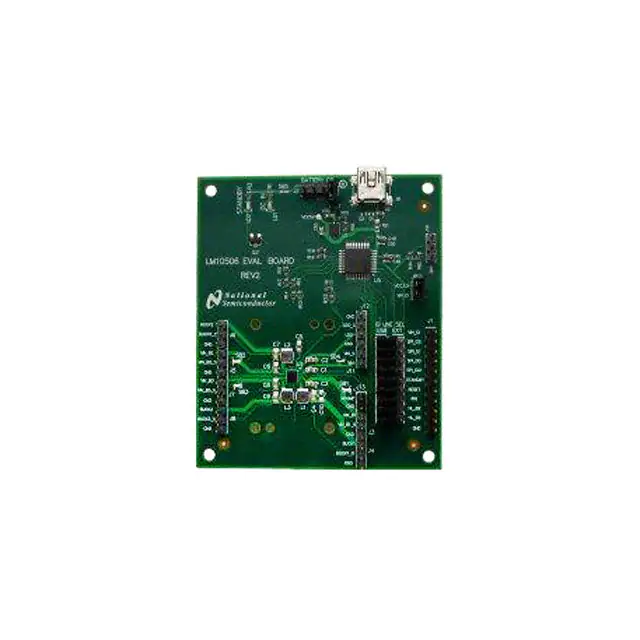

LM10506EVAL/NOPBEVAL BOARD FOR LM10506 |
2,579 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 1.3A, 600mA, 400mA, 100mA | 3V ~ 5.5V | Buck | 2MHz | Board(s) | LM10506 |
|

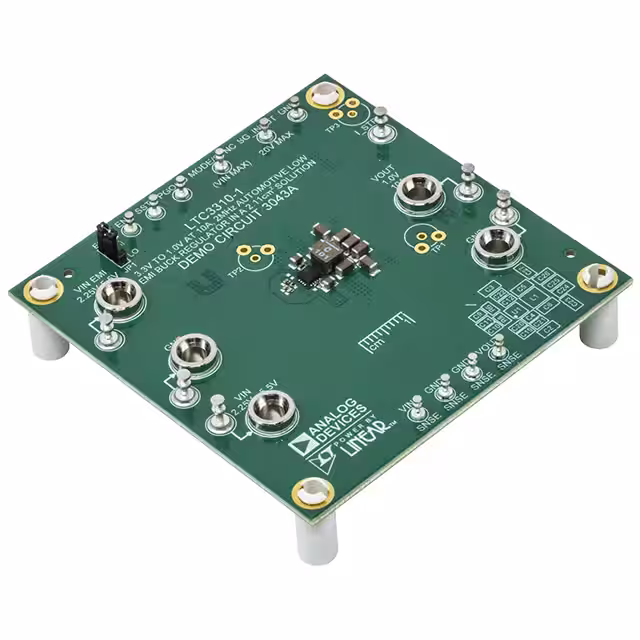

DC3043AEVAL BOARD FOR LTC33101 |
3,189 | 101.65 |
|
Datasheet |
Silent Switcher® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 10A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3310-1 |
|

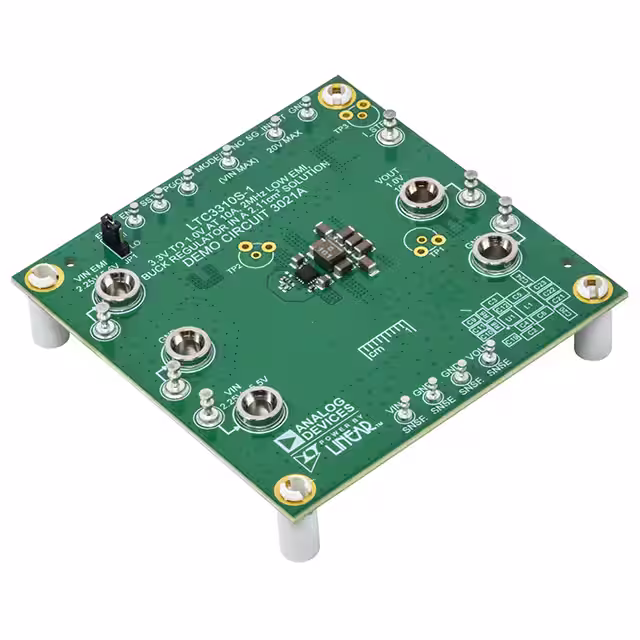

DC3021AEVAL BOARD FOR LTC3310S1 |
3,094 | 101.65 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 10A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3310S-1 |
|
BM2PAB1Y-EVK-003EVAL BOARD FOR BM2PAB1Y |
4,853 | 136.92 |
|
Datasheet |
- | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 8 W | 20V | 400mA | 90 ~ 264 VAC | Buck | 25kHz | Board(s) | BM2PAB1Y |
|
|
REF5QR1680BG30W1TOBO1EVAL BOARD FOR ICE5QR1680BG |
3,394 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC Converter | 3 Non-Isolated Outputs | 30 W | 5V, 12V, 15V | 2.2A, 200mA, 150mA | 85 ~ 264 VAC | Flyback | - | Board(s) | ICE5QR1680BG |
|
|
EVAL5BR3995BZBUCK1TOBO1EVAL BOARD FOR ICE5BR3995BZ |
1,602 | 110.00 |
|
Datasheet |
CoolSET™ | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 5.4 W | 18V | 300mA | 85 ~ 460 VAC | Buck | - | Board(s) | ICE5BR3995BZ |
|
BM2P141X-EVK-001EVAL BOARD FOR BM2P141X |
1,411 | 105.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 10 W | 14V | 715mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P141X |
|

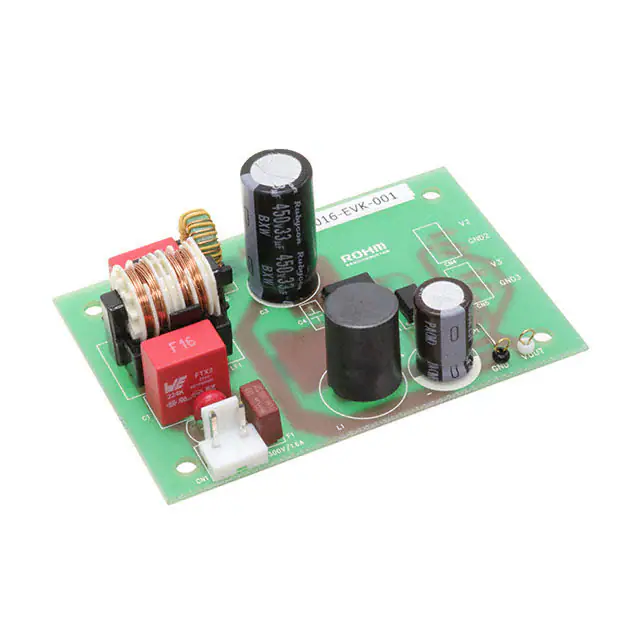

BM2P016-EVK-001EVAL BOARD FOR BM2P016 |
3,874 | 105.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 15 W | 15V | 1A | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P016 |
|
|
BM2P121X-EVK-001EVAL BOARD FOR BM2P121X |
2,139 | 105.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 9 W | 12V | 750mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P121X |
|

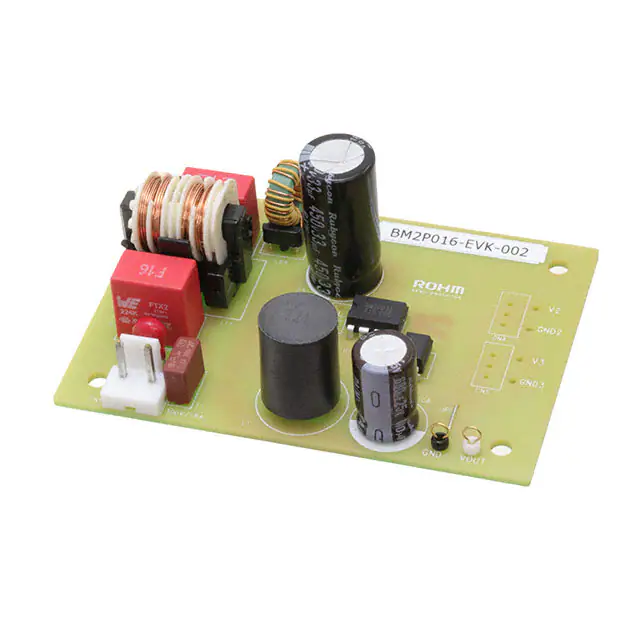

BM2P016-EVK-002EVAL BOARD FOR BM2P016 |
2,073 | 105.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 12 W | 12V | 1A | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P016 |
|

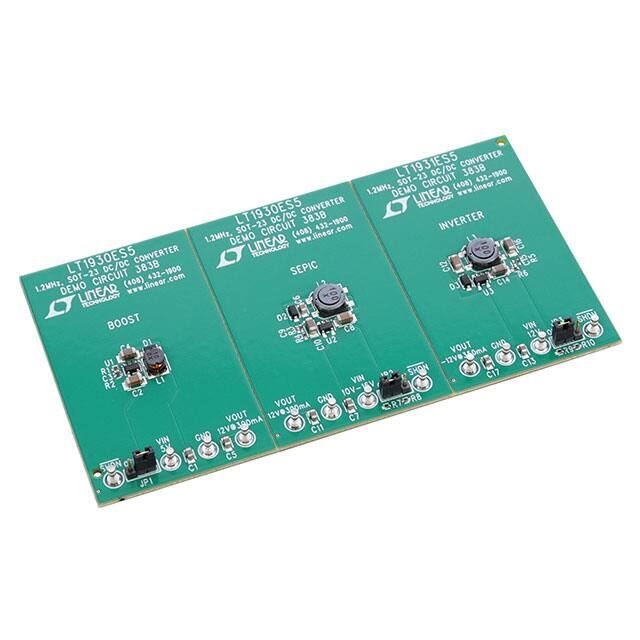

DC383BEVAL BOARD FOR LT1930 LT1931 |
2,794 | 121.30 |
|
Datasheet |
- | Box | Active | DC/DC, Positive and Negative | 3 Non-Isolated Outputs | - | 12V, 12V, -12V | 300mA, 300mA, 350mA | 5V, 12V, 10V ~ 16V | Boost, Inverting, SEPIC | 1.2MHz | Board(s) | LT1930, LT1931 |
|
|
DC2824A-AEVAL BOARD FOR LTC71311 |
4,498 | 105.66 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | LTC7131-1 |
|

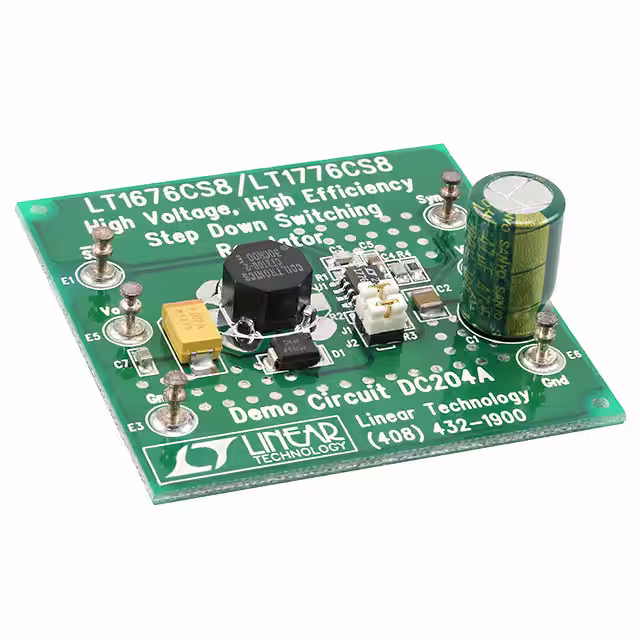

DC204A-BEVAL BOARD FOR LT1776 |
2,080 | 92.29 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 500mA | 7V ~ 60V | Buck | 200kHz | Board(s) | LT1776 |
|

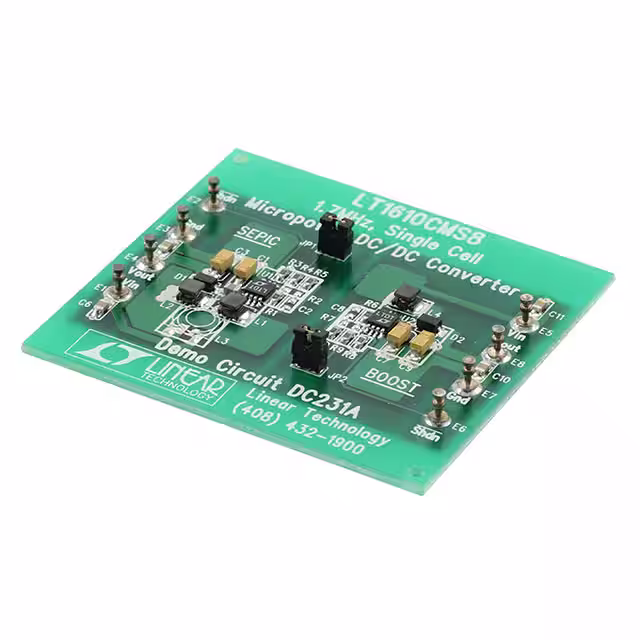

DC231AEVAL BOARD FOR LT1610 |
2,949 | 92.29 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V | 100mA | 3V ~ 4.2V | Boost | 1.7MHz | Board(s) | LT1610 |
|
|
DC3217AEVAL BOARD FOR LTC33110.75 |
2,021 | 0.00 |
|
Datasheet |
Silent Switcher® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V | 12.5A | 3V ~ 3.6V | Buck | 2MHz | Board(s) | LTC3311-0.75 |
