AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDA2-17238NBHT3F-LFAN AXIAL 172X38.5MM 115VAC TERM |
1,364 | 0.00 |
|
Datasheet |
HPLC, FDA2-17238 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 240.0 CFM (6.72m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 25.00W | 3100 RPM | 2 Terminals | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.8 lbs (816.5 g) |
|
|
FDA2-17251QBHW4DFAN AXIAL 172X51MM 230VAC WIRE |
2,233 | 0.00 |
|
Datasheet |
HPLC, FDA2-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 27.00W | 3100 RPM | 2 Wire Leads | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2 lbs (907.2 g) |
|
|
FDA2-17251NBKT3DFAN AXIAL 172X51MM 115VAC TERM |
2,072 | 0.00 |
|
Datasheet |
HPLC, FDA2-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 275.0 CFM (7.70m³/min) | 0.768 in H2O (191.3 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 27.00W | 3300 RPM | 2 Terminals | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDA2-17251NBHT4D-LFAN AXIAL 172X51MM 115VAC TERM |
2,662 | 0.00 |
|
Datasheet |
HPLC, FDA2-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 25.00W | 3100 RPM | 2 Terminals | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2 lbs (907.2 g) |
|
|
FDA2-17251NBKT3F-LFAN AXIAL 172X51MM 115VAC TERM |
2,096 | 0.00 |
|
Datasheet |
HPLC, FDA2-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 275.0 CFM (7.70m³/min) | 0.768 in H2O (191.3 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 27.00W | 3300 RPM | 2 Terminals | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
FDA2-17255NBHT3FFAN AXIAL 172X55MM 115VAC TERM |
1,495 | 0.00 |
|
Datasheet |
HPLC, FDA2-17255 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 55.00mm | 240.0 CFM (6.72m³/min) | 0.531 in H2O (132.3 Pa) | Ball | Tubeaxial | - | 61.0dB(A) | 25.00W | 3100 RPM | 2 Terminals | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.8 lbs (816.5 g) |
|
|
FDA2-17255QBHW3FFAN AXIAL 172X55MM 230VAC WIRE |
4,189 | 0.00 |
|
Datasheet |
HPLC, FDA2-17255 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 55.00mm | 240.0 CFM (6.72m³/min) | 0.531 in H2O (132.3 Pa) | Ball | Tubeaxial | - | 61.0dB(A) | 27.00W | 3100 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.8 lbs (816.5 g) |
|

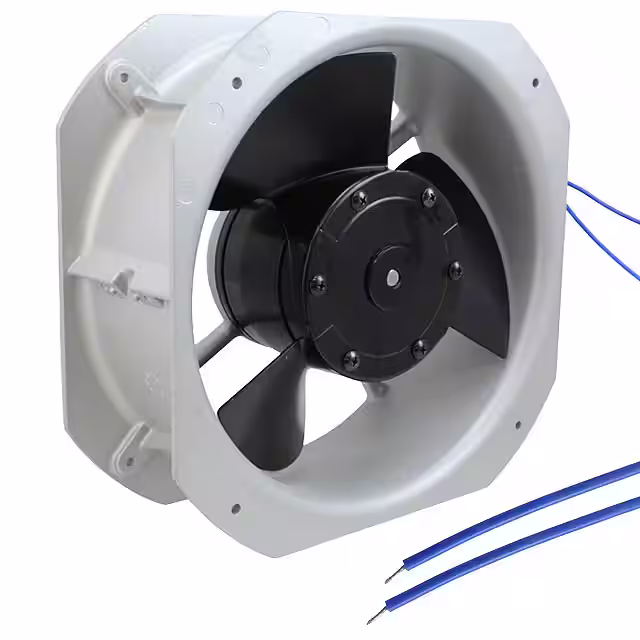

FDA2-22580NBHK4F-LFAN AXIAL 225X80MM BALL 115VAC |
3,457 | 0.00 |
|
Datasheet |
HPLC, FDA2-22580 | Bulk | Active | 115VAC | Square - 260mm L x 260mm H | 80.00mm | 670.0 CFM (18.76m³/min) | 0.807 in H2O (201.0 Pa) | Ball | Tubeaxial | - | 71.0dB(A) | 68.0W | 3200 RPM | Terminal Block | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 6.1 lbs (2.8 kg) |
|

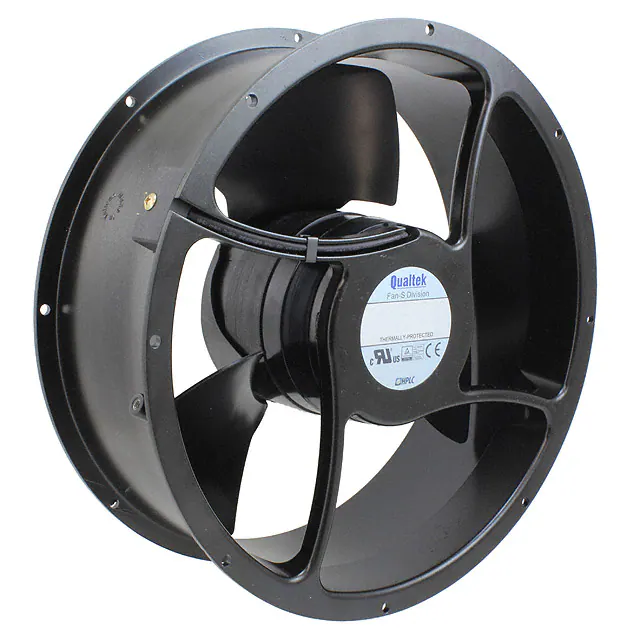

FDA2-25489QBLT4F-LFAN AXIAL 254X89MM 230VAC TERM |
3,719 | 0.00 |
|
Datasheet |
HPLC, FDA2-25489 | Bulk | Active | 230VAC | Round - 254mm Dia | 89.00mm | 440.0 CFM (12.32m³/min) | 0.307 in H2O (76.5 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 32.00W | 1650 RPM | 2 Terminals | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 6 lbs (2.7 kg) |
|
FDA2-28080QBHK4F-LFAN AXIAL 280X80MM BALL 230VAC |
3,227 | 0.00 |
|
Datasheet |
HPLC, FDA2-28080 | Bulk | Active | 230VAC | Square - 320mm L x 320mm H | 80.00mm | 1150.0 CFM (32.20m³/min) | 0.807 in H2O (201.0 Pa) | Ball | Tubeaxial | - | 73.0dB(A) | 138W | 2900 RPM | Terminal Block | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 6.7 lbs (3 kg) |
|
55416.17110FAN 115 VAC 60HZ 39W |
3,975 | 0.00 |
|
Datasheet |
55416 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

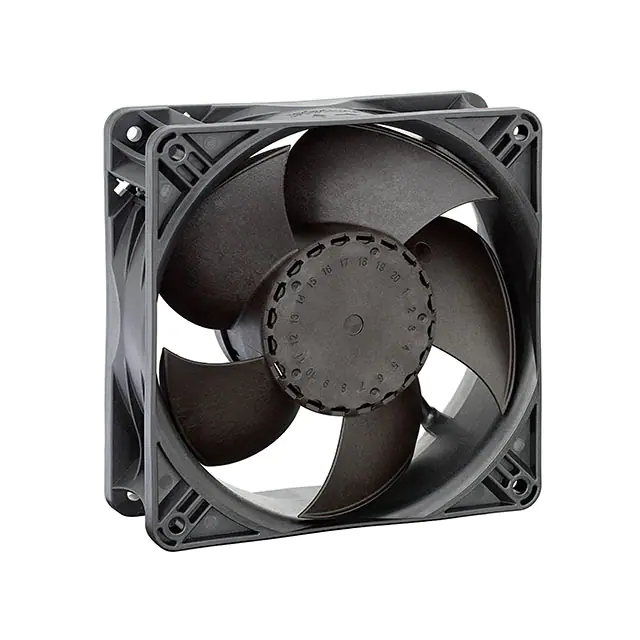

ACI4410HHGREENTECH EC-COMPACT |
1,196 | 80.98 |
|
Datasheet |
Green Tech ACi4400 | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Electronic Commutation (EC) | 42.0dB(A) | 4.40W | 3350 RPM | 2 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | CSAus, cURus | 0.551 lb (249.93 g) |
|

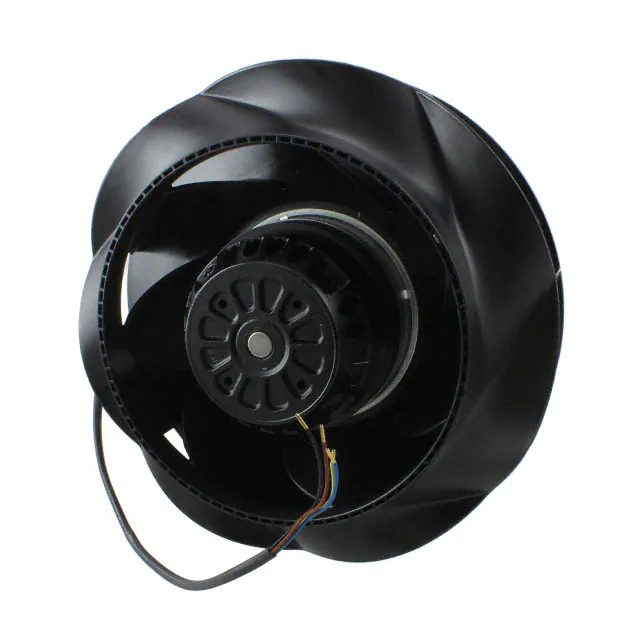

R2E250-RB06-12RADICAL AC MOTORIZED IMPELLER |
1,056 | 0.00 |
|
Datasheet |
RadiCal® R2E250RB | Bulk | Active | 230VAC | Round - 255mm Dia | 108.0mm | 1006.5 CFM (28.18m³/min) | - | Ball | Motorized Impellers | - | 81.0dB | 390W | 3100 RPM | 4 Wire Leads | IP44 | -13 ~ 131°F (-25 ~ 55°C) | UL | 8.3 lbs (3.8 kg) |
|
UF12AM12-BTHR-B1FAN AXIAL 120X38MM 115VAC TACH |
4,691 | 54.31 |
|
Datasheet |
UF12AM | Bulk | Discontinued at Digi-Key | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 103.0 CFM (2.88m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 13.00W | 3100 RPM | 2 Terminals and 3 Wire Leads | - | -40 ~ 194°F (-40 ~ 90°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|

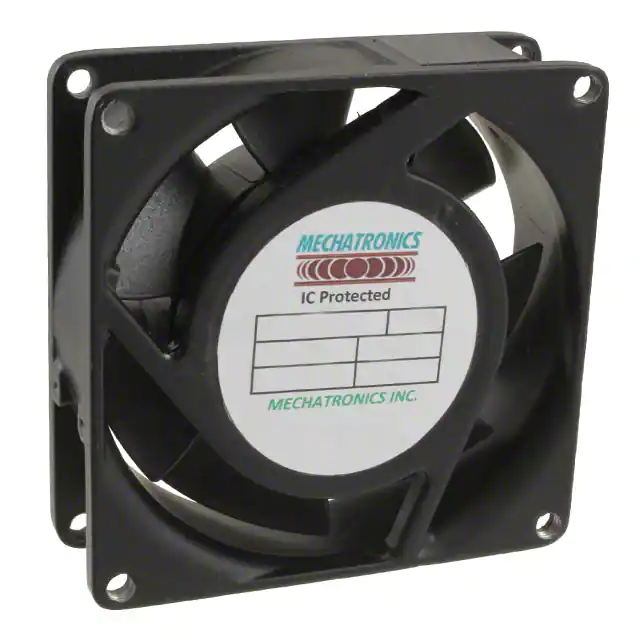

LPC80B99-BTERFAN AXIAL 80X25MM 90-264VAC EC |
3,288 | 0.00 |
|
Datasheet |
LPC80B | Bulk | Obsolete | 90 ~ 264VAC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 45.0dB(A) | 5.00W | 4500 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | 0.386 lb (175.09 g) |
|
LPC80B99-BTLRFAN AXIAL 80X25MM 90-264VAC EC |
1,369 | 0.00 |
|
Datasheet |
LPC80B | Bulk | Obsolete | 90 ~ 264VAC | Square - 80mm L x 80mm H | 25.00mm | 38.0 CFM (1.06m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 31.0dB(A) | 3.00W | 3000 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | 0.386 lb (175.09 g) |
|
LPC92B99-BTHRFAN AXIAL 92X25MM 90-264VAC EC |
3,979 | 0.00 |
|
Datasheet |
LPC92B | Bulk | Obsolete | 90 ~ 264VAC | Square - 92mm L x 92mm H | 25.00mm | 58.0 CFM (1.62m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 40.0dB(A) | 5.50W | 4000 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | 0.386 lb (175.09 g) |
|

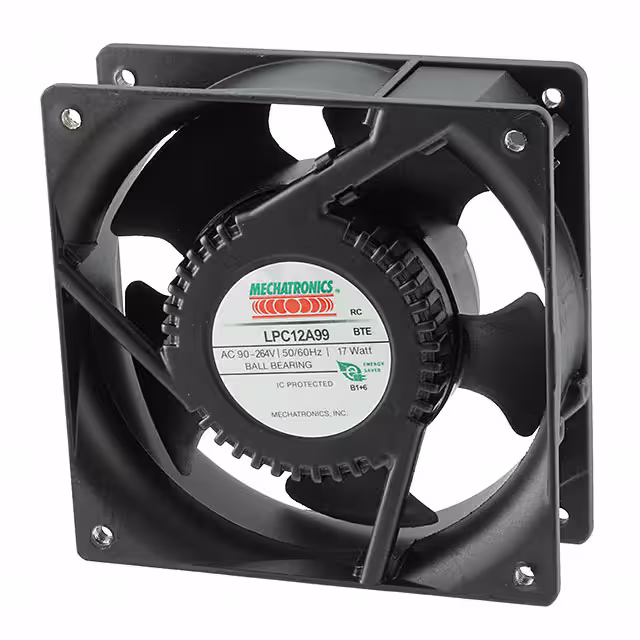

LPC12A99-BTERFAN AXIAL 120X38MM 90-264VAC EC |
2,789 | 0.00 |
|
Datasheet |
LPC12A | Bulk | Obsolete | 90 ~ 264VAC | Square - 120mm L x 120mm H | 38.00mm | 140.0 CFM (3.92m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 56.0dB(A) | 12.00W | 4000 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | 0.816 lb (370.13 g) |
|
LPC15P12-BTERFAN AXIAL 172X150X51MM 115VAC EC |
1,010 | 0.00 |
|
Datasheet |
LPC15P | Bulk | Obsolete | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 290.0 CFM (8.12m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 61.0dB(A) | 29.00W | 4000 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | 1.5 lbs (680.4 g) |
|
LPC12A99-BTER-B1+6FAN AXIAL 120X38MM 90-264VAC |
3,682 | 0.00 |
|
Datasheet |
LPC12A | Bulk | Obsolete | 90 ~ 264VAC | Square - 120mm L x 120mm H | 38.00mm | 140.0 CFM (3.92m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Electronic Commutation (EC), PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 12.00W | 4000 RPM | 4 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | 0.816 lb (370.13 g) |
