AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

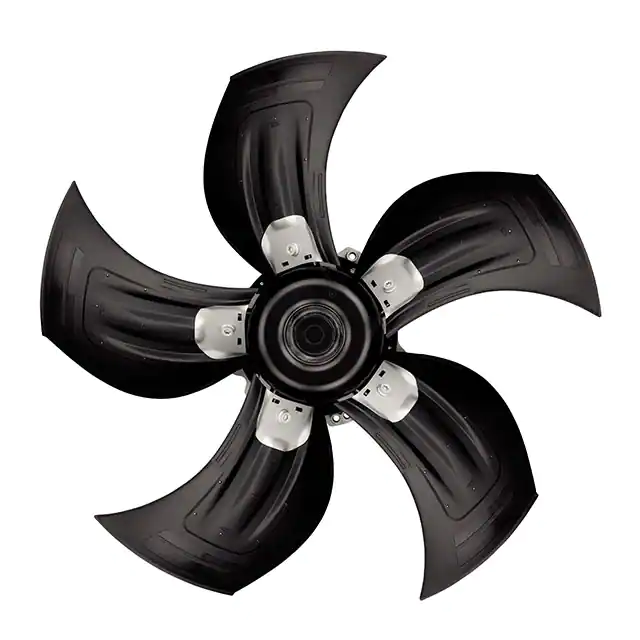

W3G710-GS28-11FFAN AXIAL |
4,527 | 0.00 |
|
Datasheet |
Green Tech W3G710 | Bulk | Active | 240VAC | Square - 850mm L x 850mm H | 272.0mm | 12000 CFM (336.0m³/min) | - | - | Tubeaxial | Electronic Commutation (EC) | - | 1700W | 1030 RPM | - | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | UL | 85 lbs (38.6 kg) |
|
|
W3G710-GU21-09FFAN AXIAL |
2,590 | 0.00 |
|
Datasheet |
Green Tech W3G710 | Bulk | Obsolete | 480VAC | Square - 850mm L x 850mm H | 284.5mm | 14600 CFM (408.8m³/min) | - | - | Tubeaxial | Electronic Commutation (EC) | - | 1250W | 1250 RPM | - | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | UL | 94 lbs (42.6 kg) |
|
|
W3G710-GU30-19FFAN AXIAL |
2,370 | 0.00 |
|
Datasheet |
Green Tech W3G710 | Bulk | Active | 240VAC | Square - 850mm L x 850mm H | 284.5mm | 14600 CFM (408.8m³/min) | - | - | Tubeaxial | Electronic Commutation (EC) | - | 1230W | 1230 RPM | - | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | UL | 94 lbs (42.6 kg) |
|
|
W3G800-GT21-01FFAN AXIAL |
3,078 | 0.00 |
|
Datasheet |
Green Tech W3G800 | Bulk | Obsolete | 480VAC | Square - 970mm L x 970mm H | 294.5mm | 14200 CFM (397.6m³/min) | - | - | Tubeaxial | Electronic Commutation (EC) | - | 1850W | 925 RPM | - | IP54 - Dust Protected, Water Resistant | -13 ~ 150°F (-25 ~ 65°C) | CSA, EAC, UL | 94 lbs (42.6 kg) |
|
|
W3G800-GT22-11FFAN AXIAL |
3,281 | 0.00 |
|
Datasheet |
Green Tech W3G800 | Bulk | Obsolete | 240VAC | Square - 970mm L x 970mm H | 294.5mm | 14200 CFM (397.6m³/min) | - | - | Tubeaxial | Electronic Commutation (EC) | - | 1880W | 925 RPM | - | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | UL | 94 lbs (42.6 kg) |
|
|
W3G800-GV01-67FFAN AXIAL |
2,170 | 0.00 |
|
Datasheet |
Green Tech W3G800 | Bulk | Active | 480VAC | Square - 970mm L x 970mm H | 307.0mm | 16450 CFM (460.6m³/min) | - | - | Tubeaxial | Electronic Commutation (EC) | - | 2980W | 1090 RPM | - | IP54 - Dust Protected, Water Resistant | -13 ~ 150°F (-25 ~ 65°C) | UL | 112 lbs (50.8 kg) |
|
|
W3G800-GV10-19FFAN AXIAL |
4,009 | 0.00 |
|
Datasheet |
Green Tech W3G800 | Bulk | Active | 240VAC | Square - 970mm L x 970mm H | 307.0mm | 16450 CFM (460.6m³/min) | - | - | Tubeaxial | Electronic Commutation (EC) | - | 2860W | 1090 RPM | - | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | UL | 112 lbs (50.8 kg) |
|
|
W3G910-GZ01-67FFAN AXIAL |
4,534 | 0.00 |
|
Datasheet |
Green Tech W3G910 | Bulk | Active | 480VAC | Square - 1070mm L x 1070mm H | 307.0mm | 21150 CFM (592.2m³/min) | - | - | Tubeaxial | Electronic Commutation (EC) | - | 3040W | 1195 RPM | - | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | UL | 125 lbs (56.7 kg) |
|
|
W3G910-GZ10-19FFAN AXIAL |
1,643 | 0.00 |
|
Datasheet |
Green Tech W3G910 | Bulk | Active | 240VAC | Square - 1070mm L x 1070mm H | 307.0mm | 21150 CFM (592.2m³/min) | - | - | Tubeaxial | Electronic Commutation (EC) | - | 3100W | 1195 RPM | - | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | UL | 125 lbs (56.7 kg) |
|

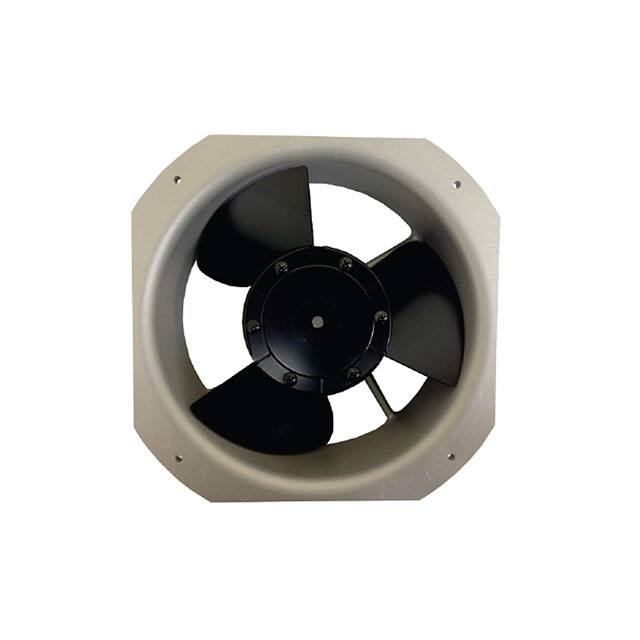

FDA2-22580QBHK4F-SFFAN AXIAL 260X80MM BALL 230VAC |
1,613 | 0.00 |
|
Datasheet |
HPLC, FDA2-22580-SF | Bulk | Active | 230VAC | Square - 260mm L x 260mm H | 80.00mm | 670.0 CFM (18.76m³/min) | 0.807 in H2O (201.0 Pa) | Ball | Tubeaxial | Salt Fog Rated, Thermal Overload Protector (TOP) | 71.0dB(A) | 68.0W | 3200 RPM | Terminal Block | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 6.2 lbs (2.8 kg) |
|

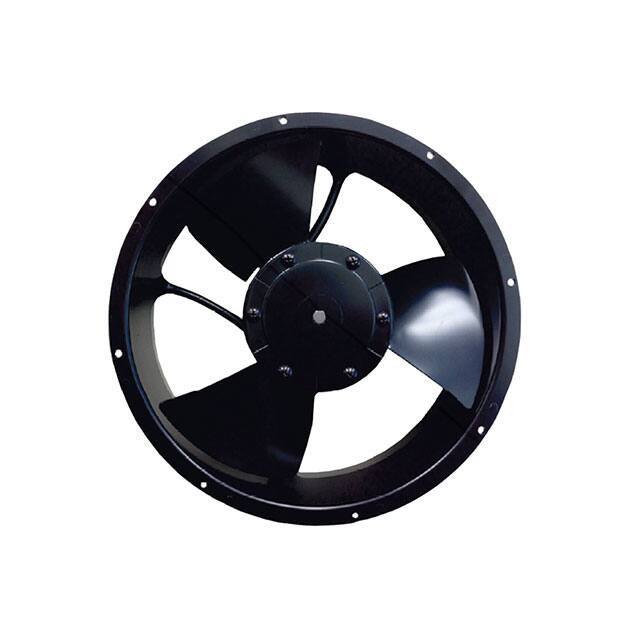

FDA2-25489NBHW4F-SFFAN AXIAL 254X89MM 115VAC WIRE |
2,137 | 0.00 |
|
Datasheet |
HPLC, FDA2-25489-SF | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 860.0 CFM (24.08m³/min) | 0.846 in H2O (210.7 Pa) | Ball | Tubeaxial | Salt Fog Rated, Thermal Overload Protector (TOP) | 68.0dB(A) | 97.0W | 3200 RPM | 2 Wire Leads | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 6.2 lbs (2.8 kg) |
|

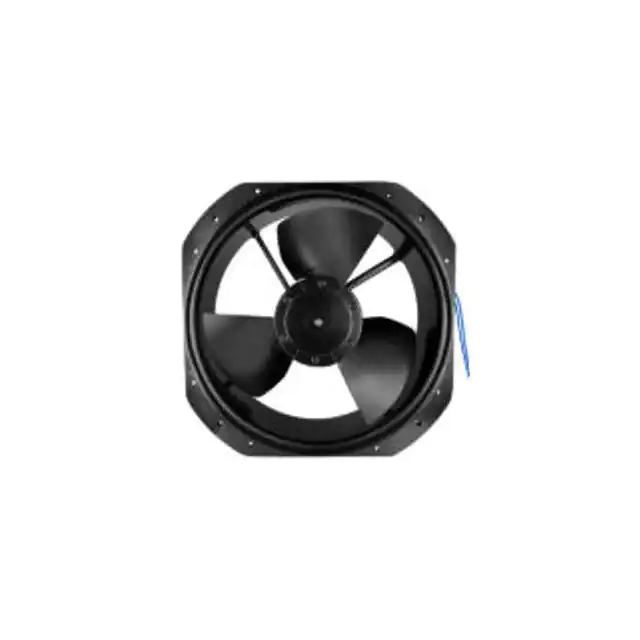

FDA2-28080NBHK4F-SFFAN AXIAL 320X80MM BALL 115VAC |
4,848 | 0.00 |
|
Datasheet |
HPLC, FDA2-28080-SF | Bulk | Active | 115VAC | Square - 320mm L x 320mm H | 80.00mm | 1150.0 CFM (32.20m³/min) | 0.807 in H2O (201.0 Pa) | Ball | Tubeaxial | Salt Fog Rated, Thermal Overload Protector (TOP) | 73.0dB(A) | 136W | 2900 RPM | Terminal Block | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 6.1 lbs (2.8 kg) |
|
|
FDA2-28080QBHK4F-SFFAN AXIAL 320X80MM BALL 230VAC |
4,828 | 0.00 |
|
Datasheet |
HPLC, FDA2-28080-SF | Bulk | Active | 230VAC | Square - 320mm L x 320mm H | 80.00mm | 1150.0 CFM (32.20m³/min) | 0.807 in H2O (201.0 Pa) | Ball | Tubeaxial | Salt Fog Rated, Thermal Overload Protector (TOP) | 73.0dB(A) | 138W | 2900 RPM | Terminal Block | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 6.1 lbs (2.8 kg) |
|
R3G310-AX52-90310MM IMPELLER 380-480VAC 1000W |
4,595 | 0.00 |
|
Datasheet |
RadiPac R3G310AX | Bulk | Obsolete | 400VAC | Round - 350mm Dia | 253.7mm | 1796.5 CFM (50.30m³/min) | 2.734 in H2O (681.0 Pa) | Ball | Motorized Impellers | Alarm, Electronic Commutation (EC), PWM Control, Thermal Overload Protector (TOP) | - | 1000W | 2580 RPM | Terminal Block | IP54 - Dust Protected, Water Resistant | -13 ~ 131°F (-25 ~ 55°C) | CCC, EAC, UL | - |
|
|
R3G310-AX54-21310MM IMPELLER 200-277VAC 1270W |
3,493 | 0.00 |
|
Datasheet |
RadiPac R3G310AX | Bulk | Obsolete | 230VAC | Round - 360mm Dia | 269.2mm | 1643.3 CFM (46.01m³/min) | 3.625 in H2O (903.0 Pa) | Ball | Motorized Impellers | Alarm, Electronic Commutation (EC), PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | - | 1270W | 2850 RPM | Terminal Block | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | CE, EAC, UL | - |
|
|
R3G310-AY73-13FAN IMP MTRZD 350X289.5MM 230VAC |
2,682 | 0.00 |
|
Datasheet |
Green Tech RadiPac R3G310AY | Bulk | Obsolete | 230VAC | Round - 350mm Dia | 289.5mm | 3243.0 CFM (90.80m³/min) | - | - | Motorized Impellers | Electronic Commutation (EC), PWM Control | 90.0dB(A) | 2680W | 3900 RPM | Terminal Block | IP54 - Dust Protected, Water Resistant | -13 ~ 104°F (-25 ~ 40°C) | UL | - |
|
|
R3G310-AZ88-03FAN IMP MTRZD 360X289.5MM 460VAC |
1,932 | 0.00 |
|
Datasheet |
Green Tech RadiPac R3G310AZ | Bulk | Obsolete | 460VAC | Round - 360mm Dia | 289.5mm | 3667.0 CFM (102.68m³/min) | - | Ball | Motorized Impellers | Electronic Commutation (EC), PWM Control | 91.0dB(A) | 3240W | 4100 RPM | Terminal Block | IP54 - Dust Protected, Water Resistant | -13 ~ 104°F (-25 ~ 40°C) | UL | - |
|
|
R3G310-RB01-03FAN IMP MTRZD 325X163.4MM 230VAC |
4,614 | 0.00 |
|
Datasheet |
RadiCal® R3G310RB | Bulk | Active | 230VAC | Round - 325mm Dia | 163.4mm | 797.5 CFM (22.33m³/min) | 0.919 in H2O (229.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 150W | 1525 RPM | 7 Wire Leads | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | CCC, CSA, EAC, UL | - |
|
|
R3G310-RS01-I1FAN IMP MTRZD 325X232.1MM 230VAC |
4,275 | 0.00 |
|
Datasheet |
RadiCal® R3G310RS | Bulk | Active | 230VAC | Round - 325mm Dia | 232.1mm | 1418.5 CFM (39.72m³/min) | 2.653 in H2O (661.0 Pa) | Ball | Motorized Impellers | PWM Control, Thermal Overload Protector (TOP) | 75.0dB(A) | 730W | 2640 RPM | 5 Wire Leads, 5 Wire Leads | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | CCC, CSA, EAC, UL | - |
|
|
R3G310-RS05-J1FAN IMP MTRZD 325X168MM 400VAC |
2,532 | 0.00 |
|
Datasheet |
RadiCal® R4E310RS | Bulk | Active | 400VAC | Round - 325mm Dia | 168.0mm | 1589.2 CFM (44.50m³/min) | 2.536 in H2O (632.0 Pa) | Ball | Motorized Impellers | PWM Control, Thermal Overload Protector (TOP) | 76.0dB(A) | 790W | 2700 RPM | 6 Wire Leads, 5 Wire Leads | IP54 - Dust Protected, Water Resistant | -40 ~ 140°F (-40 ~ 60°C) | EAC | - |
