DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9CRH0848P8G00180X80MM 48VDC TACH/PWM |
4,763 | 0.00 |
|
- |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 80.00mm | 201.4 CFM (5.7m³/min) | 7.829 in H2O (1950.0 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 82.0dB(A) | 120 W | 15400 Front, 15200 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
109E1748C501FAN AXIAL 172X51MM 48VDC WIRE |
4,757 | 76.39 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 57.6 W | 4800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E5748K501FAN AXIAL 172X51MM 48VDC WIRE |
4,497 | 76.39 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 33.6 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
RER120-26/14/2TDMPFAN IMP MTRZD 120X54MM 24VDC |
3,214 | 137.60 |
|
Datasheet |
RER120TD, S-Force | Bulk | Active | 24VDC | Round - 120mm Dia | 54.00mm | 188.0 CFM (5.26m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 51 W | 5200 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.95 lb (430.91 g) |
|
|
9WE5748K501FAN AXIAL 172X51MM 48VDC WIRE |
1,578 | 116.29 |
|
Datasheet |
San Ace 172W | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 60.0dB(A) | 33.6 W | 4100 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.9 lbs (861.8 g) |
|
OD180APL-48HTBIP68FAN AXIAL 180X65MM 48VDC TERM |
1,249 | 163.04 |
|
Datasheet |
OD180APL-IP68 | Box | Active | 48VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 50.2 W | 3375 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
4114N/17HH00077FAN AXIAL 119X38MM 24VDC WIRE |
4,514 | 0.00 |
|
- |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 153.0 CFM (4.28m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Alarm Sensor, Auto Restart, Locked Rotor Protection | 60.0dB(A) | 12 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, EAC, UL, VDE | - |
|
|
9EC2024H0D01FAN AXIAL 200X70MM 24VDC WIRE |
1,821 | 159.87 |
|
Datasheet |
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 70.00mm | 388.0 CFM (10.86m³/min) | 1.446 in H2O (360.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 60.0dB(A) | 48 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 3.9 lbs (1.8 kg) |
|
|
9EC2048A0D01FAN AXIAL 200X70MM 48VDC WIRE |
2,564 | 159.87 |
|
Datasheet |
San Ace 200 | Box | Active | 48VDC | Round - 200mm Dia | 70.00mm | 519.0 CFM (14.53m³/min) | 2.570 in H2O (640.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 68.0dB(A) | 105.6 W | 4800 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 3.9 lbs (1.8 kg) |
|
9EC2024H001FAN AXIAL 200X70MM 24VDC WIRE |
2,359 | 159.87 |
|
Datasheet |
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 70.00mm | 388.0 CFM (10.86m³/min) | 1.446 in H2O (360.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 48 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 3.9 lbs (1.8 kg) |
|
|
9HV5724H5002172X51MM 24V, HIGH STATIC PRESSU |
3,104 | 0.00 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|

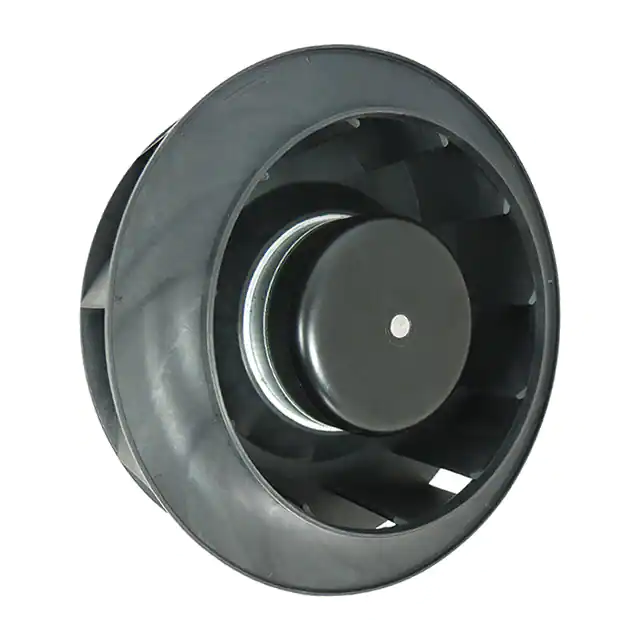

ODB22071-48HB10AFAN IMP MTRZD 221.5X71MM 48VDC |
3,442 | 119.69 |
|
Datasheet |
- | Bulk | Active | 48VDC | Round - 221.5mm Dia | 71.00mm | 618.0 CFM (17.30m³/min) | 2.410 in H2O (600.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 68.0dB | 130 W | 3150 RPM | 4 Wire Leads | - | 14 ~ 149°F (-10 ~ 65°C) | CE, cURus, TUV, UR | 3.1 lbs (1.4 kg) |
|
OD180APL-12HTBIP69KFAN AXIAL 180X65MM 12VDC TERM |
2,897 | 163.96 |
|
Datasheet |
OD180APL-IP69K | Box | Active | 12VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 50.4 W | 3375 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD180APL-24HTBIP69KFAN AXIAL 180X65MM 24VDC TERM |
3,161 | 163.96 |
|
Datasheet |
OD180APL-IP69K | Box | Active | 24VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 60.2 W | 3375 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
9HV5724H5D001FAN AXIAL 172X51MM 24VDC WIRE |
2,115 | 160.18 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 434.0 CFM (12.15m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 77.0dB(A) | 120 W | 8000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|
W1G180-AA03-09FAN AXIAL 200X70MM 48VDC WIRE |
4,092 | 0.00 |
|
Datasheet |
W1G180 | - | Obsolete | 48VDC | Round - 200mm Dia | 70.00mm | 377.0 CFM (10.56m³/min) | - | Ball | Tubeaxial | - | 59.0dB(A) | 36 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 4.2 lbs (1.9 kg) |
|

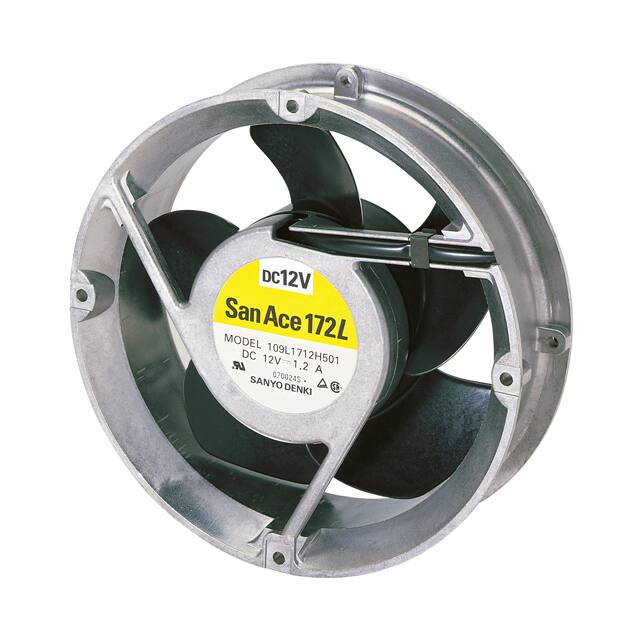

109L1712H501FAN AXIAL 172X51MM 12VDC WIRE |
1,117 | 78.08 |
|
Datasheet |
San Ace 172L | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 47.0dB(A) | 14.4 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109L1724H501FAN AXIAL 172X51MM 24VDC WIRE |
4,307 | 78.08 |
|
Datasheet |
San Ace 172L | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 47.0dB(A) | 13.92 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109L1748H501FAN AXIAL 172X51MM 48VDC WIRE |
1,186 | 78.94 |
|
Datasheet |
San Ace 172L | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 47.0dB(A) | 13.44 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|

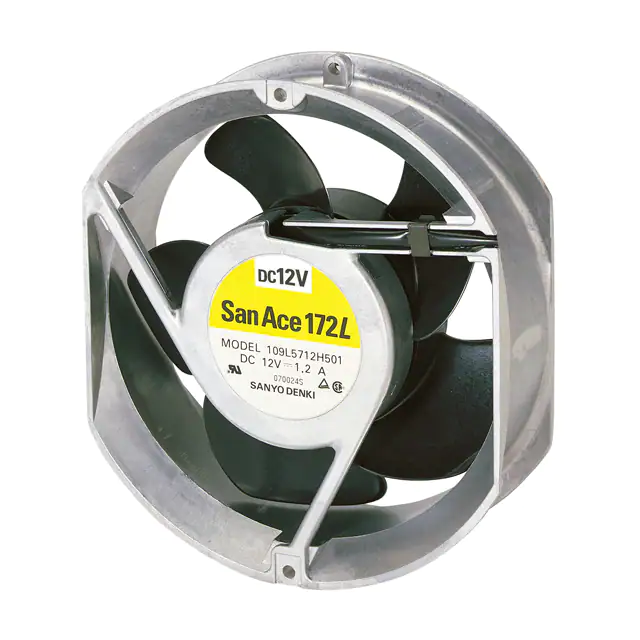

109L5712H501FAN AXIAL 172X51MM 12VDC WIRE |
4,011 | 78.08 |
|
Datasheet |
San Ace 172L | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 52.0dB(A) | 14.4 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
