DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R172H3-051-D0560DC AXIAL FAN |
2,099 | 0.00 |
|
Datasheet |
R172 | Box | Active | 24VDC | Round - 172.7mm Dia | 50.80mm | 473.0 CFM (13.24m³/min) | 3.204 in H2O (798.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 73.0dB | 96 W | 6500 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | - |
|
|
R172H2-051-D0750DC AXIAL FAN |
2,740 | 0.00 |
|
Datasheet |
R172 | Box | Active | 48VDC | Round - 172.7mm Dia | 50.80mm | 364.0 CFM (10.19m³/min) | 2.236 in H2O (557.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB | 48 W | 5000 RPM | 4 Wire Leads | - | - | - | - |
|
|
6248N/19TDI-264DC TUBEAXIAL FAN |
2,404 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R1G120-AD17-11DC BACKWARD-CURVED MOTORIZED IMP |
2,802 | 93.31 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9WG5748G5002FAN AXIAL 172X51MM 48VDC WIRE |
1,796 | 168.77 |
|
Datasheet |
San Ace 172W | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 546.0 CFM (15.29m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 78.0dB(A) | 140 W | 8600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.9 lbs (861.8 g) |
|
|
THB2048CTC3PFAN AXIAL 208X70MM 48VDC WIRE |
3,574 | 163.80 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DV6224U-525DC TUBEAXIAL FAN |
3,483 | 0.00 |
|
- |
DV6200 | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 312.2 CFM (8.74m³/min) | 1.666 in H2O (415.0 Pa) | Ball | Tubeaxial | Auto Restart | 65.0dB(A) | 37 W | 4300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
5318/2TDHPFAN AXIAL 140X50.8MM 48VDC WIRE |
1,692 | 229.78 |
|
Datasheet |
5300TD | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 41 W | 6000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 2 lbs (907.2 g) |
|
DV6424/12DV6424/12 |
4,642 | 173.60 |
|
- |
DV6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 159.7mm H | 51.00mm | 306.3 CFM (8.58m³/min) | 1.710 in H2O (425.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 63.0dB(A) | 41 W | 4300 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|

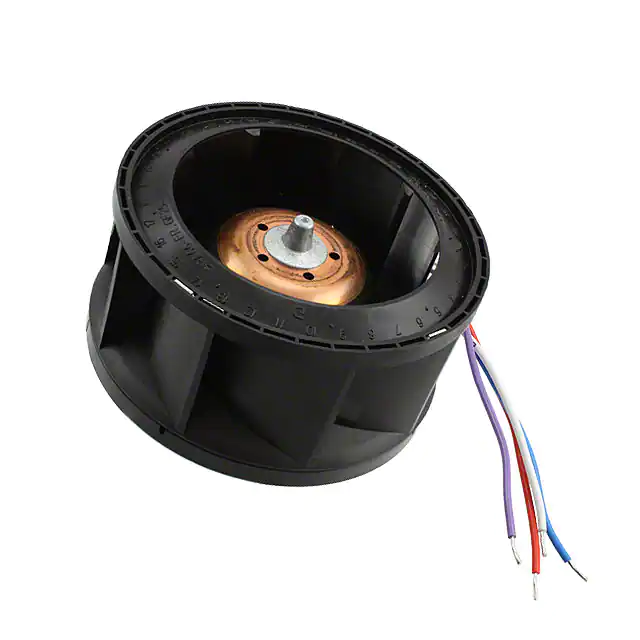

RER1013614N2HHAFAN IMP MTRZD 101X52MM 24VDC |
1,015 | 0.00 |
|
Datasheet |
RER101 | Box | Active | 24VDC | Round - 101mm Dia | 52.00mm | 111.8 CFM (3.13m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 23 W | - | 4 Wire Leads | - | - | - | 0.67 lb (303.91 g) |
|
|
55668.42040FAN BLOWER CF 266X108.4MM 24VDC |
2,997 | 169.32 |
|
- |
QLN65DC | Bulk | Active | 24VDC | Rectangular - 266mm L x 64mm H | 108.4mm | 123.9 CFM (3.47m³/min) | 0.441 in H2O (110.0 Pa) | - | Blower, Cross Flow | - | - | 16 W | 1850 RPM | Terminal Block | IP20 | 32 ~ 140°F (0 ~ 60°C) | - | - |
|

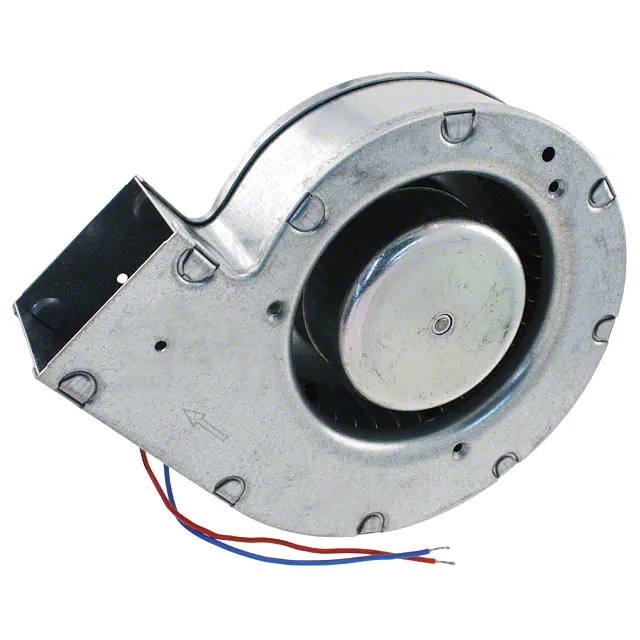

G2G097-AA16-01FAN BLOWER 143X41MM 24VDC WIRE |
2,941 | 0.00 |
|
Datasheet |
G2G097 | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 143mm L x 137mm H | 41.00mm | 50.0 CFM (1.40m³/min) | - | Ball | Blower | - | 57.0dB(A) | 18 W | - | 2 Wire Leads | - | - | - | 2 lbs (907.2 g) |
|
6314HFAN AXIAL 172X51MM 24VDC WIRE |
4,715 | 134.75 |
|
Datasheet |
6300H | Bulk | Active | 24VDC | Round - 172mm Dia | 51.00mm | 349.0 CFM (9.77m³/min) | - | Ball | Tubeaxial | - | 58.0dB(A) | 31 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 1.8 lbs (816.5 g) |
|
|
6248N/12TDP-274FAN IMP MTRZD 171.5X50.8MM 48VDC |
1,750 | 0.00 |
|
- |
6200N | Bulk | Obsolete | 48VDC | Round - 171.5mm Dia | 50.80mm | 353.0 CFM (9.88m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 52.8 W | 5160 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, UL, VDE | - |
|
|
DV6428UDC TUBEAXIAL FAN |
1,608 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F175A3-062-D0550FAN IMP MTRZD 175X69.3MM 24VDC |
1,791 | 193.28 |
|
Datasheet |
F175 | Bulk | Obsolete | 24VDC | Round - 175mm Dia | 69.30mm | 505.0 CFM (14.14m³/min) | 4.260 in H2O (1061.2 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 77.0dB(A) | 92.4 W | 5300 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.3 lbs (1 kg) |
|
|
6318N/2TDH3PDC TUBEAXIAL FAN |
3,131 | 0.00 |
|
- |
6300NTD | Bulk | Active | 48VDC | Round - 171.5mm Dia | 51.00mm | 606.7 CFM (16.99m³/min) | - | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach) | 83.0dB(A) | 152 W | 7500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, VDE, UL | - |
|
|
R172A8-051-D0590DC AXIAL FAN |
1,284 | 0.00 |
|
Datasheet |
R172A | Box | Active | 24VDC | Round - 172.7mm Dia | 50.80mm | 585.0 CFM (16.38m³/min) | 6.118 in H2O (1524.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 82.0dB | 206 W | 9300 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | - |
|
|
R172A9-051-D0560DC AXIAL FAN |
4,028 | 0.00 |
|
Datasheet |
R172A | Box | Active | 24VDC | Round - 172.7mm Dia | 50.80mm | 410.0 CFM (11.48m³/min) | 3.139 in H2O (782.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 74.0dB | 67.2 W | 6300 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | - |
|
MSI2577H24B-BBRFAN IMP MTRZD 250X77.3MM 24VDC |
3,287 | 172.81 |
|
Datasheet |
MSI2577 | Box | Active | 24VDC | Round - 250mm Dia | 77.30mm | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | Motorized Impellers | Auto Restart | 76.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 4.4 lbs (2 kg) |
