DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1004KL-01W-B50-B00FAN AXIAL 25X10MM BALL 5VDC WIRE |
2,189 | 0.00 |
|
Datasheet |
1004KL | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.0 CFM (0.056m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | - | 25.0dB | 625 mW | 11000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-04W-B50-B00FAN AXIAL 25X10MM 12VDC WIRE |
4,703 | 0.00 |
|
Datasheet |
1004KL | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.0 CFM (0.056m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | - | 25.0dB | 720 mW | 11000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
1204KL-01W-B50-B00FAN AXIAL 30X10MM BALL 5VDC WIRE |
3,949 | 0.00 |
|
Datasheet |
1204KL | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.8 CFM (0.106m³/min) | 0.216 in H2O (53.8 Pa) | Ball | Tubeaxial | - | 27.0dB | 900 mW | 10500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.019 lb (8.62 g) |
|
|
1204KL-04W-B50-B00FAN AXIAL 30X10MM 12VDC WIRE |
4,637 | 0.00 |
|
Datasheet |
1204KL | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.8 CFM (0.106m³/min) | 0.216 in H2O (53.8 Pa) | Ball | Tubeaxial | - | 27.0dB | 960 mW | 10500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.019 lb (8.62 g) |
|

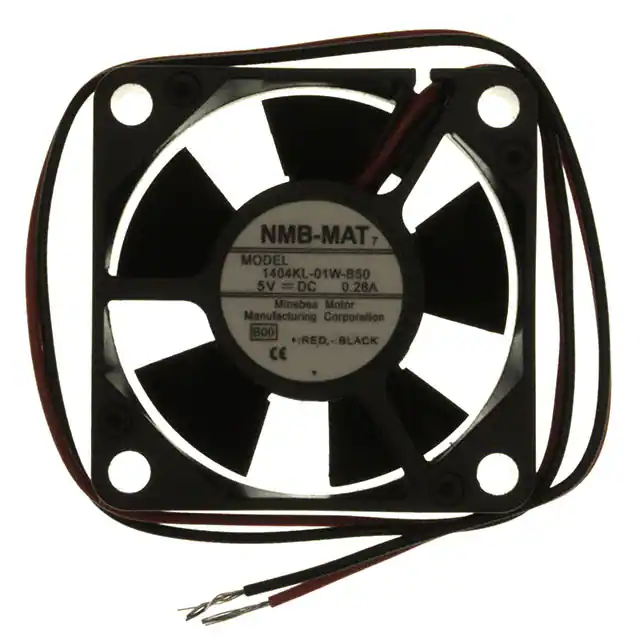

1404KL-01W-B50-B00FAN AXIAL 35X10MM BALL 5VDC WIRE |
2,337 | 10.19 |
|
Datasheet |
1404KL | Bulk | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 5.6 CFM (0.157m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | - | 27.0dB | 1.05 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.026 lb (11.79 g) |
|

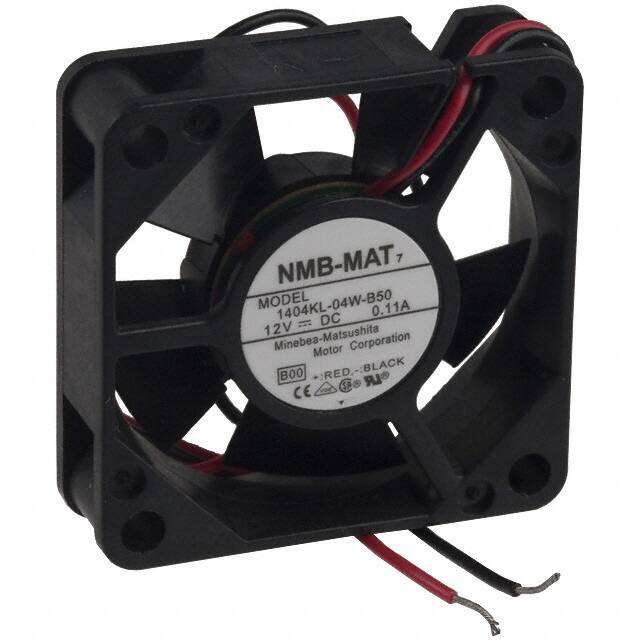

1404KL-04W-B50-B00FAN AXIAL 35X10MM 12VDC WIRE |
4,774 | 0.00 |
|
Datasheet |
1404KL | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 5.6 CFM (0.157m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | - | 27.0dB | 960 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.026 lb (11.79 g) |
|

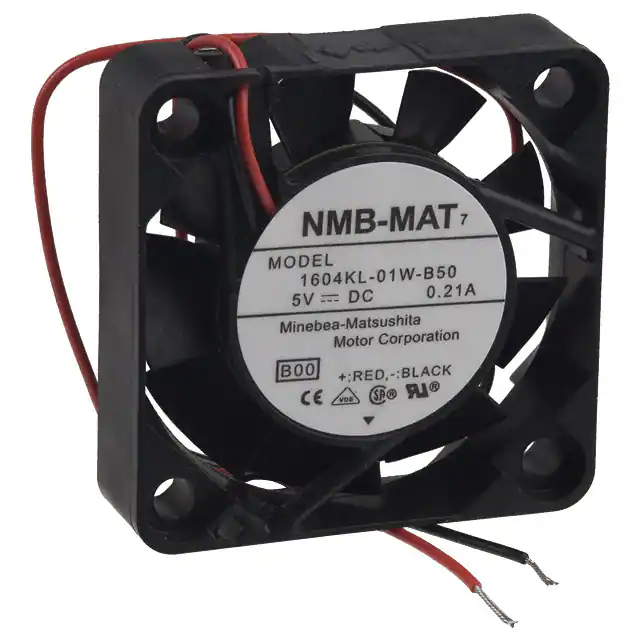

1604KL-01W-B50-B00FAN AXIAL 40X10MM BALL 5VDC WIRE |
3,861 | 0.00 |
|
Datasheet |
04010KA | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 6.0 CFM (0.168m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | - | 29.0dB | 775 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|

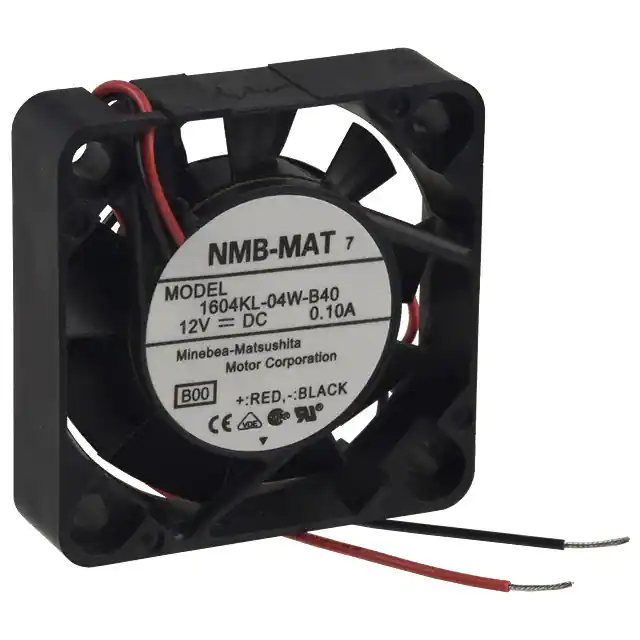

1604KL-04W-B40-B00FAN AXIAL 40X10MM 12VDC WIRE |
3,984 | 0.00 |
|
Datasheet |
04010KA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | - | 25.0dB | 880 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|

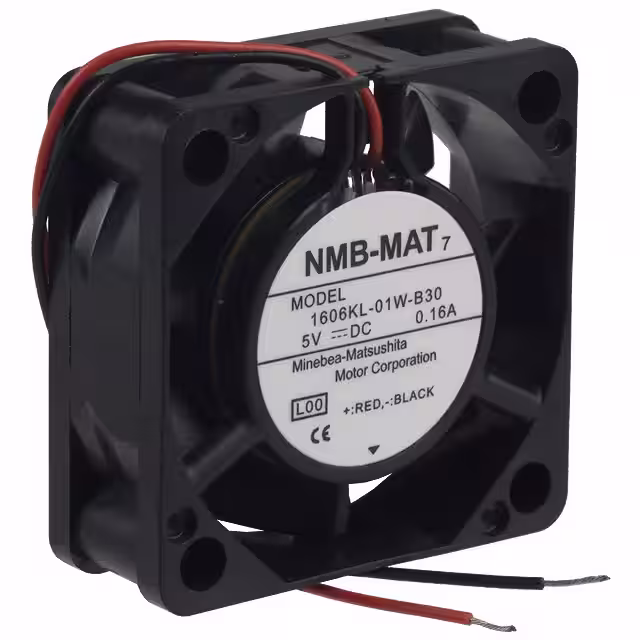

1606KL-01W-B30-L00FAN AXIAL 40X15MM BALL 5VDC WIRE |
3,338 | 0.00 |
|
Datasheet |
1606KL | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | - | 28.0dB | 600 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
1606KL-01W-B50-L00FAN AXIAL 40X15MM BALL 5VDC WIRE |
3,737 | 0.00 |
|
Datasheet |
1606KL | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 8.1 CFM (0.227m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | - | 34.0dB | 1.2 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
1606KL-04W-B30-L00FAN AXIAL 40X15MM 12VDC WIRE |
3,672 | 0.00 |
|
Datasheet |
1606KL | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | - | 28.0dB | 800 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-04W-B50-L00FAN AXIAL 40X15MM 12VDC WIRE |
2,150 | 0.00 |
|
Datasheet |
1606KL | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 8.1 CFM (0.227m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | - | 34.0dB | 1.02 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|

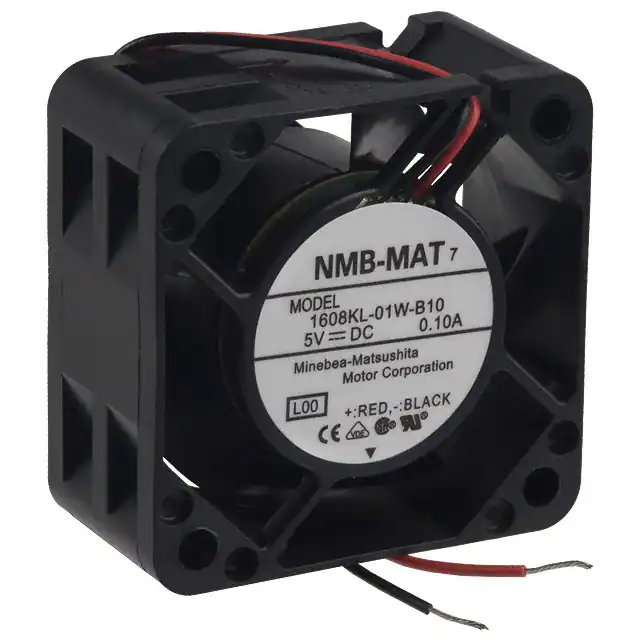

1608KL-01W-B10-L00FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,733 | 10.37 |
|
Datasheet |
1608KL | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 20.0dB | 350 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|

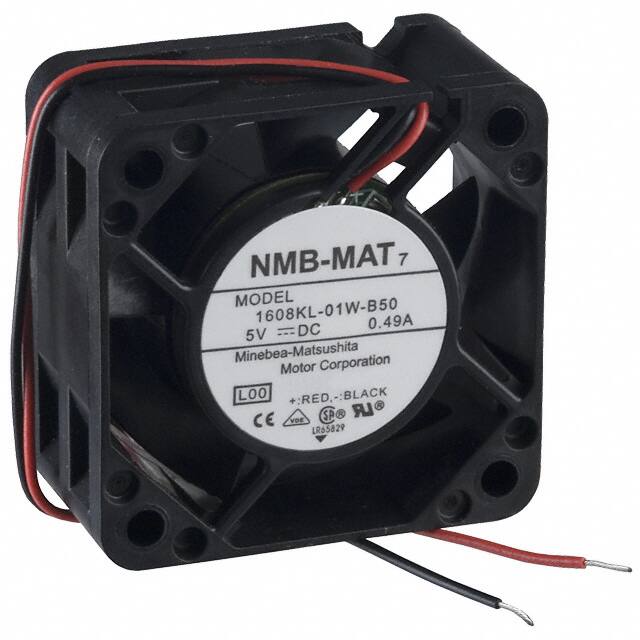

1608KL-01W-B50-L00FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,218 | 0.00 |
|
Datasheet |
1608KL | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.5 CFM (0.266m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | - | 33.0dB | 1.9 W | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
1608KL-04W-B10-L00FAN AXIAL 40X20MM 12VDC WIRE |
1,891 | 0.00 |
|
Datasheet |
1608KL | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 20.0dB | 480 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-04W-B50-L00FAN AXIAL 40X20MM 12VDC WIRE |
1,800 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.5 CFM (0.266m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | - | 33.0dB | 1.32 W | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
1608KL-05W-B10-L00FAN AXIAL 40X20MM 24VDC WIRE |
2,329 | 0.00 |
|
Datasheet |
1608KL | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 20.0dB | 960 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-05W-B50-L00FAN AXIAL 40X20MM 24VDC WIRE |
1,244 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.5 CFM (0.266m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | - | 33.0dB | 1.92 W | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|

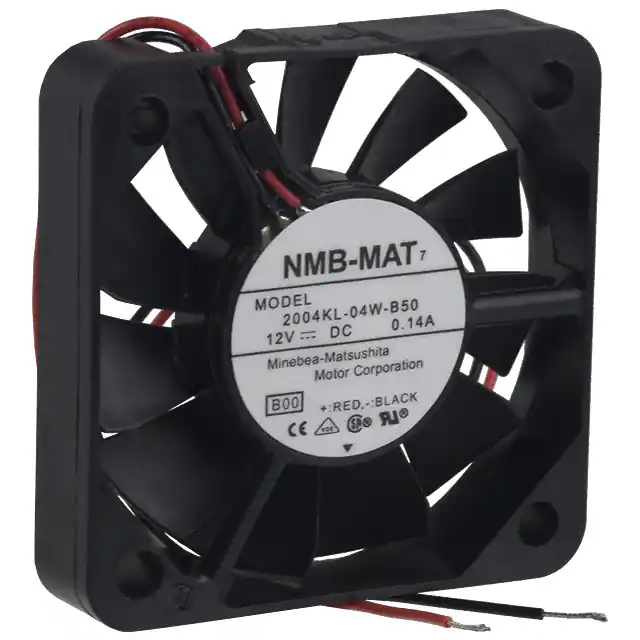

2004KL-04W-B50-B00FAN AXIAL 50X10MM 12VDC WIRE |
2,232 | 0.00 |
|
Datasheet |
2004KL | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 10.00mm | 10.2 CFM (0.286m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 34.0dB | 1.2 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
2106KL-04W-B50-L00FAN AXIAL 52X15MM 12VDC WIRE |
2,432 | 0.00 |
|
Datasheet |
2106KL | Box | Obsolete | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 30.0dB | 1.56 W | 4900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
