DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1404KL-01W-B40-B00FAN AXIAL 35X10MM BALL 5VDC WIRE |
4,505 | 0.00 |
|
Datasheet |
1404KL | Bulk | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.107 in H2O (26.6 Pa) | Ball | Tubeaxial | - | 22.0dB | 850 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.026 lb (11.79 g) |
|
1404KL-04W-B30-B00FAN AXIAL 35X10MM 12VDC WIRE |
3,029 | 0.00 |
|
Datasheet |
1404KL | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.062 in H2O (15.4 Pa) | Ball | Tubeaxial | - | 19.0dB | 480 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.026 lb (11.79 g) |
|
|
1404KL-04W-B40-B00FAN AXIAL 35X10MM 12VDC WIRE |
4,633 | 0.00 |
|
Datasheet |
1404KL | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.107 in H2O (26.6 Pa) | Ball | Tubeaxial | - | 22.0dB | 840 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.026 lb (11.79 g) |
|

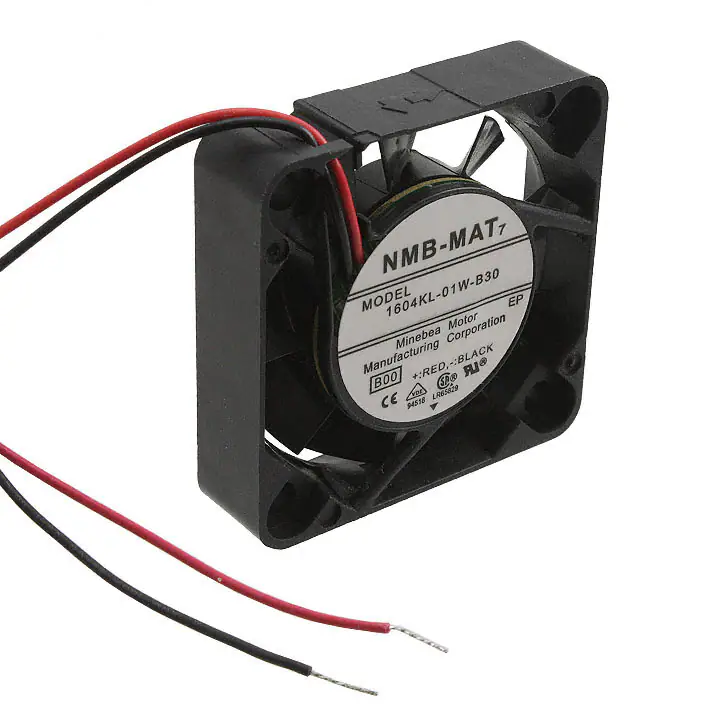

1604KL-01W-B30-B00FAN AXIAL 40X10MM BALL 5VDC WIRE |
1,079 | 0.00 |
|
Datasheet |
04010KA | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.096 in H2O (23.9 Pa) | Ball | Tubeaxial | - | 22.0dB | 375 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|

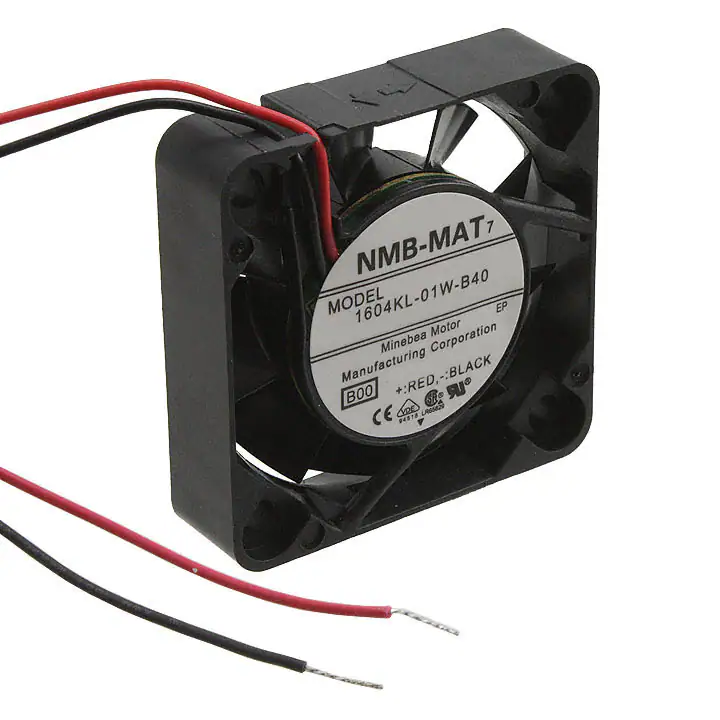

1604KL-01W-B40-B00FAN AXIAL 40X10MM BALL 5VDC WIRE |
2,495 | 9.61 |
|
Datasheet |
04010KA | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | - | 25.0dB | 600 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|

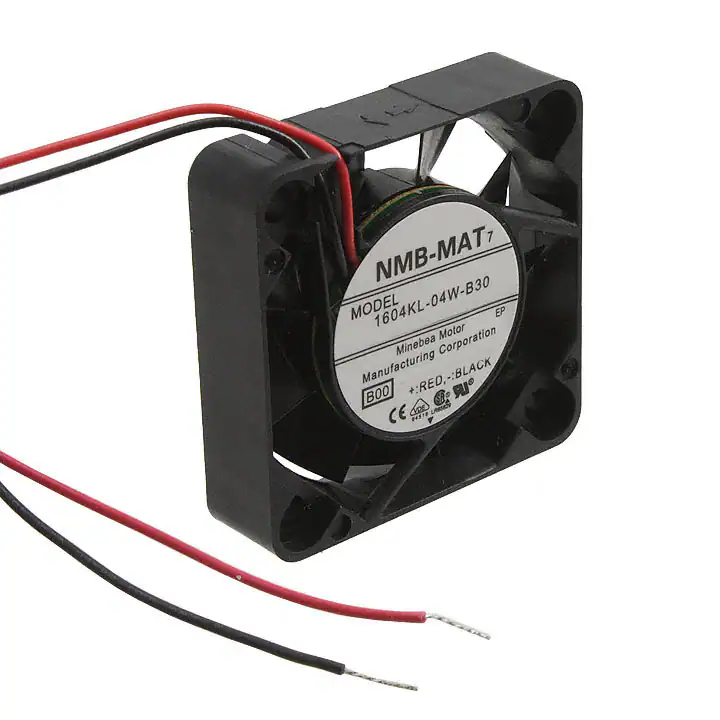

1604KL-04W-B30-B00FAN AXIAL 40X10MM 12VDC WIRE |
4,240 | 0.00 |
|
Datasheet |
04010KA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.096 in H2O (23.9 Pa) | Ball | Tubeaxial | - | 22.0dB | 740 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|
1604KL-04W-B50-B00FAN AXIAL 40X10MM 12VDC WIRE |
4,713 | 0.00 |
|
Datasheet |
04010KA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.0 CFM (0.168m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | - | 29.0dB | 880 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|
|
1606KL-01W-B40-L00FAN AXIAL 40X15MM BALL 5VDC WIRE |
1,845 | 0.00 |
|
Datasheet |
1606KL | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 7.0 CFM (0.196m³/min) | 0.189 in H2O (47.1 Pa) | Ball | Tubeaxial | - | 31.0dB | 750 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|

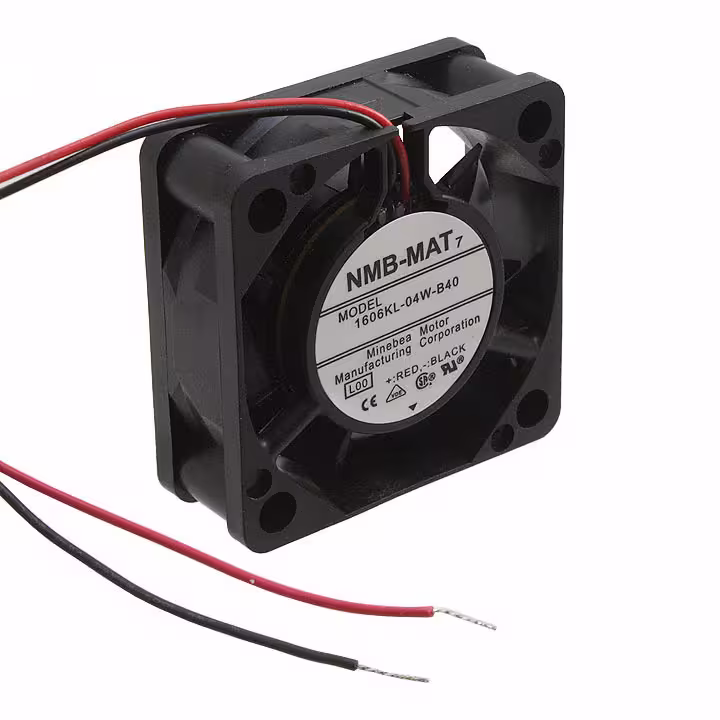

1606KL-04W-B40-L00FAN AXIAL 40X15MM 12VDC WIRE |
2,087 | 0.00 |
|
Datasheet |
1606KL | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 7.0 CFM (0.196m³/min) | 0.189 in H2O (47.1 Pa) | Ball | Tubeaxial | - | 31.0dB | 900 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|

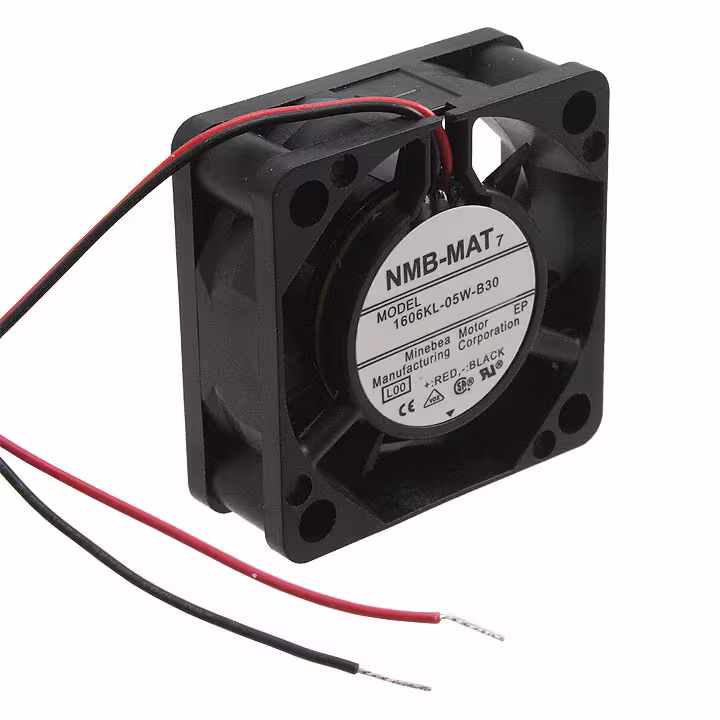

1606KL-05W-B30-L00FAN AXIAL 40X15MM 24VDC WIRE |
3,901 | 0.00 |
|
Datasheet |
1606KL | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | - | 28.0dB | 1.08 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-05W-B40-L00FAN AXIAL 40X15MM 24VDC WIRE |
4,246 | 0.00 |
|
Datasheet |
1606KL | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 7.0 CFM (0.196m³/min) | 0.189 in H2O (47.1 Pa) | Ball | Tubeaxial | - | 31.0dB | 1.3 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|

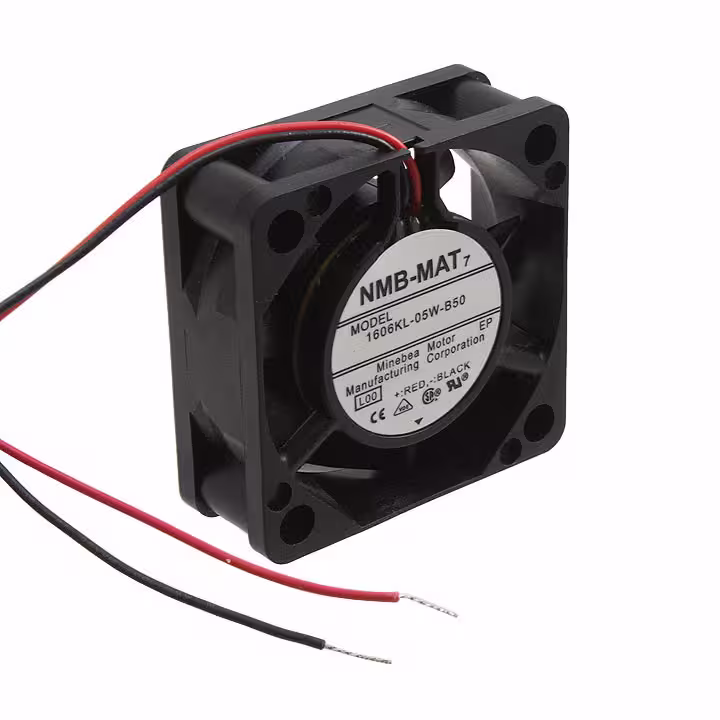

1606KL-05W-B50-L00FAN AXIAL 40X15MM 24VDC WIRE |
4,529 | 0.00 |
|
Datasheet |
1606KL | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 8.1 CFM (0.227m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | - | 34.0dB | 1.49 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|

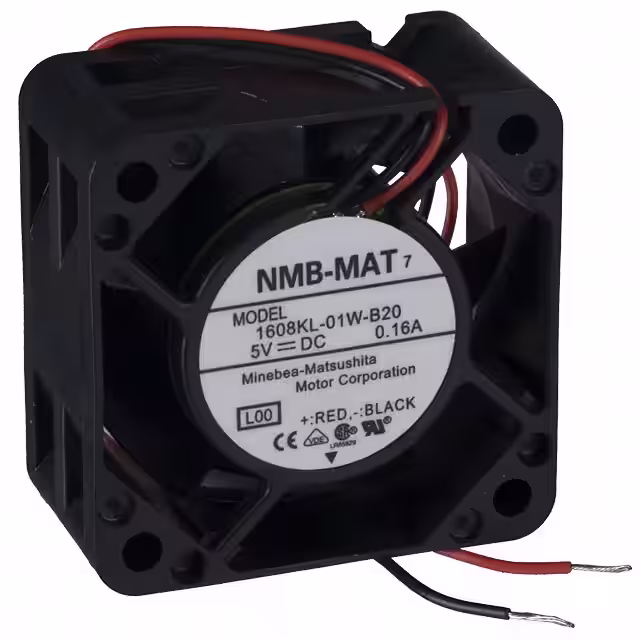

1608KL-01W-B20-L00FAN AXIAL 40X20MM BALL 5VDC WIRE |
4,904 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.121 in H2O (30.1 Pa) | Ball | Tubeaxial | - | 22.5dB | 600 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-01W-B30-L00FAN AXIAL 40X20MM BALL 5VDC WIRE |
1,933 | 0.00 |
|
Datasheet |
1608KL | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | - | 25.5dB | 850 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
1608KL-01W-B40-L00FAN AXIAL 40X20MM BALL 5VDC WIRE |
1,955 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.4 CFM (0.235m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | - | 29.0dB | 1.35 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
1608KL-04W-B20-L00FAN AXIAL 40X20MM 12VDC WIRE |
2,975 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.121 in H2O (30.1 Pa) | Ball | Tubeaxial | - | 22.5dB | 720 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-04W-B30-L00FAN AXIAL 40X20MM 12VDC WIRE |
4,010 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | - | 25.5dB | 840 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-04W-B40-L00FAN AXIAL 40X20MM 12VDC WIRE |
2,128 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.4 CFM (0.235m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | - | 29.0dB | 1.08 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
1608KL-05W-B20-L00FAN AXIAL 40X20MM 24VDC WIRE |
1,608 | 0.00 |
|
Datasheet |
1608KL | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.121 in H2O (30.1 Pa) | Ball | Tubeaxial | - | 22.5dB | 1.2 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1608KL-05W-B30-L00FAN AXIAL 40X20MM 24VDC WIRE |
4,656 | 0.00 |
|
Datasheet |
1608KL | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | - | 25.5dB | 1.44 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
