DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

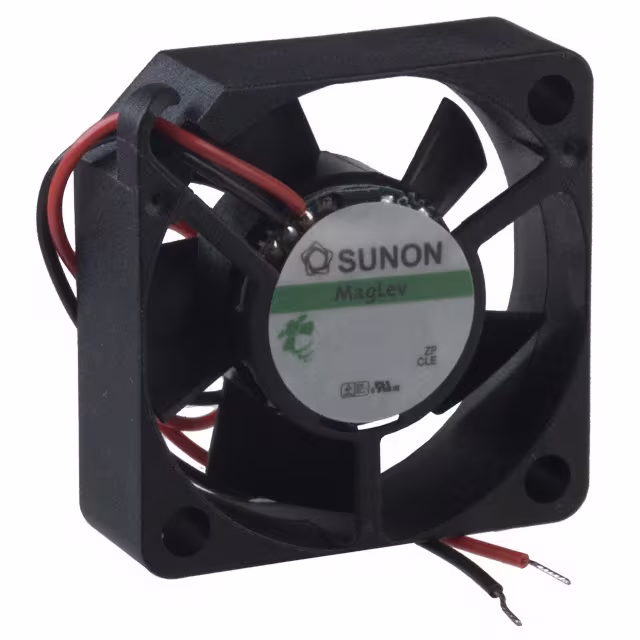

GM1203PFV1-8.GNFAN AXIAL 30X10MM 12VDC WIRE |
4,538 | 0.00 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | - | 23.0dB(A) | 1 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.019 lb (8.62 g) |
|
|
GM1203PFV2-8.GNFAN AXIAL 30X10MM 12VDC WIRE |
4,806 | 0.00 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.6 CFM (0.129m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 20.0dB(A) | 500 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.019 lb (8.62 g) |
|
F251R-05LBFAN AXIAL 25X10MM 5VDC WIRE |
1,415 | 8.69 |
|
Datasheet |
F251R | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.120 in H2O (29.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 15.0dB(A) | 300 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
|
F251R-05LLBFAN AXIAL 25X10MM 5VDC WIRE |
3,659 | 9.47 |
|
Datasheet |
F251R | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.040m³/min) | 0.080 in H2O (19.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 11.0dB(A) | 250 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
|
F251R-05L3BFAN AXIAL 25X10MM 5VDC WIRE |
1,052 | 9.47 |
|
Datasheet |
F251R | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.056 in H2O (13.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 9.0dB(A) | 200 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|

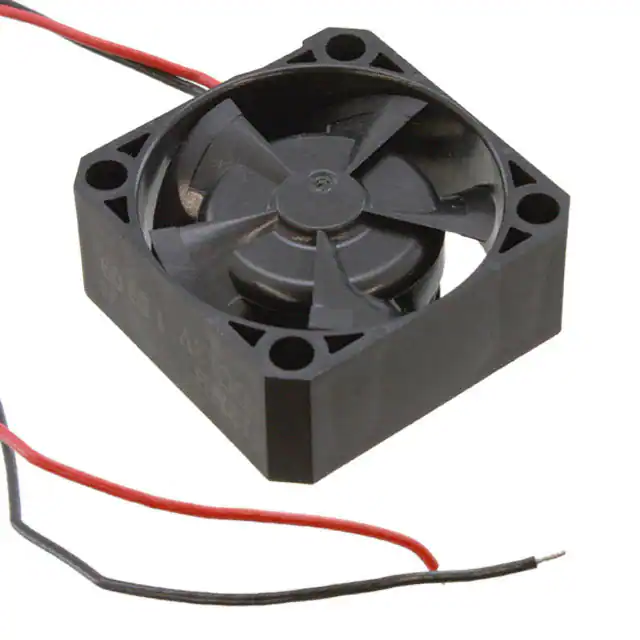

F251R-12MBFAN AXIAL 25X10MM 12VDC WIRE |
1,282 | 9.47 |
|
Datasheet |
F251R | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.188 in H2O (46.8 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 20.0dB(A) | 600 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
|
F251R-12LLBFAN AXIAL 25X10MM 12VDC WIRE |
2,254 | 9.47 |
|
Datasheet |
F251R | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.039m³/min) | 0.080 in H2O (19.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 11.0dB(A) | 360 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
|
F251R-12L3BFAN AXIAL 25X10MM 12VDC WIRE |
2,424 | 9.47 |
|
Datasheet |
F251R | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.056 in H2O (13.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 9.0dB(A) | 240 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
|
F251R-12L3CFAN AXIAL 25X10MM 12VDC WIRE |
4,361 | 0.00 |
|
Datasheet |
F251R | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.056 in H2O (13.9 Pa) | Sleeve | Tubeaxial | - | 9.0dB(A) | 240 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
|
F251R-12LBFAN AXIAL 25X10MM 12VDC WIRE |
1,531 | 9.56 |
|
Datasheet |
F251R | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.120 in H2O (29.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 15.0dB(A) | 480 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
F251RF-05LLBFAN AXIAL 25X10MM 5VDC WIRE |
1,575 | 9.56 |
|
Datasheet |
F251RF | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.039m³/min) | 0.080 in H2O (19.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Speed Sensor (Tach) | 11.0dB(A) | 250 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
|
F251RF-12LLBFAN AXIAL 25X10MM 12VDC WIRE |
2,280 | 0.00 |
|
Datasheet |
F251RF | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.039m³/min) | 0.080 in H2O (19.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Speed Sensor (Tach) | 11.0dB(A) | 360 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|

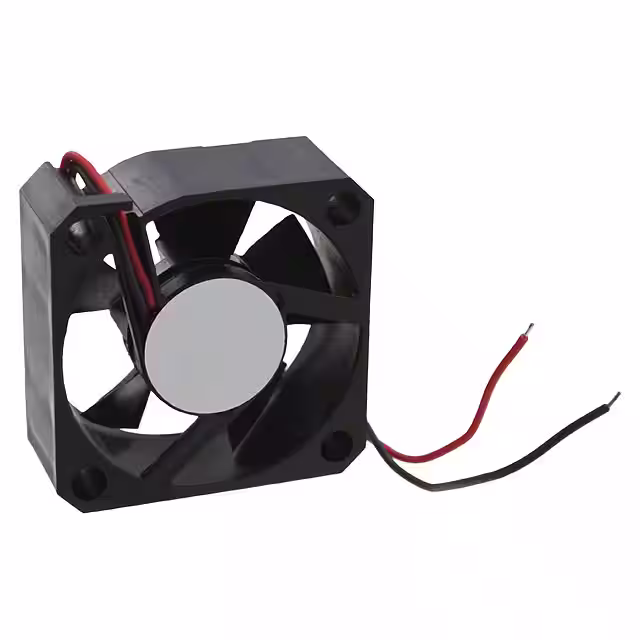

F251T-12LLCFAN AXIAL 25X10MM 12VDC WIRE |
1,676 | 0.00 |
|
Datasheet |
F251T | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.056 in H2O (13.9 Pa) | Sleeve | Tubeaxial | - | 12.0dB(A) | 960 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.011 lb (4.99 g) |
|
F310R-05LBFAN AXIAL 30X10MM 5VDC WIRE |
4,540 | 0.00 |
|
Datasheet |
F310R | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.092 in H2O (23.0 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 17.0dB(A) | 350 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.018 lb (8.16 g) |
|
|
F310R-12LBFAN AXIAL 30X10MM 12VDC WIRE |
4,674 | 0.00 |
|
Datasheet |
F310R | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.092 in H2O (23.0 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 17.0dB(A) | 480 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.018 lb (8.16 g) |
|
F310RF-05LBFAN AXIAL 30X10MM 5VDC WIRE |
4,751 | 0.00 |
|
Datasheet |
F310RF | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.092 in H2O (23.0 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Speed Sensor (Tach) | 17.0dB(A) | 350 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.018 lb (8.16 g) |
|
|
F310RF-12LBFAN AXIAL 30X10MM 12VDC WIRE |
4,732 | 9.47 |
|
Datasheet |
F310RF | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.092 in H2O (23.0 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Speed Sensor (Tach) | 17.0dB(A) | 480 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.018 lb (8.16 g) |
|
F412R-12LLBFAN AXIAL 41X12.2MM 12VDC WIRE |
4,408 | 0.00 |
|
Datasheet |
F412R | Bulk | Obsolete | 12VDC | Square - 41mm L x 41mm H | 12.20mm | 3.5 CFM (0.098m³/min) | 0.047 in H2O (11.8 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 14.0dB(A) | 480 mW | 3750 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
|
F412R-24LBFAN AXIAL 41X12.2MM 24VDC WIRE |
2,844 | 0.00 |
|
Datasheet |
F412R | Bulk | Obsolete | 24VDC | Square - 41mm L x 41mm H | 12.20mm | 3.9 CFM (0.109m³/min) | 0.059 in H2O (14.7 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 16.0dB(A) | 720 mW | 4200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
|
F412R-24MBFAN AXIAL 41X12.2MM 24VDC WIRE |
3,997 | 0.00 |
|
Datasheet |
F412R | Bulk | Obsolete | 24VDC | Square - 41mm L x 41mm H | 12.20mm | 5.3 CFM (0.148m³/min) | 0.102 in H2O (25.5 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 23.0dB(A) | 960 mW | 5400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
