DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

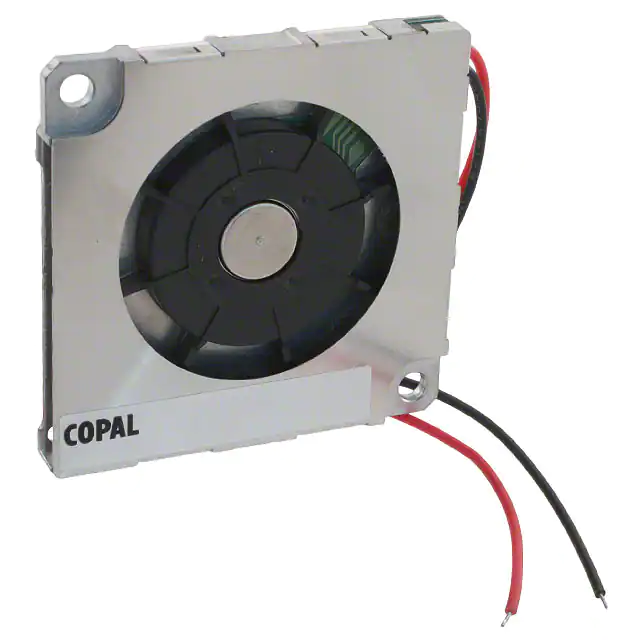

F455B-05MDFAN BLOWER 45X5MM 5VDC WIRE |
2,453 | 0.00 |
|
- |
F455B | Bulk | Obsolete | 5VDC | Square - 45mm L x 45mm H | 5.00mm | 1.1 CFM (0.031m³/min) | 0.216 in H2O (53.8 Pa) | Sleeve | Blower | - | 23.0dB(A) | 700 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.055 lb (24.95 g) |
|
3110KL-04W-B10-D00FAN AXIAL 80X25MM 12VDC WIRE |
3,276 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 24.7 CFM (0.692m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | - | 22.0dB | 1.2 W | 2150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B30-D00FAN AXIAL 80X25MM 12VDC WIRE |
4,019 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 31.8 CFM (0.890m³/min) | 0.106 in H2O (26.4 Pa) | Ball | Tubeaxial | - | 28.0dB | 2.04 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B40-D00FAN AXIAL 80X25MM 12VDC WIRE |
1,270 | 9.84 |
|
Datasheet |
3110KL | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 35.3 CFM (0.988m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | - | 31.0dB | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B50-D00FAN AXIAL 80X25MM 12VDC WIRE |
1,291 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Tubeaxial | - | 34.0dB | 2.76 W | 3250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3110KL-04W-B69-D00FAN AXIAL 80X25MM 12VDC WIRE |
1,646 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 35.0dB | 3.12 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B10-D00FAN AXIAL 80X25MM 24VDC WIRE |
3,357 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 24.7 CFM (0.692m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | - | 22.0dB | 1.44 W | 2150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B20-D00FAN AXIAL 80X25MM 24VDC WIRE |
2,849 | 0.00 |
|
Datasheet |
3110KL | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | - | 25.0dB | 1.68 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B30-D00FAN AXIAL 80X25MM 24VDC WIRE |
3,175 | 0.00 |
|
Datasheet |
3110KL | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 31.8 CFM (0.890m³/min) | 0.106 in H2O (26.4 Pa) | Ball | Tubeaxial | - | 28.0dB | 1.92 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B40-D00FAN AXIAL 80X25MM 24VDC WIRE |
2,327 | 0.00 |
|
Datasheet |
3110KL | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 35.3 CFM (0.988m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | - | 31.0dB | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B50-D00FAN AXIAL 80X25MM 24VDC WIRE |
1,111 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Tubeaxial | - | 34.0dB | 2.88 W | 3250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3110KL-05W-B69-D00FAN AXIAL 80X25MM 24VDC WIRE |
1,575 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 35.0dB | 3.36 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
BG0702-B04-400-0FAN BLOWER 75.7X25MM 12VDC WIRE |
3,541 | 0.00 |
|
Datasheet |
BG | Box | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 8.5 CFM (0.238m³/min) | 0.497 in H2O (124.0 Pa) | Ball | Blower | - | 41.0dB | 2.28 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL | 0.198 lb (89.81 g) |
|
3106KL-04W-B50-B01FAN AXIAL 80X15MM 12VDC WIRE |
3,982 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 32.8 CFM (0.918m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 34.0dB | 2.76 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | - | 0.111 lb (50.35 g) |
|

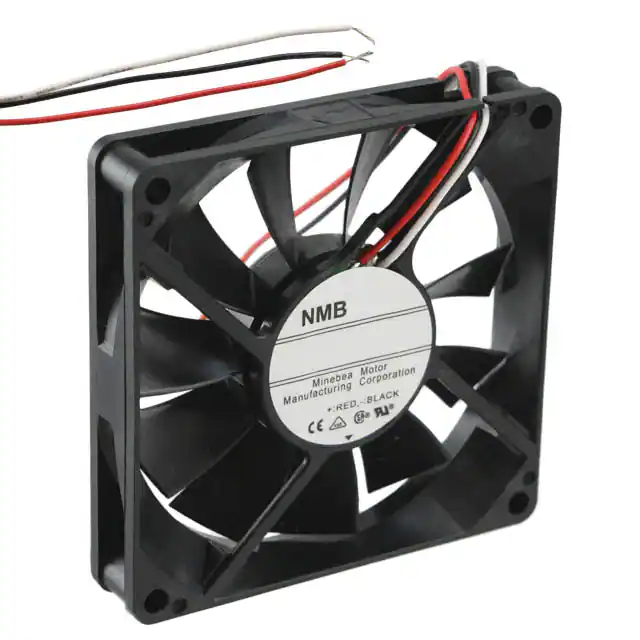

3106KL-04W-B59-B00FAN AXIAL 80X15MM 12VDC WIRE |
4,287 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 32.8 CFM (0.918m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB | 2.76 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | - | 0.111 lb (50.35 g) |
|
|
3106KL-04W-B30-B02FAN AXIAL 80X15MM 12VDC WIRE |
4,491 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 23.3 CFM (0.652m³/min) | 0.064 in H2O (16.0 Pa) | Ball | Tubeaxial | - | 26.0dB | 1.32 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.111 lb (50.35 g) |
|
3106KL-04W-B39-B00FAN AXIAL 80X15MM 12VDC WIRE |
4,595 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 23.3 CFM (0.652m³/min) | 0.064 in H2O (16.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.0dB | 1.32 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.111 lb (50.35 g) |
|
|
3106KL-05W-B50-B00FAN AXIAL 80X15MM 24VDC WIRE |
4,502 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 32.8 CFM (0.918m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 34.0dB | 2.88 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | - | 0.111 lb (50.35 g) |
|
3106KL-05W-B59-B00FAN AXIAL 80X15MM 24VDC WIRE |
3,724 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 32.8 CFM (0.918m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB | 2.88 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | - | 0.111 lb (50.35 g) |
|
|

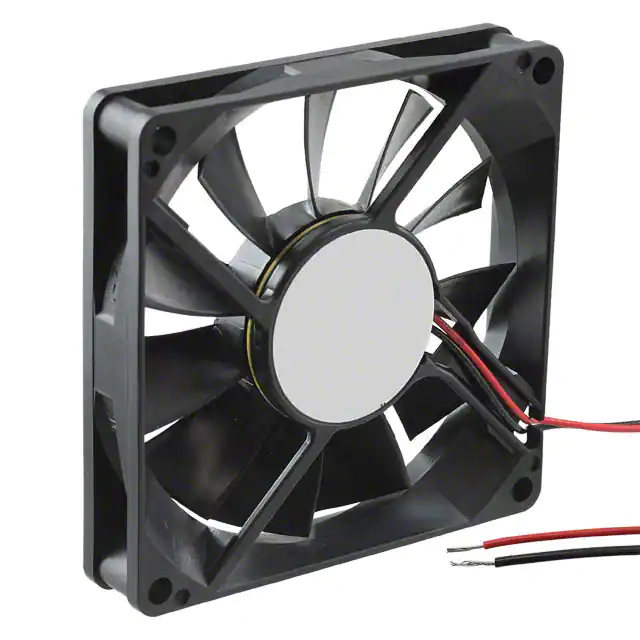

3106KL-05W-B30-B00FAN AXIAL 80X15MM 24VDC WIRE |
4,116 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 23.3 CFM (0.652m³/min) | 0.064 in H2O (16.0 Pa) | Ball | Tubeaxial | - | 26.0dB | 1.68 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.111 lb (50.35 g) |
