DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDD1-17251DBHW32FAN AXIAL 172X51MM 24VDC WIRE |
3,376 | 0.00 |
|
Datasheet |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 325.0 CFM (9.10m³/min) | 1.134 in H2O (282.5 Pa) | Ball | Tubeaxial | - | 64.0dB(A) | 40.6 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.3 lbs (1 kg) |
|
EF40201BX-000U-A99FAN AXIAL 40X20MM 12VDC WIRE |
4,172 | 8.46 |
|
Datasheet |
EF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart | 28.5dB(A) | 640 mW | 6800 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.072 lb (32.66 g) |
|
|
PF70201V2-000U-A99FAN AXIAL 70X20MM 12VDC WIRE |
1,733 | 11.90 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 40.0 CFM (1.12m³/min) | 0.240 in H2O (59.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 40.0dB(A) | 2.76 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.177 lb (80.29 g) |
|
|
PF70201V3-000U-A99FAN AXIAL 70X20MM 12VDC WIRE |
3,149 | 11.90 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 37.0 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 37.5dB(A) | 2.34 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.177 lb (80.29 g) |
|
|
PF80201V1-000U-A99FAN AXIAL 80X20MM 12VDC WIRE |
1,549 | 0.00 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 48.0dB(A) | 3.42 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.188 lb (85.28 g) |
|
|
PF80201V2-000U-A99FAN AXIAL 80X20MM 12VDC WIRE |
1,295 | 0.00 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 49.0 CFM (1.37m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 45.0dB(A) | 2.76 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.188 lb (85.28 g) |
|
|
PF80201V3-000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
4,830 | 0.00 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 43.0dB(A) | 2.34 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.188 lb (85.28 g) |
|
|
PF80251V1-000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
3,267 | 0.00 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 46.5dB(A) | 4.1 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PF80251V2-000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
4,845 | 0.00 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 45.0dB(A) | 3.4 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PF80251V3-000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
1,424 | 0.00 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 43.5dB(A) | 2.7 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PF92251V1-000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
3,586 | 0.00 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 46.0dB(A) | 4.7 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.227 lb (102.97 g) |
|
|
PF92251V2-000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
4,660 | 0.00 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 44.0dB(A) | 3.9 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.227 lb (102.97 g) |
|
|
PF92251V3-000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
3,542 | 0.00 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 42.0dB(A) | 3.1 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.227 lb (102.97 g) |
|
|
PF40561B1-000U-A99FAN AXIAL 40X56MM 12VDC WIRE |
2,729 | 30.20 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 26.9 CFM (0.753m³/min) | 2.560 in H2O (637.7 Pa) | Ball | Tubeaxial | Auto Restart, Dual Speed | 58.8dB(A) | 10.68 W | 15000/18000 RPM | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.192 lb (87.08 g) |
|
|
PF40281BX-000U-A99FAN AXIAL 40X28MM 12VDC WIRE |
2,020 | 15.46 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 2.810 in H2O (700.0 Pa) | Ball | Tubeaxial | Auto Restart | 62.0dB(A) | 10.8 W | 22000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.093 lb (42.18 g) |
|
|
PF92381BX-000U-A99FAN AXIAL 92X38MM 12VDC WIRE |
4,915 | 13.38 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 182.4 CFM (5.11m³/min) | 2.940 in H2O (732.3 Pa) | Ball | Tubeaxial | Auto Restart | 72.1dB(A) | 48 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.463 lb (210.01 g) |
|
PF38281BX-000U-A99FAN AXIAL 38X28MM 12VDC WIRE |
1,513 | 15.46 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 23.0 CFM (0.644m³/min) | 2.230 in H2O (555.5 Pa) | Ball | Tubeaxial | Auto Restart | 57.0dB(A) | 6.24 W | 20000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.091 lb (41.28 g) |
|
|
PF38281B3-000U-A99FAN AXIAL 38X28MM 12VDC WIRE |
3,823 | 12.18 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 14.9 CFM (0.417m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart | 47.3dB(A) | 2.33 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.089 lb (40.37 g) |
|
|
PF38281B4-000U-A99FAN AXIAL 38X28MM 12VDC WIRE |
1,577 | 14.10 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart | 40.8dB(A) | 1.38 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.089 lb (40.37 g) |
|

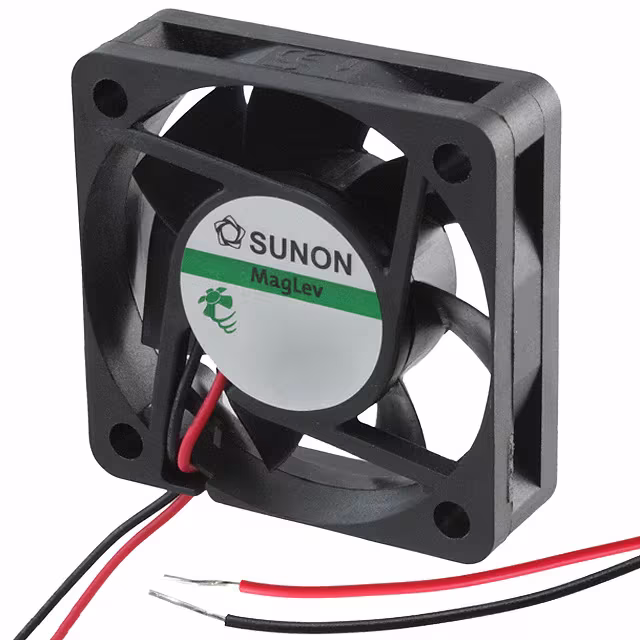

MB50151V1-000U-A99FAN AXIAL 50X15MM 12VDC WIRE |
3,414 | 0.00 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 33.0dB(A) | 1.05 W | 5800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.085 lb (38.56 g) |
