DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1608KL-05W-B69-L50FAN AXIAL 40X20MM 24VDC WIRE |
3,898 | 0.00 |
|
Datasheet |
1608KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.5 CFM (0.266m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB | 1.92 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
1611RL-04W-B49-B50FAN AXIAL 40X28MM 12VDC WIRE |
1,287 | 0.00 |
|
- |
1611RL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 8.4 CFM (0.235m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.5dB | 1.2 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.106 lb (48.08 g) |
|
|
1611RL-04W-B59-B50FAN AXIAL 40X28MM 12VDC WIRE |
1,740 | 0.00 |
|
- |
1611RL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 10.5 CFM (0.294m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 43.5dB | 2.04 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.106 lb (48.08 g) |
|
|
2410ML-04W-B79-B00FAN AXIAL 60X25MM 12VDC WIRE |
3,841 | 0.00 |
|
Datasheet |
2410ML | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 33.1 CFM (0.927m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 45.0dB | 5.28 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UR, VDE | 0.143 lb (64.86 g) |
|
|
2410ML-04W-B79-B50FAN AXIAL 60X25MM 12VDC WIRE |
4,984 | 10.28 |
|
Datasheet |
2410ML | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 33.1 CFM (0.927m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.0dB | 5.28 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-04W-B89-B00FAN AXIAL 60X25MM 12VDC WIRE |
4,398 | 10.28 |
|
Datasheet |
2410ML | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 46.0dB | 6.2 W | 7800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-04W-B89-B50FAN AXIAL 60X25MM 12VDC WIRE |
2,040 | 10.28 |
|
Datasheet |
2410ML | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.0dB | 6.2 W | 7800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B69-E00FAN AXIAL 60X25MM 24VDC WIRE |
4,005 | 9.47 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 36.0dB | 3.12 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B69-E50FAN AXIAL 60X25MM 24VDC WIRE |
4,904 | 9.47 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 36.0dB | 3.12 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B79-E00FAN AXIAL 60X25MM 24VDC WIRE |
3,506 | 10.28 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 33.1 CFM (0.927m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 45.0dB | 4.56 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B79-E50FAN AXIAL 60X25MM 24VDC WIRE |
1,820 | 10.28 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 33.1 CFM (0.927m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.0dB | 4.56 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B80-B00FAN AXIAL 60X25MM 24VDC WIRE |
1,583 | 9.84 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart | 50.0dB | 6.24 W | 7350 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-05W-B89-B50FAN AXIAL 60X25MM 24VDC WIRE |
1,456 | 10.28 |
|
Datasheet |
2410ML | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.0dB | 6.24 W | 7350 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
3106KL-04W-B30-B00FAN AXIAL 80X15MM 12VDC WIRE |
1,530 | 0.00 |
|
Datasheet |
3106KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 23.3 CFM (0.652m³/min) | 0.064 in H2O (16.0 Pa) | Ball | Tubeaxial | - | 26.0dB | 1.32 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.111 lb (50.35 g) |
|
|
3110KL-04W-B60-D00FAN AXIAL 80X25MM 12VDC WIRE |
2,284 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 35.0dB | 3.12 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B70-D00FAN AXIAL 80X25MM 12VDC WIRE |
1,830 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 45.9 CFM (1.29m³/min) | 0.258 in H2O (64.4 Pa) | Ball | Tubeaxial | - | 40.0dB | 3.86 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B70-G00FAN AXIAL 80X25MM 12VDC WIRE |
1,298 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 45.9 CFM (1.29m³/min) | 0.258 in H2O (64.4 Pa) | Ball | Tubeaxial | - | 40.0dB | 3.86 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|

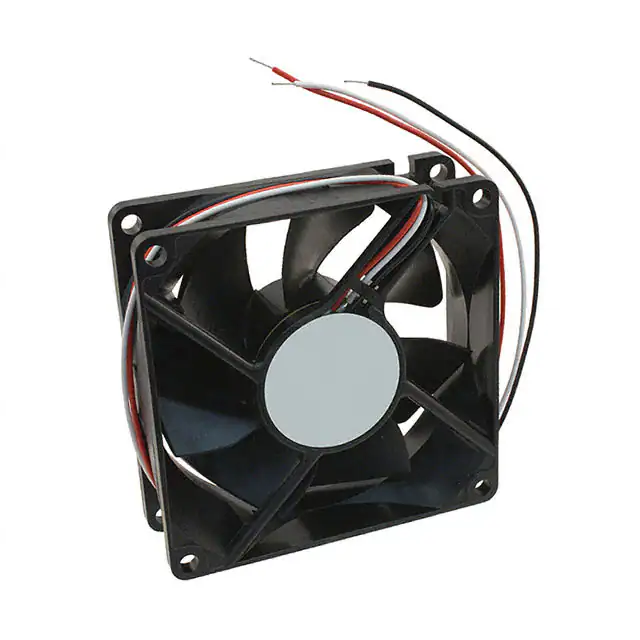

3110KL-04W-B79-D00FAN AXIAL 80X25MM 12VDC WIRE |
4,002 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 45.9 CFM (1.29m³/min) | 0.258 in H2O (64.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB | 3.86 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B79-G00FAN AXIAL 80X25MM 12VDC WIRE |
3,116 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 45.9 CFM (1.29m³/min) | 0.258 in H2O (64.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB | 3.86 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B60-D00FAN AXIAL 80X25MM 24VDC WIRE |
2,573 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 35.0dB | 3.36 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
