DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

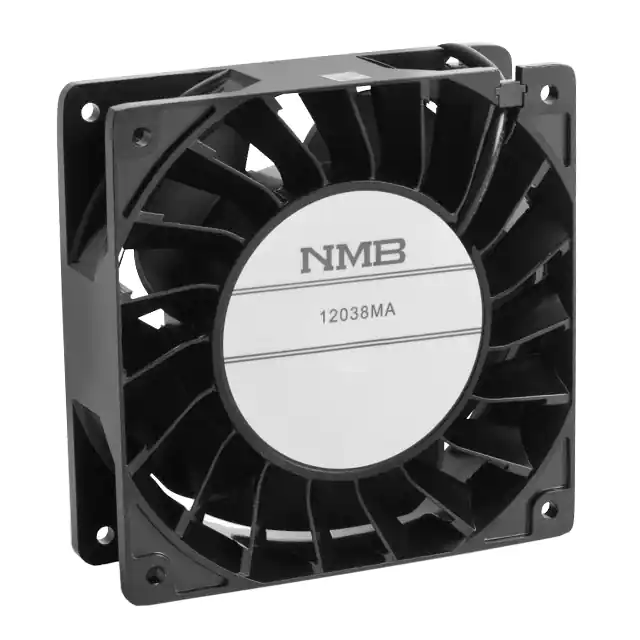

12038MA-48P-GA-00FAN AXIAL 119X38.4MM 48VDC WIRE |
3,328 | 0.00 |
|
- |
- | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 181.0 CFM (5.07m³/min) | - | Ball | Tubeaxial | - | 59.5dB | 23.5 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | - |
|
12038VA-24L-EL-00FAN AXIAL 120X38MM 24VDC WIRE |
3,819 | 32.38 |
|
Datasheet |
- | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
12038VA-24M-EA-00FAN AXIAL 120X38MM 24VDC WIRE |
4,110 | 31.93 |
|
Datasheet |
- | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
12038VA-24N-EA-00FAN AXIAL 120X38MM 24VDC WIRE |
4,095 | 31.93 |
|
Datasheet |
- | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 182.4 CFM (5.11m³/min) | - | Ball | Tubeaxial | - | - | 18.24 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
12038VA-48L-ET-00FAN AXIAL 120X38MM 48VDC WIRE |
3,144 | 32.38 |
|
Datasheet |
- | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
12038VA-48N-EA-00FAN AXIAL 120X38MM 48VDC WIRE |
2,436 | 31.93 |
|
Datasheet |
- | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 182.4 CFM (5.11m³/min) | - | Ball | Tubeaxial | - | - | 17.8 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
15050PA-24Q-GA-00FAN AXIAL BALL 24VDC |
1,748 | 0.00 |
|
Datasheet |
- | Box | Active | 24VDC | - | - | - | - | Ball | Tubeaxial | - | - | - | - | - | - | - | - | - |
|
|
15050PA-48Q-GA-00FAN AXIAL BALL 48VDC |
4,433 | 0.00 |
|
Datasheet |
- | Box | Active | 48VDC | - | - | - | - | Ball | Tubeaxial | - | - | - | - | - | - | - | - | - |
|
FDD1-17238CBAW42FAN AXIAL 172X38.5MM 12VDC WIRE |
3,921 | 0.00 |
|
Datasheet |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 210.0 CFM (5.88m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 13.2 W | 2800 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238DBAW42FAN AXIAL 172X38.5MM 24VDC WIRE |
1,307 | 0.00 |
|
Datasheet |
HPLC, FDD1-17238 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 210.0 CFM (5.88m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 13 W | 2800 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238CBMW42FAN AXIAL 172X38.5MM 12VDC WIRE |
1,775 | 0.00 |
|
Datasheet |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 275.0 CFM (7.70m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 28.1 W | 3600 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238EBMW42FAN AXIAL 172X38.5MM 48VDC WIRE |
3,951 | 0.00 |
|
Datasheet |
HPLC, FDD1-17238 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 275.0 CFM (7.70m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 25 W | 3600 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238DBJW42FAN AXIAL 172X38.5MM 24VDC WIRE |
1,431 | 0.00 |
|
Datasheet |
HPLC, FDD1-17238 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 340.0 CFM (9.52m³/min) | 1.315 in H2O (327.6 Pa) | Ball | Tubeaxial | - | 68.0dB(A) | 45.8 W | 4400 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238CBMW42-LFAN AXIAL 172X38.5MM 12VDC WIRE |
2,302 | 0.00 |
|
Datasheet |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 275.0 CFM (7.70m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 28.1 W | 3600 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
FDD1-17238CBAW43FAN AXIAL 172X38.5MM 12VDC WIRE |
2,217 | 0.00 |
|
Datasheet |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 210.0 CFM (5.88m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 13.2 W | 2800 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238DBAW44FAN AXIAL 172X38.5MM 24VDC WIRE |
3,182 | 0.00 |
|
Datasheet |
HPLC, FDD1-17238 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 210.0 CFM (5.88m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 52.0dB(A) | 13 W | 2800 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238EBAW44FAN AXIAL 172X38.5MM 48VDC WIRE |
4,258 | 0.00 |
|
Datasheet |
HPLC, FDD1-17238 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 210.0 CFM (5.88m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 52.0dB(A) | 13.4 W | 2800 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238DBLW44FAN AXIAL 172X38.5MM 24VDC WIRE |
2,745 | 0.00 |
|
Datasheet |
HPLC, FDD1-17238 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 245.0 CFM (6.86m³/min) | 0.732 in H2O (182.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 18.7 W | 3200 RPM | 3 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238EBAW44-LFAN AXIAL 172X38.5MM 48VDC WIRE |
3,950 | 0.00 |
|
Datasheet |
HPLC, FDD1-17238 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 210.0 CFM (5.88m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 52.0dB(A) | 13.4 W | 2800 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
|
FDD1-17238CBHW44-LFAN AXIAL 172X38.5MM 12VDC WIRE |
2,515 | 0.00 |
|
Datasheet |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 310.0 CFM (8.68m³/min) | 1.122 in H2O (279.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 64.0dB(A) | 40 W | 4000 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
