DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDD1-17251EBKW3C-L56FAN AXIAL 172X51MM 48VDC WIRE |
2,177 | 0.00 |
|
Datasheet |
HPLC, FDD1-17251 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 390.0 CFM (10.92m³/min) | 1.587 in H2O (395.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Speed Sensor (Tach) | 72.0dB(A) | 71 W | 4800 RPM | 4 Wire Leads | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.5 lbs (1.1 kg) |
|
624NRFAN AXIAL 60X25.4MM 24VDC WIRE |
3,379 | 0.00 |
|
Datasheet |
620 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 23.5 CFM (0.658m³/min) | 0.353 in H2O (88.0 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 2.2 W | 6100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
DV5212/2N-184FAN AXIAL 127X38MM 12VDC WIRE |
1,363 | 0.00 |
|
Datasheet |
DV5200 | Box | Obsolete | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 158.9 CFM (4.45m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 9 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | - |
|
|
DV5214/2N-185FAN AXIAL 127X38MM 24VDC WIRE |
3,679 | 0.00 |
|
Datasheet |
DV5200 | Box | Obsolete | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 158.9 CFM (4.45m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 21 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | - |
|
|
DV5218/2NP-182FAN AXIAL 127X38MM 48VDC WIRE |
1,306 | 0.00 |
|
Datasheet |
DV5200 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 158.9 CFM (4.45m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 21 W | - | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | - |
|
4312MTFAN AXIAL 119X32MM 12VDC WIRE |
2,494 | 0.00 |
|
Datasheet |
4300 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 81.2 CFM (2.27m³/min) | - | Ball | Tubeaxial | Temperature Sensor | 39.0dB(A) | 3.3 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
BFB1012M-AR00FAN BLOWER 97.2X33MM 12VDC WIRE |
3,554 | 19.30 |
|
Datasheet |
BFB | Box | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 22.6 CFM (0.633m³/min) | 0.893 in H2O (222.4 Pa) | Ball | Blower | Locked Rotor Sensor | 52.5dB(A) | 6.6 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.366 lb (166.01 g) |
|
AFB0612EHE-AFAN AXIAL 60X38MM 12VDC WIRE |
1,287 | 14.18 |
|
Datasheet |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 61.7 CFM (1.73m³/min) | 1.496 in H2O (372.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 60.0dB(A) | 13.44 W | 11000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.258 lb (117.03 g) |
|
|
AFB0612SHE-AFAN AXIAL 60X38MM 12VDC WIRE |
2,774 | 14.18 |
|
Datasheet |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 55.3 CFM (1.55m³/min) | 1.217 in H2O (303.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.0dB(A) | 10.56 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.258 lb (117.03 g) |
|
ME60151V1-000U-A99FAN AXIAL 60X15MM 12VDC WIRE |
1,008 | 10.49 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 25.2 CFM (0.706m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 36.2dB(A) | 1.92 W | 5400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.067 lb (30.39 g) |
|
MB60152V1-000U-A99FAN AXIAL 60X15MM 24VDC WIRE |
3,717 | 0.00 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 36.0dB(A) | 1.68 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.094 lb (42.64 g) |
|

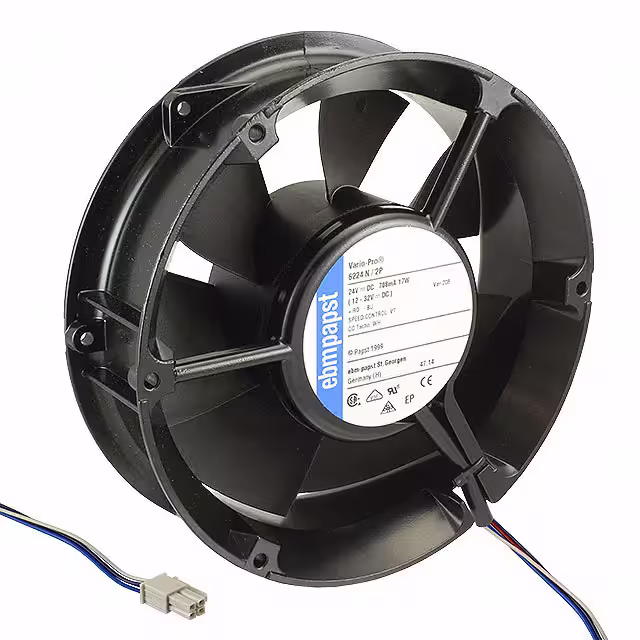

6224N/2P-208FAN AXL 171.5X50.8MM 24VDC RECT |
2,565 | 0.00 |
|
Datasheet |
6200N | Bulk | Obsolete | 24VDC | Round - 171.5mm Dia | 50.80mm | 194.5 CFM (5.45m³/min) | 0.554 in H2O (138.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 11.3 W | 2850 RPM | 4 Position Rectangular Connector | - | -4 ~ 162°F (-20 ~ 72°C) | CE, CSA, UL, VDE | 1.7 lbs (771.1 g) |
|
|
EF40201B2-000U-A99FAN AXIAL 40X20MM 12VDC WIRE |
4,673 | 8.46 |
|
Datasheet |
EF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 22.0dB(A) | 460 mW | 5400 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.072 lb (32.66 g) |
|
|
EF40201B3-000U-A99FAN AXIAL 40X20MM 12VDC WIRE |
2,672 | 8.46 |
|
Datasheet |
EF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 19.0dB(A) | 410 mW | 5000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.072 lb (32.66 g) |
|
MB50151V3-000U-A99FAN AXIAL 50X15MM 12VDC WIRE |
2,341 | 0.00 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 10.2 CFM (0.286m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 22.0dB(A) | 420 mW | 3700 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.085 lb (38.56 g) |
|
|
MB60151V1-000U-A99FAN AXIAL 60X15MM 12VDC WIRE |
2,689 | 0.00 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 36.0dB(A) | 1.56 W | 4300 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.094 lb (42.64 g) |
|
|
MB60151V2-000U-A99FAN AXIAL 60X15MM 12VDC WIRE |
1,424 | 0.00 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 31.0dB(A) | 1 W | 3800 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.094 lb (42.64 g) |
|
|

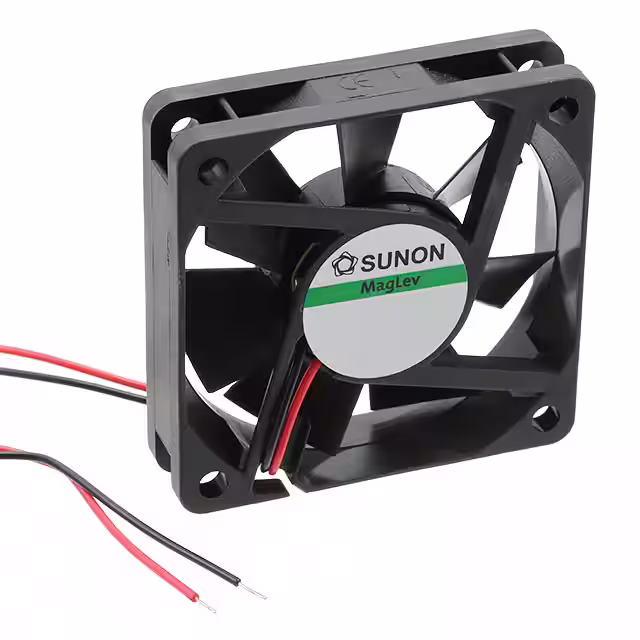

MB60152V2-000U-A99FAN AXIAL 60X15MM 24VDC WIRE |
2,052 | 0.00 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 31.0dB(A) | 1.08 W | 3800 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.094 lb (42.64 g) |
|
|
PF38281B3-000U-G99FAN AXIAL 38X28MM 12VDC WIRE |
4,989 | 11.36 |
|
Datasheet |
PF | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 14.9 CFM (0.417m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.3dB(A) | 2.33 W | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.089 lb (40.37 g) |
|
|
GB1206PTV2-AY.13.Z.X.GNFAN BLOWER 60X25MM 12VDC WIRE |
1,789 | 0.00 |
|
Datasheet |
MagLev® GB | Bulk | Obsolete | 12VDC | Square/Rounded - 60mm L x 60mm H | 25.00mm | 7.3 CFM (0.204m³/min) | 0.580 in H2O (144.5 Pa) | Vapo-Bearing™ | Blower | - | 32.4dB(A) | 1.7 W | 3600 RPM | 2 Wire Leads | - | - | - | - |
