DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF38281B1-000U-H99FAN AXIAL 38X28MM 12VDC WIRE |
2,931 | 14.46 |
|
Datasheet |
PF | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 18.1 CFM (0.507m³/min) | 1.420 in H2O (353.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 51.8dB(A) | 3.78 W | 16000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.091 lb (41.28 g) |
|
PF40281B1-000U-Q99FAN AXIAL 40X28MM 12VDC WIRE |
1,422 | 14.71 |
|
Datasheet |
PF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.9 CFM (0.697m³/min) | 1.950 in H2O (485.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 56.0dB(A) | 6.12 W | 17600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.093 lb (42.18 g) |
|
|
PF40281B1-000U-F99FAN AXIAL 40X28MM 12VDC WIRE |
1,318 | 14.31 |
|
Datasheet |
PF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.9 CFM (0.697m³/min) | 1.950 in H2O (485.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 56.0dB(A) | 6.12 W | 17600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.093 lb (42.18 g) |
|
|
PF40281B1-000U-H99FAN AXIAL 40X28MM 12VDC WIRE |
1,325 | 14.31 |
|
Datasheet |
PF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.9 CFM (0.697m³/min) | 1.950 in H2O (485.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 56.0dB(A) | 6.12 W | 17600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.093 lb (42.18 g) |
|
BFB1112HDC BLOWER CENTRIFUGAL |
1,673 | 14.38 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

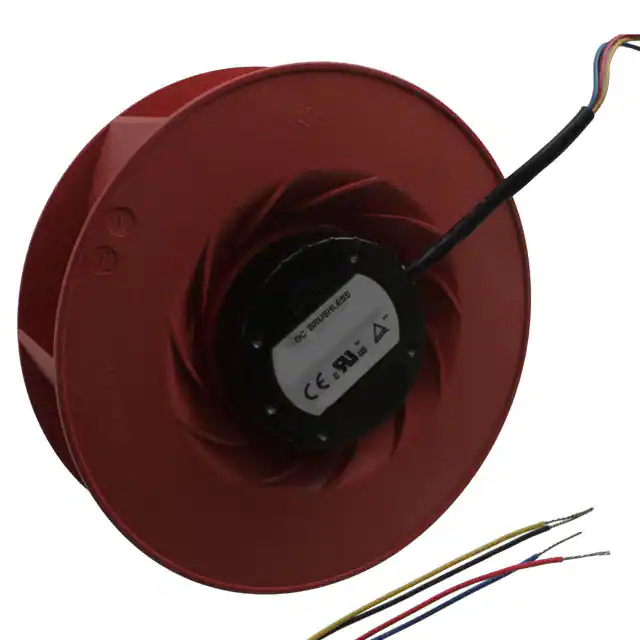

TCA1748ATXHDFAN IMP MTRZD 175X69MM 48VDC |
3,387 | 115.05 |
|
Datasheet |
TCA | Box | Obsolete | 48VDC | Round - 175mm Dia | 69.00mm | 428.0 CFM (11.98m³/min) | 1.957 in H2O (487.5 Pa) | Ball | Motorized Impellers | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.8dB(A) | 76.8 W | 4000 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | CE, cURus, TUV | 1.5 lbs (670.0 g) |
|
MB40201V3-000U-A99FAN 12VDC 40X40X20MM |
2,919 | 0.00 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

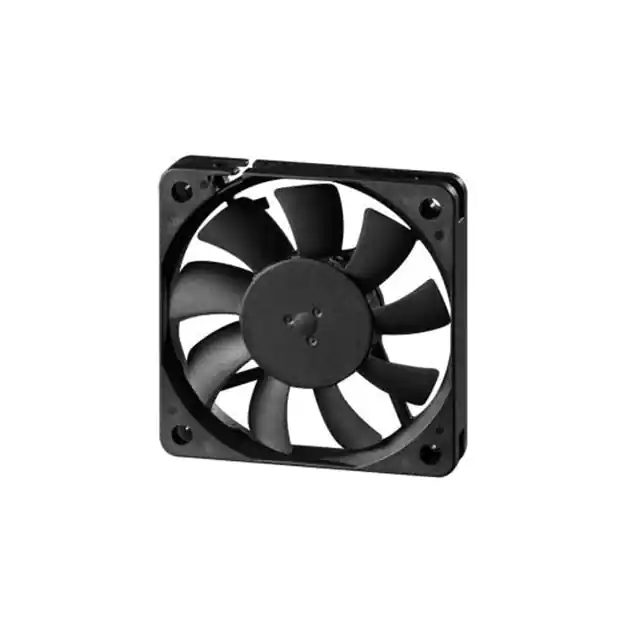

MB60101V3-000U-A99FAN AXIAL 60X10MM 12VDC WIRE |
3,434 | 0.00 |
|
- |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 11.7 CFM (0.328m³/min) | 0.080 in H2O (20.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.5dB(A) | 650 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.064 lb (29.03 g) |
|
|
ME60151V2-000U-A99FAN 12VDC 60X60X15MM |
3,414 | 0.00 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ME60151V3-000U-A99FAN 12VDC 60X60X15MM |
1,770 | 0.00 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MB60251VX-000U-A99FAN 12VDC 60X60X25MM |
1,608 | 0.00 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MB60251V3-000U-A99FAN 12VDC 60X60X25MM |
1,728 | 0.00 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MB60252VX-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
2,819 | 0.00 |
|
- |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 36.5dB(A) | 2.64 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | - |
|
|
MB60252V2-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
3,912 | 0.00 |
|
- |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.0dB(A) | 1.16 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | - |
|
MB60252V3-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
2,101 | 0.00 |
|
- |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 770 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | - |
|
|
ME80251VX-000U-A99FAN 12VDC 80X80X25MM |
1,770 | 0.00 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA80251V4-000U-A99FAN 12VDC 80X80X25MM |
1,547 | 0.00 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ME92251V2-000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
1,428 | 0.00 |
|
- |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.0dB(A) | 1.6 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
HA92251V4-000U-A99FAN 12VDC 92X92X25MM |
1,499 | 0.00 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ME92252VX-000U-A99FAN AXIAL 92X25MM 24VDC WIRE |
2,212 | 0.00 |
|
- |
MagLev® ME | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 55.0 CFM (1.54m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 37.5dB(A) | 2.4 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | - |
