DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD9225-48HBXEFAN AXIAL 92X25.5MM 48VDC WIRE |
357 | 17.08 |
|
Datasheet |
OD9225 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.50mm | 94.0 CFM (2.63m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | Auto Restart | 53.0dB(A) | 8.1 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
MR9238E48B1+6-FSRFAN AXIAL 92X38MM 48VDC WIRE |
147 | 23.34 |
|
Datasheet |
MR9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 63.3dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
11925SA-12Q-ELD-0FAN AXIAL 119X25MM 12VDC WIRE |
469 | 0.00 |
|
Datasheet |
11925SA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 113.0 CFM (3.16m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 44.0dB | 5.64 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11925SA-24Q-ELD-0FAN AXIAL 119X25MM 24VDC WIRE |
479 | 0.00 |
|
Datasheet |
11925SA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 113.0 CFM (3.16m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 44.0dB | 4.8 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
DC0603812M2B-2T0FAN AXIAL 60X38MM 12VDC WIRE |
195 | 23.64 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 67.1 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.0dB(A) | 16.56 W | 12000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
PF38281B1-1000U-G9HFAN AXIAL 38X28MM 12VDC WIRE |
286 | 0.00 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 18.1 CFM (0.507m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.8dB(A) | 3.78 W | 16000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|

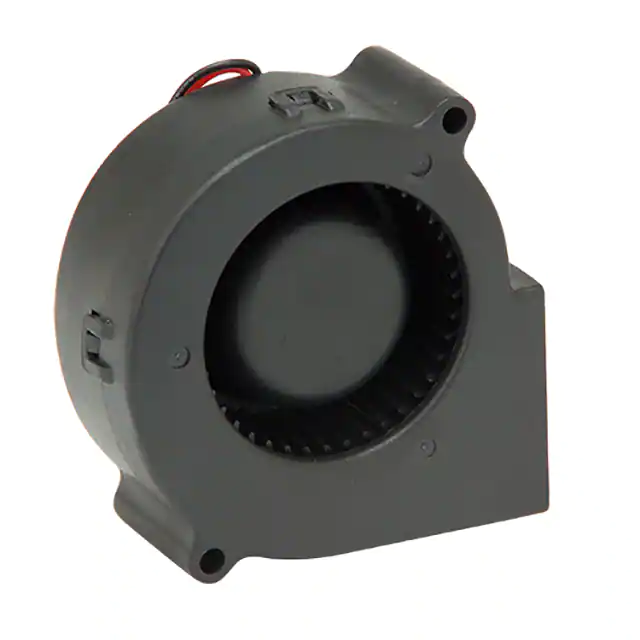

ODB7530-12HB02AFAN BLOWER 75X30MM 12VDC WIRE |
116 | 28.28 |
|
Datasheet |
ODB7530 | Box | Active | 12VDC | Square/Rounded - 75mm L x 75mm H | 30.00mm | 13.8 CFM (0.386m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Blower | Locked Rotor Sensor | 41.7dB | 4.32 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus | - |
|
|
PMD2407PTV1-A.GNFAN AXIAL 70X25MM 24VDC WIRE |
991 | 10.72 |
|
Datasheet |
MagLev® PMD | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.00mm | 49.0 CFM (1.37m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 44.0dB(A) | 4.8 W | 5100 RPM | 2 Wire Leads | - | - | - | 0.199 lb (90.26 g) |
|

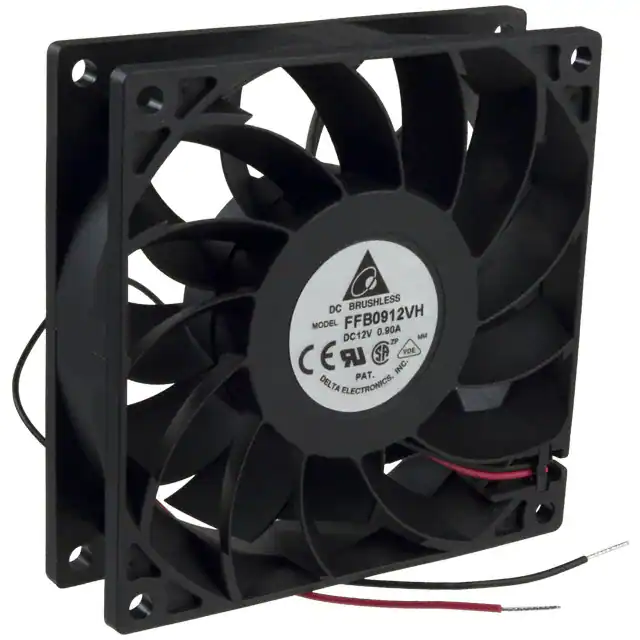

FFB0912VHFAN AXIAL 92X25.4MM 12VDC WIRE |
1,814 | 18.13 |
|
Datasheet |
FFB | Tray | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 82.0 CFM (2.30m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.2dB(A) | 7.2 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.286 lb (129.73 g) |
|

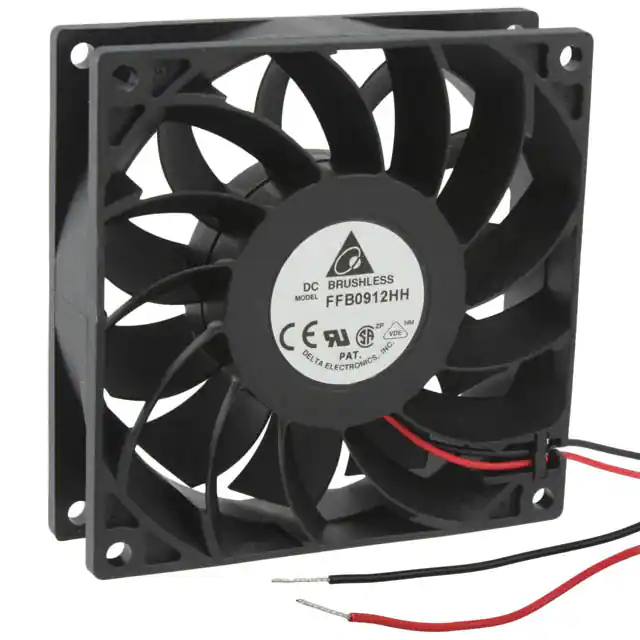

FFB0912HHFAN AXIAL 92X25.4MM 12VDC WIRE |
205 | 18.13 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 70.2 CFM (1.97m³/min) | 0.242 in H2O (60.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.1dB(A) | 4.8 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.286 lb (129.73 g) |
|
MR9225E24B1+6-FSRFAN AXIAL 92X25MM 24VDC WIRE |
313 | 17.56 |
|
Datasheet |
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 99.0 CFM (2.77m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.8dB(A) | - | 4400 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|
OD8032-12HBIP68FAN AXIAL 80X32MM 12VDC WIRE |
375 | 24.07 |
|
Datasheet |
OD8032 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Auto Restart | 50.0dB | 7.8 W | 6000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.261 lb (118.39 g) |
|
|
OD9238-12LBVXC10AFAN AXIAL 92.5X38MM 12VDC WIRE |
994 | 0.00 |
|
Datasheet |
OD9238 VA | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 38.00mm | 108.0 CFM (3.02m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 52.0dB | 9 W | 4400 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|

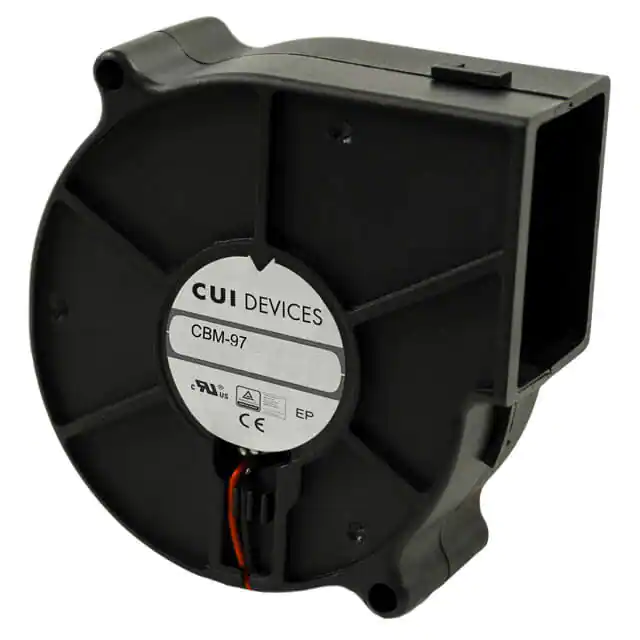

CBM-979533B-154FAN BLOWER 97X33MM 12VDC WIRE |
608 | 24.14 |
|
Datasheet |
CBM-97B | Tray | Active | 12VDC | Rectangular/Rounded - 97mm L x 95mm H | 33.00mm | 44.2 CFM (1.24m³/min) | 3.390 in H2O (844.4 Pa) | Ball | Blower | Auto Restart | 62.8dB(A) | 22.08 W | 5400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.406 lb (184.16 g) |
|
OD9238-12HBVXCFAN AXIAL 92.5X38MM 12VDC WIRE |
186 | 22.89 |
|
Datasheet |
OD9238 VA | Box | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 38.00mm | 135.0 CFM (3.78m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | Auto Restart | 58.0dB | 16 W | 5400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|

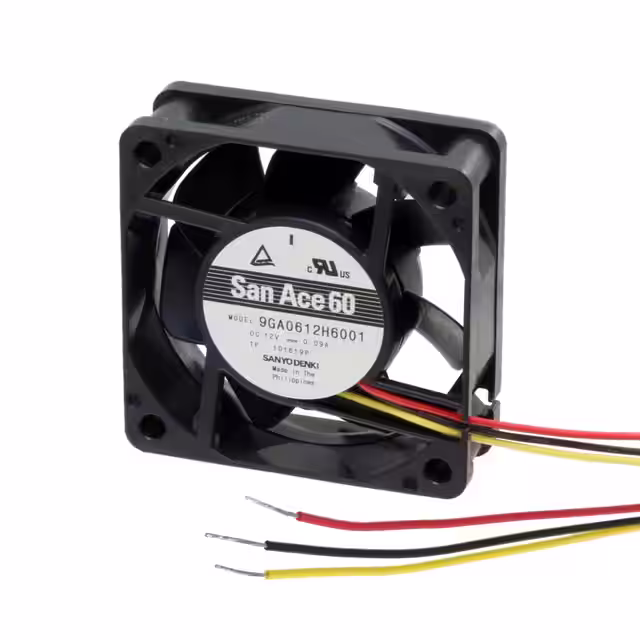

9GA0612H6001FAN AXIAL 60X20MM 12VDC WIRE |
338 | 16.82 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 1.08 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.154 lb (69.85 g) |
|
OD2510-05LBFAN AXIAL 25X10MM BALL 5VDC WIRE |
265 | 17.74 |
|
Datasheet |
OD2510 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart | - | 500 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.022 lb (9.98 g) |
|
9RA0612H4001FAN AXIAL 60X25MM 12VDC WIRE |
144 | 17.22 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.1 CFM (0.535m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 840 mW | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0624S40011FAN AXIAL 60X25MM 24VDC WIRE |
107 | 17.22 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.44 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
FFB03812VHN-9C3PFAN AXIAL 38X28MM 12VDC WIRE |
555 | 17.81 |
|
Datasheet |
FFB | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.2 CFM (0.566m³/min) | 1.463 in H2O (364.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 6.6 W | 16000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
