DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17002019ACR6025-MD48BPL |
500 | 0.00 |
|
Datasheet |
- | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 22.4 CFM (0.627m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 48.0dB(A) | 2.16 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002023ACR8025-LD12BPL |
500 | 0.00 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.8 CFM (0.918m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 44.0dB(A) | 0.96 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002020ACR6025-HD48BPL |
500 | 0.00 |
|
Datasheet |
- | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 24.8 CFM (0.694m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.0dB(A) | 2.88 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002009ACR6025-MD12BPL |
500 | 0.00 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 22.4 CFM (0.627m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 48.0dB(A) | 1.2 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002013ACR6025-LD24BPL |
500 | 0.00 |
|
Datasheet |
- | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.9 CFM (0.557m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 46.0dB(A) | 1.68 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002012ACR6025-UXD12BPL |
499 | 0.00 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 29.8 CFM (0.834m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 54.0dB(A) | 2.64 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002029ACR8025-HD24BPL |
499 | 0.00 |
|
Datasheet |
- | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.9 CFM (1.22m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 48.0dB(A) | 3.84 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002030ACR8025-XD24BPL |
494 | 0.00 |
|
Datasheet |
- | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 65.6 CFM (1.84m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 56.0dB(A) | 6.72 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002026ACR8025-XD12BPL |
492 | 0.00 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 65.6 CFM (1.84m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 56.0dB(A) | 6 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002021ACR6025-XD48BPL |
490 | 0.00 |
|
Datasheet |
- | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 27.3 CFM (0.764m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 52.0dB(A) | 3.36 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
11938KA-24L-EL-00FAN AXIAL 119X38.4MM 24VDC WIRE |
309 | 0.00 |
|
Datasheet |
11938KA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 108.4 CFM (3.03m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 42.5dB | 7.4 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9RA0824G4002FAN |
152 | 0.00 |
|
Datasheet |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
OD1225-24HBVXEDC FAN - 24V 120 X 120 X 25MM - |
275 | 0.00 |
|
Datasheet |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 158.7 CFM (4.49m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart | 57.3dB(A) | 20.4 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, UR | - |
|
|
OD1225-12HBVXEDC FAN - 12V 120 X 120 X 25MM - |
181 | 0.00 |
|
Datasheet |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 158.7 CFM (4.49m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart | 57.3dB(A) | 16.8 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, UR | - |
|

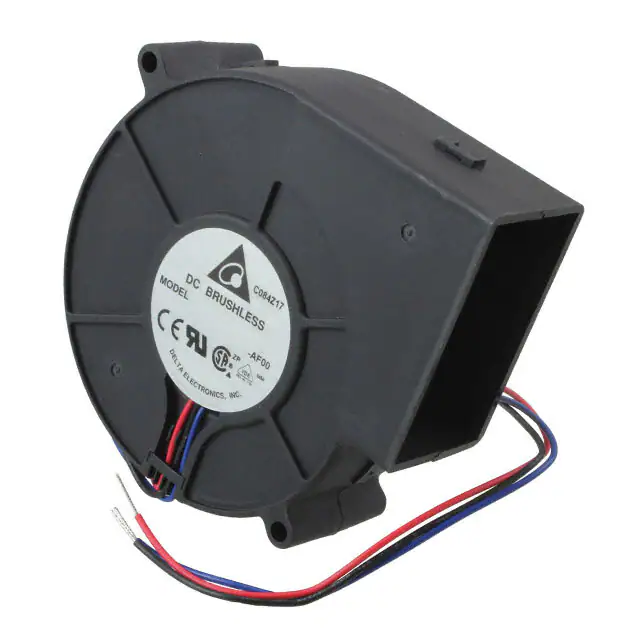

BFB0712M-AF00FAN BLOWER 75.7X25MM 12VDC WIRE |
156 | 12.70 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 11.3 CFM (0.316m³/min) | 0.478 in H2O (119.1 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 1.92 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|
|
DC1202548V2B-BT0FAN 120X25MM 48VDC PWM/TACH |
526 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 121.0 CFM (3.39m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 31.2 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
9GA0824M6002FAN AXIAL 80X20MM 24VDC WIRE |
128 | 16.33 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 29.7 CFM (0.832m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.5dB(A) | 720 mW | 2900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.177 lb (80.29 g) |
|

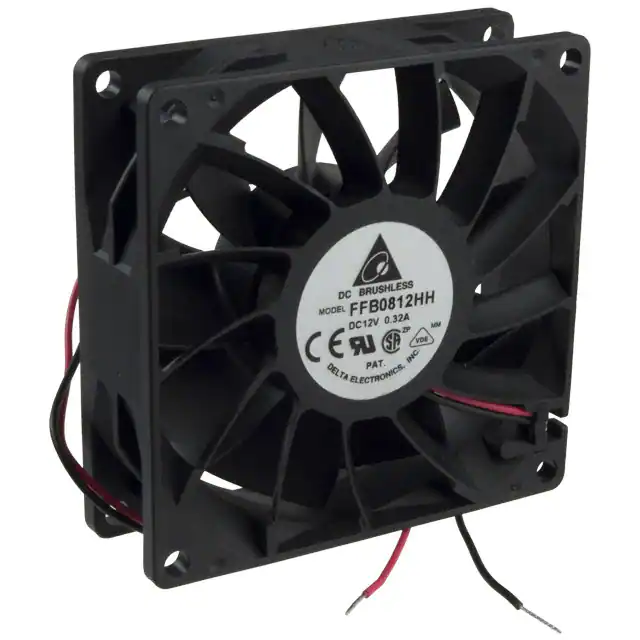

FFB0812HHFAN AXIAL 80X25.4MM 12VDC WIRE |
134 | 16.25 |
|
Datasheet |
FFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 47.2 CFM (1.32m³/min) | 0.229 in H2O (57.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.7dB(A) | 3.12 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.253 lb (114.76 g) |
|
|
PF75301B1-1B00U-A99Thermal Products |
2,719 | 0.00 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Rectangular/Rounded - 75.7mm L x 75.6mm H | 30.00mm | 15.5 CFM (0.434m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Blower | Auto Restart | 42.0dB(A) | 2.4 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
DC1203812L2B-BT0FAN AXIAL 120X38MM 12VDC WIRE |
146 | 14.06 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.0dB(A) | 4.8 W | 2600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.508 lb (230.42 g) |
