DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CFM-8025BG68-140-383-20DC AXIAL FAN, 80 MM SQUARE, 25 M |
105 | 0.00 |
|
Datasheet |
CFM-80BG68 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 42.3 CFM (1.18m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.3dB(A) | 2.04 W | 4000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025BG68-240-383-20DC AXIAL FAN, 80 MM SQUARE, 25 M |
103 | 0.00 |
|
Datasheet |
CFM-80BG68 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 42.3 CFM (1.18m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.3dB(A) | 2.88 W | 4000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

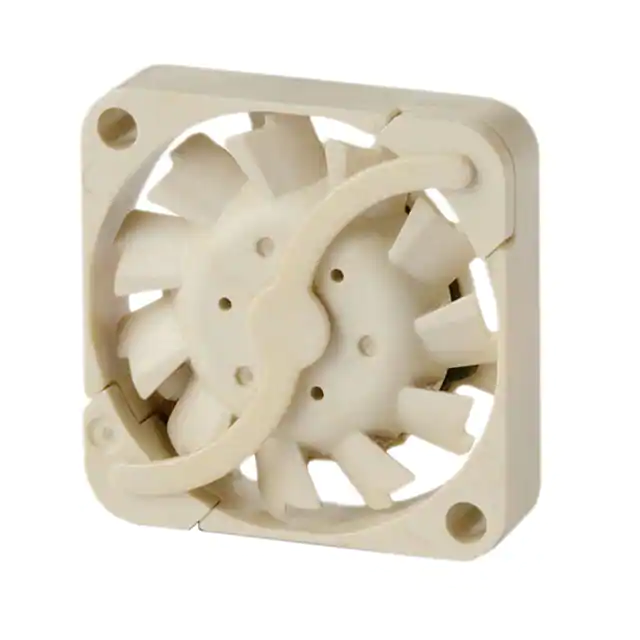

UF3F3-700BFAN AXIAL 15X3MM VAPO 3VDC WIRE |
461 | 22.28 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.309 CFM (0.009m³/min) | 0.082 in H2O (20.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.0dB(A) | 100 mW | 14500 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
|
CFM-8025BG68-160-487DC AXIAL FAN, 80 MM SQUARE, 25 M |
113 | 0.00 |
|
Datasheet |
CFM-80BG68 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 63.6 CFM (1.78m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart | 48.7dB(A) | 5.52 W | 6000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
QFR0824SHP0AXIAL 80X25 24V PWM |
135 | 0.00 |
|
Datasheet |
QFR | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 52.4 CFM (1.47m³/min) | 0.324 in H2O (80.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.2dB(A) | 3.6 W | 4300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
QFR0824HHP0AXIAL 80X25 24V PWM |
134 | 0.00 |
|
Datasheet |
QFR | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 39.6 CFM (1.11m³/min) | 0.206 in H2O (51.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.4dB(A) | 2.4 W | 3300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
QFR0824UHP0AXIAL 80X25 24V PWM |
114 | 0.00 |
|
Datasheet |
QFR | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 65.6 CFM (1.84m³/min) | 0.488 in H2O (121.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 5.52 W | 5400 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC1203848W2B-BT0FAN 120X38MM 48VDC PWM/TACH |
461 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 74.4 W | 4200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803848M2B-2T0FAN 80X38MM 48VDC |
554 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 71.8 CFM (2.01m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 36.48 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

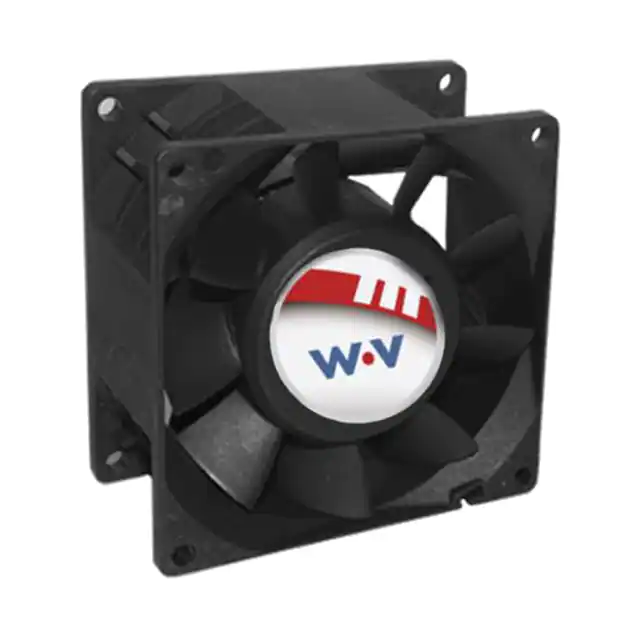

DC0803812V2B-BT0FAN AXIAL 80X38MM 12VDC WIRE |
497 | 15.63 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 32.4 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.463 lb (210.01 g) |
|
|
GF60252B3-1000U-ADPFAN 60X25MM 24VDC GR487 |
270 | 0.00 |
|
Datasheet |
GF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 26.9 CFM (0.753m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB(A) | 2.76 W | 6450 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
GF60252B2-1000U-ADPFAN 60X25MM 24VDC GR487 |
270 | 0.00 |
|
Datasheet |
GF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 36.5 CFM (1.02m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Auto Restart | 47.2dB(A) | 5 W | 9000 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
DC0923848V2B-BT0FAN 92X38MM 48VDC PWM/TACH |
556 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 141.6 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
PF92381B1-1000U-A9HFAN 60X38MM 12VDC |
200 | 0.00 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 138.1 CFM (3.87m³/min) | 1.950 in H2O (485.7 Pa) | Ball | Tubeaxial | Auto Restart | 62.9dB(A) | 22.2 W | 9300 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|

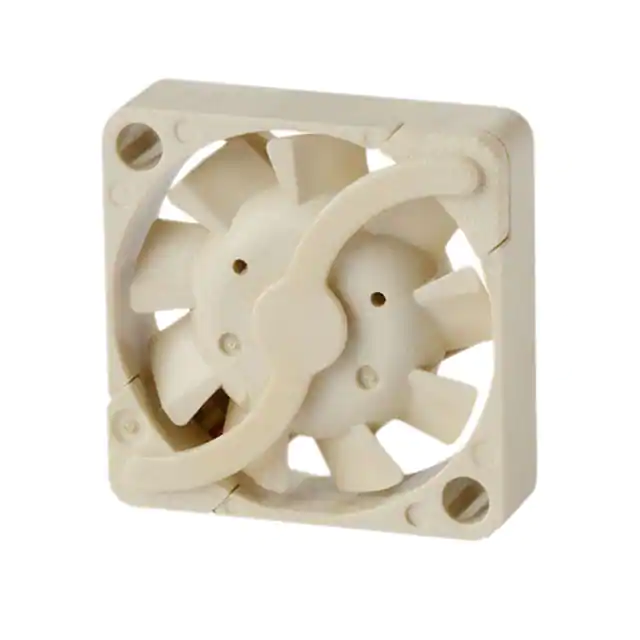

UF3C3-700BFAN AXIAL 12X3MM VAPO 3VDC WIRE |
374 | 13.54 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.218 CFM (0.006m³/min) | 0.076 in H2O (18.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.3dB(A) | 300 mW | 16500 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
|
AFB1212HJ-00AXIAL 120X25 12VDC PWM |
103 | 0.00 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 120.2 CFM (3.37m³/min) | 0.476 in H2O (118.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 8.4 W | 4300 RPM | 4 Wire Leads | - | 32 ~ 158°F (0 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
FFB0812VH-T500FAN AXIAL 80X25.4MM 12VDC WIRE |
103 | 16.69 |
|
Datasheet |
FFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 54.6 CFM (1.53m³/min) | 0.291 in H2O (72.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.4dB(A) | 4.08 W | 4000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.254 lb (115.21 g) |
|
|
DC0603848M2B-BT0FAN 60X38MM 48VDC PWM/TACH |
596 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 67.0 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 66.24 W | 12000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923848M2B-2T0FAN 92X38MM 48VDC |
558 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 43.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
DC0923812V2B-BT0FAN AXIAL 92X38MM 12VDC WIRE |
554 | 18.34 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 35.4 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.441 lb (200.00 g) |
