DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FD8025B24W3-68-2NUDC FAN 80X80X25MM 24V |
2,014 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 18.8 CFM (0.526m³/min) | 0.036 in H2O (8.9 Pa) | Ball | Tubeaxial | - | 15.1dB(A) | 0.96 W | 1500 RPM | 2 Wire Leads | IP21 | 14 ~ 149°F (-10 ~ 65°C) | cURus, TUV | - |
|
|
FD8025B12W3-68-2NUDC FAN 80X80X25MM 12V |
586 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 18.8 CFM (0.526m³/min) | 0.036 in H2O (8.9 Pa) | Ball | Tubeaxial | - | 15.1dB(A) | 0.96 W | 1500 RPM | 2 Wire Leads | IP21 | 14 ~ 149°F (-10 ~ 65°C) | cURus, TUV | - |
|
3610VL-04W-B79-B50FAN AXIAL 92X25MM 12VDC WIRE |
2,469 | 17.76 |
|
Datasheet |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 8.64 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
|
BW09733012BS-EAE-597X33MM 12V BALL, 3700RPM W/TACH |
180 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

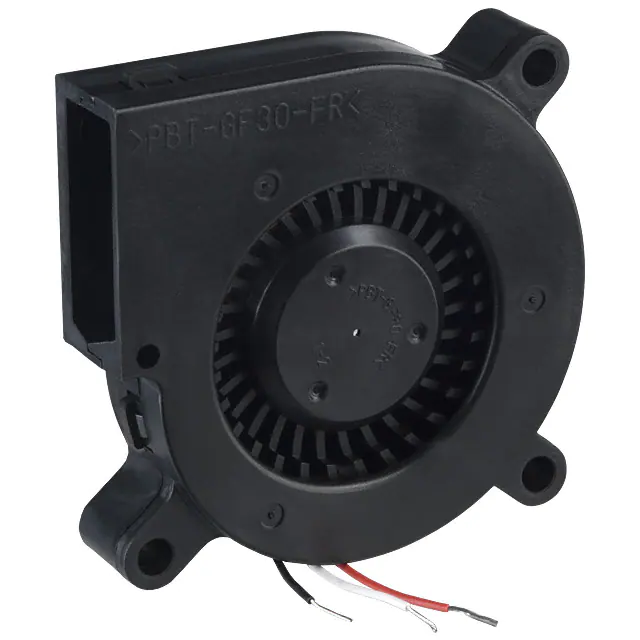

BM6015-04W-B59-L00FAN BLOWER 51X15MM 12VDC WIRE |
411 | 12.20 |
|
Datasheet |
BM | Bulk | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 4.2 CFM (0.118m³/min) | 0.678 in H2O (168.9 Pa) | Ball | Blower | Locked Rotor Sensor | 42.0dB | 2.64 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA | 0.066 lb (29.94 g) |
|

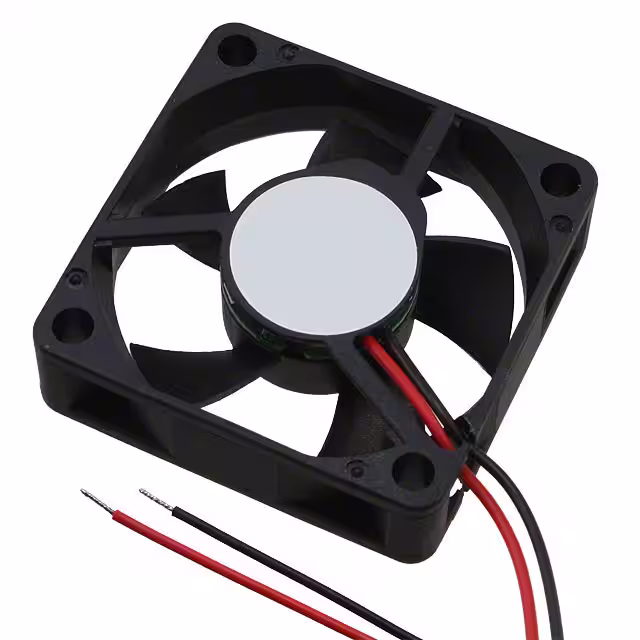

AFB03505LA-AFAN AXIAL 35X10MM BALL 5VDC WIRE |
552 | 12.20 |
|
Datasheet |
AFB | Bulk | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 3.4 CFM (0.095m³/min) | 0.048 in H2O (11.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 15.0dB(A) | 300 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.024 lb (10.89 g) |
|
1608VL-05W-B69-B00FAN AXIAL 40.1X20MM 24VDC WIRE |
943 | 12.99 |
|
Datasheet |
04020VA | Box | Obsolete | 24VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 11.3 CFM (0.316m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.6dB(A) | 2.4 W | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|

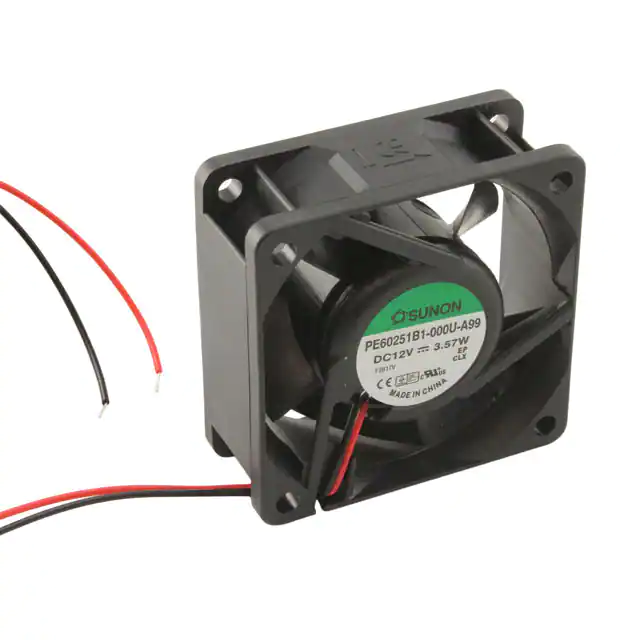

PE60251B1-000U-A99FAN AXIAL 60X25MM 12VDC WIRE |
2,205 | 13.45 |
|
Datasheet |
PE | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | 3.57 W | 6900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.157 lb (71.21 g) |
|
PE60252B1-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
1,187 | 13.45 |
|
Datasheet |
PE | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | 3.72 W | 6900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.167 lb (75.75 g) |
|
RDH4028B5FAN AXIAL 40X28MM BALL 5VDC WIRE |
595 | 12.38 |
|
Datasheet |
hiFLOW | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 28.00mm | 9.4 CFM (0.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Polarity Protection | 32.0dB(A) | 1.75 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
4710KL-04W-B59-E00FAN AXIAL 119X25.5MM 12VDC WIRE |
1,730 | 18.31 |
|
Datasheet |
4710KL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.50mm | 114.7 CFM (3.21m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.5dB | 6.6 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-05W-B59-E00FAN AXIAL 119X25.5MM 24VDC WIRE |
155 | 18.31 |
|
Datasheet |
4710KL | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 114.7 CFM (3.21m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.5dB | 6.96 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
04028DA-12N-AAF-0FAN AXIAL 40X28MM 12VDC WIRE |
138 | 0.00 |
|
- |
04028DA | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
1608VL-05W-B49-B00FAN AXIAL 40.1X20MM 24VDC WIRE |
3,090 | 9.30 |
|
Datasheet |
04020VA | Box | Obsolete | 24VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB(A) | 1.2 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|

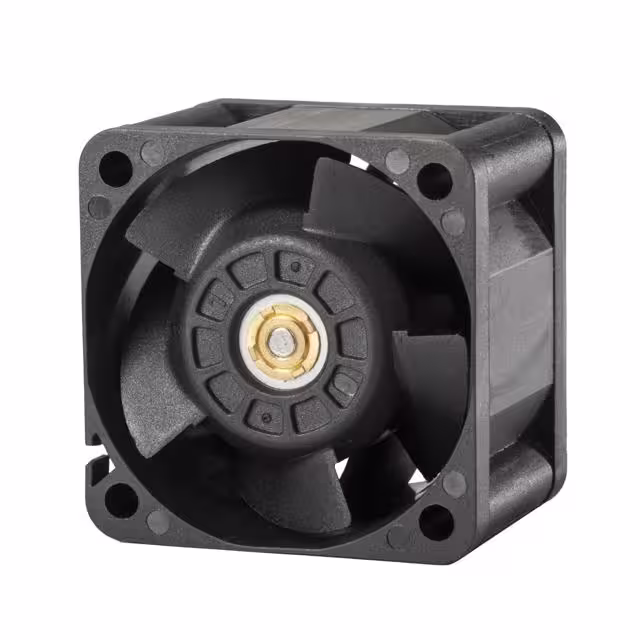

RDH4028B2-2FAN AXIAL 40X28MM 24VDC WIRE |
974 | 12.50 |
|
Datasheet |
hiFLOW | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 8.1 CFM (0.31m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Polarity Protection | 33.0dB(A) | 3.84 W | 8800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
04028DA-12M-AAF-0FAN AXIAL 40X28MM 12VDC WIRE |
199 | 0.00 |
|
- |
04028DA | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
109P0524A702FAN AXIAL 52X15MM 24VDC WIRE |
290 | 12.01 |
|
Datasheet |
San Ace 52 | Box | Obsolete | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 13.2 CFM (0.370m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 2.64 W | 6800 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
BFB0305MA-AFAN BLOWER 30X10MM 5VDC WIRE |
1,611 | 12.92 |
|
Datasheet |
BFB | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.206 in H2O (51.3 Pa) | Ball | Blower | Locked Rotor Protection | 26.0dB(A) | 400 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.023 lb (10.43 g) |
|
|
XYW08038024BL-680X38MM 24V BALL 3400RPM W/AR, 2 |
198 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

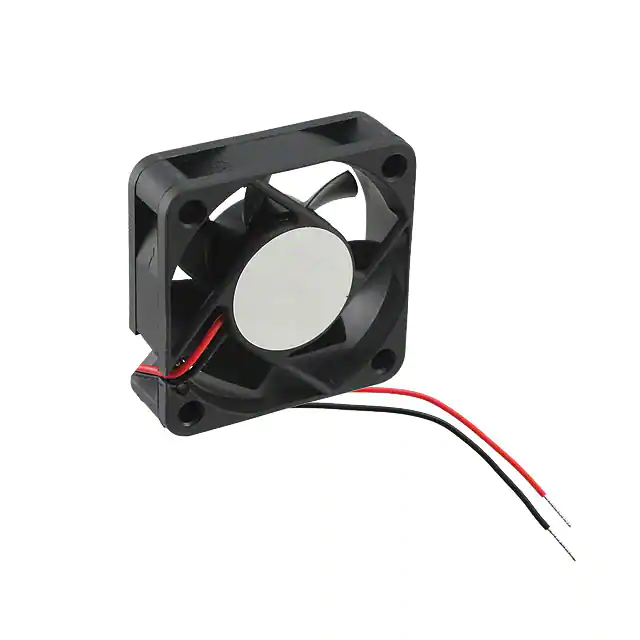

AFB0512HBFAN AXIAL 50X15MM 12VDC WIRE |
1,276 | 13.28 |
|
Datasheet |
AFB | Tray | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.2 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
