DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CBM-4007C-165-295DC BLOWER, 40 MM SQUARE, 7 MM, 1 |
4,269 | 0.00 |
|
Datasheet |
CBM-40C | Box | Active | 12VDC | Square/Rounded - 40mm L x 40mm H | 7.00mm | 1.9 CFM (0.053m³/min) | 0.710 in H2O (176.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 29.5dB(A) | 1.68 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MF80251V1-1000U-F99FAN AXIAL 80X25MM 12VDC WIRE |
3,121 | 5.28 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB(A) | 1.44 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.167 lb (75.75 g) |
|
|
CBM-3507CF-065-219-20DC BLOWER, 35 MM SQUARE, 10 MM, |
4,957 | 0.00 |
|
Datasheet |
CBM-35CF | Box | Active | 5VDC | Square/Rounded - 35mm L x 35mm H | 7.00mm | 0.830 CFM (0.023m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 21.9dB(A) | 1 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6025V-131-167FAN AXIAL 60X25MM 12VDC WIRE |
1,413 | 8.13 |
|
Datasheet |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 16.7dB(A) | 640 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
4555HQ/MG75090V1-1C090-S9AFAN BLOWER 80X11MM 5VDC RECT |
3,655 | 8.28 |
|
Datasheet |
MagLev® MG | Box | Active | 5VDC | Square/Rounded - 80mm L x 80mm H | 11.00mm | 9.9 CFM (0.277m³/min) | 0.670 in H2O (166.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.7dB(A) | 2 W | 3400 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.128 lb (58.06 g) |
|
|
4553HQ/EG75070S1-C394-G99FAN BLOWER 78.36X9.5MM 5VDC RECT |
1,701 | 8.28 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 78.36mm L x 73.2mm H | 9.50mm | 8.5 CFM (0.238m³/min) | 0.710 in H2O (176.9 Pa) | Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 40.3dB(A) | 1.8 W | 3700 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.104 lb (47.17 g) |
|
CFM-A225C-120-350FAN AXIAL 120X25.4MM 12VDC WIRE |
3,905 | 8.78 |
|
Datasheet |
CFM-120C | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 37.8dB(A) | 2.76 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD9225-12HSSFAN AXIAL 92.5X25MM 12VDC WIRE |
4,190 | 7.26 |
|
Datasheet |
OD9225 | Box | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 52.0 CFM (1.46m³/min) | 0.130 in H2O (32.4 Pa) | Sealed Sleeve | Tubeaxial | - | 35.0dB | 2.9 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|

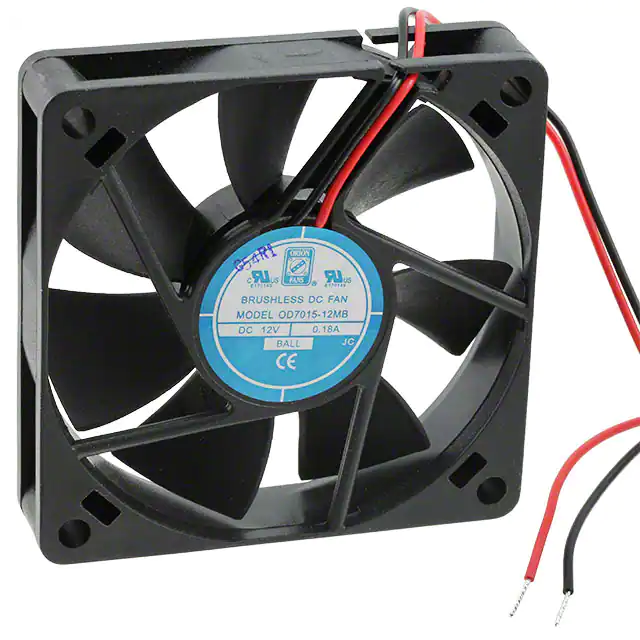

OD7015-12MBFAN AXIAL 70X15.5MM 12VDC WIRE |
2,723 | 12.73 |
|
Datasheet |
OD7015 | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.50mm | 28.5 CFM (0.798m³/min) | - | Ball | Tubeaxial | - | 37.0dB | 2.16 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.134 lb (60.78 g) |
|
|
08025SA-24K-EA-D0FAN AXIAL 80X25MM 24VDC WIRE |
1,562 | 8.82 |
|
Datasheet |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.066 in H2O (16.6 Pa) | Ball | Tubeaxial | Auto Restart | 19.0dB | 720 mW | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-6025V-152-312-20FAN AXIAL 60X25MM 12VDC WIRE |
3,097 | 8.92 |
|
Datasheet |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.310 in H2O (77.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.2dB(A) | 1.8 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
CFM-4020BF-295-342-20FAN AXIAL 40X20MM 24VDC WIRE |
2,803 | 8.98 |
|
Datasheet |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.2dB(A) | 2.88 W | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
08025SA-24N-EL-D0FAN AXIAL 80X25MM 24VDC WIRE |
3,479 | 9.51 |
|
Datasheet |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 30.0dB | 1.92 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
06025SA-12T-AU-D360MM X 60MM X 25MM, 12VDC, W 4-W |
1,862 | 10.15 |
|
Datasheet |
06025SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.0dB | 7.92 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CBM-5015BF-055-391-20DC BLOWER, 51.7 X 51.25 X 14.9 M |
2,590 | 0.00 |
|
Datasheet |
CBM-50BF | Box | Active | 5VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 39.2dB(A) | 1.5 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9225B-130-356-20FAN AXIAL 92.2X32MM 12VDC WIRE |
1,397 | 10.26 |
|
Datasheet |
CFM-92B | Box | Active | 12VDC | Square - 92.0mm L x 92.0mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.6dB(A) | 3.6 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MR4020H12B-RSRFAN AXIAL 40X20MM 12VDC WIRE |
2,680 | 10.35 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 13.6 CFM (0.381m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart | 35.1dB(A) | - | 9500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
F6025H12B-RHRFAN AXIAL 60X25MM 12VDC WIRE |
1,598 | 10.44 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 4200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
F8025H24B-FSR-L17FAN AXIAL 80X25MM 24VDC WIRE |
4,680 | 10.63 |
|
Datasheet |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 29.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
|
F8025E05B-FHRFAN AXIAL 80X25MM BALL 5VDC WIRE |
1,978 | 10.83 |
|
Datasheet |
F8025-H | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
