DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F8025H12B-FSRFAN AXIAL 80X25MM 12VDC WIRE |
4,716 | 10.63 |
|
Datasheet |
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 29.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
06015KA-24J-AA-00FAN AXIAL 60X15MM 24VDC WIRE |
1,556 | 11.23 |
|
Datasheet |
06015KA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 11.7 CFM (0.328m³/min) | 0.034 in H2O (8.5 Pa) | Ball | Tubeaxial | Auto Restart | 19.0dB | 960 mW | 1800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
CFM-6010B-150-326-22DC AXIAL FAN, 60 MM SQUARE, 10 M |
4,197 | 0.00 |
|
Datasheet |
CFM-60B | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 18.1 CFM (0.507m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 33.8dB(A) | 2.76 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
G6015H12B-RHRFAN AXIAL 60X15MM 12VDC WIRE |
2,221 | 8.91 |
|
Datasheet |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | - | 4600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
G6015L12B-RHRFAN AXIAL 60X15MM 12VDC WIRE |
4,442 | 11.00 |
|
Datasheet |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.0 CFM (0.392m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | - | 3400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
9GA0424P3H0011FAN AXIAL 40X28MM 24VDC WIRE |
4,501 | 18.93 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 19.1 CFM (0.535m³/min) | 1.393 in H2O (347.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 3.84 W | 14500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|

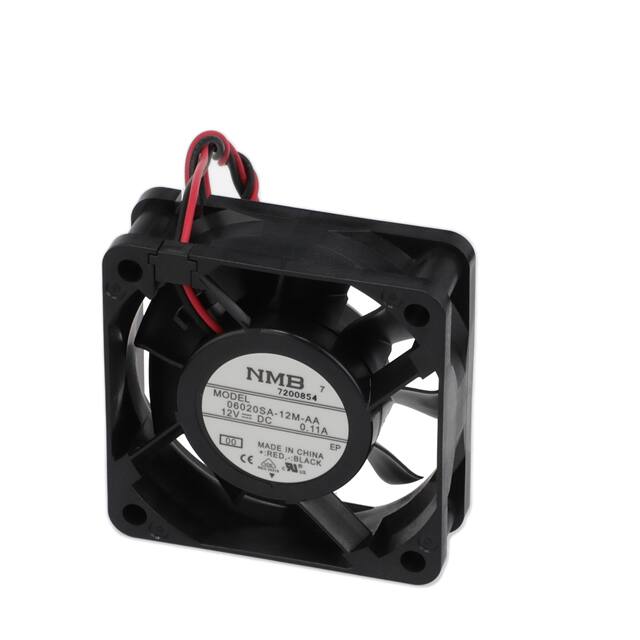

06020SA-12M-AA-00FAN AXIAL 60X20MM 12VDC WIRE |
4,100 | 11.94 |
|
Datasheet |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart | 28.5dB | 960 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
MR4020X12B1-RSRFAN AXIAL 40X20MM 12VDC WIRE |
2,939 | 11.27 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 17.3 CFM (0.484m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.0dB(A) | - | 12000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
CBM-5020B-140-305-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
2,893 | 0.00 |
|
Datasheet |
CBM-50B | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 20.00mm | 4.1 CFM (0.115m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 30.5dB(A) | 1.08 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
B.jpg)
|
CFM-A225B-115-287-22FAN AXIAL 120X25.4MM 12VDC WIRE |
3,627 | 12.31 |
|
Datasheet |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 24.8dB(A) | 2.76 W | 1500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

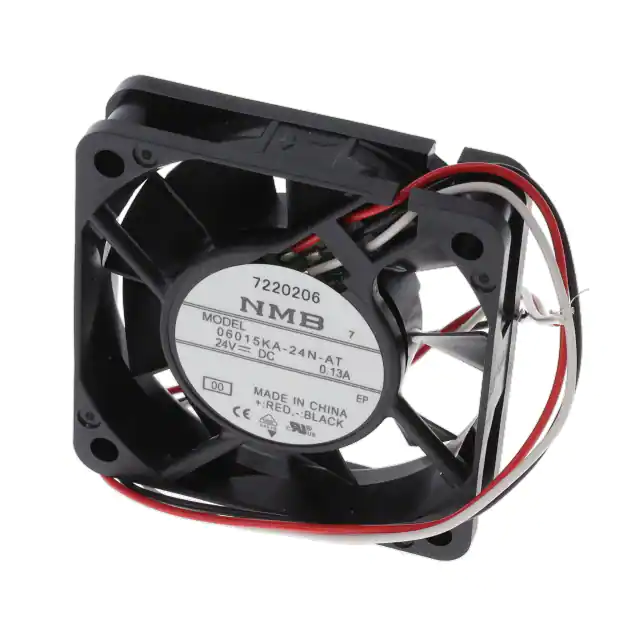

06015KA-24N-AT-00FAN AXIAL 60X15MM 24VDC WIRE |
3,671 | 11.84 |
|
Datasheet |
06015KA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 18.4 CFM (0.515m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB | 2.4 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|

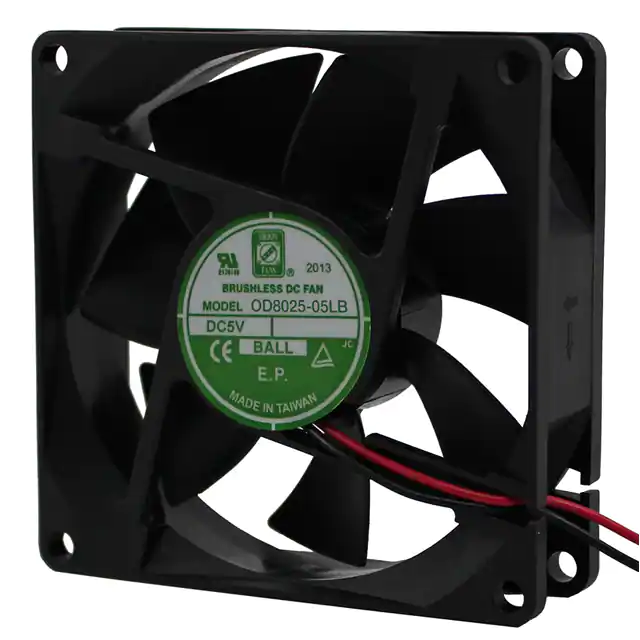

OD8025-05LBFAN AXIAL 80X25MM BALL 5VDC WIRE |
3,056 | 11.89 |
|
Datasheet |
OD8025-05 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 21.0dB | - | 1800 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.191 lb (86.64 g) |
|

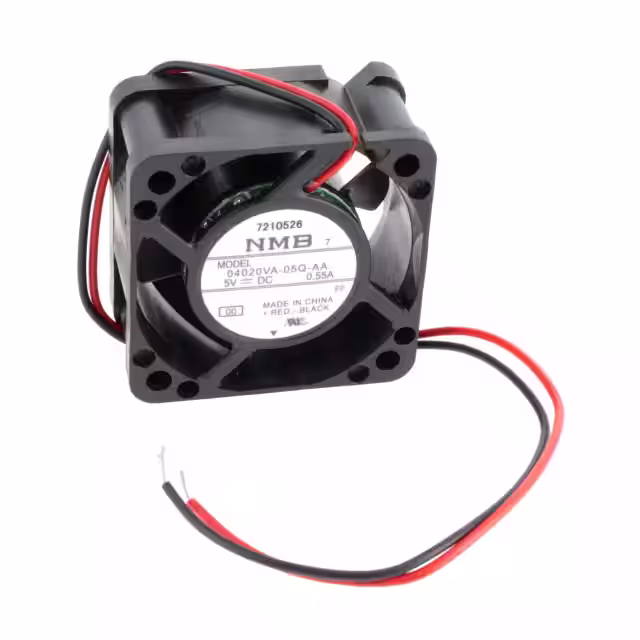

04020VA-05Q-AA-00FAN AXIAL 40X20MM BALL 5VDC WIRE |
1,449 | 11.75 |
|
Datasheet |
04020VA | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|

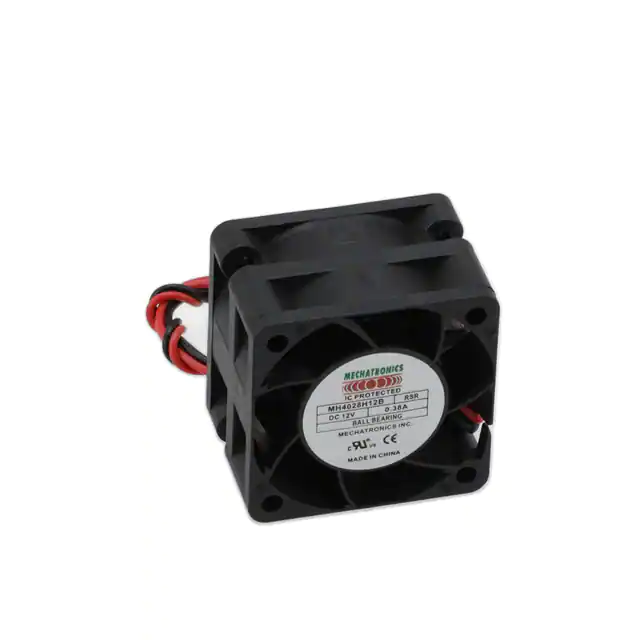

MH4028H12B-RSRFAN AXIAL 40X28MM 12VDC WIRE |
4,178 | 11.09 |
|
Datasheet |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 21.1 CFM (0.591m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Tubeaxial | Auto Restart, Thermal Overload Protector (TOP) | 52.0dB(A) | - | 13000 RPM | 2 Wire Leads | - | - | - | 0.089 lb (40.37 g) |
|
OD6010-05LBFAN AXIAL 60X10MM BALL 5VDC WIRE |
1,155 | 11.30 |
|
Datasheet |
OD6010 | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 10.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
04020VA-24P-AL-00FAN AXIAL 40X20MM 24VDC WIRE |
4,427 | 12.50 |
|
Datasheet |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.3 CFM (0.316m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 37.0dB | 2.4 W | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9RA0624J40011FAN AXIAL 60X25MM 24VDC WIRE |
4,813 | 17.22 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 4.32 W | 7700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
DC0802548M2B-2T0FAN 80X25MM 48VDC |
1,220 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 12 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
F8025H12B-FHR-CC-22AWGFAN AXIAL 80X25MM 12VDC WIRE |
4,178 | 12.71 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
|
06025SE-12R-FT-DWFAN AXIAL 60X25MM 12VDC WIRE |
1,448 | 12.94 |
|
Datasheet |
06025SE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 30.0 CFM (0.840m³/min) | 0.405 in H2O (100.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.5dB(A) | 2.76 W | 6000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
