DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8015CF-230-301-20FAN AXIAL 80X15.4MM 24VDC WIRE |
4,369 | 6.96 |
|
Datasheet |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.40mm | 34.9 CFM (0.977m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.1dB(A) | 5.04 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-7015V-123-215-20FAN AXIAL 70X15MM 12VDC WIRE |
3,396 | 7.31 |
|
Datasheet |
CFM-70V | Tray | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 19.0 CFM (0.532m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.5dB(A) | 660 mW | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.091 lb (41.28 g) |
|
CFM-6025CF-235-274FAN AXIAL 60X25.4MM 24VDC WIRE |
1,807 | 7.11 |
|
Datasheet |
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 27.5dB(A) | 1.92 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3510CF-160-188FAN AXIAL 35X10.3MM 12VDC WIRE |
1,470 | 7.20 |
|
Datasheet |
CFM-35CF | Tray | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 3.9 CFM (0.109m³/min) | 0.080 in H2O (19.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 18.8dB(A) | 720 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025C-125-290FAN AXIAL 80X25MM 12VDC WIRE |
1,873 | 7.29 |
|
Datasheet |
CFM-80C | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 30.9 CFM (0.865m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 29.0dB(A) | 1.44 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
03515SS-12N-AT-00FAN AXIAL 35X15MM 12VDC WIRE |
4,373 | 7.78 |
|
Datasheet |
03515SS | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 15.00mm | 5.6 CFM (0.157m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 24.0dB | 840 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.028 lb (12.7 g) |
|

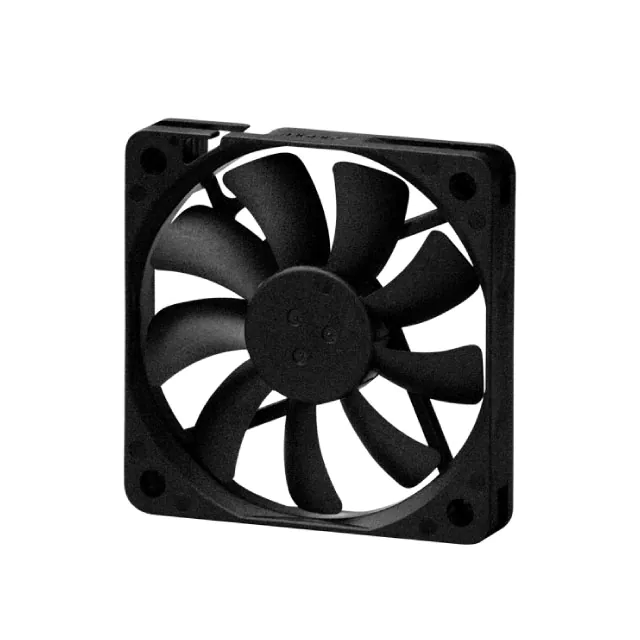

MF60101V1-1000U-F99FAN AXIAL 60X10MM 12VDC WIRE |
1,992 | 6.26 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 16.3 CFM (0.456m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.5dB(A) | 1.3 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.051 lb (23.13 g) |
|

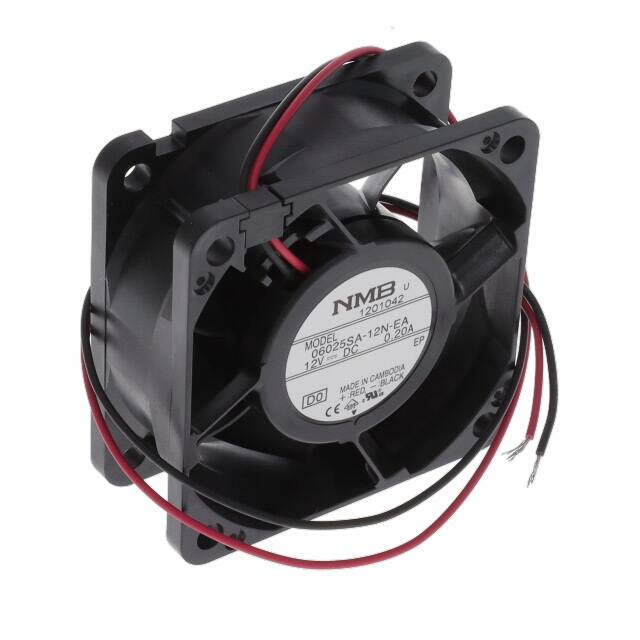

06025SA-12N-EA-D0FAN AXIAL 60X25MM 12VDC WIRE |
1,671 | 8.48 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 1.8 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

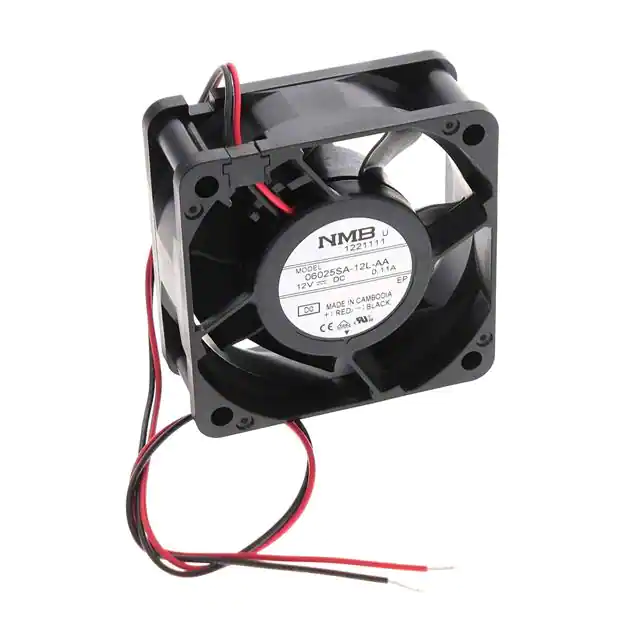

06025SA-12L-AA-D0FAN AXIAL 60X25MM 12VDC WIRE |
4,327 | 8.48 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 23.5dB | 1 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

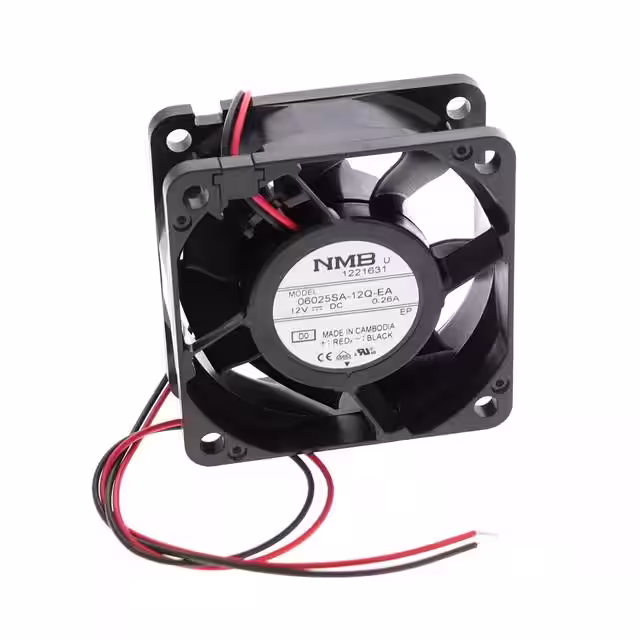

06025SA-12Q-EA-D0FAN AXIAL 60X25MM 12VDC WIRE |
3,952 | 8.48 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 26.8 CFM (0.750m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart | 35.0dB | 3.4 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
MA4010M12C-RSRFAN AXIAL 40X10MM 12VDC WIRE |
1,954 | 8.50 |
|
Datasheet |
MA4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.080 in H2O (19.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 24.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.046 lb (20.87 g) |
|
MA4010H05C1-RSR-26AWGFAN AXIAL 40X10MM 5VDC WIRE |
4,804 | 8.50 |
|
Datasheet |
MA4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Speed Sensor (Tach) | 26.0dB(A) | - | 6000 RPM | 3 Wire Leads | - | - | cUL, UL | 0.046 lb (20.87 g) |
|
|
06025SA-12Q-AA-D0FAN AXIAL 60X25MM 12VDC WIRE |
4,654 | 10.35 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 26.8 CFM (0.750m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart | 35.0dB | 3.4 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SA-12N-AA-D0FAN AXIAL 80X25MM 12VDC WIRE |
4,591 | 8.82 |
|
Datasheet |
08025SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB | 1.7 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
FAD1-08025CBMW11-AFAN AXIAL 80X25MM 12VDC WIRE |
3,792 | 9.31 |
|
Datasheet |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 30.5 CFM (0.854m³/min) | 0.112 in H2O (27.9 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.56 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
CFM-6025V-245-270-20FAN AXIAL 60X25MM 24VDC WIRE |
4,169 | 8.96 |
|
Datasheet |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.0dB(A) | 1.4 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
FAD1-06025CHHW12-AFAN AXIAL 60X25MM 12VDC WIRE |
4,361 | 9.69 |
|
Datasheet |
FAD1-06025-A | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.4 CFM (0.655m³/min) | 0.252 in H2O (62.8 Pa) | Hydrodynamic | Tubeaxial | - | 33.1dB(A) | 2.76 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
09225SS-12Q-AT-D0FAN AXIAL 92X25MM 12VDC WIRE |
3,187 | 9.52 |
|
Datasheet |
09225SS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.290 in H2O (72.2 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.0dB | 3.36 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
E9225M24B-FSR-22AWGFAN AXIAL 92X25MM 24VDC WIRE |
1,600 | 13.77 |
|
Datasheet |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 44.0 CFM (1.23m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|
09225SA-12M-AA-D0FAN AXIAL 92X25MM 12VDC WIRE |
4,871 | 9.26 |
|
Datasheet |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 45.2 CFM (1.27m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB | 1.7 W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
