DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-06025DBLW12-AFAN AXIAL 60X25MM 24VDC WIRE |
2,516 | 9.69 |
|
Datasheet |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 18.9dB(A) | 720 mW | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
FAD1-06025DBMW12-AFAN AXIAL 60X25MM 24VDC WIRE |
4,332 | 9.69 |
|
Datasheet |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 17.9 CFM (0.501m³/min) | 0.152 in H2O (37.9 Pa) | Ball | Tubeaxial | - | 28.1dB(A) | 2.16 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
09225SA-12P-EA-D0FAN AXIAL 92X25MM 12VDC WIRE |
4,228 | 9.26 |
|
Datasheet |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 59.0 CFM (1.65m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB | 2.28 W | 3550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9A0912G4011FAN AXIAL 92X25MM 12VDC WIRE |
3,272 | 13.07 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 4.68 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109P0412F301FAN AXIAL 40X28MM 12VDC WIRE |
4,588 | 14.04 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.26 W | 6700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
09225SA-12P-ET-D0FAN AXIAL 92X25MM 12VDC WIRE |
4,602 | 9.95 |
|
Datasheet |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 59.0 CFM (1.65m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.0dB | 2.28 W | 3550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-8020BF-145-401FAN AXIAL 80X20MM 12VDC WIRE |
4,662 | 10.36 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 40.2dB(A) | 3.6 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
ME6038L24B-FSRFAN AXIAL 60X38MM 24VDC WIRE |
4,338 | 15.52 |
|
Datasheet |
ME6038 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 35.5 CFM (0.994m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 48.5dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.23 lb (104.33 g) |
|
109P0612S702FAN AXIAL 60X15MM 12VDC WIRE |
2,485 | 13.71 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.8 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|

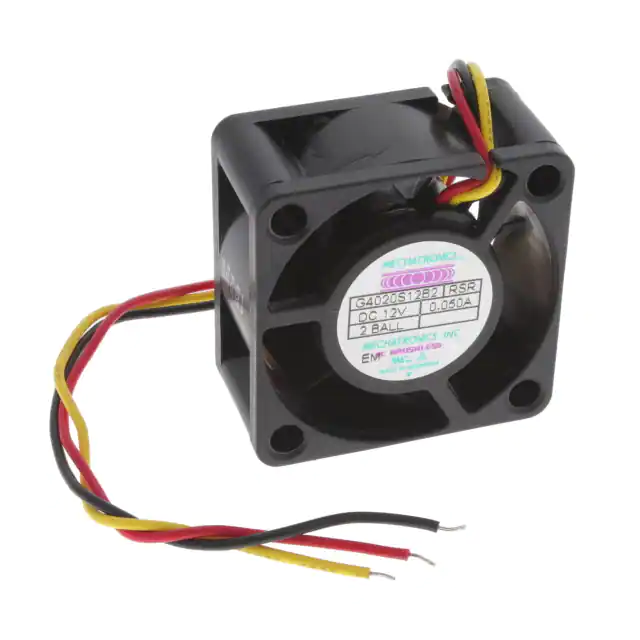

G4020S12B2-RSR-EMFAN AXIAL 40X20MM 12VDC WIRE |
2,691 | 15.71 |
|
Datasheet |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 21.0dB(A) | - | 4000 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|

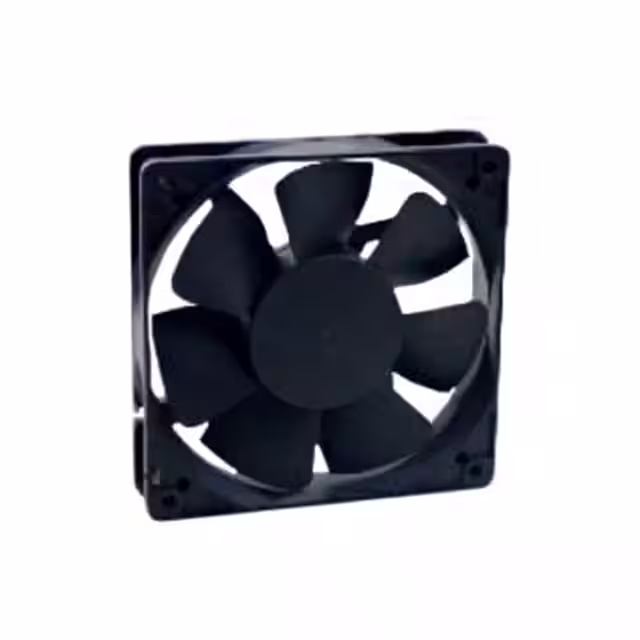

MR1225H12B-FSRFAN AXIAL 120X25MM 12VDC WIRE |
2,675 | 15.71 |
|
Datasheet |
MR1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 136.0 CFM (3.81m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart | 53.8dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | - | - |
|
F6025H24B-RSR-L19FAN AXIAL 60X25MM 24VDC WIRE |
3,518 | 10.44 |
|
Datasheet |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 3800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.156 lb (70.76 g) |
|

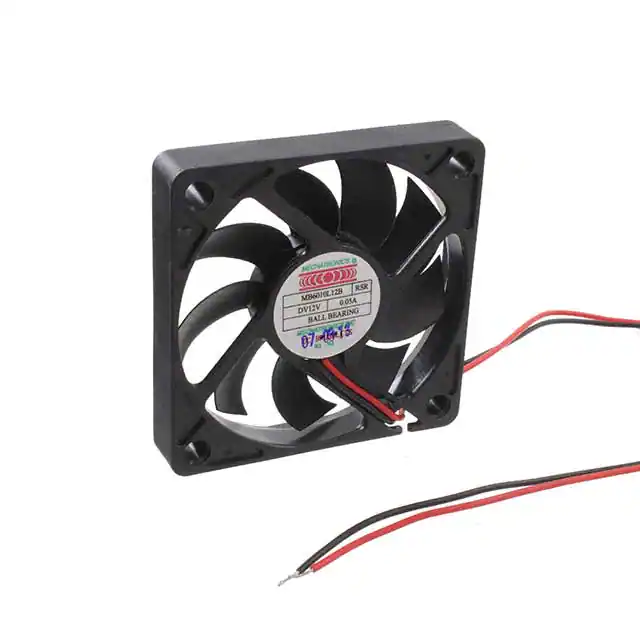

MB6010L12B-RSRFAN AXIAL 60X10.2MM 12VDC WIRE |
1,620 | 10.44 |
|
Datasheet |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.20mm | 9.4 CFM (0.263m³/min) | 0.040 in H2O (10.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 19.0dB(A) | - | 2700 RPM | 2 Wire Leads | - | - | cUL, UL | 0.059 lb (26.76 g) |
|

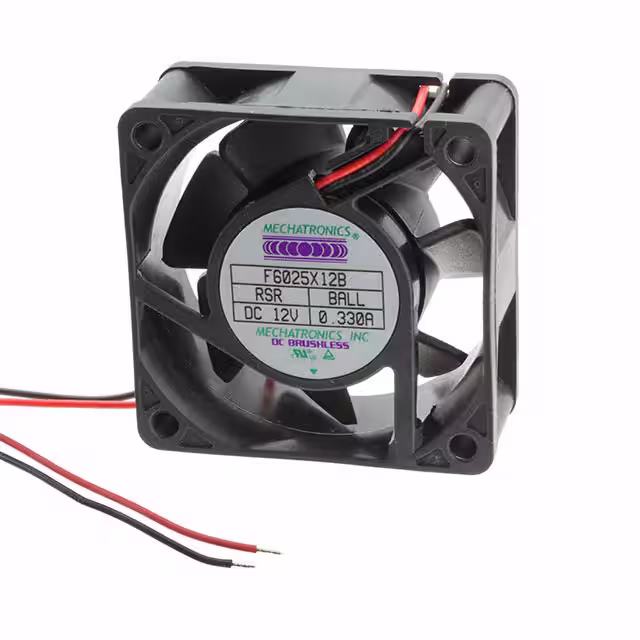

F6025X12B-RSRFAN AXIAL 60X25MM 12VDC WIRE |
1,444 | 10.44 |
|
Datasheet |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.0dB(A) | - | 5200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
F412R-12MBFAN AXIAL 41X12.2MM 12VDC WIRE |
4,145 | 9.91 |
|
Datasheet |
F412R | Bulk | Active | 12VDC | Square - 41mm L x 41mm H | 12.20mm | 5.3 CFM (0.148m³/min) | 0.102 in H2O (25.5 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 23.0dB(A) | 720 mW | 5400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
CFM-4010B-180-296-22FAN AXIAL 40X10.5MM 12VDC WIRE |
1,932 | 11.38 |
|
Datasheet |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 6.8 CFM (0.190m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 29.6dB(A) | 1.08 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
F8025X24B-RHRFAN AXIAL 80X25MM 24VDC WIRE |
3,906 | 10.83 |
|
Datasheet |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 4200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
G8020H24B-RSRFAN AXIAL 80X20.8MM 24VDC WIRE |
2,191 | 10.72 |
|
Datasheet |
G8020 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.80mm | 43.0 CFM (1.20m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 33.0dB(A) | - | 3500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
|
4556HQ/EG50040S1-C912-S9AFAN BLOWER 67.5X4.6MM 5VDC RECT |
1,485 | 11.59 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 67.5mm L x 54mm H | 4.60mm | 2.6 CFM (0.073m³/min) | 0.680 in H2O (169.4 Pa) | Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 33.4dB(A) | 2 W | 5100 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.029 lb (13.15 g) |
|
|
4548HQ/EG50040S1-CG61-S9AFAN BLOWER 61.28X5.55MM 5VDC |
3,385 | 11.15 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 61.28mm L x 52.75mm H | 5.55mm | 2.7 CFM (0.076m³/min) | 0.810 in H2O (201.8 Pa) | Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 39.9dB(A) | 2 W | 7200 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.038 lb (17.24 g) |
