DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EE50101S2-1000U-999FAN AXIAL 50X10MM 12VDC WIRE |
1,950 | 2.68 |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 25.6dB(A) | 900 mW | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.043 lb (19.5 g) |
|
|
EE50101S1-1000U-999FAN AXIAL |
1,814 | 0.00 |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 13.0 CFM (0.364m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | - | 30.7dB(A) | 1.08 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|

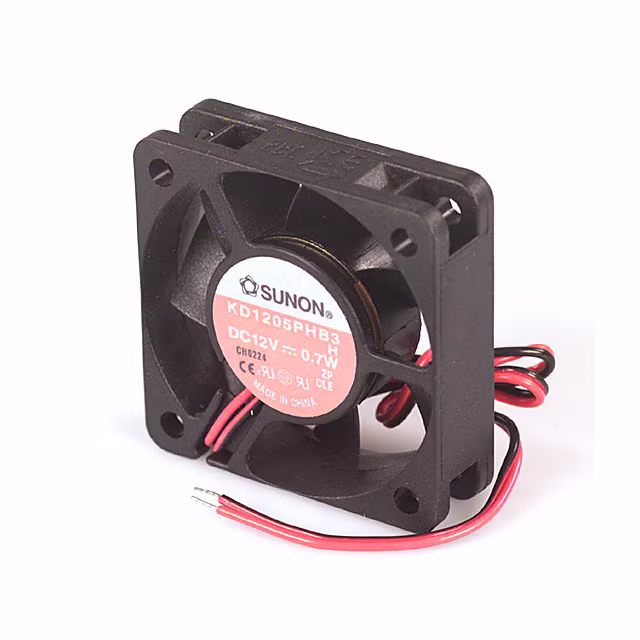

KD1205PHB3 HFAN AXIAL 50X15MM 12VDC WIRE |
2,217 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 10.2 CFM (0.286m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 22.5dB(A) | 700 mW | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.081 lb (36.74 g) |
|

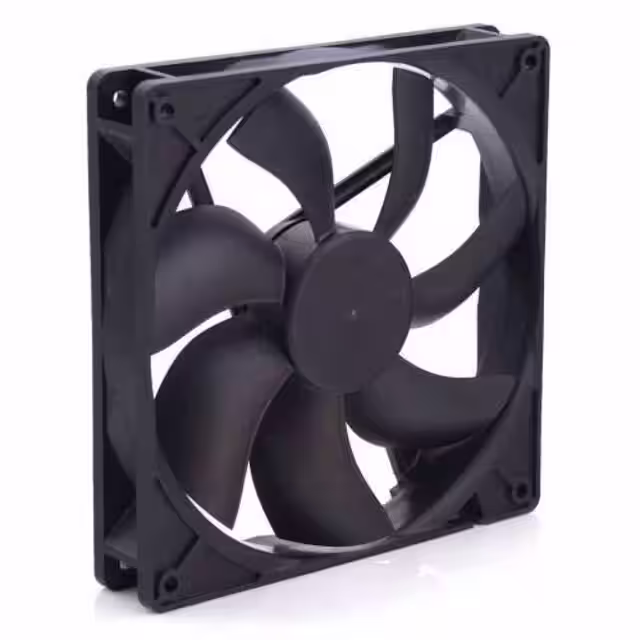

NYW14025012LL-12FAN AXIAL 140X25MM 12VDC WIRE |
2,889 | 2.82 |
|
Datasheet |
NYW14025 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 25.00mm | 62.1 CFM (1.74m³/min) | 0.051 in H2O (12.7 Pa) | Sintec | Tubeaxial | - | 21.7dB(A) | 840 mW | 1050 RPM | 2 Wire Leads | - | - | - | - |
|

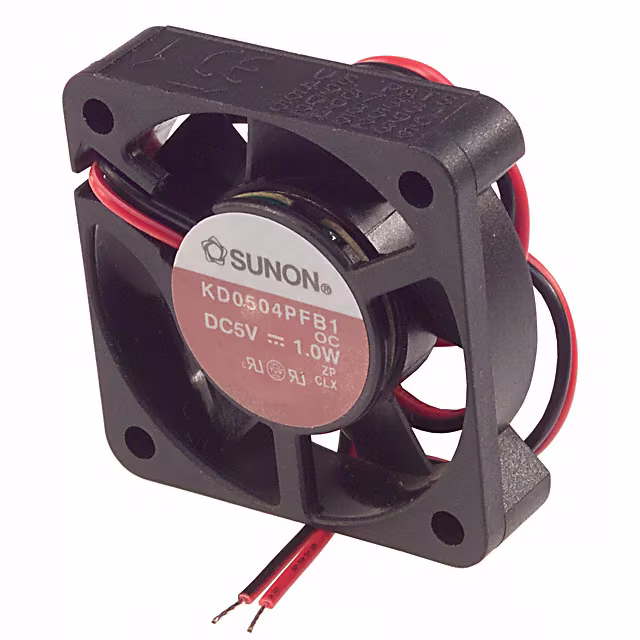

KD0504PFB1-OCFAN AXIAL 40X10.5MM 5VDC WIRE |
4,643 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 7.5 CFM (0.210m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.035 lb (15.88 g) |
|
|
EE40100S2-1000U-999FAN AXIAL |
3,567 | 0.00 |
|
Datasheet |
EE | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.1 CFM (0.199m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | - | 23.0dB(A) | 600 mW | 6100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
EE40100S1-1000U-999FAN AXIAL |
2,905 | 0.00 |
|
Datasheet |
EE | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | - | 28.2dB(A) | 860 mW | 7300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KD1206PTB1 HFAN AXIAL 60X25.5MM 12VDC WIRE |
2,827 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 22.5 CFM (0.630m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 34.0dB(A) | 2 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.13 lb (58.97 g) |
|
|
KD1206PTB3 HFAN AXIAL 60X25.5MM 12VDC WIRE |
4,418 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | 800 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.13 lb (58.97 g) |
|
|
EF45101S1-1000U-999Thermal Products |
4,608 | 0.00 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 10.8 CFM (0.302m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | - | 29.8dB(A) | 1.02 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
EF45101S2-1000U-999Thermal Products |
4,789 | 0.00 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 9.4 CFM (0.263m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | - | 26.1dB(A) | 720 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|

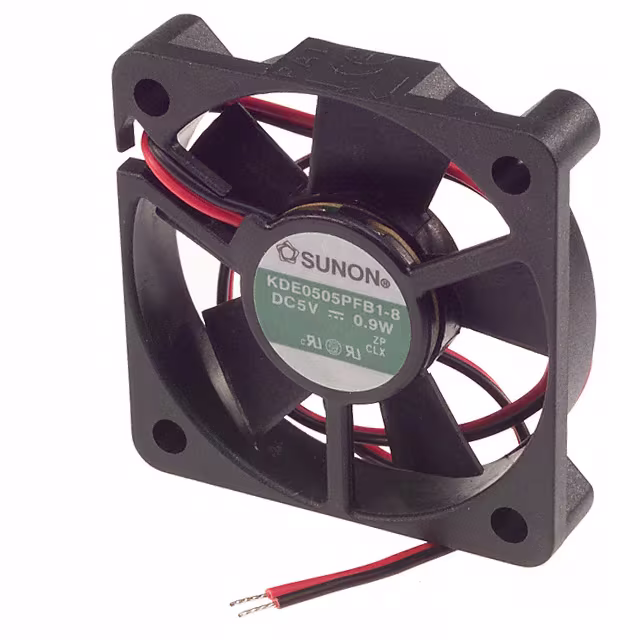

KDE0505PFB1-8FAN AXIAL 50X10.5MM 5VDC WIRE |
1,123 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.50mm | 10.2 CFM (0.286m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 31.5dB(A) | 900 mW | 5400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.053 lb (24.04 g) |
|
|
ASFN480015 VDC BRUSHLESS FAN |
2,245 | 0.00 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KDE2406PHS3FAN AXIAL 60X15MM 24VDC WIRE |
2,860 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 15.0 CFM (0.420m³/min) | - | Sleeve | Tubeaxial | - | - | 1.2 W | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|

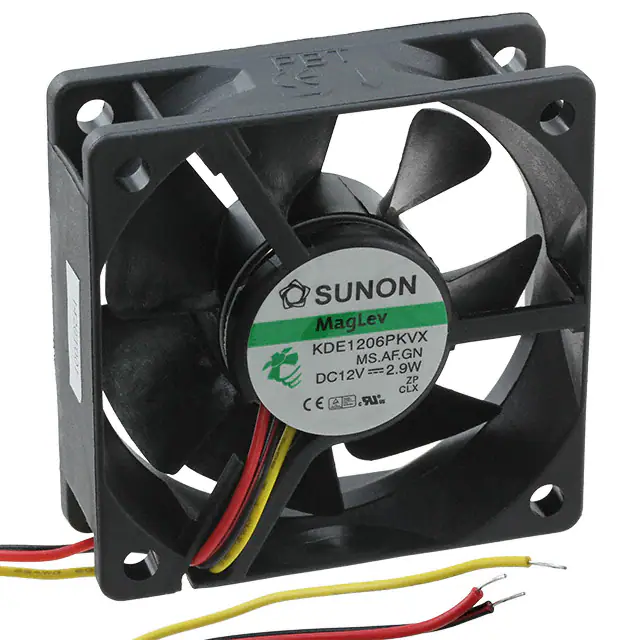

KDE1206PKVX MS.AF.GNFAN 60X60X20 12VDC VAPO TACH |
2,563 | 0.00 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EF45101S2-1000U-C9912VDC FAN 45X10MM TACH |
3,237 | 0.00 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 9.4 CFM (0.263m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 26.1dB(A) | 0.72 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF45101S1-1000U-C9912VDC FAN 45X10MM TACH |
3,497 | 0.00 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 10.8 CFM (0.302m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 29.8dB(A) | 1.02 W | 5700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
KD1204PKB2 HFAN AXIAL 40X20MM 12VDC WIRE |
2,775 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | - | Ball | Tubeaxial | - | - | 800 mW | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|

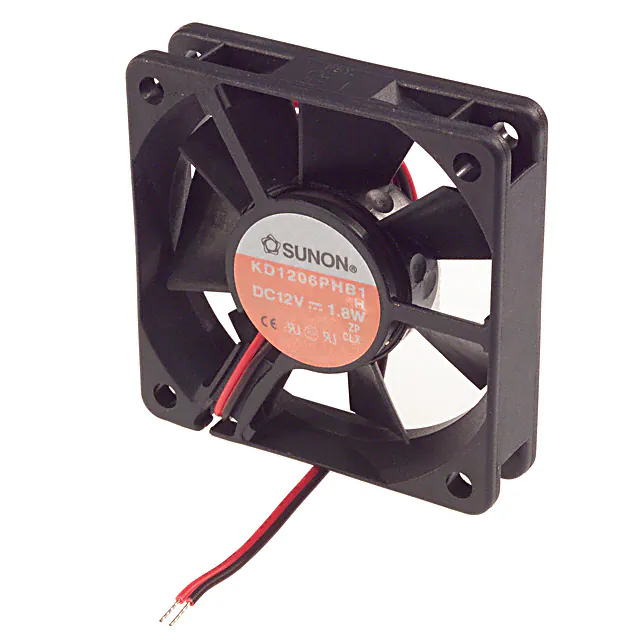

KD1206PHB1 HFAN AXIAL 60X15MM 12VDC WIRE |
2,386 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | - | 37.5dB(A) | 1.8 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.086 lb (39.01 g) |
|
|
KD1206PHB2 HFAN AXIAL 60X15MM 12VDC WIRE |
2,603 | 0.00 |
|
Datasheet |
KD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 31.5dB(A) | 1.1 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.086 lb (39.01 g) |
