DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-2510B-070-140-20FAN AXIAL 25X10MM BALL 5VDC WIRE |
2,577 | 6.73 |
|
Datasheet |
CFM-25B | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.040m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 14.1dB(A) | 600 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-2510B-1100-218-20FAN AXIAL 25X10MM 12VDC WIRE |
4,960 | 6.73 |
|
Datasheet |
CFM-25B | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.8dB(A) | 960 mW | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-2510B-0100-218-20FAN AXIAL 25X10MM BALL 5VDC WIRE |
4,068 | 6.73 |
|
Datasheet |
CFM-25B | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.8dB(A) | 1.05 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4010B-280-296FAN AXIAL 40X10.5MM 24VDC WIRE |
4,463 | 6.54 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 6.8 CFM (0.190m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart | 29.6dB(A) | 1.92 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6020C-240-320-22DC AXIAL FAN, 60 MM SQUARE, 20 M |
1,108 | 0.00 |
|
Datasheet |
CFM-60C | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 19.8 CFM (0.554m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.8dB(A) | 1.44 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MB40200V3-000U-G99FAN AXIAL 40X20MM VAPO 5VDC WIRE |
3,155 | 0.00 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 18.0dB(A) | 410 mW | 5200 RPM | 3 Wire Leads | - | - | CE, CUR, TUV, UL | 0.066 lb (29.94 g) |
|

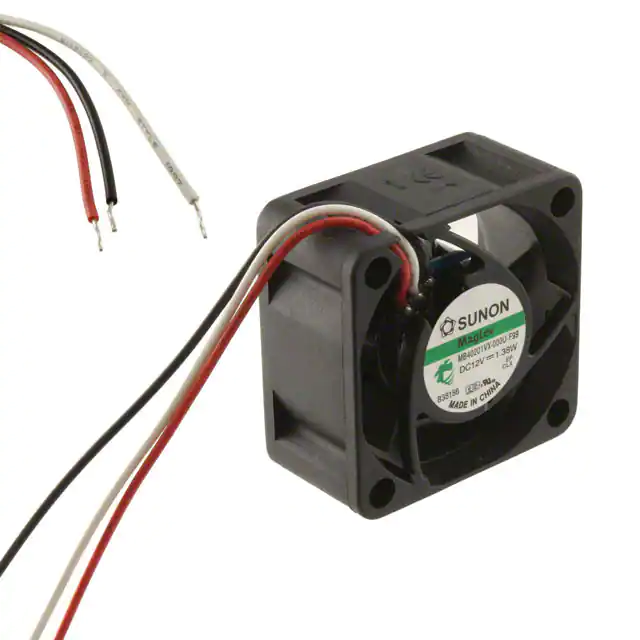

MB40201VX-000U-F99FAN AXIAL 40X20MM 12VDC WIRE |
3,451 | 0.00 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.270 in H2O (67.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.5dB(A) | 1.38 W | 8200 RPM | 3 Wire Leads | - | - | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|
|
MB40201VX-000U-G99FAN AXIAL 40X20MM 12VDC WIRE |
2,789 | 0.00 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.270 in H2O (67.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.5dB(A) | 1.38 W | 8200 RPM | 3 Wire Leads | - | - | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|
CFM-6020B-150-368FAN AXIAL 60X20MM 12VDC WIRE |
2,592 | 6.53 |
|
Datasheet |
CFM-60B | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.1 CFM (0.535m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 36.8dB(A) | 2.52 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9225B-125-317-20FAN AXIAL 92.2X32MM 12VDC WIRE |
3,592 | 6.53 |
|
Datasheet |
CFM-92B | Box | Active | 12VDC | Square - 92.0mm L x 92.0mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.7dB(A) | 1.8 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8015V-224-308-11FAN AXIAL 80X15MM 24VDC WIRE |
1,187 | 6.54 |
|
Datasheet |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 30.8dB(A) | 1.56 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
|
|
CFM-8015V-230-347-11FAN AXIAL 80X15MM 24VDC WIRE |
2,159 | 6.54 |
|
Datasheet |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 37.1 CFM (1.04m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 34.7dB(A) | 2.55 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
|
EE80151S1-000U-A99Thermal Products |
2,235 | 0.00 |
|
- |
EE | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Auto Restart | 34.7dB(A) | 1.96 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MF70151V3-1000U-S9912VDC FAN 70X15MM TACH/PWM |
3,699 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 19.1 CFM (0.535m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.7dB(A) | 0.36 W | 2500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF70151V1-1000U-S9912VDC FAN 70X15MM TACH/PWM |
2,789 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 27.3 CFM (0.764m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.0dB(A) | 0.89 W | 3500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF70151V2-1000U-S9912VDC FAN 70X15MM TACH/PWM |
1,850 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 23.1 CFM (0.647m³/min) | 0.090 in H2O (22.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.6dB(A) | 0.62 W | 3000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
.jpg)
|
KDE0502PEB3-8 (MS.N)FAN AXIAL 25X6.9MM 5VDC WIRE |
3,883 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 6.90mm | 1.4 CFM (0.040m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 16.0dB(A) | 400 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
|
KDE0503PEB1-8 ( MS.N )FAN AXIAL 30X6MM BALL 5VDC WIRE |
4,863 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 6.00mm | 4.9 CFM (0.137m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 900 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.013 lb (5.9 g) |
.jpg)
|
B0502PFB2-8 MSFAN BLOWER 25X9.8MM 5VDC WIRE |
3,670 | 0.00 |
|
Datasheet |
- | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 9.80mm | 0.812 CFM (0.023m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Blower | - | 30.0dB(A) | 600 mW | 10000 RPM | 2 Wire Leads | - | - | - | 0.013 lb (5.9 g) |
.jpg)
|

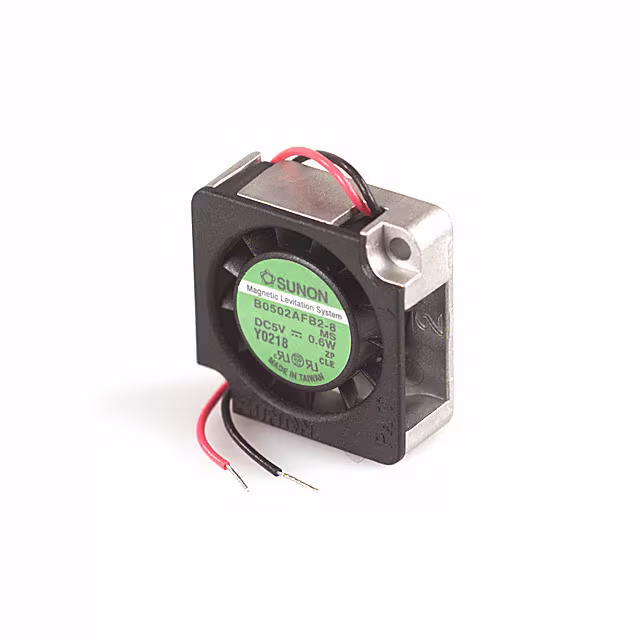

B0502AFB2-8 MSFAN BLOWER 25X9.8MM 5VDC WIRE |
2,761 | 0.00 |
|
Datasheet |
- | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 9.80mm | 0.812 CFM (0.023m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Blower | - | 30.0dB(A) | 600 mW | 10000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.02 lb (9.07 g) |
