DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B0503PFB2-8 MSFAN BLOWER 30X10MM 5VDC WIRE |
1,795 | 0.00 |
|
- |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.1 CFM (0.031m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Blower | - | 30.0dB(A) | 650 mW | 8000 RPM | 2 Wire Leads | - | - | - | 0.02 lb (9.07 g) |
|
KDE0502PEB1-8 (MS.N)FAN AXIAL 25X6.9MM 5VDC WIRE |
3,695 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 6.90mm | 3.0 CFM (0.084m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 31.0dB(A) | 800 mW | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
.jpg)
|
KDE1235PFB3-8 MSFAN AXIAL 35X10MM 12VDC WIRE |
4,087 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 3.8 CFM (0.106m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | - | 18.0dB(A) | 700 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.02 lb (9.07 g) |
.jpg)
|

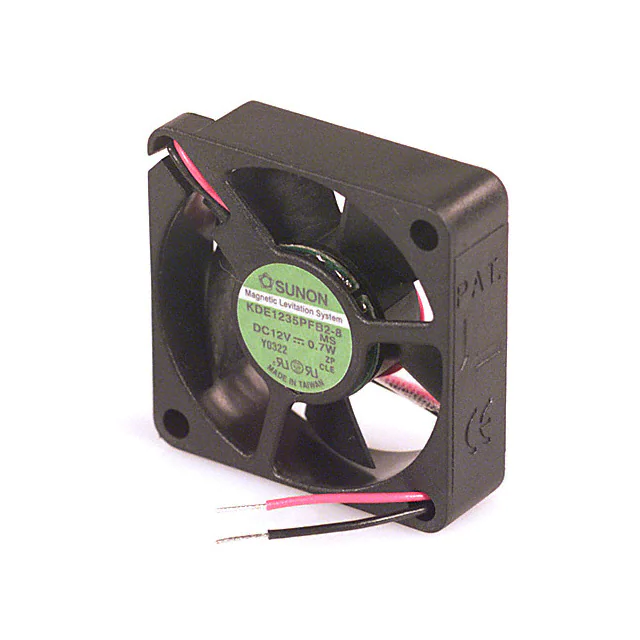

KDE1235PFB2-8 MSFAN AXIAL 35X10MM 12VDC WIRE |
4,350 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 5.2 CFM (0.146m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 19.5dB(A) | 700 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.023 lb (10.43 g) |
.jpg)
|

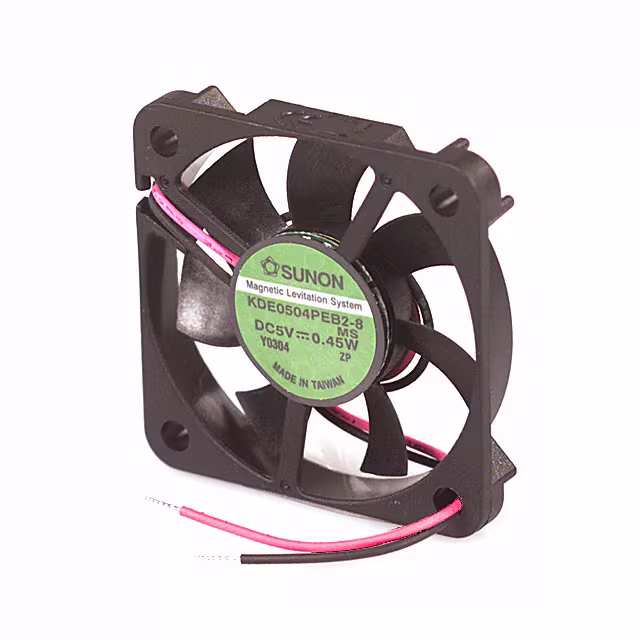

KDE0504PEB2-8 (MS)FAN AXIAL 40X6.9MM 5VDC WIRE |
4,491 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.90mm | 5.3 CFM (0.148m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 550 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
OC.jpg)
|
KDE0535PFB1-8 ( MS.OC )FAN AXIAL 35X10MM BALL 5VDC WIRE |
4,405 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 6.5 CFM (0.182m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 25.5dB(A) | 1 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.022 lb (9.98 g) |
.jpg)
|

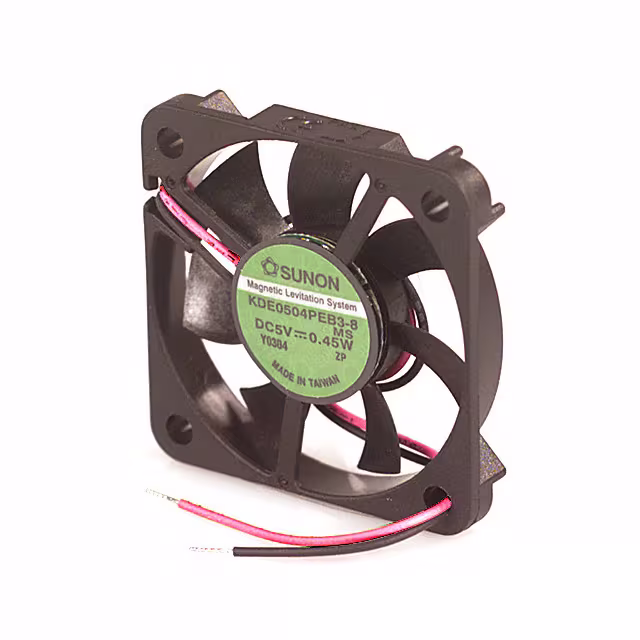

KDE0504PEB3-8 MSFAN AXIAL 40X6MM BALL 5VDC WIRE |
3,554 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.00mm | 4.5 CFM (0.126m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 450 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
.jpg)
|

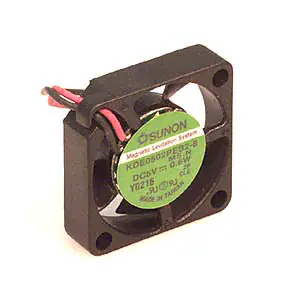

KDE0502PEB2-8 (MS.N)FAN AXIAL 25X6.9MM 5VDC WIRE |
3,553 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 6.90mm | 2.7 CFM (0.076m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | 600 mW | 11500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
OC.jpg)
|

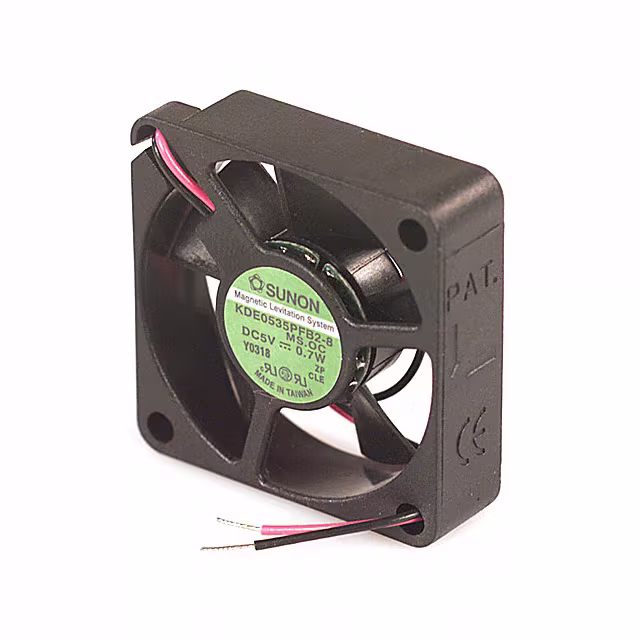

KDE0535PFB2-8 (MS.OC)FAN AXIAL 35X10MM BALL 5VDC WIRE |
2,104 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 5.2 CFM (0.146m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 21.0dB(A) | 700 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.022 lb (9.98 g) |
.jpg)
|

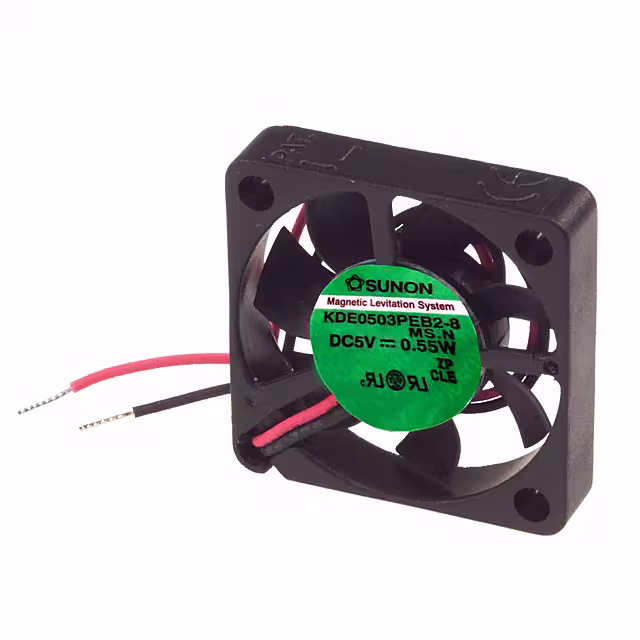

KDE0503PEB2-8 MS.NFAN AXIAL 30X6.9MM 5VDC WIRE |
2,863 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 6.90mm | 4.3 CFM (0.120m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 24.5dB(A) | 750 mW | 7500 RPM | 2 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CUR, TUV, UL | 0.013 lb (5.9 g) |
.jpg)
|

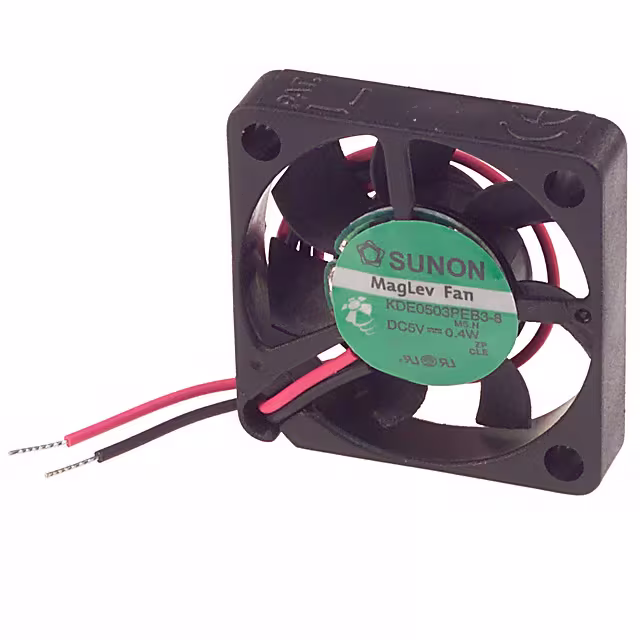

KDE0503PEB3-8 MS.NFAN AXIAL 30X6.9MM 5VDC WIRE |
3,004 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 6.90mm | 2.4 CFM (0.067m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | - | 16.5dB(A) | 350 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.013 lb (5.9 g) |
.jpg)
|
KDE0504PEB1-8 (MS)FAN AXIAL 40X6.9MM 5VDC WIRE |
1,431 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.90mm | 5.9 CFM (0.165m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|
|
CFM-2010CF-0170-292-20DC AXIAL FAN, 20 MM SQUARE, 10 M |
1,141 | 0.00 |
|
Datasheet |
CFM-20CF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.30mm | 1.6 CFM (0.045m³/min) | 0.240 in H2O (59.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.2dB(A) | 900 mW | 17000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3510BF-160-188FAN AXIAL 35X10.3MM 12VDC WIRE |
4,415 | 6.58 |
|
- |
CFM-35BF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 3.9 CFM (0.109m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart | 18.8dB(A) | 720 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3010B-180-267-22FAN AXIAL 30X10.5MM 12VDC WIRE |
1,652 | 6.57 |
|
Datasheet |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 2.5 CFM (0.070m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.8dB(A) | 1.08 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
2410SB-04W-B50-B00FAN AXIAL 60X25MM 12VDC WIRE |
2,015 | 8.40 |
|
Datasheet |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1.8 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B40-B00FAN AXIAL 60X25MM 24VDC WIRE |
4,119 | 7.59 |
|
Datasheet |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | - | 26.5dB(A) | 1.44 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
ME70202V2-000U-A99FAN |
1,552 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ME70202V3-000U-A99FAN |
2,404 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1604KL-04W-B39-B50FAN AXIAL 40X10MM 12VDC WIRE |
2,364 | 0.00 |
|
Datasheet |
04010KA | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.096 in H2O (23.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.0dB | 740 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
