DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GB0535ACB1-8.C883.GNFAN BLOWER 34.8X6MM 5VDC WIRE |
2,060 | 0.00 |
|
Datasheet |
GB | Bulk | Obsolete | 5VDC | Square - 34.8mm L x 34.8mm H | 6.00mm | 0.880 CFM (0.025m³/min) | - | Ball | Blower | - | - | 800 mW | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
MC25100V1-000U-G99FAN AXIAL 25X10MM VAPO 5VDC WIRE |
4,871 | 0.00 |
|
Datasheet |
MagLev® MC | Box | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 23.0dB(A) | 600 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|
|
MC30100V1-000U-G99FAN AXIAL 30X10MM VAPO 5VDC WIRE |
1,176 | 0.00 |
|
Datasheet |
MagLev® MC | Box | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 23.0dB(A) | 600 mW | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.019 lb (8.62 g) |
|
|
MC30060V1-000U-G99FAN AXIAL 30X6.9MM 5VDC WIRE |
2,268 | 0.00 |
|
Datasheet |
MagLev® MC | Box | Obsolete | 5VDC | Square - 30mm L x 30mm H | 6.90mm | 4.9 CFM (0.137m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 560 mW | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.013 lb (5.9 g) |
|
|
08025SA-24R-EL-D0DC AXIAL FAN |
2,813 | 0.00 |
|
Datasheet |
08025SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.8 CFM (1.70m³/min) | 0.329 in H2O (82.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 42.0dB | 4.08 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SA-24R-AT-D0DC AXIAL FAN |
2,260 | 0.00 |
|
Datasheet |
08025SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.8 CFM (1.70m³/min) | 0.329 in H2O (82.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.0dB | 4.08 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SA-24Q-ET-D0DC AXIAL FAN |
1,862 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
08025SA-12Q-ET-D0DC AXIAL FAN |
1,530 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CFM-6025BF-265-408-20FAN AXIAL 60X25.4MM 24VDC WIRE |
1,067 | 7.79 |
|
Datasheet |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 31.1 CFM (0.871m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.9dB(A) | 4.08 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
EE92252B2-000U-999FAN AXIAL 92X25MM 24VDC WIRE |
3,743 | 4.30 |
|
Datasheet |
EE | Tray | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1.7 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.207 lb (93.89 g) |
|
|
EE92252B3-000U-999FAN AXIAL 92X25MM 24VDC WIRE |
2,514 | 4.30 |
|
Datasheet |
EE | Tray | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.4 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.207 lb (93.89 g) |
|
|
MF25101V3-1000U-G9912VDC FAN 25X10MM ALARM |
4,344 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 4.8dB(A) | 0.21 W | 6000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF35101V3-1000U-G9912VDC FAN 35X10MM ALARM |
1,178 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 3.6 CFM (0.101m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 12.0dB(A) | 0.24 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF35101V1-1000U-G9912VDC FAN 35X10MM ALARM |
3,858 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 0.72 W | 10000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25101V2-1000U-G9912VDC FAN 25X10MM ALARM |
2,758 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 16.0dB(A) | 0.36 W | 9600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

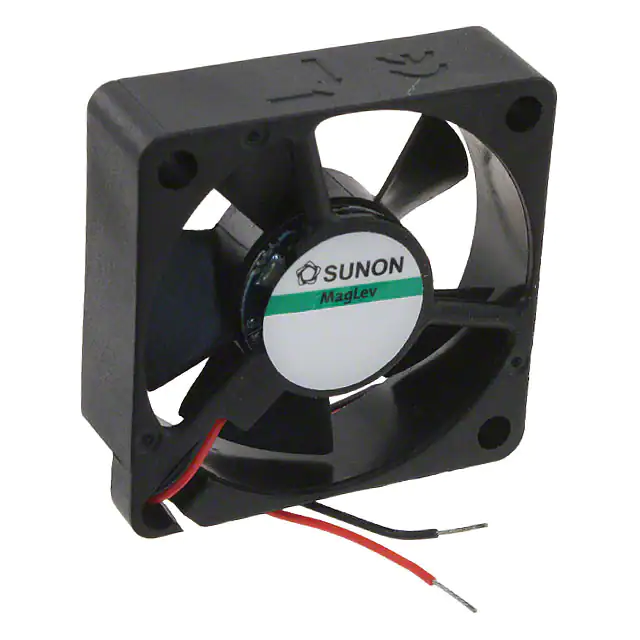

MC35100V2-000U-A99FAN AXIAL 35X10MM VAPO 5VDC WIRE |
1,214 | 0.00 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 6.5 CFM (0.182m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 22.0dB(A) | 380 mW | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.024 lb (10.89 g) |
|
CFM-8020BF-145-401-20FAN AXIAL 80X20MM 12VDC WIRE |
4,795 | 7.79 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.2dB(A) | 3.6 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8020BF-245-401-20FAN AXIAL 80X20MM 24VDC WIRE |
3,337 | 7.79 |
|
Datasheet |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.2dB(A) | 4.32 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015BF-175-459-20DC BLOWER, 51.7 X 51.25 X 14.9 M |
1,300 | 0.00 |
|
Datasheet |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 4.8 CFM (0.134m³/min) | 1.240 in H2O (308.9 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 45.9dB(A) | 3.96 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
AFB03512HA-CR00FAN AXIAL 35X10MM 12VDC WIRE |
3,491 | 7.68 |
|
- |
AFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.106 in H2O (26.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB(A) | 720 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.023 lb (10.43 g) |
