DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-6010-13-10FAN AXIAL 60X10.6MM 12VDC WIRE |
4,553 | 0.00 |
|
Datasheet |
CFM-60 | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.60mm | 24.2 CFM (0.678m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 41.4dB(A) | 3.12 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-5010B-155-313-22DC AXIAL FAN, 50 MM SQUARE, 10 M |
3,291 | 0.00 |
|
Datasheet |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 11.8 CFM (0.330m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.3dB(A) | 1.56 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3010B-1100-316-22FAN AXIAL 30X10.5MM 12VDC WIRE |
1,799 | 7.88 |
|
Datasheet |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 3.2 CFM (0.090m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.6dB(A) | 1.32 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-2510B-170-140-22FAN AXIAL 25X10MM 12VDC WIRE |
2,121 | 7.88 |
|
Datasheet |
CFM-25B | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.040m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 14.1dB(A) | 720 mW | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-2510B-0130-275-22FAN AXIAL 25X10MM BALL 5VDC WIRE |
4,208 | 7.88 |
|
Datasheet |
CFM-25B | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.5 CFM (0.070m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.5dB(A) | 1.15 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530BF-240-454DC BLOWER, 49.2 X 49.8 X 20 MM, |
1,680 | 0.00 |
|
Datasheet |
CBM-75BF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 11.8 CFM (0.330m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Blower | Auto Restart | 45.4dB(A) | 5.52 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-7530CF-220-282-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
2,776 | 0.00 |
|
Datasheet |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 6.6 CFM (0.185m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.2dB(A) | 1.44 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530CF-120-282-22DC BLOWER, 75.7 X 75.7 X 30 MM, |
3,841 | 0.00 |
|
Datasheet |
CBM-75CF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 6.6 CFM (0.185m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.2dB(A) | 0.84 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
GM0503PFV1-8.F.GNFAN AXIAL 30X10MM VAPO 5VDC WIRE |
1,875 | 0.00 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Speed Sensor (Tach) | 23.0dB(A) | 700 mW | 9500 RPM | 3 Wire Leads | - | - | CE, CUR, TUV, UL | 0.019 lb (8.62 g) |
|
UDQFBFM01CP1FAN AXIAL 25X10MM 5VDC WIRE |
4,856 | 0.00 |
|
Datasheet |
UDQF | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.039m³/min) | 0.096 in H2O (23.9 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 17.0dB(A) | 200 mW | 7800 RPM | 3 Wire Leads | - | 32 ~ 158°F (0 ~ 70°C) | - | 0.014 lb (6.35 g) |
|
BFB04512HHA-AFAN BLOWER 45X10MM 12VDC WIRE |
1,652 | 0.00 |
|
Datasheet |
BFB | Tray | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 3.3 CFM (0.092m³/min) | 0.555 in H2O (138.2 Pa) | Ball | Blower | Locked Rotor Protection | 35.5dB(A) | 960 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.029 lb (13.15 g) |
|

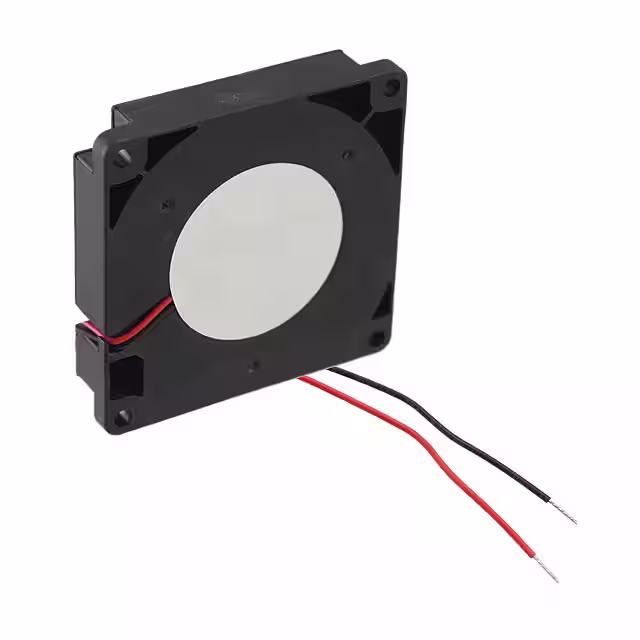

BFB0505HA-AFAN BLOWER 50X10MM 5VDC WIRE |
4,696 | 0.00 |
|
Datasheet |
BFB | Bulk | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.372 in H2O (92.7 Pa) | Ball | Blower | Locked Rotor Protection | 32.5dB(A) | 600 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.029 lb (13.15 g) |
|

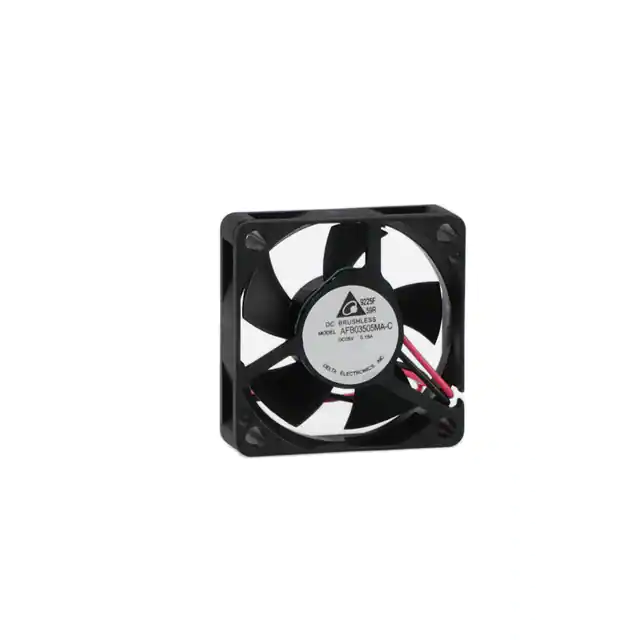

AFB03505MA-CFAN AXIAL 35X10MM BALL 5VDC WIRE |
1,523 | 13.19 |
|
Datasheet |
AFB | Box | Not For New Designs | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.076 in H2O (18.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 16.0dB(A) | 500 mW | 5800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.023 lb (10.43 g) |
|
CFM-4010B-080-296-22FAN AXIAL 40X10.5MM 5VDC WIRE |
4,527 | 7.86 |
|
Datasheet |
CFM-40B | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 6.8 CFM (0.190m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 29.6dB(A) | 1.2 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EE80252BX-000U-F99FAN AXIAL 80X25MM 24VDC WIRE |
1,066 | 7.79 |
|
- |
EE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.0dB(A) | 1.9 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.196 lb (88.9 g) |
|
|
EE80252BX-000U-G99FAN AXIAL 80X25MM 24VDC WIRE |
2,748 | 7.79 |
|
- |
EE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.0dB(A) | 1.9 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.196 lb (88.9 g) |
|
|
MF25101V1-1000U-F99FAN AXIAL 25X10MM 12VDC WIRE |
1,545 | 0.00 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 3.8 CFM (0.106m³/min) | 0.270 in H2O (67.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.0dB(A) | 0.6 W | 14000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
MF35101V1-1000U-F9912VDC FAN 35X10MM TACH |
2,482 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.0dB(A) | 0.72 W | 10000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25101V2-1000U-F9912VDC FAN 25X10MM TACH |
2,777 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 16.0dB(A) | 0.36 W | 9600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF35101V2-1000U-F9912VDC FAN 35X10MM TACH |
1,436 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 6.5 CFM (0.182m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.8dB(A) | 0.42 W | 7500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
