DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
08025SA-24Q-EL-D0FAN AXIAL 80X25MM 24VDC WIRE |
2,697 | 0.00 |
|
- |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 54.7 CFM (1.53m³/min) | 0.273 in H2O (68.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 39.5dB | 2.88 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
MF20100V1-1000U-H995VDC FAN 20X10MM PWM |
3,677 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 25.0dB(A) | 0.53 W | 16500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF20100V2-1000U-H995VDC FAN 20X10MM PWM |
1,294 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 20.0dB(A) | 0.4 W | 14000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30151V3-1000U-G9912VDC FAN 30X15MM ALARM |
2,439 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 30mm L x 30mm H | 15.00mm | 2.7 CFM (0.076m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 7.8dB(A) | 0.24 W | 4600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30151V2-1000U-G9912VDC FAN 30X15MM ALARM |
3,314 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 30mm L x 30mm H | 15.00mm | 4.8 CFM (0.134m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 19.0dB(A) | 0.42 W | 7000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
MC35100V1-000U-A99FAN AXIAL 35X10MM VAPO 5VDC WIRE |
4,251 | 0.00 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 750 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.024 lb (10.89 g) |
|

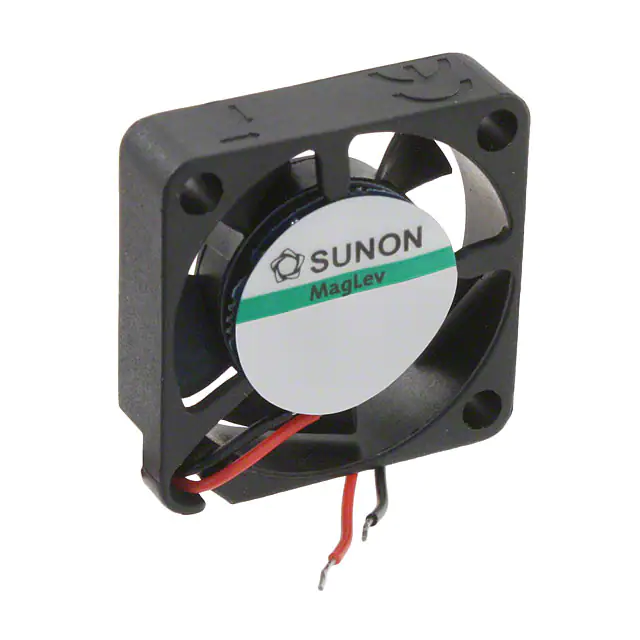

MC25060V1-000U-A99FAN AXIAL 25X6.9MM 5VDC WIRE |
2,316 | 0.00 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 25mm L x 25mm H | 6.90mm | 3.0 CFM (0.084m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 31.0dB(A) | 580 mW | 13000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
|
|
MC25060V2-000U-A99FAN AXIAL 25X6.9MM 5VDC WIRE |
1,825 | 0.00 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 25mm L x 25mm H | 6.90mm | 2.2 CFM (0.061m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 23.0dB(A) | 380 mW | 10000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
|

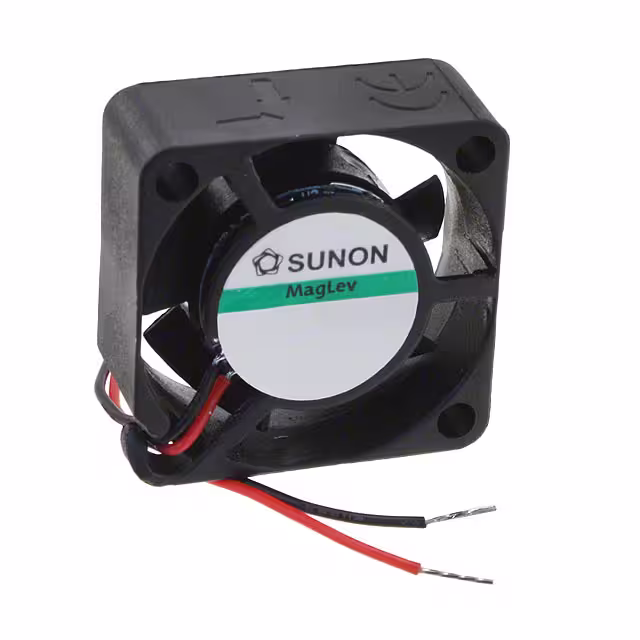

MC25100V2-000U-A99FAN AXIAL 25X10MM VAPO 5VDC WIRE |
1,177 | 0.00 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 16.0dB(A) | 430 mW | 10000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|

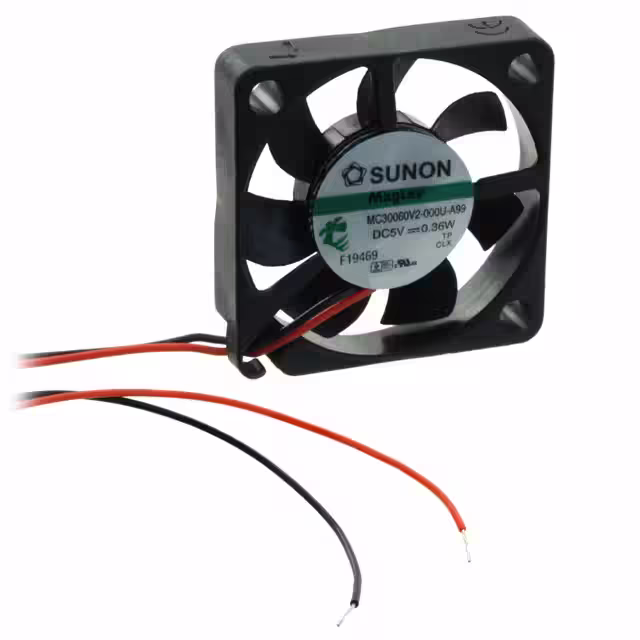

MC30060V2-000U-A99FAN AXIAL 30X6.9MM 5VDC WIRE |
3,413 | 0.00 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 30mm L x 30mm H | 6.90mm | 3.7 CFM (0.104m³/min) | 0.090 in H2O (22.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 24.0dB(A) | 360 mW | 7500 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.013 lb (5.9 g) |
|
MC30100V2-000U-A99FAN AXIAL 30X10MM VAPO 5VDC WIRE |
4,533 | 0.00 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.6 CFM (0.129m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 20.0dB(A) | 380 mW | 8000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.019 lb (8.62 g) |
|
GDA1225-12BBFAN AXIAL 120X25MM 12VDC WIRE |
3,427 | 0.00 |
|
Datasheet |
Gryphon | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 69.0 CFM (1.93m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.1dB(A) | 4.8 W | 2400 RPM | 3 Wire Leads | - | - | - | 0.362 lb (164.2 g) |
|
|
GDA1225-24BBFAN AXIAL 120X25MM 24VDC WIRE |
2,537 | 0.00 |
|
Datasheet |
Gryphon | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 69.0 CFM (1.93m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.1dB(A) | 8.4 W | 2400 RPM | 3 Wire Leads | - | - | - | 0.362 lb (164.2 g) |
|
|
EF92251B2-1000U-G9912VDC FAN 92X25MM ALARM |
1,405 | 0.00 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 1.08 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF92251B1-1000U-G9912VDC FAN 92X25MM ALARM |
2,413 | 0.00 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.3 CFM (1.44m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 1.5 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF92251B3-1000U-G9912VDC FAN 92X25MM ALARM |
2,849 | 0.00 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 0.75 W | 2400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

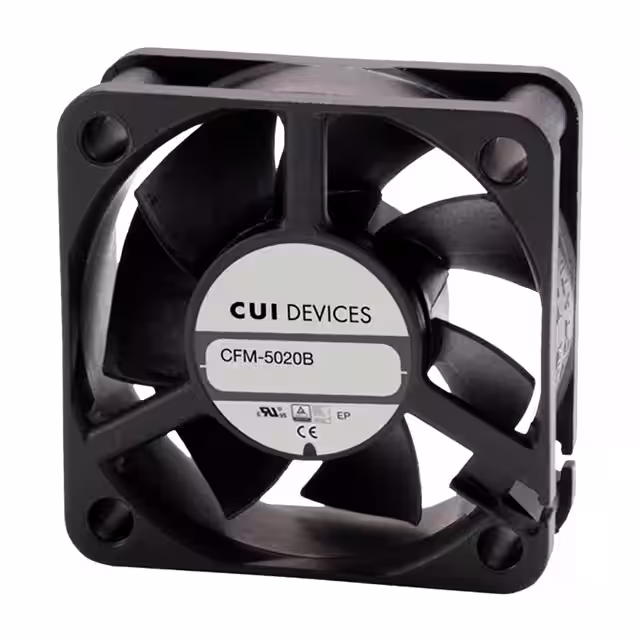

CFM-5020B-130-235-22FAN AXIAL 50X20MM 12VDC WIRE |
2,008 | 8.30 |
|
Datasheet |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 8.1 CFM (0.227m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 23.5dB(A) | 600 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-5015BF-175-423-22FAN AXIAL 50X15.5MM 12VDC WIRE |
4,495 | 8.30 |
|
Datasheet |
CFM-50BF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.50mm | 19.5 CFM (0.546m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 42.3dB(A) | 3.84 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5020B-145-323-22FAN AXIAL 50X20MM 12VDC WIRE |
3,452 | 8.30 |
|
Datasheet |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 12.1 CFM (0.338m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.3dB(A) | 1.44 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020BF-2110-381-22FAN AXIAL 40X20MM 24VDC WIRE |
2,776 | 8.30 |
|
Datasheet |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 13.8 CFM (0.386m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.1dB(A) | 2.88 W | 11000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
