DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0501524J2B-2T0FAN 50X15MM 24VDC |
3,042 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 9.9 CFM (0.277m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.44 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501524L2B-2T0FAN 50X15MM 24VDC |
1,142 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 12.2 CFM (0.342m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 1.68 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0502024J2B-2T0FAN 50X20MM 24VDC |
3,585 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 12.7 CFM (0.356m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 3.12 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501005L2B-2T0FAN 50X10MM 5VDC |
1,501 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 350 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501024L2B-2T0FAN 50X10MM 24VDC |
3,752 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 1.68 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501005J2B-2T0FAN 50X10MM 5VDC |
1,254 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 6.7 CFM (0.188m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 18.0dB(A) | 250 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
4513HQ/MH40201V3-C03A-E99FAN BLOWER 22.2MM 13VDC 6 PIN |
2,017 | 8.21 |
|
Datasheet |
MagLev® MH | Box | Active | 13VDC | - | 22.20mm | 0.706 CFM (0.020m³/min) | 0.020 in H2O (4.9 Pa) | Vapo-Bearing™ | Blower | Thermistor, External Circuit Required | 27.0dB(A) | 600 mW | 2700 RPM | 6 Pin | - | -40 ~ 221°F (-40 ~ 105°C) | CE | 0.035 lb (15.88 g) |
|
|
MF20080V1-1000U-Q995VDC FAN 20X8MM ALARM/PWM |
1,322 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.6 CFM (0.045m³/min) | 0.240 in H2O (59.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 23.0dB(A) | 0.45 W | 15000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF20080V2-1000U-Q995VDC FAN 20X8MM ALARM/PWM |
3,559 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.3 CFM (0.036m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 21.0dB(A) | 0.34 W | 12000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

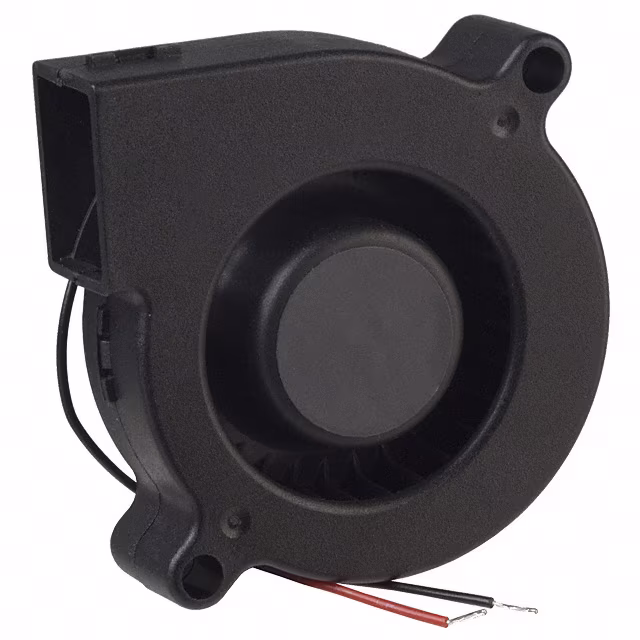

GB1205PHV3-8AY.GNFAN BLOWER 51.6X15MM 12VDC WIRE |
4,829 | 0.00 |
|
Datasheet |
MagLev® GB | Bulk | Obsolete | 12VDC | Square/Rounded - 51.6mm L x 51.6mm H | 15.00mm | 2.3 CFM (0.064m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Blower | - | 27.0dB(A) | 500 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.066 lb (29.94 g) |
|
|
GB1205PHV1-8AY.GNFAN BLOWER 51.6X15MM 12VDC WIRE |
4,470 | 0.00 |
|
Datasheet |
MagLev® GB | Bulk | Obsolete | 12VDC | Square/Rounded - 51.6mm L x 51.6mm H | 15.00mm | 4.0 CFM (0.112m³/min) | 0.670 in H2O (166.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Locked Rotor Protection | 39.8dB(A) | 1.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KDE0506PHV2.MS.A.GNFAN AXIAL 60X15MM VAPO 5VDC WIRE |
2,863 | 0.00 |
|
Datasheet |
MagLev® KDE | Bulk | Obsolete | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 31.0dB(A) | 900 mW | 3800 RPM | 2 Wire Leads | - | - | - | - |
|
|
KDE0506PHV3.MS.A.GNFAN AXIAL 60X15MM 5VDC |
3,904 | 0.00 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AFB0512MB-F00FAN AXIAL 50X15MM 12VDC WIRE |
1,934 | 7.66 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 12.4 CFM (0.347m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 960 mW | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
|
AFB0512HB-R00FAN AXIAL 50X15MM 12VDC WIRE |
4,958 | 7.66 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 1.2 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
|
AFB0524MB-R00FAN AXIAL 50X15MM 24VDC WIRE |
1,987 | 7.66 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 12.4 CFM (0.347m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.44 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
|
AFB0524HHB-F00FAN AXIAL 50X15MM 24VDC WIRE |
2,063 | 7.66 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 1.92 W | 6400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|

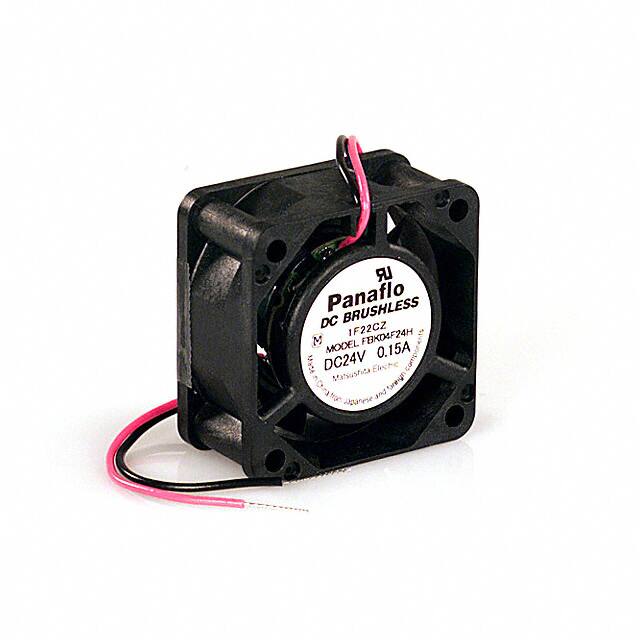

FBK04F24HFAN AXIAL 40X20MM 24VDC WIRE |
3,355 | 0.00 |
|
Datasheet |
FBK | - | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.7 CFM (0.188m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.21 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.088 lb (39.92 g) |
|
DC0601012M2B-2T0FAN AXIAL 60X10.5MM 12VDC WIRE |
1,585 | 7.28 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 2.04 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.089 lb (40.37 g) |
|
DC0602012H2B-2T0FAN AXIAL 60X20MM 12VDC WIRE |
4,863 | 7.28 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 18.1 CFM (0.507m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.56 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.111 lb (50.35 g) |
