DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EF92251B3-1000U-F9912VDC FAN 92X25MM TACH |
2,228 | 0.00 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.0dB(A) | 0.75 W | 2400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
CFM-9225C-120-269-22FAN AXIAL 92X25MM 12VDC WIRE |
4,392 | 8.44 |
|
Datasheet |
CFM-92C | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 33.4 CFM (0.935m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.9dB(A) | 1.08 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025C-225-290-22FAN AXIAL 80X25MM 24VDC WIRE |
2,278 | 8.44 |
|
Datasheet |
CFM-80C | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.9 CFM (0.865m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 29.0dB(A) | 1.92 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025C-230-330-22FAN AXIAL 80X25MM 24VDC WIRE |
1,216 | 8.44 |
|
Datasheet |
CFM-80C | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 33.0dB(A) | 2.64 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-5020B-160-385-22FAN AXIAL 50X20MM 12VDC WIRE |
2,243 | 8.44 |
|
Datasheet |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 16.2 CFM (0.454m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.5dB(A) | 2.4 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025C-235-364-22FAN AXIAL 80X25MM 24VDC WIRE |
2,571 | 8.44 |
|
Datasheet |
CFM-80C | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 43.3 CFM (1.21m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.4dB(A) | 3.6 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015BF-155-391-22DC BLOWER, 51.7 X 51.25 X 14.9 M |
1,126 | 0.00 |
|
Datasheet |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 39.2dB(A) | 1.8 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-4020B-160-367-22DC BLOWER, 40 MM SQUARE, 20 MM, |
4,919 | 0.00 |
|
Datasheet |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 20.00mm | 2.7 CFM (0.076m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.7dB(A) | 0.96 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MF17080V2-1000U-G995VDC FAN 17X8MM ALARM |
4,215 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.700 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 14.2dB(A) | 0.33 W | 16500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF17080V1-1000U-G995VDC FAN 17X8MM ALARM |
1,321 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.870 CFM (0.025m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.5dB(A) | 0.47 W | 21000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

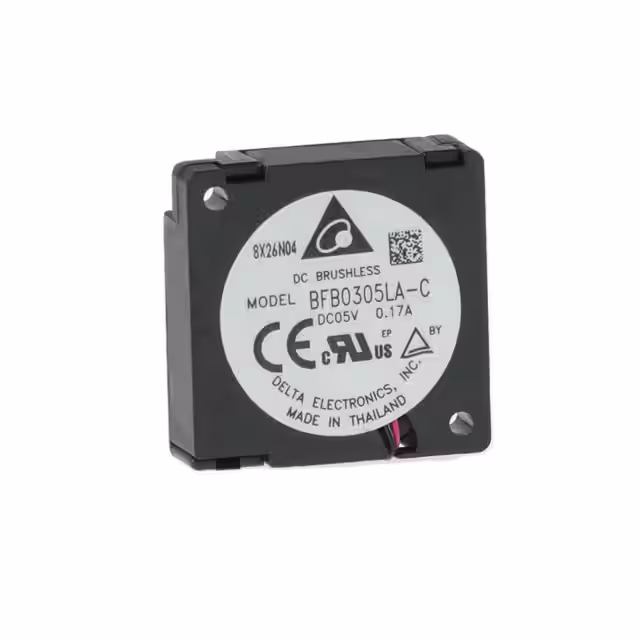

BFB0305LA-CFAN BLOWER 30X10MM 5VDC WIRE |
4,960 | 8.37 |
|
Datasheet |
BFB | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.1 CFM (0.031m³/min) | 0.144 in H2O (35.9 Pa) | Ball | Blower | Locked Rotor Protection | 24.0dB(A) | 450 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|
|
BFB0312LA-CFAN BLOWER 30X10MM 12VDC WIRE |
3,835 | 8.37 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 1.1 CFM (0.031m³/min) | 0.144 in H2O (35.9 Pa) | Ball | Blower | Locked Rotor Protection | 24.0dB(A) | 480 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|

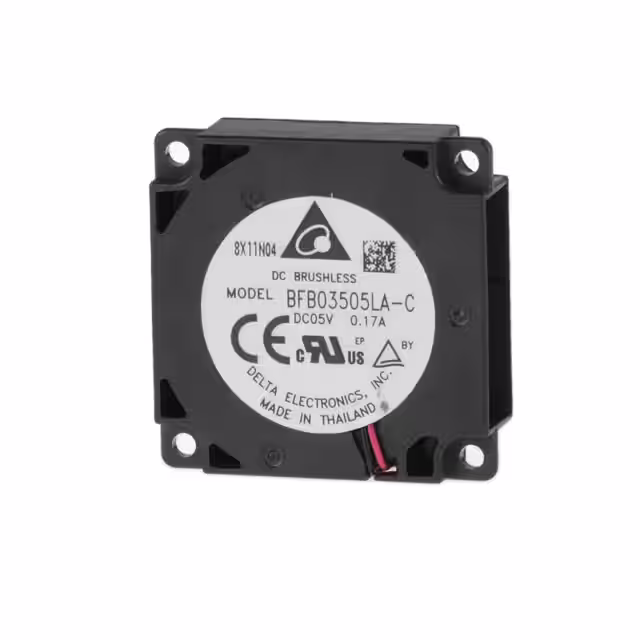

BFB03505LA-CFAN BLOWER 35X10MM 5VDC WIRE |
3,299 | 8.37 |
|
Datasheet |
BFB | Box | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.163 in H2O (40.6 Pa) | Ball | Blower | Locked Rotor Protection | 24.0dB(A) | 450 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|

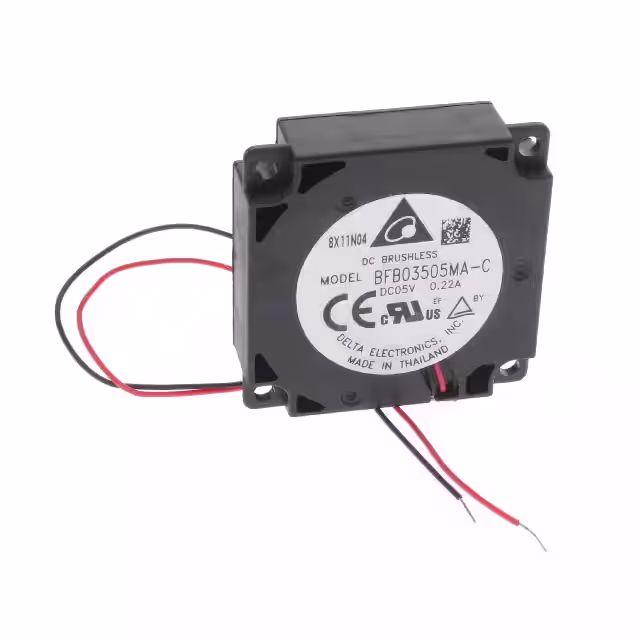

BFB03505MA-CFAN BLOWER 35X10MM 5VDC WIRE |
3,987 | 8.37 |
|
Datasheet |
BFB | Box | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Blower | Locked Rotor Protection | 26.0dB(A) | 600 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
|
CFM-4015B-1105-365-22DC AXIAL FAN, 40 MM SQUARE, 15 M |
1,042 | 0.00 |
|
Datasheet |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.10mm | 12.3 CFM (0.344m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.5dB(A) | 2.52 W | 10500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0802512I2B-2T0FAN AXIAL 80X25.4MM 12VDC WIRE |
4,246 | 7.79 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.4 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
|
04010SA-12L-ATD-0FAN AXIAL 40X10MM 12VDC WIRE |
1,106 | 0.00 |
|
- |
04010SA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.5dB | 480 mW | 5500 RPM | 3 Wire Leads | - | - | - | - |
|
|
04010SA-12L-ALD-0FAN AXIAL 40X10MM 12VDC WIRE |
3,792 | 0.00 |
|
- |
04010SA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.5dB | 480 mW | 5500 RPM | 3 Wire Leads | - | - | - | - |
|
|
04010SA-05L-ALD-0FAN AXIAL 40X10MM BALL 5VDC WIRE |
2,645 | 0.00 |
|
- |
04010SA | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.5dB | 400 mW | 5500 RPM | 3 Wire Leads | - | - | - | - |
|
|
04010SA-05M-ATD-0FAN AXIAL 40X10MM BALL 5VDC WIRE |
4,848 | 0.00 |
|
- |
04010SA | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.6 CFM (0.157m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.5dB | 700 mW | 6500 RPM | 3 Wire Leads | - | - | - | - |
