DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-A225C-018-327-22FAN AXIAL 120X25.4MM 5VDC WIRE |
2,664 | 8.44 |
|
Datasheet |
CFM-120C | Box | Active | 5VDC | Square - 120mm L x 120mm H | 25.40mm | 62.9 CFM (1.76m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.8dB(A) | 2.25 W | 1800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225C-115-287-22FAN AXIAL 120X25.4MM 12VDC WIRE |
1,135 | 8.44 |
|
Datasheet |
CFM-120C | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 24.8dB(A) | 2.76 W | 1500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
.GN.jpg)
|

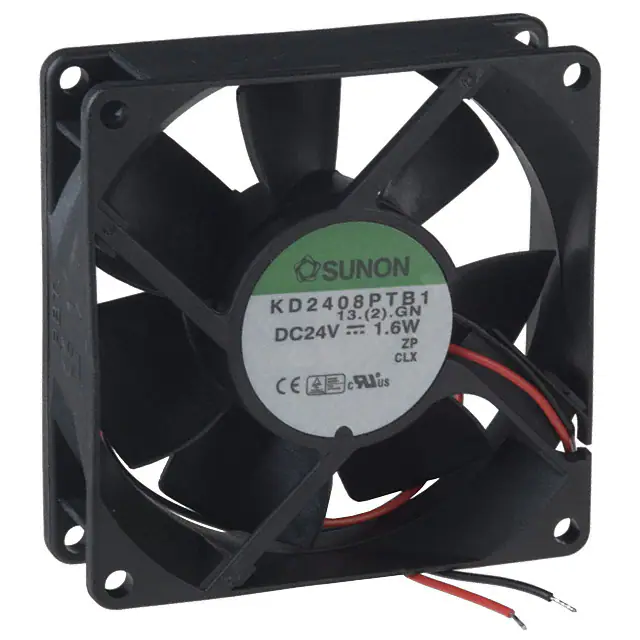

KD2408PTB1.13.(2).GNFAN AXIAL 80X25MM 24VDC WIRE |
4,682 | 0.00 |
|
Datasheet |
KD | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 1.8 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.183 lb (83.01 g) |
|
KD1204PKB1.(2).GNFAN AXIAL 40X20MM 12VDC WIRE |
3,005 | 0.00 |
|
Datasheet |
KD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 26.5dB(A) | 1 W | 7200 RPM | 2 Wire Leads | - | - | - | - |
|
|
KD1204PKB2.(2).GNFAN AXIAL 40X20MM 12VDC WIRE |
3,982 | 0.00 |
|
Datasheet |
KD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (40.0 Pa) | Ball | Tubeaxial | - | 22.0dB(A) | 700 mW | 6200 RPM | 2 Wire Leads | - | - | - | - |
|
|
KD1204PKB3.(2).GNFAN AXIAL 40X20MM 12VDC WIRE |
1,893 | 0.00 |
|
Datasheet |
KD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 19.0dB(A) | 500 mW | 5200 RPM | 2 Wire Leads | - | - | - | - |
|
|
KD2409PTB1.13.(2).GNFAN AXIAL 92X25MM 24VDC WIRE |
4,520 | 0.00 |
|
Datasheet |
KD | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
MF20100V2-1000U-Q995VDC FAN 20X10MM ALARM/PWM |
3,920 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 20.0dB(A) | 0.4 W | 14000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF20100V1-1000U-Q995VDC FAN 20X10MM ALARM/PWM |
1,043 | 0.00 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 25.0dB(A) | 0.53 W | 16500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
BFB0305LA-CR00FAN BLOWER 30X10MM 5VDC WIRE |
4,453 | 8.36 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.1 CFM (0.031m³/min) | 0.144 in H2O (35.9 Pa) | Ball | Blower | Locked Rotor Sensor | 24.0dB(A) | 450 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|
|
BFB0305MA-CR00FAN BLOWER 30X10MM 5VDC WIRE |
2,139 | 8.36 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.206 in H2O (51.3 Pa) | Ball | Blower | Locked Rotor Sensor | 26.0dB(A) | 600 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|
|
BFB03505HHA-CF00FAN BLOWER 35X10MM 5VDC WIRE |
4,336 | 8.36 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.15 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
|
BFB03512HHA-CR00FAN BLOWER 35X10MM 12VDC WIRE |
2,265 | 11.41 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | Blower | Locked Rotor Sensor | 31.0dB(A) | 1.32 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
|
BFB03505HA-CF00FAN BLOWER 35X10MM 5VDC WIRE |
1,316 | 8.36 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 650 mW | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
(8020CF).jpg)
|
CFM-8020CF-245-401-22FAN AXIAL 80X20MM 24VDC WIRE |
2,784 | 8.44 |
|
Datasheet |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.240 in H2O (59.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.2dB(A) | 4.32 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
6025BF).jpg)
|
CFM-6015BF-245-332-22FAN AXIAL 60X15.5MM 24VDC WIRE |
4,974 | 8.44 |
|
Datasheet |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 19.8 CFM (0.554m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 33.2dB(A) | 2.16 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6015BF-235-278-22FAN AXIAL 60X15.5MM 24VDC WIRE |
3,518 | 8.44 |
|
Datasheet |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 15.4 CFM (0.431m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.8dB(A) | 1.44 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6015BF-225-204-22FAN AXIAL 60X15.5MM 24VDC WIRE |
1,667 | 8.44 |
|
Datasheet |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 11.0 CFM (0.308m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.5dB(A) | 960 mW | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EF92251B1-1000U-F9912VDC FAN 92X25MM TACH |
4,783 | 0.00 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.3 CFM (1.44m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB(A) | 1.5 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF92251B2-1000U-F9912VDC FAN 92X25MM TACH |
1,915 | 0.00 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.0dB(A) | 1.08 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
