DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-9225V-342-440-20FAN AXIAL 92X25MM 48VDC WIRE |
4,298 | 0.00 |
|
Datasheet |
CFM-92V | Tray | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | 6 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.227 lb (102.97 g) |
|
|
CFM-9225V-345-460-20FAN AXIAL 92X25MM 48VDC WIRE |
3,414 | 0.00 |
|
Datasheet |
CFM-92V | Tray | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.0dB(A) | 6.92 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.227 lb (102.97 g) |
|

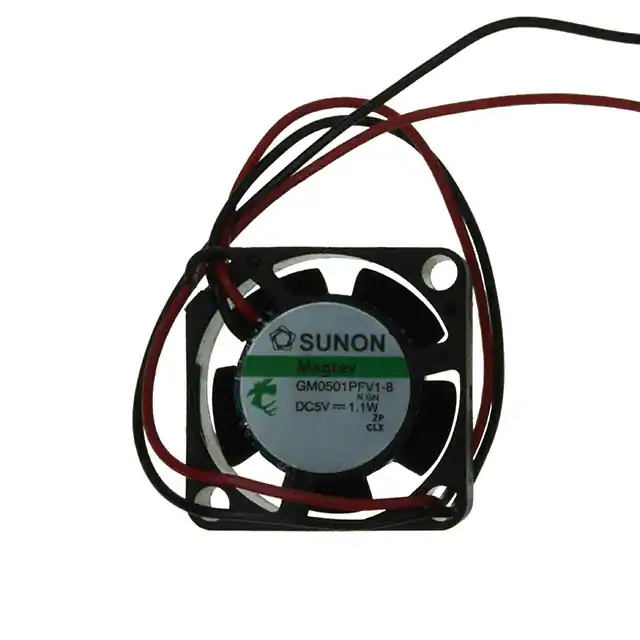

GM0501PFV1-8.N.GNFAN AXIAL 20X10MM VAPO 5VDC WIRE |
3,177 | 0.00 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | - | 25.0dB(A) | 1.1 W | 17000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.012 lb (5.44 g) |
|
08020SA-24N-AT-00DC AXIAL FAN |
4,642 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
08020SA-24N-ET-00DC AXIAL FAN |
4,678 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CFM-A225SG-115-281-22DC AXIAL FAN, 120 MM SQUARE, 25 |
4,468 | 0.00 |
|
Datasheet |
CFM-A2SG | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 51.8 CFM (1.45m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.7dB(A) | 1.44 W | 1500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
AFB0624HCFAN AXIAL 60X13MM 24VDC WIRE |
3,304 | 9.20 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 13.00mm | 21.2 CFM (0.594m³/min) | 0.163 in H2O (40.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.5dB(A) | 1.68 W | 4200 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
|
AFB0624HHCFAN AXIAL 60X13MM 24VDC WIRE |
2,119 | 9.20 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 13.00mm | 24.7 CFM (0.692m³/min) | 0.204 in H2O (51.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.16 W | 4800 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
|
DC0702512U2B-BT4FAN 70X25MM 12VDC PWM/TACH MOLEX |
3,682 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 1.92 W | 5500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0702524M2B-BT4FAN 70X25MM 24VDC PWM/TACH MOLEX |
3,054 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.00mm | 35.6 CFM (0.997m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 2.16 W | 3600 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0702512H2B-BT4FAN 70X25MM 12VDC PWM/TACH MOLEX |
3,226 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 1.56 W | 4000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0702548U2B-2T2FAN 70X25MM 48VDC MOLEX 22-01-10 |
1,968 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 12.96 W | 5500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
08020SA-12J-AL-00FAN AXIAL 80X20MM 12VDC WIRE |
3,161 | 9.94 |
|
Datasheet |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 27.0dB | 600 mW | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
|
08020SA-12K-AL-00FAN AXIAL 80X20MM 12VDC WIRE |
4,904 | 9.94 |
|
Datasheet |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 31.1 CFM (0.871m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB | 840 mW | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
|
08020SA-12K-AT-00FAN AXIAL 80X20MM 12VDC WIRE |
2,037 | 9.94 |
|
Datasheet |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 31.1 CFM (0.871m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB | 840 mW | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
|
08020SA-12L-AL-00FAN AXIAL 80X20MM 12VDC WIRE |
2,472 | 9.94 |
|
Datasheet |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 36.0 CFM (1.01m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB | 1.08 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
|
08020SA-12L-AT-00FAN AXIAL 80X20MM 12VDC WIRE |
1,252 | 9.94 |
|
Datasheet |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 36.0 CFM (1.01m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB | 1.08 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
|
08020SA-24M-AL-00FAN AXIAL 80X20MM 24VDC WIRE |
1,841 | 9.94 |
|
- |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 39.9 CFM (1.12m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 37.5dB(A) | 2.16 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-12M-EL-00FAN AXIAL 80X20MM 12VDC WIRE |
4,452 | 9.94 |
|
- |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 39.9 CFM (1.12m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 37.5dB(A) | 1.56 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-24K-AL-00FAN AXIAL 80X20MM 24VDC WIRE |
3,737 | 9.94 |
|
- |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 31.1 CFM (0.871m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 31.0dB(A) | 1.44 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
