DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0702548L2B-3T3FAN 70X25MM 48VDC TACH MOLEX 22- |
2,337 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 30.0 CFM (0.840m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 3.36 W | 3000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0701524L2B-3T3FAN 70X15MM 24VDC TACH MOLEX 22- |
2,777 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 25.7 CFM (0.720m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.88 W | 3300 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802024L2B-3T3FAN 80X20MM 24VDC TACH MOLEX 22- |
1,877 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 31.2 CFM (0.874m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 3.84 W | 2700 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802024J2B-3T3FAN 80X20MM 24VDC TACH MOLEX 22- |
4,053 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 27.4 CFM (0.767m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 3.12 W | 2400 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802024M2B-3T3FAN 80X20MM 24VDC TACH MOLEX 22- |
1,633 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 36.6 CFM (1.03m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 4.32 W | 3100 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

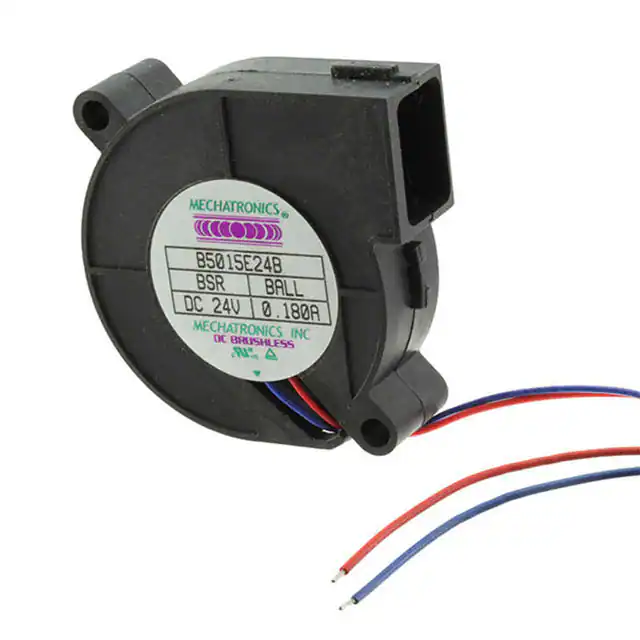

B5015H24B-BSR-CCFAN BLOWER 51X15.7MM 24VDC WIRE |
3,009 | 9.89 |
|
Datasheet |
B5015 | Bulk | Active | 24VDC | Square/Rounded - 51mm L x 51mm H | 15.70mm | 4.0 CFM (0.112m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 40.0dB(A) | - | 5500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
B5015H12B-BSR-CCFAN BLOWER 51X15.7MM 12VDC WIRE |
1,147 | 8.99 |
|
Datasheet |
B5015 | Box | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.70mm | 4.0 CFM (0.112m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 40.0dB(A) | - | 5500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.055 lb (24.95 g) |
|
B5015E12B-BSR-CCFAN BLOWER 51X15.7MM 12VDC WIRE |
3,707 | 8.99 |
|
Datasheet |
B5015 | Box | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.70mm | 5.0 CFM (0.140m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 45.0dB(A) | - | 6500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.055 lb (24.95 g) |
|
CFM-4028BG-1130-475FAN AXIAL 40X28MM 12VDC WIRE |
2,096 | 10.18 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.9 CFM (0.445m³/min) | 1.030 in H2O (256.6 Pa) | Ball | Tubeaxial | Auto Restart | 47.5dB(A) | 4.68 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4028BG-1160-520FAN AXIAL 40X28MM 12VDC WIRE |
2,360 | 10.18 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 19.5 CFM (0.546m³/min) | 1.560 in H2O (388.6 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB(A) | 6.48 W | 16000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4028BG-1100-418FAN AXIAL 40X28MM 12VDC WIRE |
4,510 | 10.18 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 12.2 CFM (0.342m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Auto Restart | 41.8dB(A) | 3.6 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0802012U2B-BT4FAN 80X20MM 12VDC PWM/TACH MOLEX |
2,473 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 51.2 CFM (1.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.6 W | 4300 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0802012H2B-BT4FAN 80X20MM 12VDC PWM/TACH MOLEX |
1,834 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 40.2 CFM (1.13m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 2.88 W | 3400 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0351012W2B-3T0FAN AXIAL 35X10MM 12VDC WIRE |
4,753 | 9.03 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 840 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
|
DC0351005W2B-2T0FAN 35X10MM 5VDC |
1,262 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 540 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0801524J2B-BT4FAN 80X15MM 24VDC PWM/TACH MOLEX |
3,050 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.0dB(A) | 1.44 W | 2400 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0801524L2B-BT4FAN 80X15MM 24VDC PWM/TACH MOLEX |
2,466 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 30.0dB(A) | 2.4 W | 2700 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0801524M2B-BT4FAN 80X15MM 24VDC PWM/TACH MOLEX |
2,180 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 2.88 W | 3100 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
AFB0824SHB-R00FAN AXIAL 80X15MM 24VDC WIRE |
2,503 | 8.92 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 42.7 CFM (1.20m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.5dB(A) | 4.08 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
|
AFB0805H-F00FAN AXIAL 80X25.4MM 5VDC WIRE |
4,973 | 8.92 |
|
Datasheet |
AFB | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 25.40mm | 35.3 CFM (0.988m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.15 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
