DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

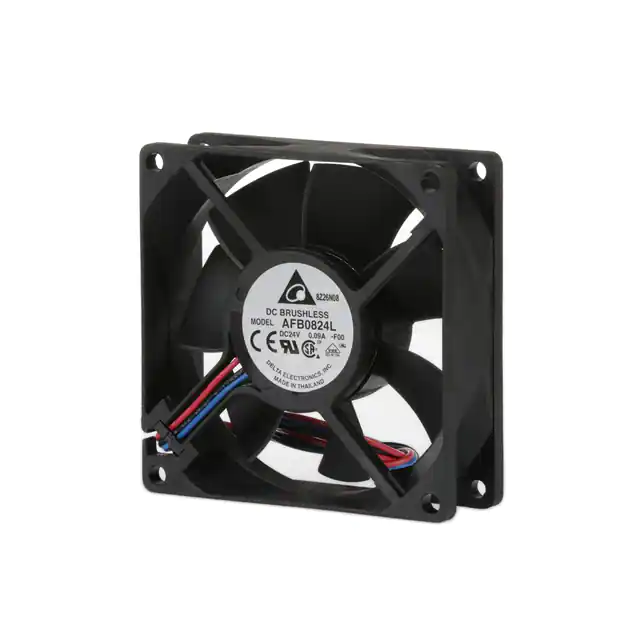

AFB0824L-F00FAN AXIAL 80X25.4MM 24VDC WIRE |
4,513 | 14.02 |
|
Datasheet |
AFB | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 27.9 CFM (0.781m³/min) | 0.102 in H2O (25.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 1.2 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
OD4028-24HBFAN AXIAL 40X28MM 24VDC WIRE |
3,366 | 9.65 |
|
Datasheet |
OD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 12.0 CFM (0.336m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | - | 37.0dB | - | 8800 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
OD4028-24LBFAN AXIAL 40X28MM 24VDC WIRE |
2,289 | 9.65 |
|
Datasheet |
OD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 7.0 CFM (0.196m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 25.0dB | - | 5000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
OD4028-24MBFAN AXIAL 40X28MM 24VDC WIRE |
4,347 | 9.65 |
|
Datasheet |
OD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 11.0 CFM (0.308m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | 35.0dB | - | 8000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
07530GS-24N-ATD-0FAN 24VDC 75X30MM |
1,869 | 0.00 |
|
Datasheet |
07530GS | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 15.2 CFM (0.430m³/min) | 0.787 in H2O (196.0 Pa) | Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 45.5dB(A) | 2.64 W | 3650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
07530GS-12N-ATD-0FAN 12VDC 75X30MM |
3,306 | 0.00 |
|
Datasheet |
07530GS | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 15.2 CFM (0.430m³/min) | 0.787 in H2O (196.0 Pa) | Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 45.5dB(A) | 3.96 W | 3650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
OD4028-24HHBThermal Products |
1,921 | 0.00 |
|
- |
OD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 24.0 CFM (0.672m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Tubeaxial | Auto Restart | 54.2dB(A) | 4.1 W | 12900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
G9225M24B-FSFAN AXIAL 92X25MM 24VDC WIRE |
2,689 | 10.61 |
|
Datasheet |
G9225 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 42.0 CFM (1.18m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.19 lb (86.18 g) |
|
G9232X24B-FSFAN AXIAL 92X32MM 24VDC WIRE |
2,681 | 10.61 |
|
Datasheet |
G9232 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 68.0 CFM (1.90m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
AFB0605LDFAN AXIAL 60X20MM BALL 5VDC WIRE |
4,341 | 8.94 |
|
Datasheet |
AFB | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 20.00mm | 13.1 CFM (0.367m³/min) | 0.119 in H2O (29.6 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 700 mW | 3200 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.137 lb (62.14 g) |
|
|
AFB0605MDFAN AXIAL 60X20MM BALL 5VDC WIRE |
4,662 | 8.94 |
|
Datasheet |
AFB | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.151 in H2O (37.7 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | 900 mW | 3600 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.137 lb (62.14 g) |
|
|
AFB0612MDFAN AXIAL 60X20MM 12VDC WIRE |
1,289 | 8.94 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.151 in H2O (37.7 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | 1.08 W | 3600 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.137 lb (62.14 g) |
|
|
AFB0612LDFAN AXIAL 60X20MM 12VDC WIRE |
3,457 | 8.94 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 13.1 CFM (0.367m³/min) | 0.119 in H2O (29.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 840 mW | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.137 lb (62.14 g) |
|
|
DC0802548L2B-2T2FAN 80X25MM 48VDC MOLEX 22-01-10 |
4,421 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 9.6 W | 4500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802512L2B-BT4FAN 80X25MM 12VDC PWM/TACH MOLEX |
2,732 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 42.0dB(A) | 4.8 W | 4500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0802512M2B-BT4FAN 80X25MM 12VDC PWM/TACH MOLEX |
3,399 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 7.8 W | 5000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0802548M2B-2T2FAN 80X25MM 48VDC MOLEX 22-01-10 |
3,799 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 12 W | 5000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802512I2B-BT4FAN 80X25MM 12VDC PWM/TACH MOLEX |
3,799 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 2.4 W | 3500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0802548I2B-2T2FAN 80X25MM 48VDC MOLEX 22-01-10 |
2,599 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 6.24 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
AFB0612SHD-AFAN AXIAL 60X20MM 12VDC WIRE |
4,598 | 10.02 |
|
Datasheet |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 32.2 CFM (0.902m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 3.36 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.124 lb (56.25 g) |
