DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
08020SA-24N-AL-00FAN AXIAL 80X20MM 24VDC WIRE |
4,141 | 10.79 |
|
- |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 42.4 CFM (1.19m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 40.5dB(A) | 2.4 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-12K-EL-00FAN AXIAL 80X20MM 12VDC WIRE |
4,089 | 10.79 |
|
- |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 31.1 CFM (0.871m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 31.0dB(A) | 840 mW | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-24L-EL-00FAN AXIAL 80X20MM 24VDC WIRE |
3,024 | 10.79 |
|
- |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 36.0 CFM (1.01m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB(A) | 1.68 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-24L-ET-00FAN AXIAL 80X20MM 24VDC WIRE |
1,853 | 10.79 |
|
- |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 36.0 CFM (1.01m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 1.68 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-12L-EL-00FAN AXIAL 80X20MM 12VDC WIRE |
3,194 | 10.79 |
|
- |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 36.0 CFM (1.01m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB(A) | 1.08 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-24K-EL-00FAN AXIAL 80X20MM 24VDC WIRE |
1,412 | 10.79 |
|
- |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 31.1 CFM (0.871m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 31.0dB(A) | 1.44 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-12J-EL-00FAN AXIAL 80X20MM 12VDC WIRE |
4,479 | 10.79 |
|
- |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.0dB(A) | 600 mW | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-24K-AT-00FAN AXIAL 80X20MM 24VDC WIRE |
1,160 | 10.79 |
|
- |
08020SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 31.1 CFM (0.871m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.0dB | 1.44 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-24M-AT-00FAN AXIAL 80X20MM 24VDC WIRE |
3,364 | 10.79 |
|
- |
08020SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 39.9 CFM (1.12m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.5dB | 2.16 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-24L-AT-00FAN AXIAL 80X20MM 24VDC WIRE |
4,341 | 10.79 |
|
- |
08020SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 36.0 CFM (1.01m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB | 1.68 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-24J-AT-00FAN AXIAL 80X20MM 24VDC WIRE |
2,612 | 10.79 |
|
- |
08020SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.0dB | 1.2 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-12J-ET-00FAN AXIAL 80X20MM 12VDC WIRE |
3,039 | 0.00 |
|
- |
08020SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.0dB | 600 mW | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-24K-ET-00FAN AXIAL 80X20MM 24VDC WIRE |
2,359 | 0.00 |
|
- |
08020SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 31.1 CFM (0.871m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.0dB | 1.4 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
109R0824M402FAN AXIAL 80X25MM 24VDC WIRE |
1,678 | 13.38 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 1.2 W | 2350 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
F6025H12B1-FHR-CCFAN AXIAL 60X25MM 12VDC WIRE |
4,316 | 10.71 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.0dB(A) | - | 4200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
F6025H12B1-RHR-CCFAN AXIAL 60X25MM 12VDC WIRE |
3,544 | 10.71 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.0dB(A) | - | 4200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
F6025H12B2-RSR-CCFAN AXIAL 60X25MM 12VDC WIRE |
3,773 | 9.81 |
|
Datasheet |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Sensor | 31.0dB(A) | - | 3800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
F6025X24B-FHR-CC-GBFAN AXIAL 60X25MM 24VDC WIRE |
3,234 | 11.53 |
|
Datasheet |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|

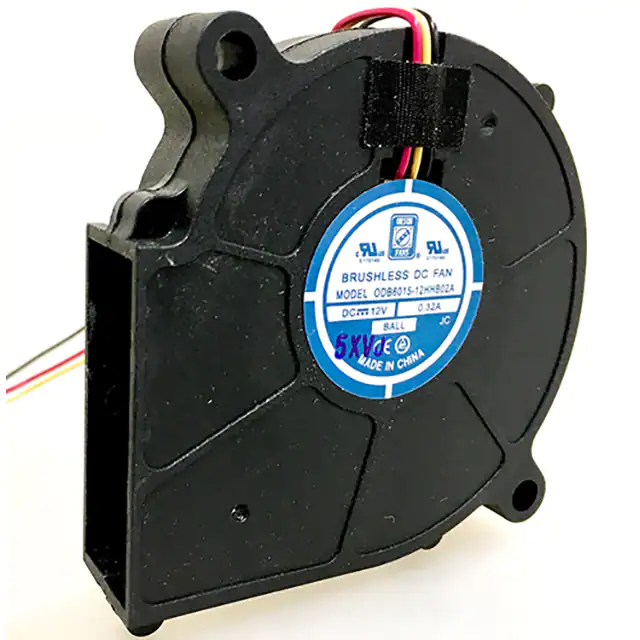

ODB6015-12HHB01AFAN BLOWER 57.25X15.2MM 12VDC |
3,850 | 10.82 |
|
Datasheet |
ODB6015 | Box | Active | 12VDC | Rectangular/Rounded - 57.25mm L x 50.37mm H | 15.20mm | 7.5 CFM (0.210m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 44.0dB | 3.84 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
DC0602524L2B-2T2FAN 60X25MM 24VDC MOLEX 22-01-10 |
4,550 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 2.88 W | 3600 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
